Idra OL 700 PPR
New 1996 - Only 150,000 Cycles (from storage)
Click here for more information


Technical Specifications:	(View in Metric)
Clamping Force:	847 US Tons
Maximum Die Thickness:	35.4 Inches
Minimum Die Thickness:	15.7 Inches
Platen Dimensions (horizontal x vertical)	50.10 x 50.10 inches
Clearance between tie bars:	30.70 inches
Tie Bar Diameter:	6.50 inches

Features and Accessories:

Automatic Tie Bar Pulling - Top Operator Side

Fully Proportional Shot Control System

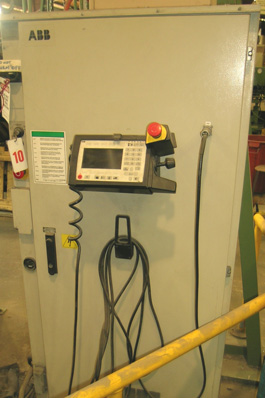

ABB IRB 4400-F Six Axis Robotic Spraying & Extractor

Two Core Circuits

Machine Safety Guards and Doors

Hydrauilc Bumper Plate Ejection System

Striko Model HD 750/600R Dosing Furnace
