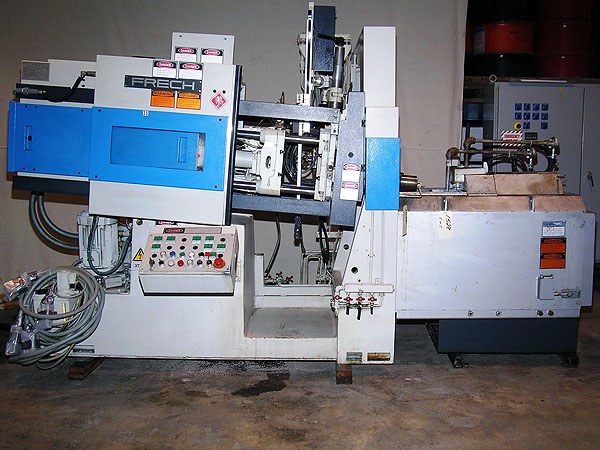

Frech DAW 20 S DCRC - New 2001
Two (2) Available
Click here for more information

Technical Specifications:	(View in U.S. Standard)
Clamping Force:	240 kN
Maximum Die Thickness:	300 mm
Minimum Die Thickness:	120 mm
Platen Dimensions (horizontal x vertical)	380 x 385 mm
Clearance between tie bars:	250 mm
Tie Bar Diameter:	45 mm
Closing Stroke:	105 mm
Maximum Injection Force:	40 kN
Injection Plunger Diameter:	36, 40, 45 mm
Casting Volume:	39, 56, 79 cm3
Maximum Ejector Force:	30 kN
Maximum Ejector Stroke:	50 mm
Dry Cycles per Hour (DIN 24480)	2,000

Features and Accessories:

Frech Real-Time Shot Control

Automatic Die Height Adjustment

Axillary Core Circuits

Frech Servo Controlled Die Spray System

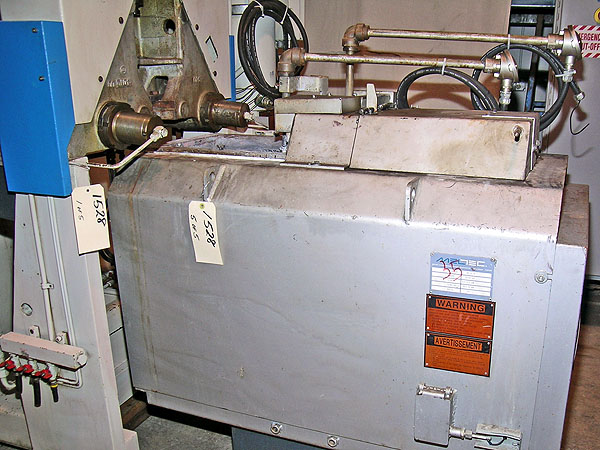

MelTec two chamber electric melting furnace

CE Certified
