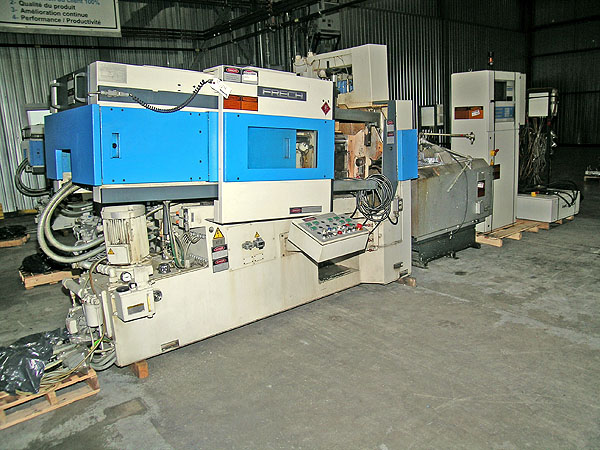

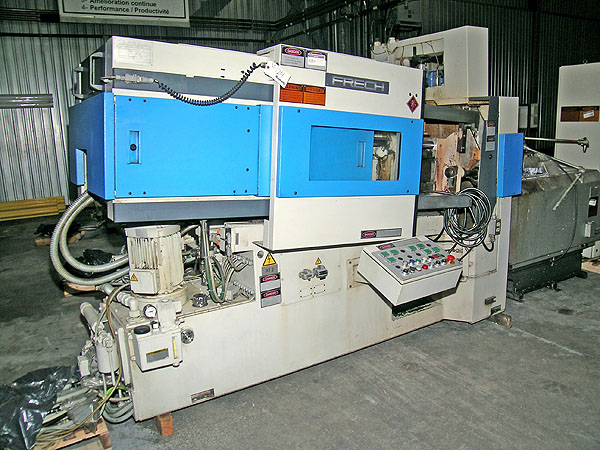

Frech DAW 50 S DCRC - New 2001
Click here for more information

Technical Specifications:	(View in U.S. Standard)
Clamping Force:	600 kN
Maximum Die Thickness:	350 mm
Minimum Die Thickness:	120 mm
Platen Dimensions (horizontal x vertical)	460 x 460 mm
Clearance between tie bars:	300 mm
Tie Bar Diameter:	56 mm
Closing Stroke:	150 mm
Maximum Injection Force:	55 kN
Injection Plunger Diameter:	45, 50, 55 mm
Casting Volume:	76, 121, 165 cm3
Maximum Ejector Force:	40 kN
Maximum Ejector Stroke:	70 mm
Dry Cycles per Hour (DIN 24480)	1,300

Features and Accessories:

Frech Real-Time Shot Control

Automatic Die Height Adjustment

Axillary Core Circuits

Frech Servo Controlled Die Spray System

MelTec two chamber electric melting furnace

CE Certified
