Specifications:
Machine Model:	OL 1100 PRP
Locking Force:	1240 Metric Tons
Injection Force:	108.09 Metric Tons
Ejection Force:	48.95 Metric Tons
Die Thickness (minimum - maximum):	450 - 1000 mm
Clearance Between Tie Bars:	1000 x 1000 mm
Moving Platen Stroke:	1070 mm
Machine Weight:	57.6 Metric Tons
Machine Size:	9440 x 2640 x 4245 mm

Each Cell Includes:

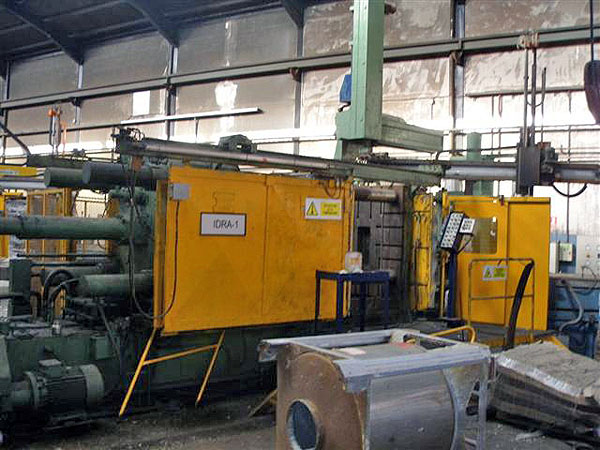

Idra OL 1100 Cold Chamber Die Cast Machine (New 1991)

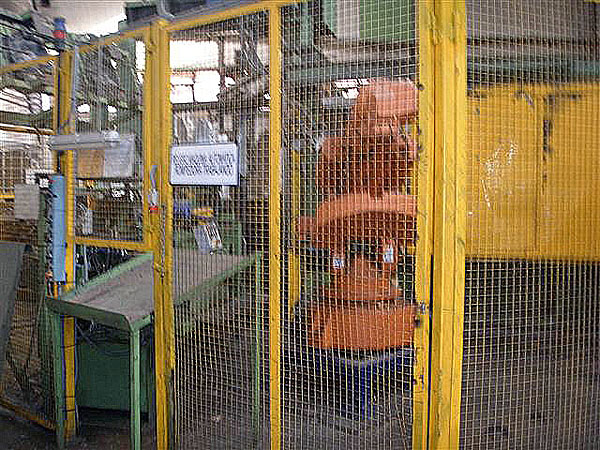

ABB IRB 6400 F/L Foundry Grade Robot

Acheson DAG 1000 Die Spraying Machine (New 1993)

Tecnopresse CMT2 Linear Loading System (New 2007)

Tecnofusione Thermos 2000 kg Furnace (New 2007)

Tiesse Foundry Grade Interlocking Station Robot (New 2007)
