Used Weingarten Model: GDK500 5800 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Weingarten

Model: GDK500

Size: 5800 kN

Inventory Number: DCM-2155

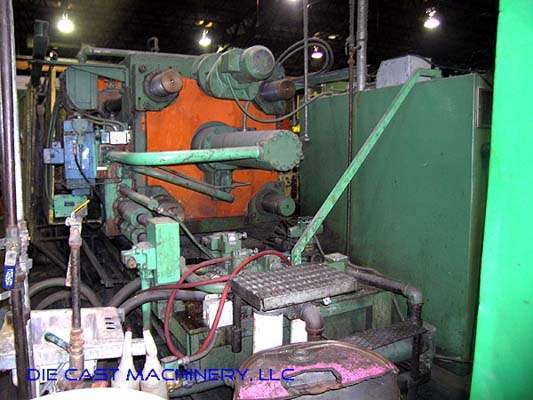

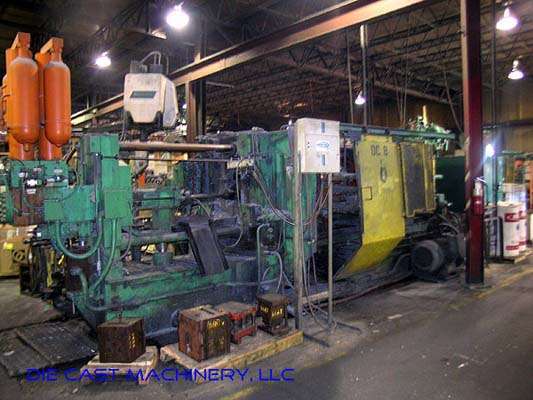

Used Weingarten Model: GDK500 5800 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

Click above for larger image

Features & Accessories:

  • Allen Bradley Controls

Item Specifications for DCM-2155

Specifications
Clamping Force
650 tons
Platen Size (horizontal x vertical)
42.3 x 42.3 inches
Distance Between Tie Bars (horizontal x vertical)
26.6 x 26.6 inches
Tie Bar Diameter
5.5 inches
Closing Stroke (maximum)
26.6 inches
Die Height (maximum - minimum)
30.7 - 12.8 inches
Injection Force (maximum)
54 tons
Injection Positions
-1.20, -5.90, and -10.6
Machine Weight
24 tons

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Weingarten Model GDK500 5800 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley Controls Allen Bradley controls, second Hand, DCM-2155


See jumbo large photos of this Weingarten GDK500
