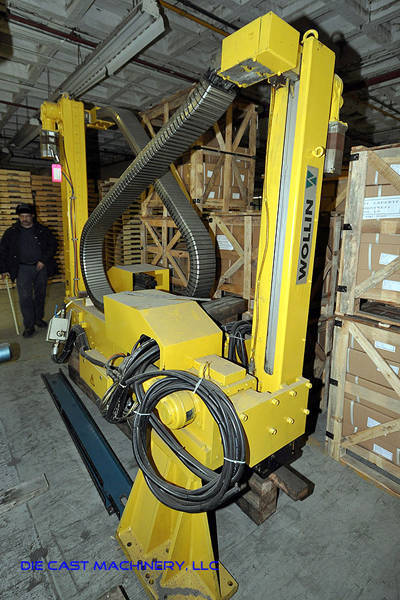

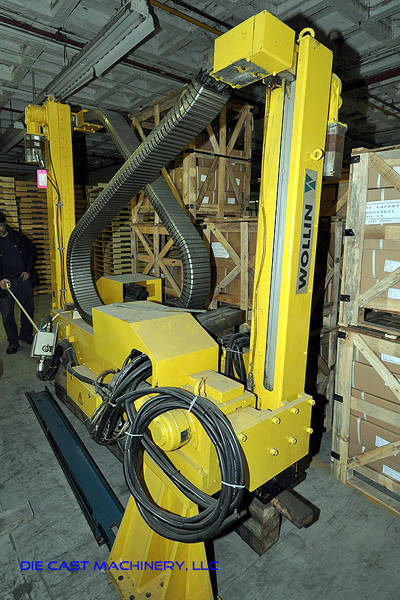

Used Wollin Model: PSM-336 1600 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Wollin
Model: PSM-336
Size: 1600 mm
Inventory Number: DCM-2508
Used Wollin Model: PSM-336 1600 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations.
View Available Die Sprayers
Features & Accessories:

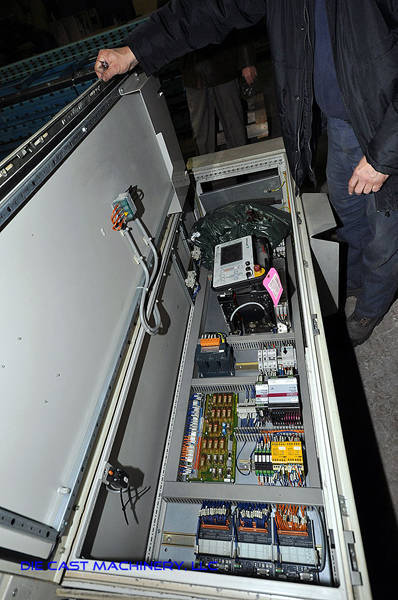

- Wollin PC 1 Controls
- Absolute Positioning
- Easily Programed via Teach Pendant Programing
- Quick Set up times due to design
Item Specifications for DCM-2508
| Specifications | |
|---|---|
| Device Type: |
PSM 336
|
| Controls: |
PC 1
|
| Horizontal Axis Movement: |
63 Inches
|
| Vertical Axis Movement: |
63 Inches
|
| Axis Drive Type: |
AC-Servo
|
| Velocity: |
.039 - 78 feet/second
|
| Maximum Spray Tool Weight |
176 pounds
|
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Wollin Model PSM-336 1600 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Wollin PC 1 Controls, Absolute Positioning, Easily Programed via Teach Pendant Programing, Quick Set up times due to design, PC-1 controls, second Hand, DCM-2508
See jumbo large photos of this Wollin PSM-336
