Cold Chamber Die Casting Machines Model DC 500 C One (1) Used Toshiba 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 3011 Condition: Used Sold Toshiba - DC 500 C 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba Controls used 1
Die Cast Machinery, LLC Inventory number: 3011
We offer for sale, subject to prior sale and the terms listed below:

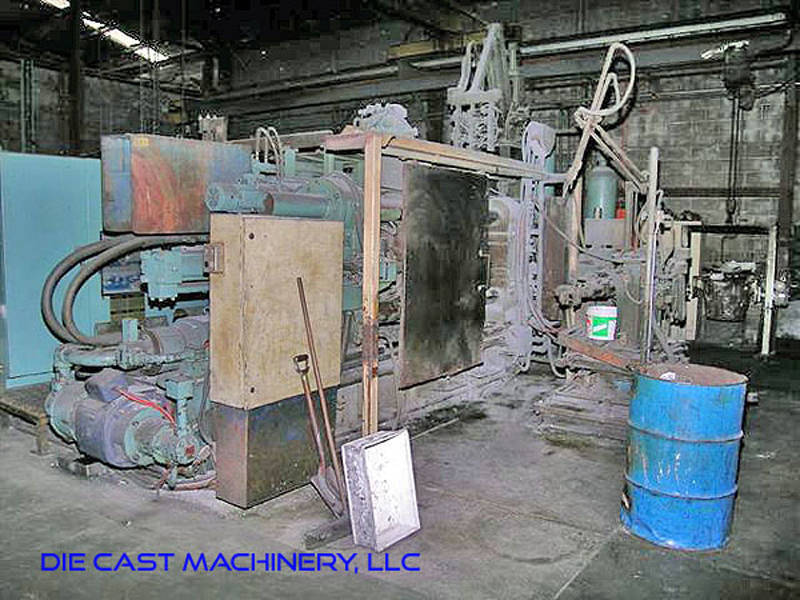

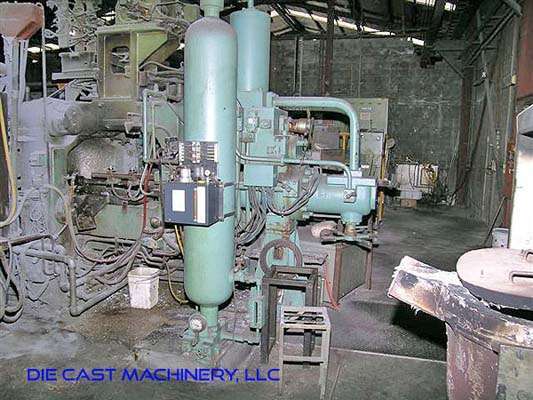

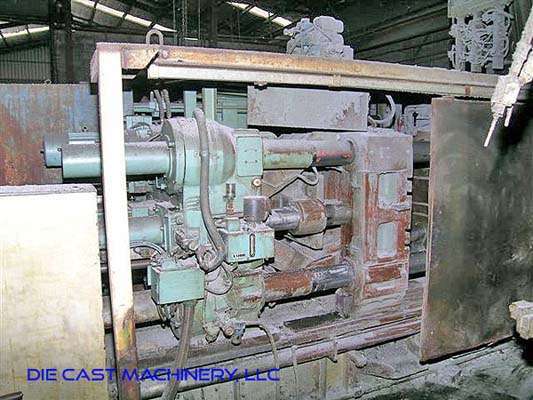

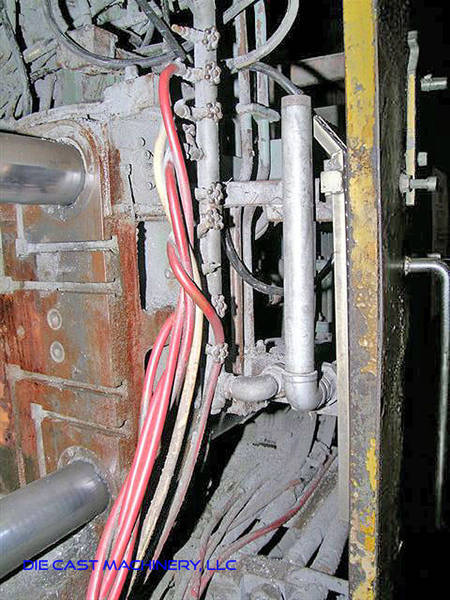

One (1) Used Toshiba 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model DC 500 C

Status: Sold
Specifications: Metric / U.S. Standard
Rated Tonnage: 500 tons / 550 tons
Tie Bar Diameter: 150 mm / 5.90 inches
Clearance between Tie Bars: 650 x 650 mm / 25.625 x 25.625 inches
Die Thickness (minimum - maximum): 350 - 850 mm / 13.8 - 33.5 inches
Die Stroke: 550 mm / 21.7 inches
Ejector Platen Force: 24 tons / 26.4 tons
Main Motors: 40.5 kW / 55 HP
Injection Stroke: 580 mm / 22.8 inches
Maximum Injection Force (with use of multiplier): 49 - 19 tons / 54 - 21 tons
Machine Size: 7.4 x 1.95 x 2.8 meters / 24.28 x 6.4 x 9.19 feet
Machine Weight: 22,000 kg / 48,600 pounds
PDF Documents for this Machine:
DCM_3011_Toshiba_Platen_Drawing.pdf
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Toshiba Model DC 500 C 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Toshiba Controls, Second Hand, DCM-3011
