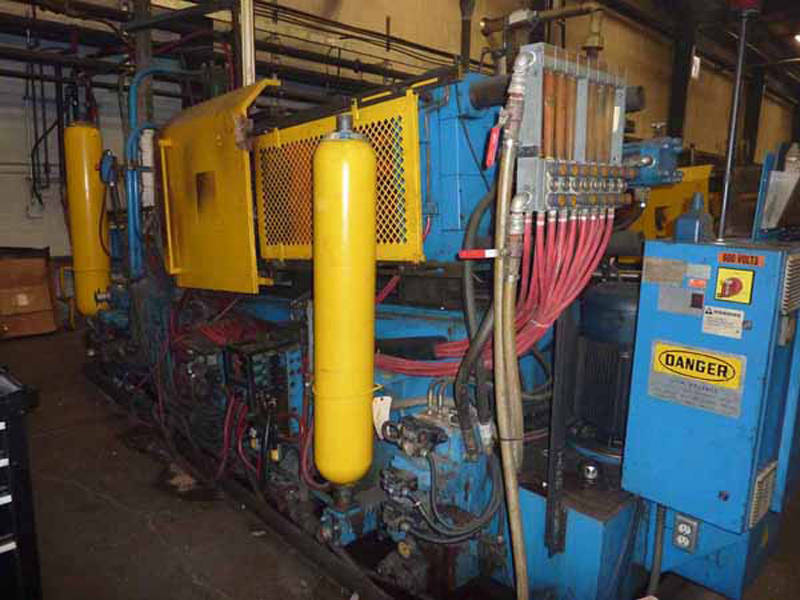

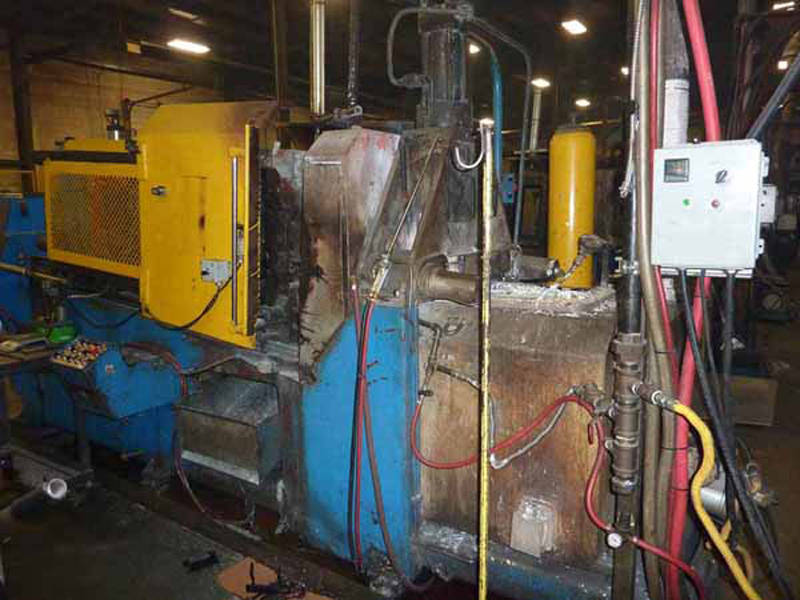

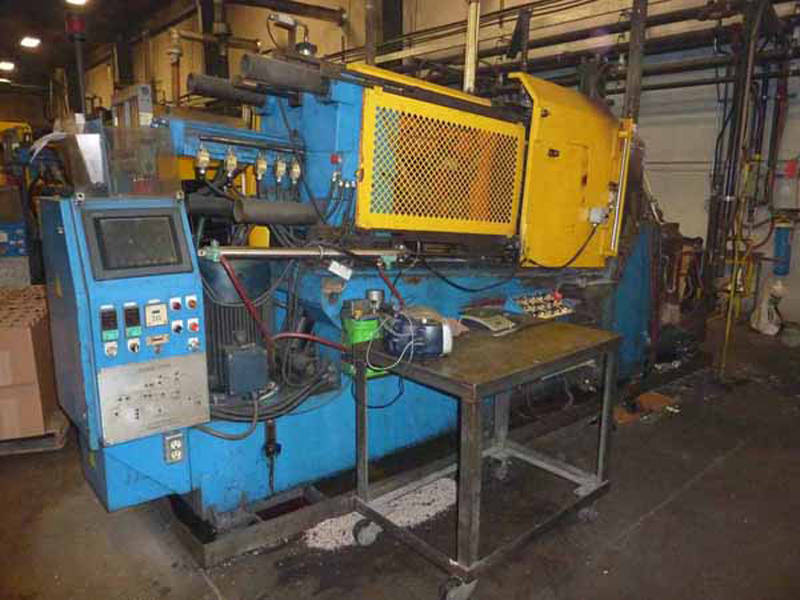

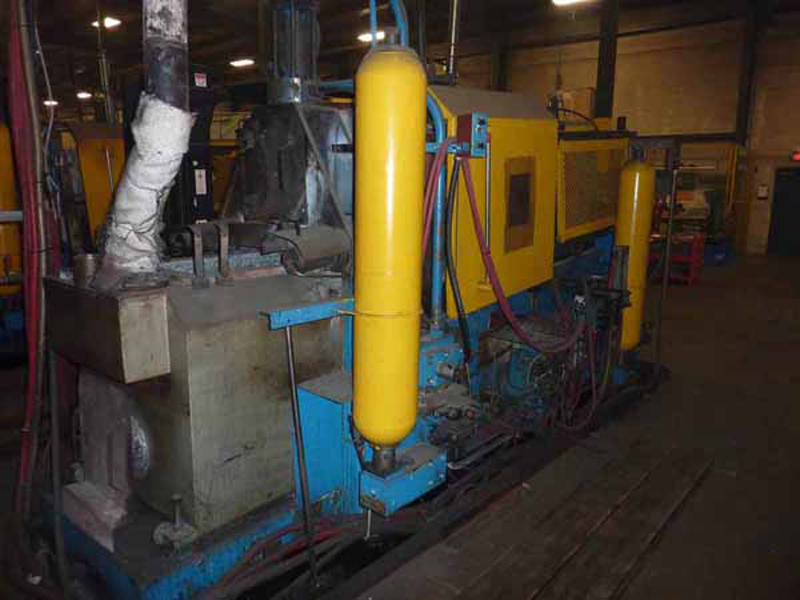

Used Producer Model: DH-P150 175 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Producer
Model: DH-P150
Size: 175 Metric Ton
Inventory Number: DCM-3584
Used Producer Model: DH-P150 175 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine.
View Available Zinc Die Casting Machines
Features & Accessories:
- Fully automated with Producer automatic linear die sprayer and dedicated part extractor
- Hydraulic center and fixed mechanical hydraulic bumper plate ejection
- Two (2) auxiliary hydraulic core circuits, Hydraulic motorized die height
- Air Safety Ratchet
- automatic lubrication
- Hydraulic nozzle clamping, one gooseneck nozzle, plunger shaft and piston
Item Specifications for DCM-3584
| Specifications | |
|---|---|
| Clamping Force |
193 tons
|
| Die Thickness (Minimum - Maximum) |
6 to 20 inches
|
| Platen Dimensions (Horizontal x Vertical) |
27.5 x 26.3 inches
|
| Clearance Between Tie Bars |
17.7 x 16.5 inches
|
| Tie Bar Diameter |
3.15 inches
|
| Closing Stroke |
15 inches
|
| Maximum Injection Force |
8.69 tons
|
| Injection Plunger Diameter |
2.55 inches
|
| Injection Positions: |
3.93 inches
|
| Ejector Stroke - Force |
3.5 inches - 8.25 tons
|
| Melting Pot capacity |
1100 pounds
|
| Weight of Machine |
22,000 pounds
|
Shipping Terms: Ex-site
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Producer Model DH-P150 175 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Fully automated with Producer automatic linear die sprayer and dedicated part extractor, Hydraulic center and fixed mechanical hydraulic bumper plate ejection, Two (2) auxiliary hydraulic core circuits, Hydraulic motorized die height, Air Safety Ratchet, automatic lubrication, Hydraulic nozzle clamping, one gooseneck nozzle, plunger shaft and piston, Mitsubishi FX2N PLC controls, second Hand, DCM-3584
See jumbo large photos of this Producer DH-P150
