Trim Presses Model SEP 10-65 D111 One (1) Used Reis Trim Press 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press Inventory #: 3754 Condition: Used Sold Reis Trim Press - SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Compac Logix Controls used 1
Die Cast Machinery, LLC Inventory number: 3754
We offer for sale, subject to prior sale and the terms listed below:

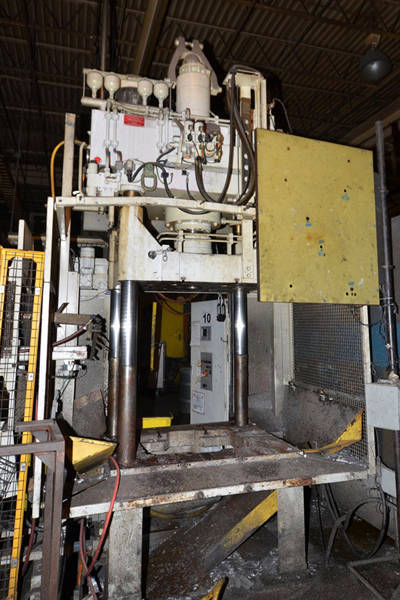

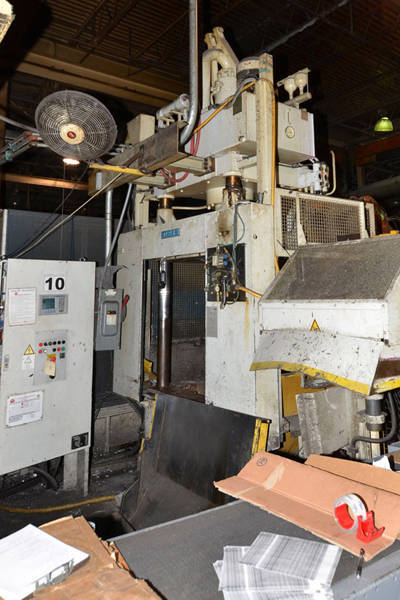

One (1) Used Reis Trim Press 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press

Model SEP 10-65 D111

Status: Sold
Specifications: Metric / U.S. Standard
Pressing Tonnage: 65 Metric Tons / 71.6 Tons
Number of Columns: 3 / 3
Column Diameter: 127 mm / 5 inches
Daylight: 914 mm / 36 inches
Stroke: 609 mm / 24 inches
Shut Height: 305 mm / 12 inches
Clearance between Tie Bars (Left to Right): 991 mm / 39 inches
Clearance between Tie Bars (Front to Back): 711 mm / 28 inches
Bed Size (Left to Right by Front to Back): 1346 x 1092 mm / 53 x 43 inches
Cut out Size in Bed: (L/R x F/B): 31 x 23 inches / 787 x 584 mm
Overall Size (L x w x H): 2316x 1524 x 4572 mm / 7'6 x 5 x 14'7
Estimated Machine Weight: 6,500 kg / 14,300 lbs
Features & Accessories:
Air Safety Ratchet
T-Slotted Moving and Bed Platens
Hydraulic Parts Ejection
Two (2) Auxiliary Side Core Circuits
Top Mounted Hydraulics
Factory Designed to be a Three Column Trim Press - Dramatically Eases Robotic Loading and Unloading of the Press
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

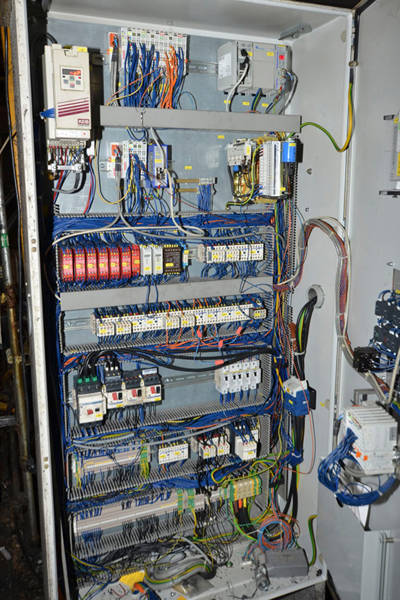

Description: Used, Reis Trim Press Model SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press For Sale, Features include: Air Safety Ratchet, T-Slotted Moving and Bed Platens, Hydraulic Parts Ejection, Two (2) Auxiliary Side Core Circuits, Top Mounted Hydraulics, Factory Designed to be a Three Column Trim Press - Dramatically Eases Robotic Loading and Unloading of the Press, Allen Bradley Compac Logix Controls, Second Hand, DCM-3754

The following technical terms are to assist you with searches: Used | Second Hand | Reis Trim Press |SEP 10-65 D111 | 65 Metric Ton | Three Column (Post) Vertical Hydraulic Die Casting Trim Press | For Sale | Air Safety Ratchet | T-Slotted Moving and Bed Platens | Hydraulic Parts Ejection | Two (2) Auxiliary Side Core Circuits | Top Mounted Hydraulics | Factory Designed to be a Three Column Trim Press - Dramatically Eases Robotic Loading and Unloading of the Press | Allen Bradley Compac Logix Controls | DCM-3754
