Used Thermtronix Model: RS-650 650 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Thermtronix
Model: RS-650
Size: 650 Pound Capacity
Inventory Number: DCM-3883

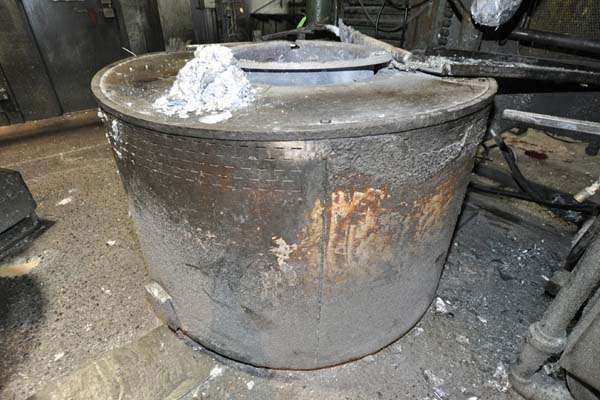

Used Thermtronix Model: RS-650 650 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace.
Click above for larger image
Features & Accessories:

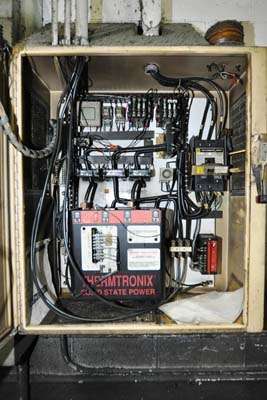

- 100 Percent Solid State Power Supply - Only Draws the Current Required to Maintain Desired Temperature
- Automatic Demand Limiting - Limits Peak Power Requirements
- Uses Silicon Carbide Crucibles For Aluminum
- Compact Furnace Design
- Crucible Design Allows for Quick Change-Over from One Alloy to the Next
Item Specifications for DCM-3883
Specifications | |
---|---|
Melting Rate: |
395 pounds/hour
|
Bath Capacity: |
650 pounds
|
Heating Source: |
Electric Resistance
|
Furnace Design: |
Silcon Carbide Crucible
|
Operating Temperature: |
1300 degrees Fahrenheit
|
Furnace Diameter: |
64 inches
|
Height: |
42inches
|
Power Requirements: |
480/3/60 75 KW
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Thermtronix Model RS-650 650 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace For_Sale, Features Include: 100 Percent Solid State Power Supply - Only Draws the Current Required to Maintain Desired Temperature, Automatic Demand Limiting - Limits Peak Power Requirements, Uses Silicon Carbide Crucibles For Aluminum, Compact Furnace Design, Crucible Design Allows for Quick Change-Over from One Alloy to the Next Thermtronix Solid State Controls With Automatic Demand Limiting Capability controls, second Hand, DCM-3883
See jumbo large photos of this Thermtronix RS-650
