Trim Presses Model DCT-50 One (1) Used K.R. Wilson 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press Inventory #: 4220 Condition: Used Available K.R. Wilson - DCT-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Unknown  Controls used 1
Die Cast Machinery, LLC Inventory number: 4220
We offer for sale, subject to prior sale and the terms listed below:

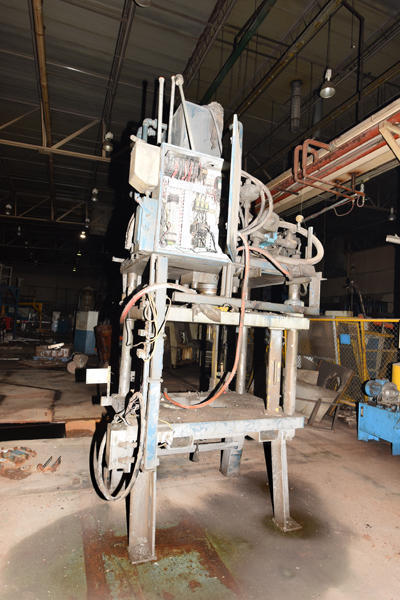

One (1) Used K.R. Wilson 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

Model DCT-50

Status: Available
Specifications: Metric / U.S. Standard
Model: 20 / DCT-50
Pressing Tonnage: 45 tons / 50 tons
Number of Columns: 4 / 4
Column Diameter: 101 mm / 4 inches
Daylight: 863.6 mm / 34 inches
Stroke: 457.2 mm / 18 inches
Shut Height: 406.4 mm / 16 inches
Clearance between Tie Bars (Left to Right): 1,219 mm / 48 inches
Clearance between Tie Bars (Front to Back): 762 mm / 30 inches
Bed Size (Left to Right by Front to Back): 1,524 x 762 mm / 60 x 42 inches
Cut out Size in Bed: 533 x 431 mm Diameter / 21 x 17 Inches
Approximate Footprint (L/R x F/B): 1,828 x 1,219 mm / 72 x 48 inches
Features & Accessories:
Drill & Tapped Platens
Dual Pull-Out Bar Operation
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, K.R. Wilson Model DCT-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For Sale, Features include: Drill & Tapped Platens, Dual Pull-Out Bar Operation , Unknown Controls, Second Hand, DCM-4220

The following technical terms are to assist you with searches: Used | Second Hand | K.R. Wilson |DCT-50 | 50 Ton | Four Column (Post) Vertical Hydraulic Die Casting Trim Press | For Sale | Drill & Tapped Platens | Dual Pull-Out Bar Operation | Unknown Controls | DCM-4220


PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
