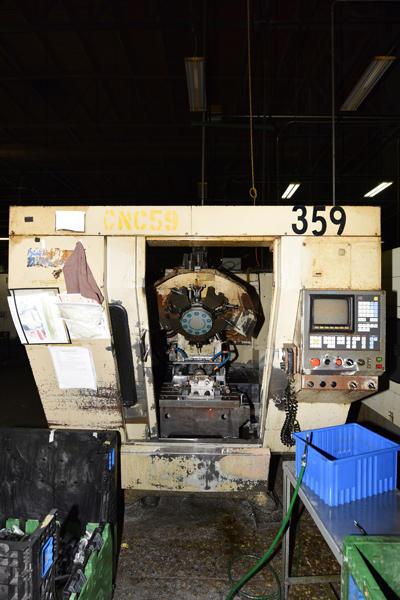

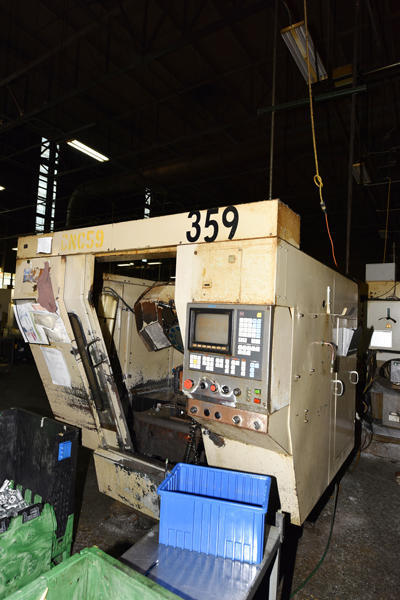

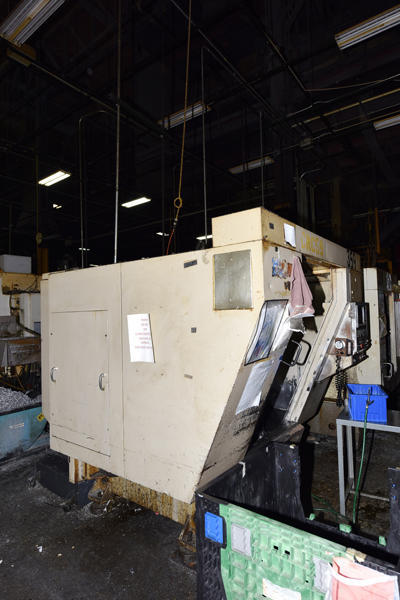

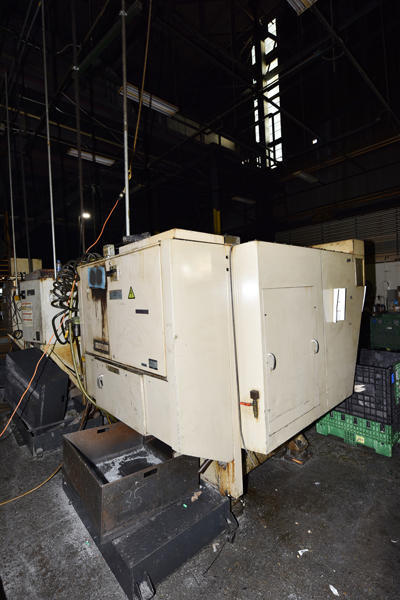

Used Brother Model: TC-321 High Speed CNC Drill Tap Center 321 TC-321 700 x 300 x 250 mm x-y-z axis travel High Speed 3 Axis Vertical CNC Drilling and Tapping Center with Tool Changer
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Brother
Model: TC-321 High Speed CNC Drill Tap Center
Size: 321 TC-321 700 x 300 x 250 mm x-y-z axis travel
Inventory Number: DCM-4589
Used Brother Model: TC-321 High Speed CNC Drill Tap Center 321 TC-321 700 x 300 x 250 mm x-y-z axis travel High Speed 3 Axis Vertical CNC Drilling and Tapping Center with Tool Changer.
Features & Accessories:

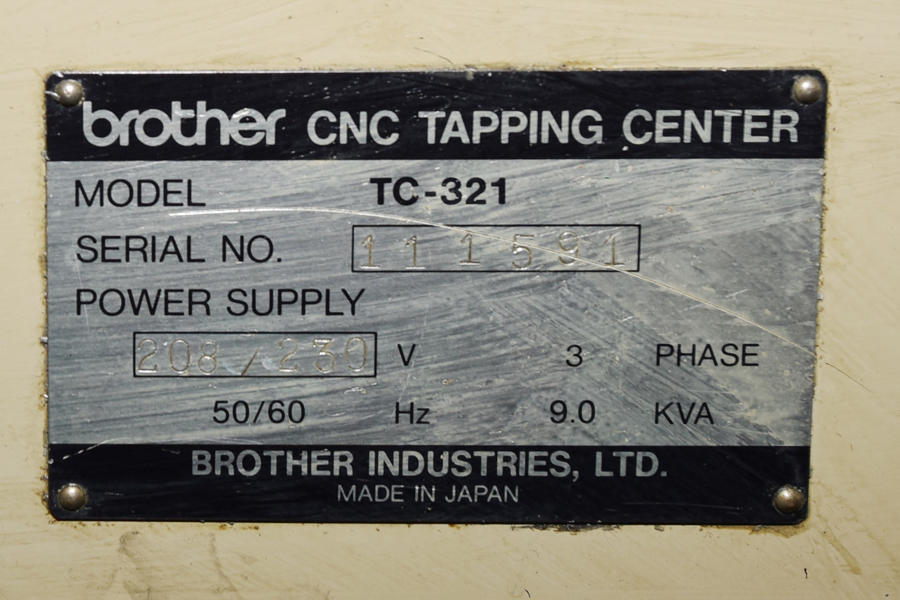

- New in 1995 Serial Number 111591

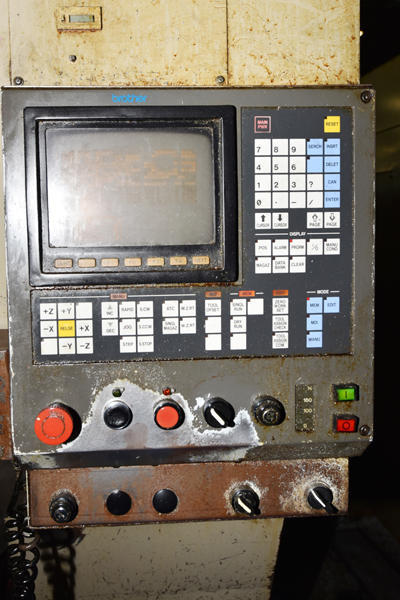

- Brother CNC 500 Controls
- Used only to Machine Aluminum Die Castings; ADC #359
- IMPORTANT NOTE: Any 4th or 5th axis tables/Indexers in pictures are optional at additional cost
Item Specifications for DCM-4589
| Specifications | |
|---|---|
| Main Spindle Power/Taper: |
5.49 hp/16,000 rpm/BT 30
|
| Distance between table top and spindle nose end: |
7.8 - 17.7 inches
|
| Table Size/Work Load: |
31.49 x 13.7 inches/110 pounds
|
| X-Axis Travel: |
27.55 inch
|
| Y-Axis Travel: |
11.8 inch
|
| Z-Axis Travel: |
9.8 inches
|

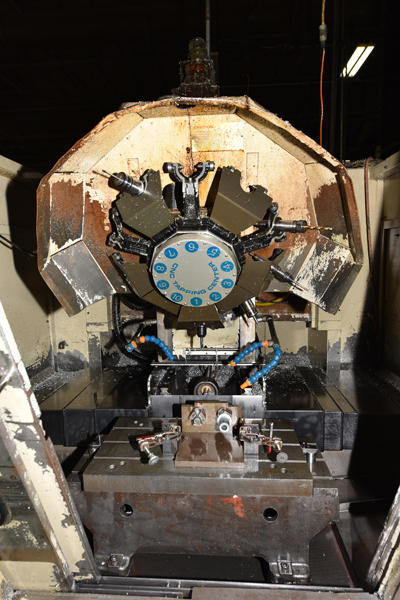

| Automatic Tool Changer (ATC) Storage: |
10 tools
|
| Tool Change Time (Tool to Tool): |
1.9 Seconds
|
| Overall Dimensions (L x D x H): |
75 x 69.2 x 92.5 inches
|
| Machine Weight: |
6,380 Pounds
|
Description
Used, Brother Model TC-321 High Speed CNC Drill Tap Center 321 TC-321 700 x 300 x 250 mm x-y-z axis travel High Speed 3 Axis Vertical CNC Drilling and Tapping Center with Tool Changer For_Sale, Features Include: Brother CNC 500 Controls, Used only to Machine Aluminum Die Castings; ADC #359, IMPORTANT NOTE: Any 4th or 5th axis tables/Indexers in pictures are optional at additional cost Brother CNC 500 controls, second Hand, DCM-4589
