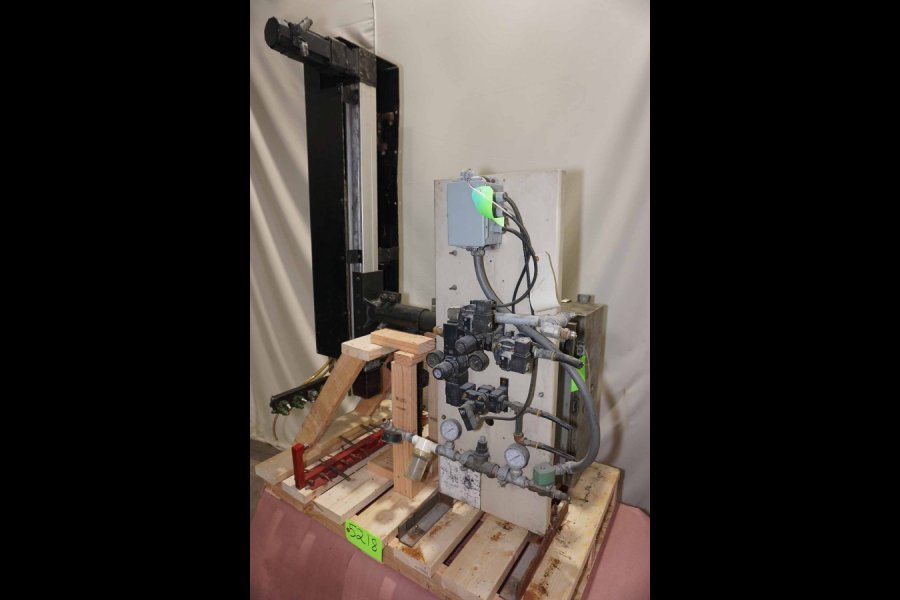

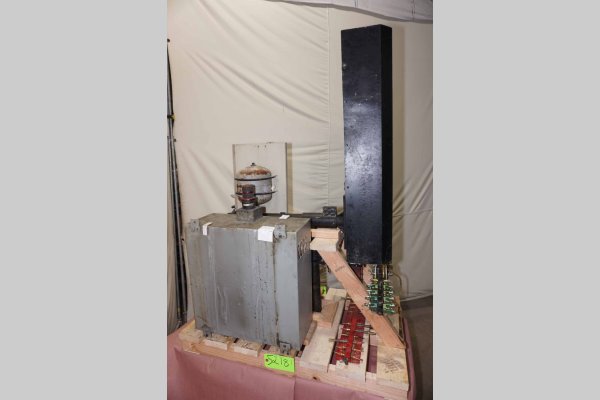

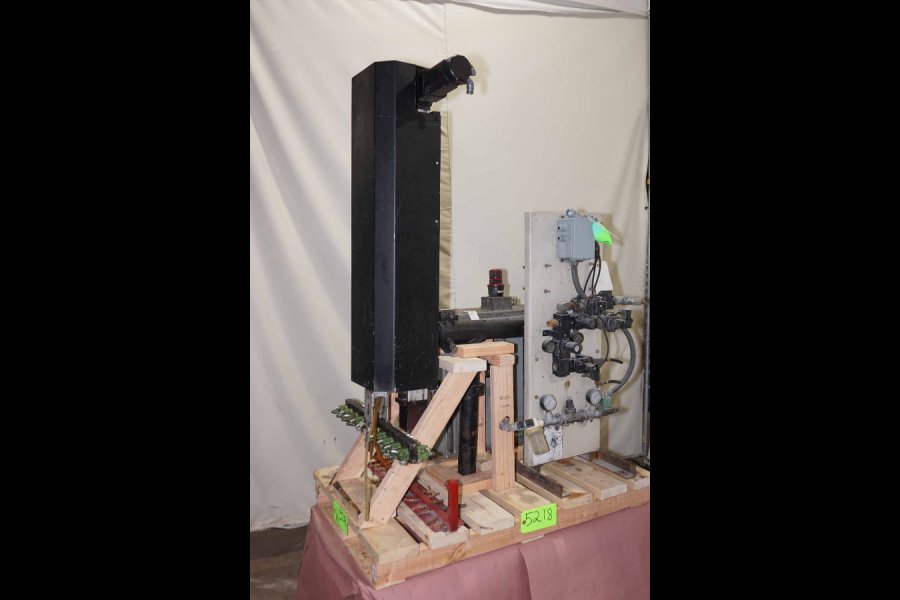

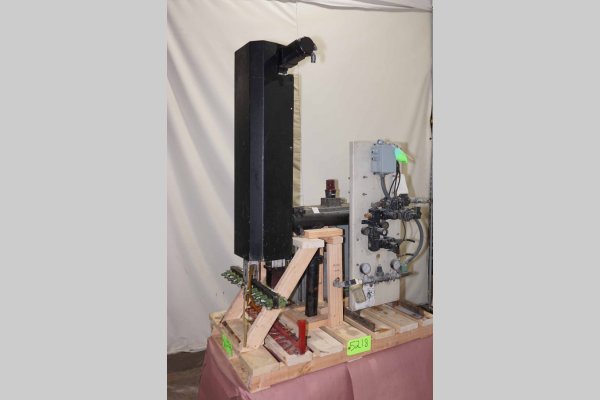

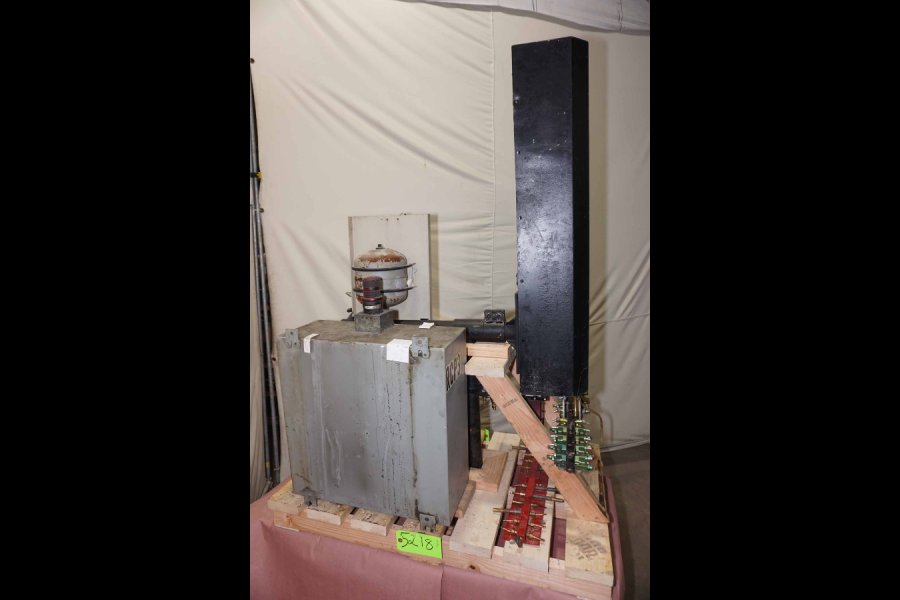

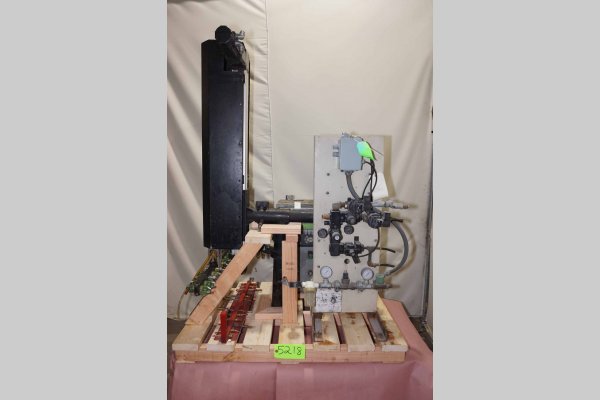

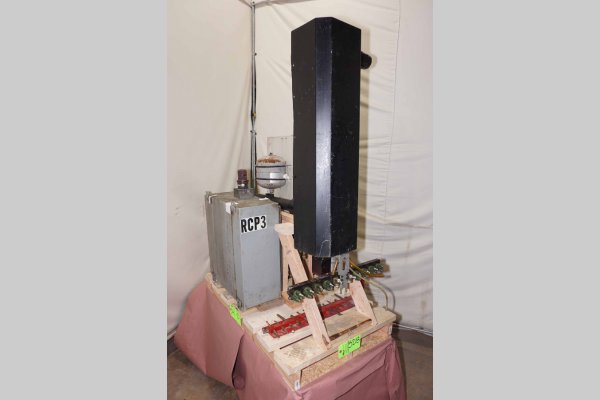

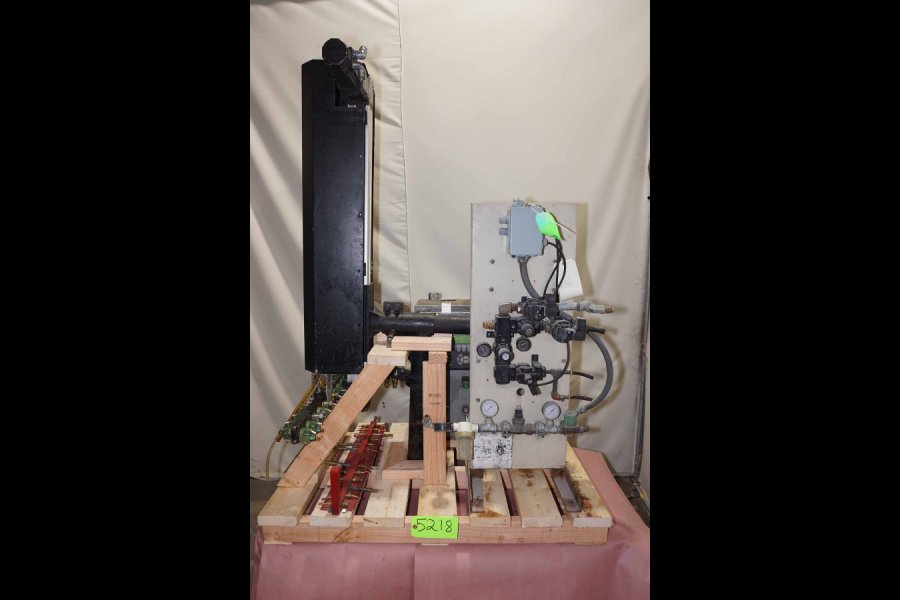

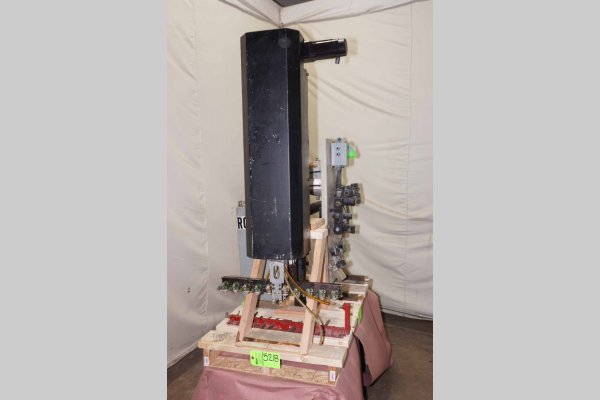

Used Rimrock Model: 414 Linear Sprayer 36 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Rimrock

Model: 414 Linear Sprayer

Size: 36 Inches of vertical stroke

Inventory Number: DCM-5218

Used Rimrock Model: 414 Linear Sprayer 36 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations.

View Available Automation (Die Cast)

Features & Accessories:

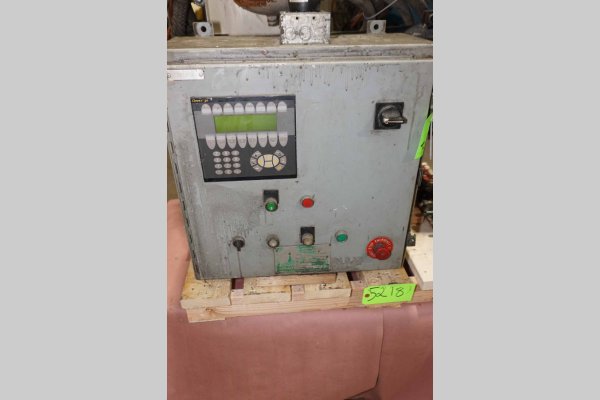

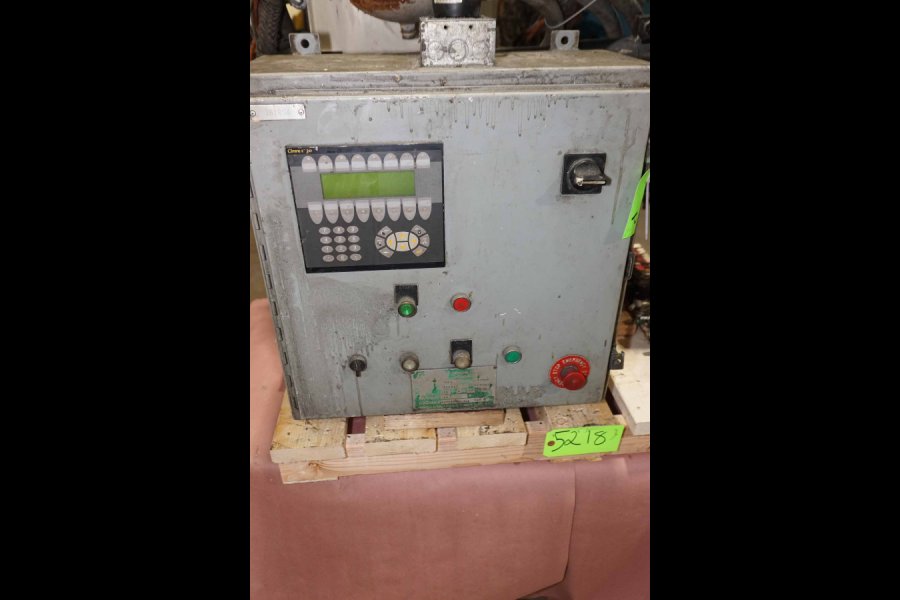

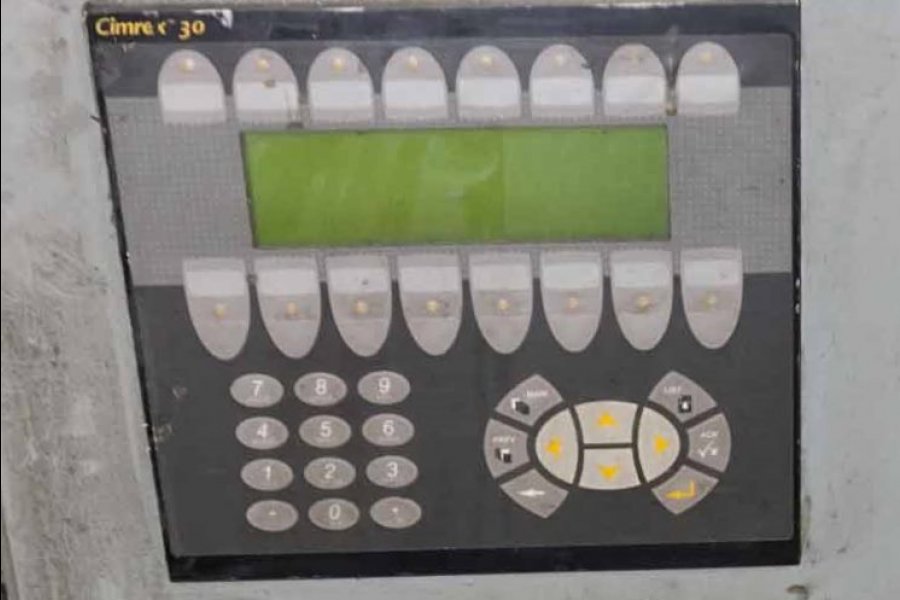

  • Fully programmable, servo drive controlled reciprocator using the auto-teach mode via Rimrock Epic Control
  • Platen mounted pedestal support with manual swing-out for ease of die change
  • Custom spray manifold with single lube capability and air blow off
  • Up to ten spray positions with intermediary sweeps
  • Rugged but compact design

Item Specifications for DCM-5218

Specifications
Vertical Stroke:
36 inches
Maximum Speed:
80 inches per second
Drive Motor:
Brushless Servo Motor
Programmable Spray Positions:
10
Maximum Spray Nozzles (026 & 032):
6 or 12
Lube Control:
Single Lube with blow-off
Power Requirements:
120/1/60

Shipping Terms: F.O.B. Warehouse

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Rimrock Model 414 Linear Sprayer 36 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Fully programmable, servo drive controlled reciprocator using the auto-teach mode via Rimrock Epic Control, Platen mounted pedestal support with manual swing-out for ease of die change, Custom spray manifold with single lube capability and air blow off, Up to ten spray positions with intermediary sweeps, Rugged but compact design controls, second Hand, DCM-5218

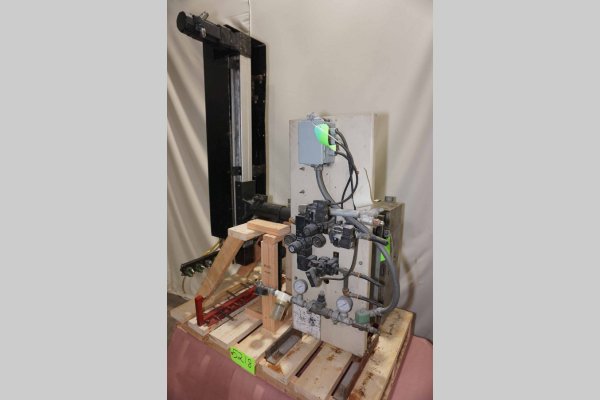

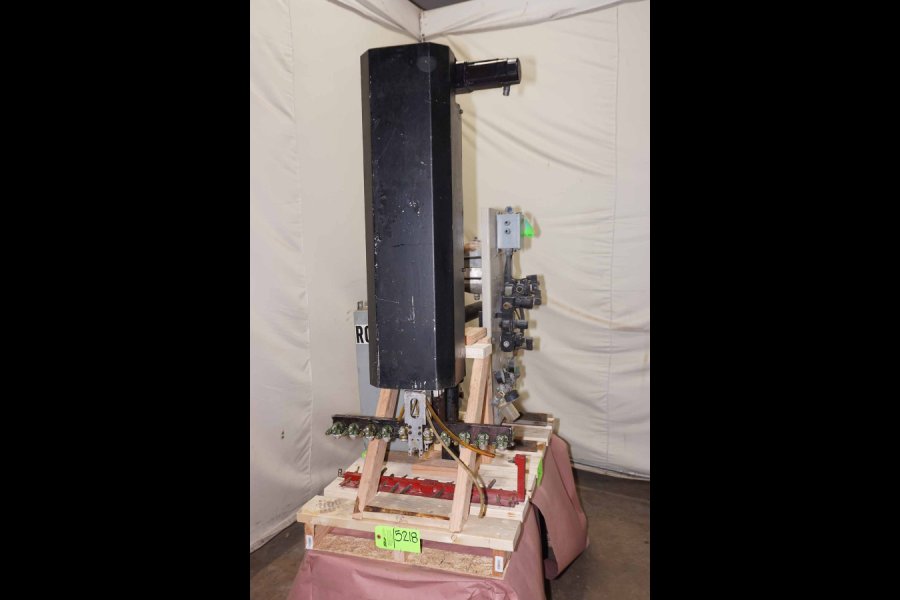

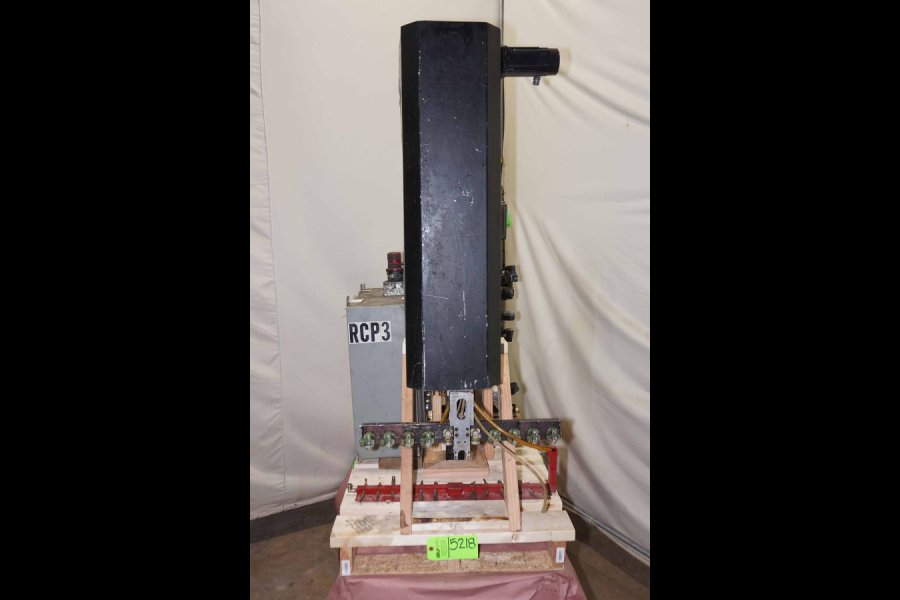

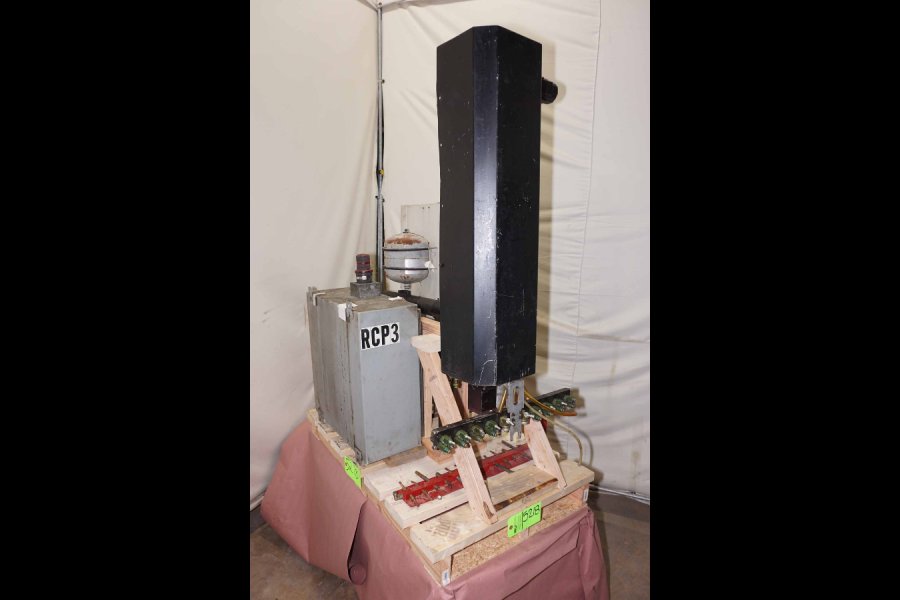

See jumbo large photos of this Rimrock 414 Linear Sprayer
