Used Modern Equipment Model: AL-2500 Jet Melter 2500 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace


Print PDF
Play Video

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

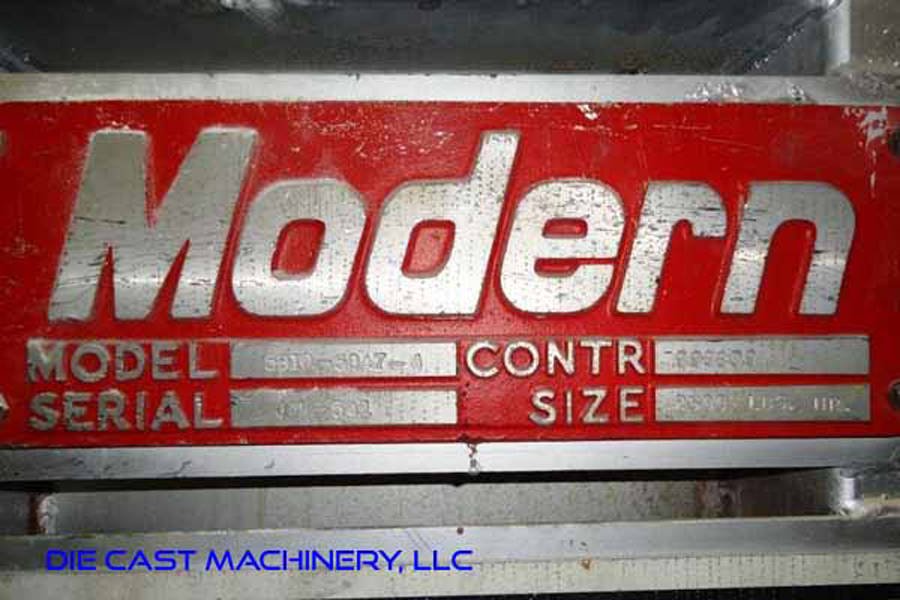

Manufacturer: Modern Equipment

Model: AL-2500 Jet Melter

Size: 2500 Pounds per hour of aluminum

Inventory Number: DCM-5494

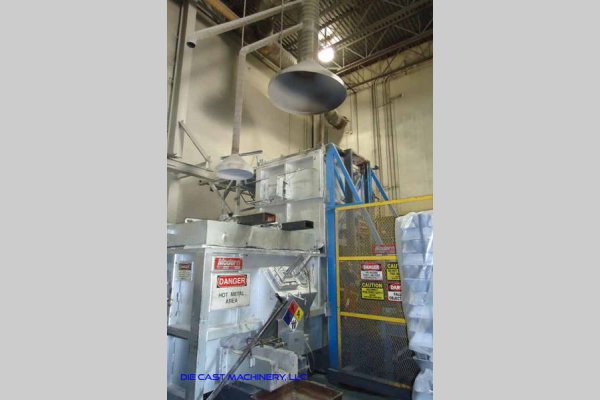

Used Modern Equipment Model: AL-2500 Jet Melter 2500 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace.

View Available Stack Melting Furnaces

Features & Accessories:

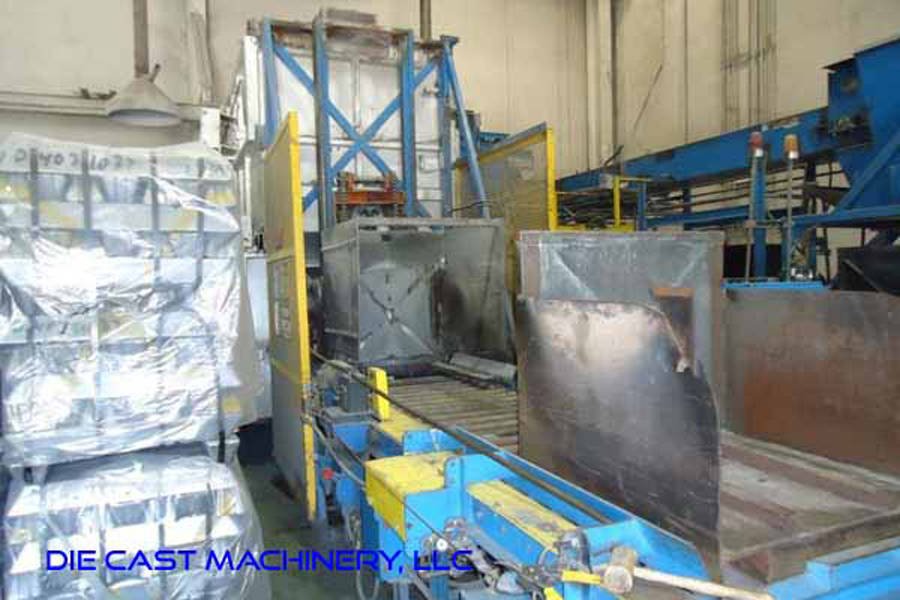

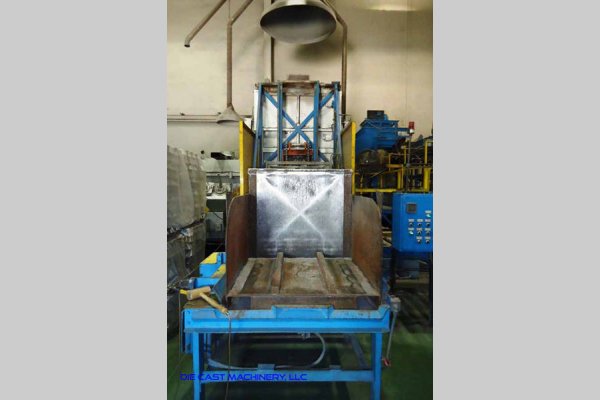

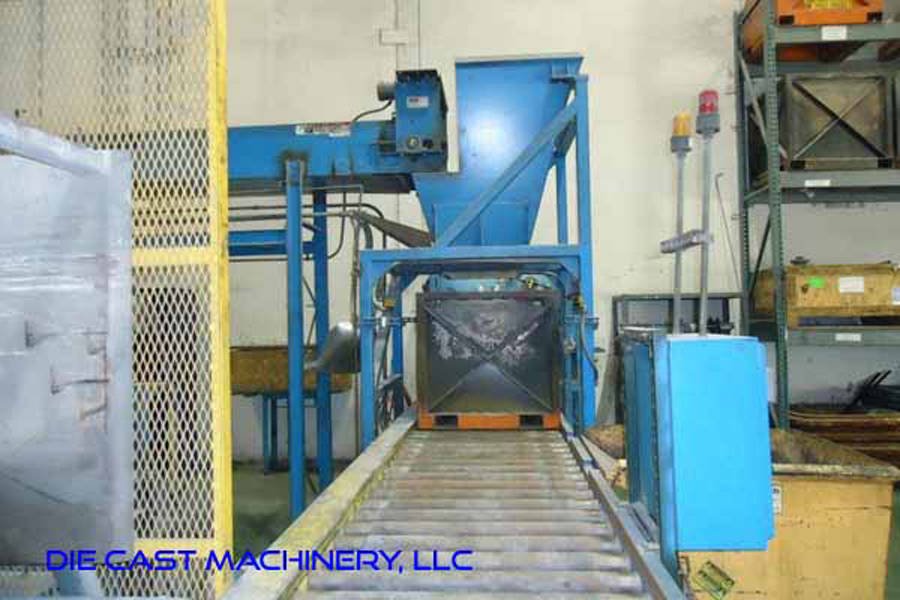

  • Complete Aluminum Central Melt System with Automated Ingot Bundling Handling and Automatic Scrap Car Loading
  • High energy efficiency - As low as 1,000 BTU per pound of Melt
  • Reduced melt loss - less than 1%
  • High Quality Metal - Lower gas and inclusion levels
  • Tight Temperature Control +/18 degrees F

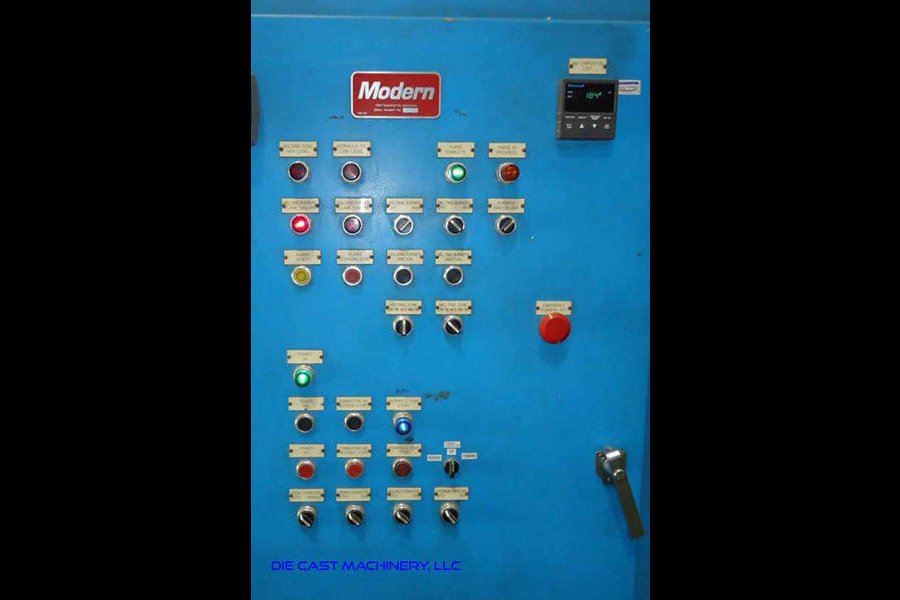

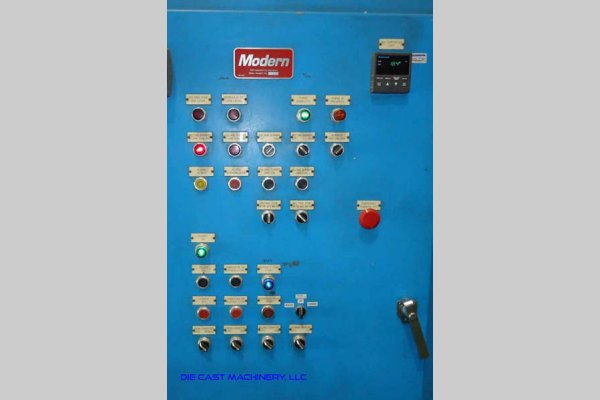

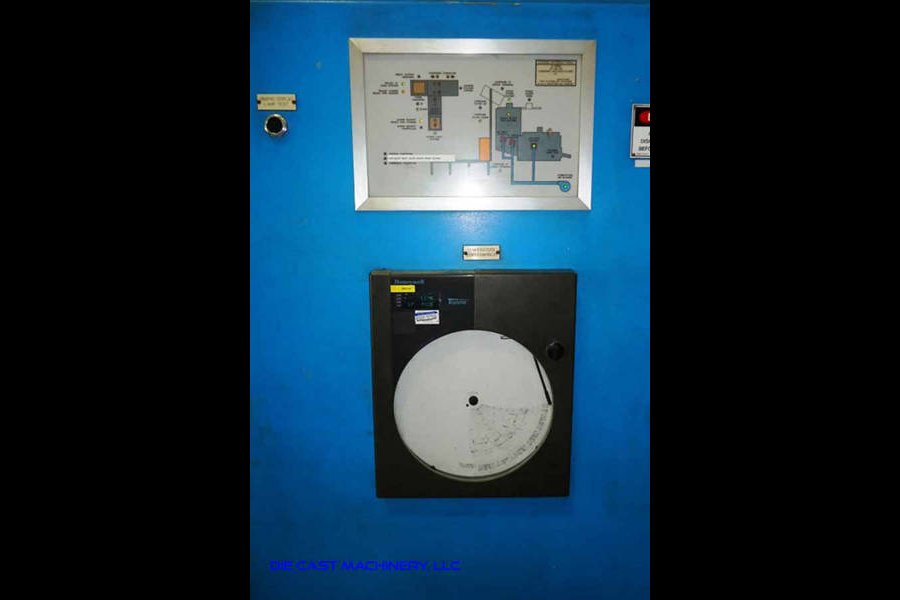

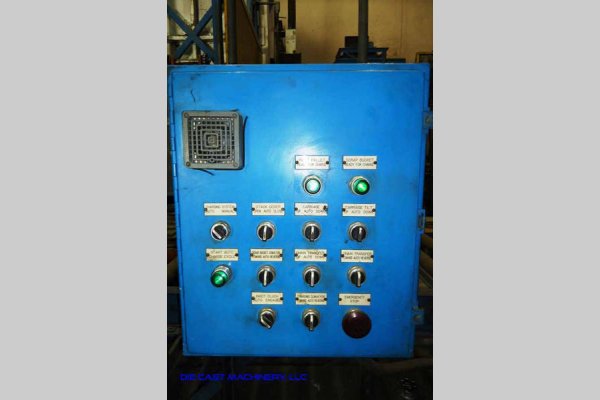

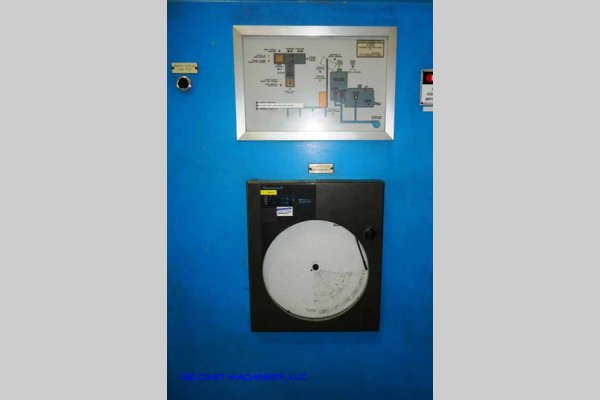

  • State-of-the-art programmable controls with graphic interface

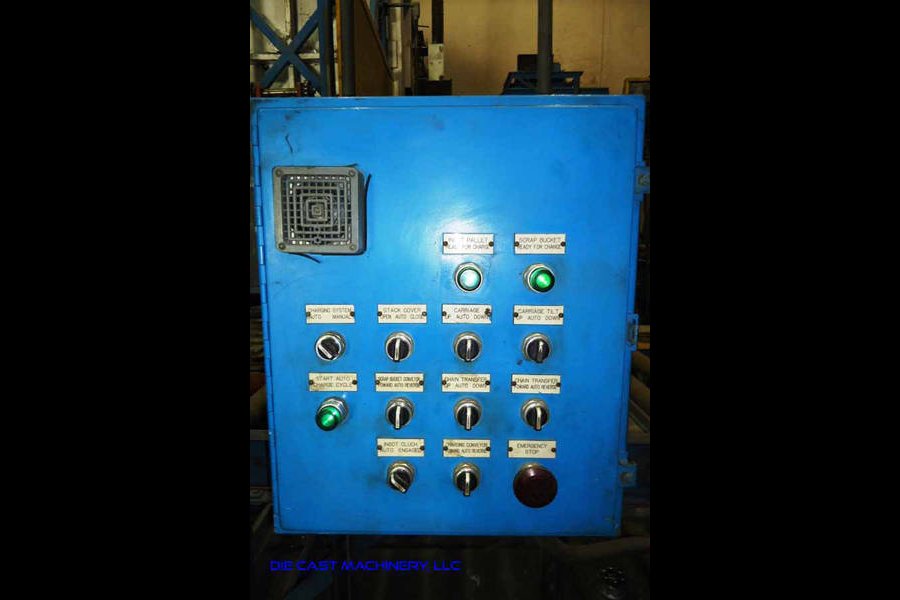

  • Fully automated material handling, batching and charging systems

Item Specifications for DCM-5494

Specifications
Model:
AL-2500
Melt Rate:
2500 pounds per hour
Total Molten Aluminum Capacity:
8,850 pounds

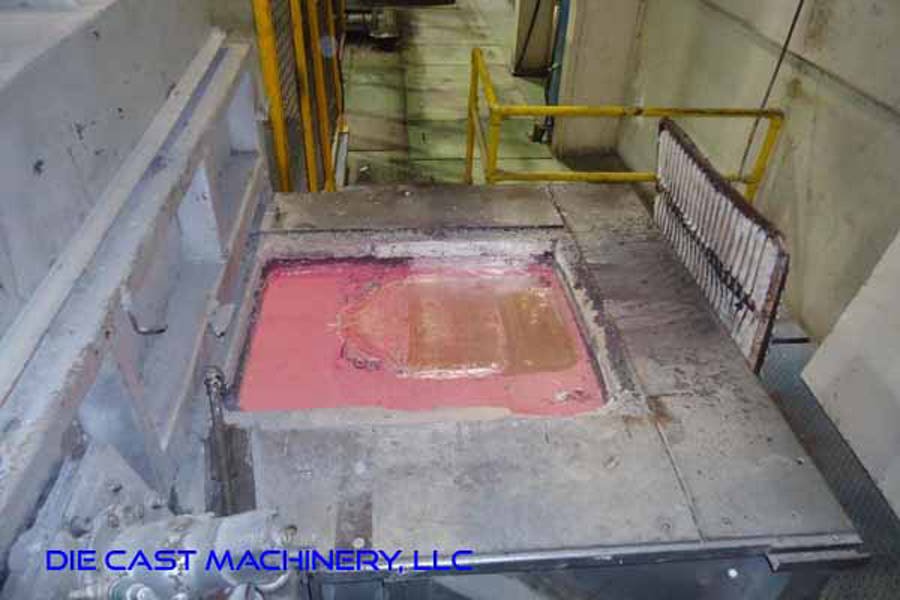

Dip Well Capacity:
1593 pounds

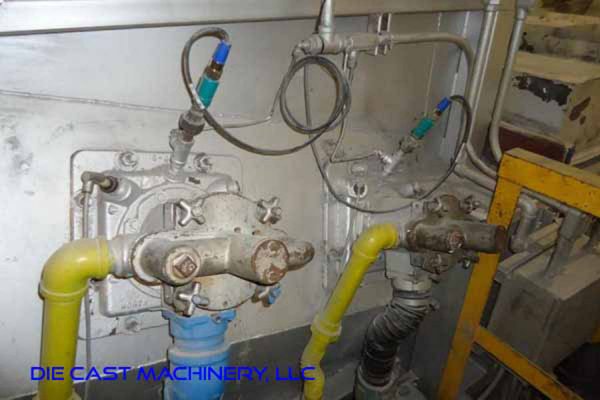

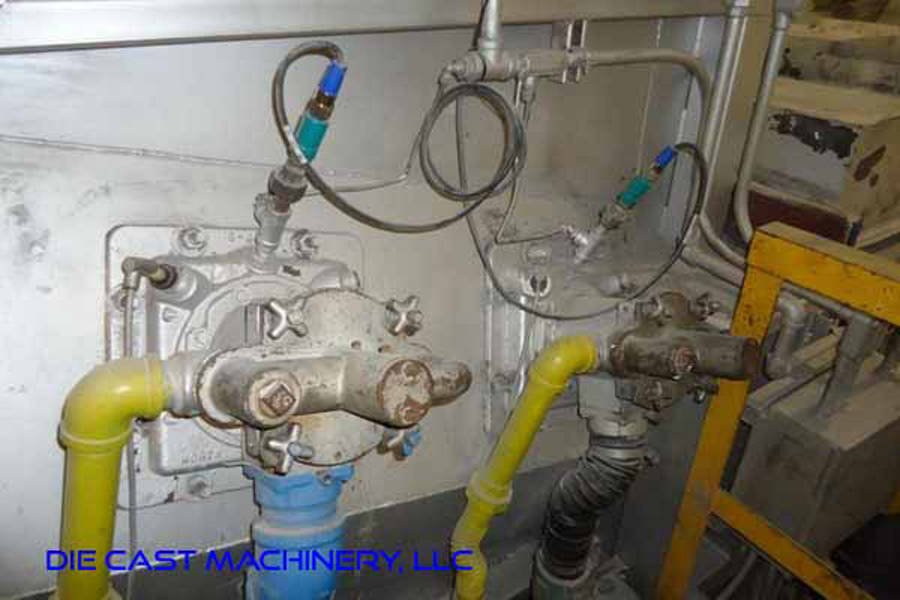

Melting Burners:
2 melting @ 1,050,000 each
Holding Burner:
1 holding @ 900,000 BTU
Total BTU (melting & holding:
3,000,000

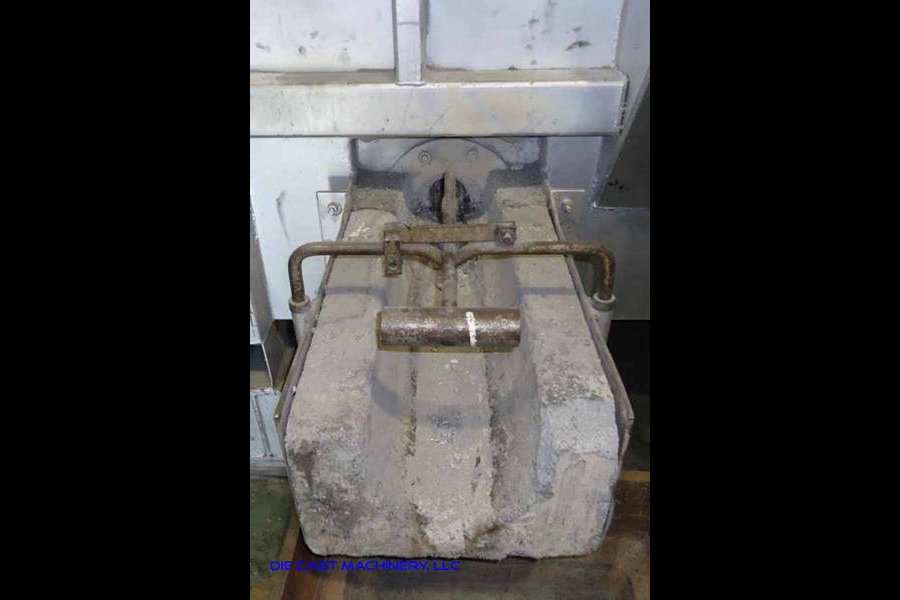

Bottom Tap for draining furnace:
Yes

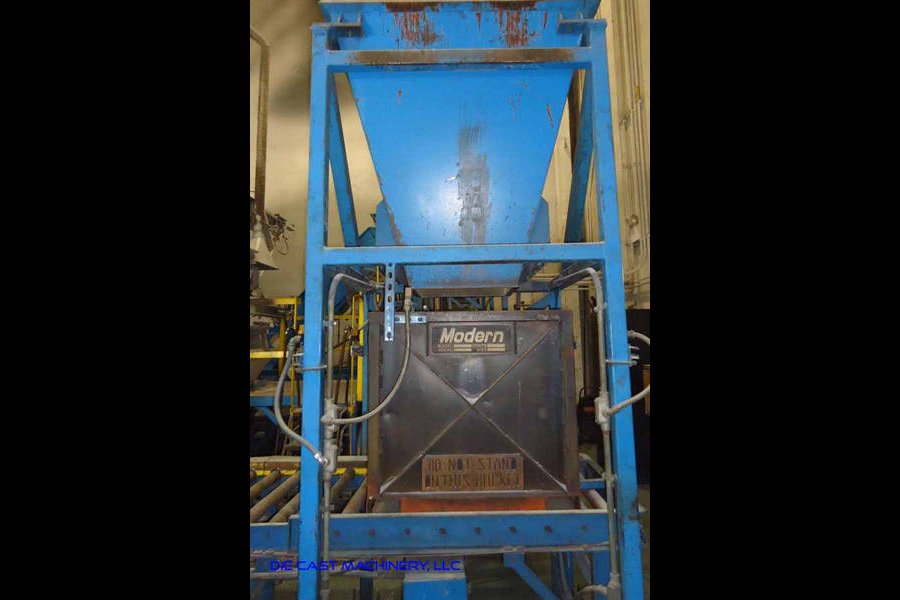

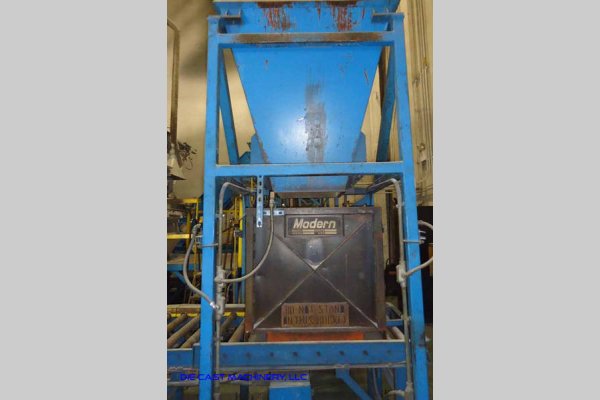

Loader for Ingot & Scrap:
Yes

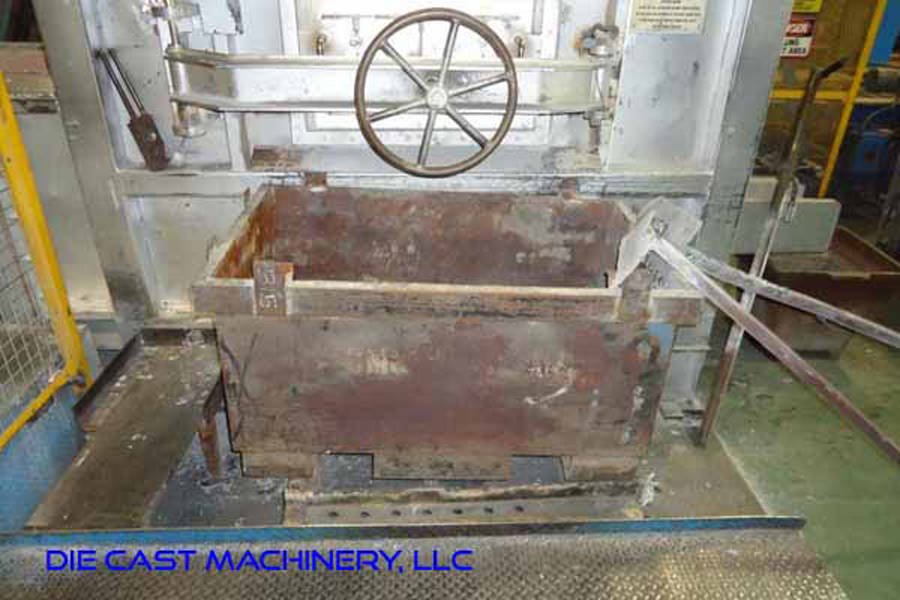

Scrap & Ingot Loading Carts:
Yes
Fuel:
Natural Gas

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Modern Equipment Model AL-2500 Jet Melter 2500 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: High energy efficiency - As low as 1,000 BTU per pound of Melt, Reduced melt loss - less than 1%, High Quality Metal - Lower gas and inclusion levels, Tight Temperature Control +/18 degrees F, State-of-the-art programmable controls with graphic interface, Fully automated material handling, batching and charging systems, Honeywell controls, second Hand, DCM-5494

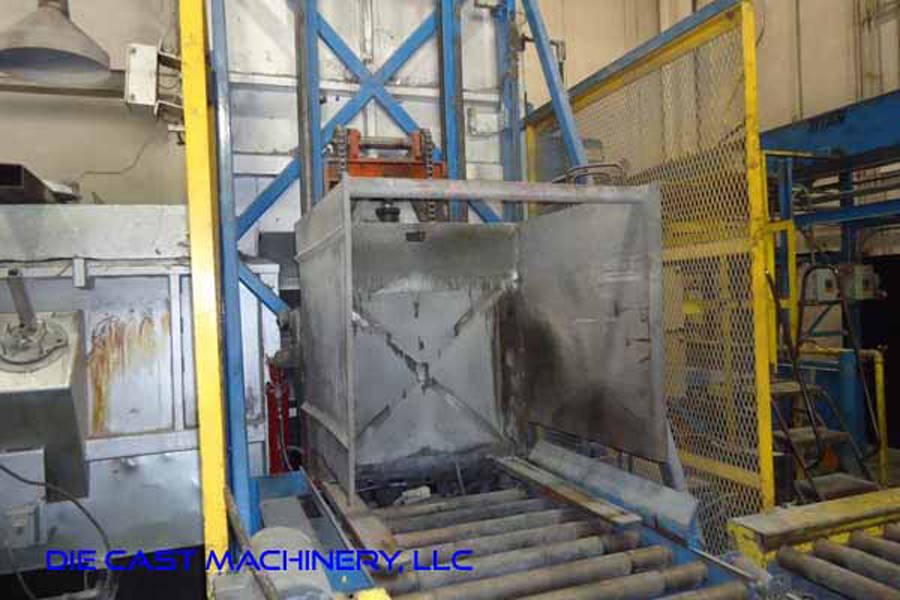

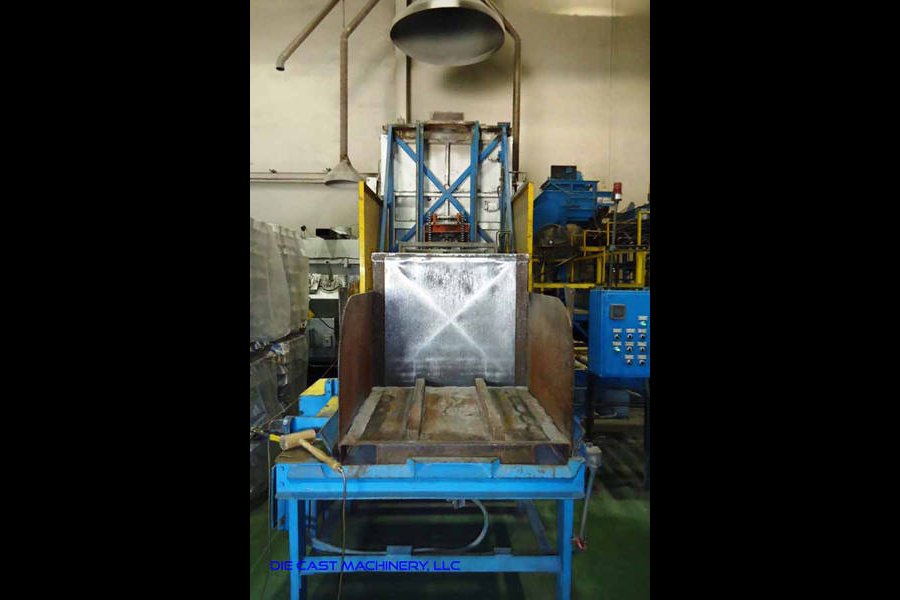

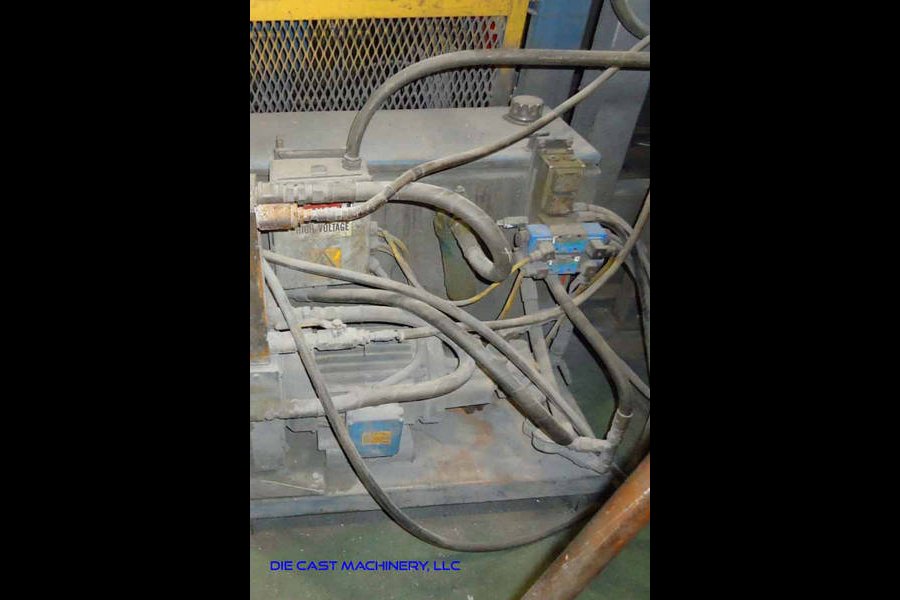

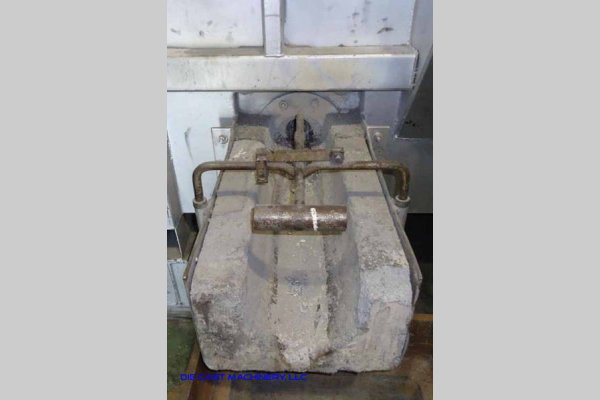

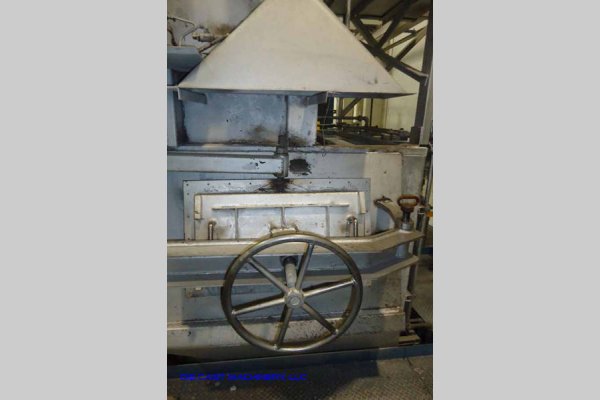

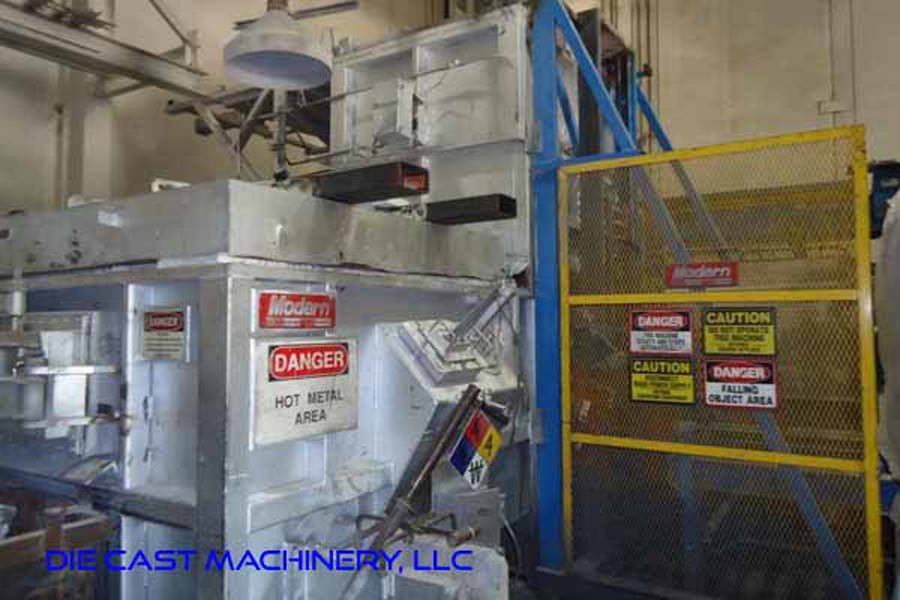

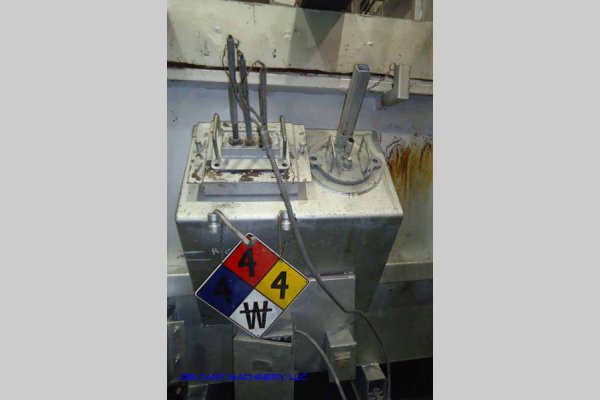

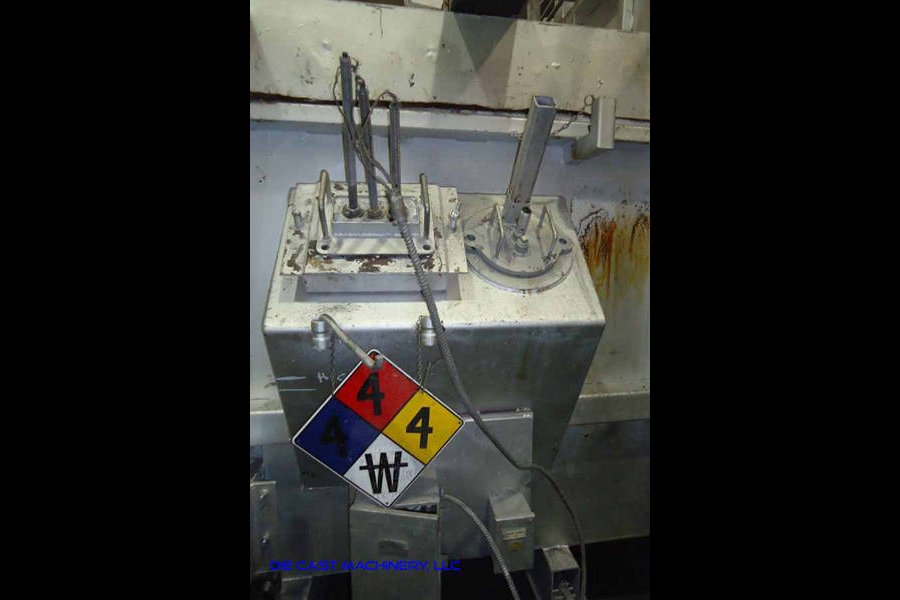

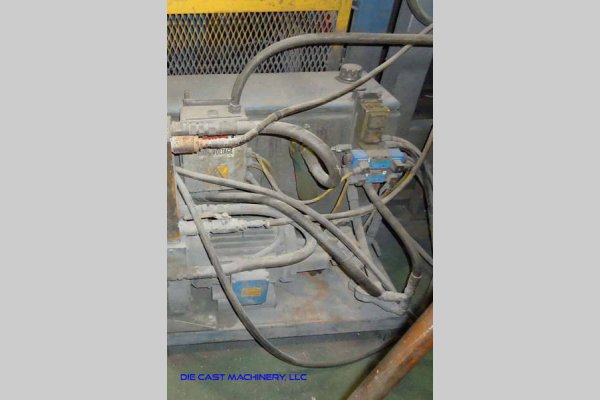

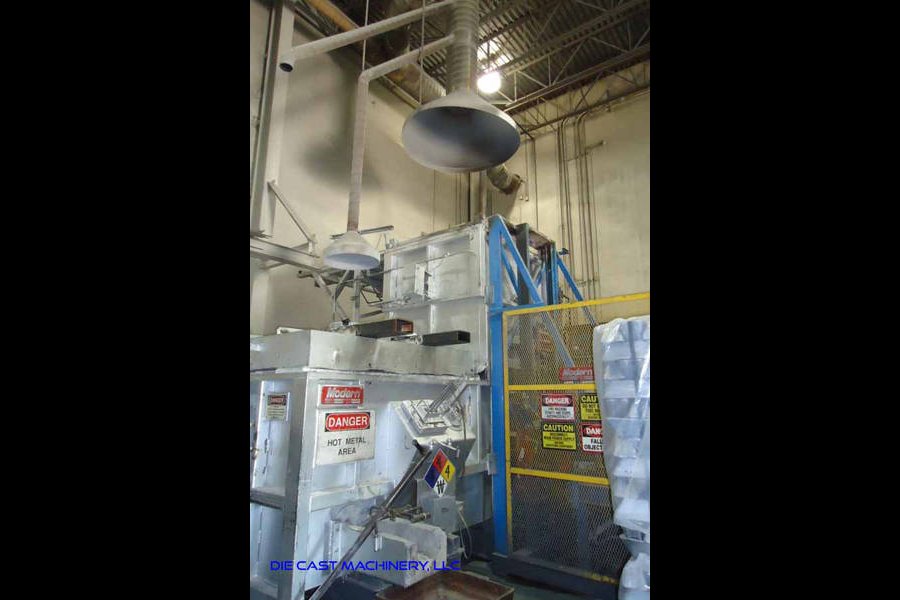

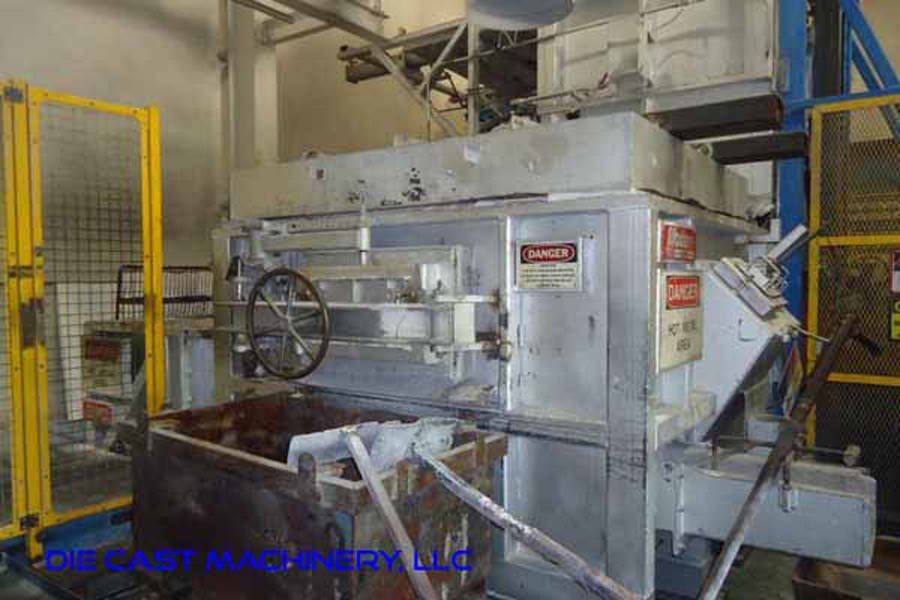

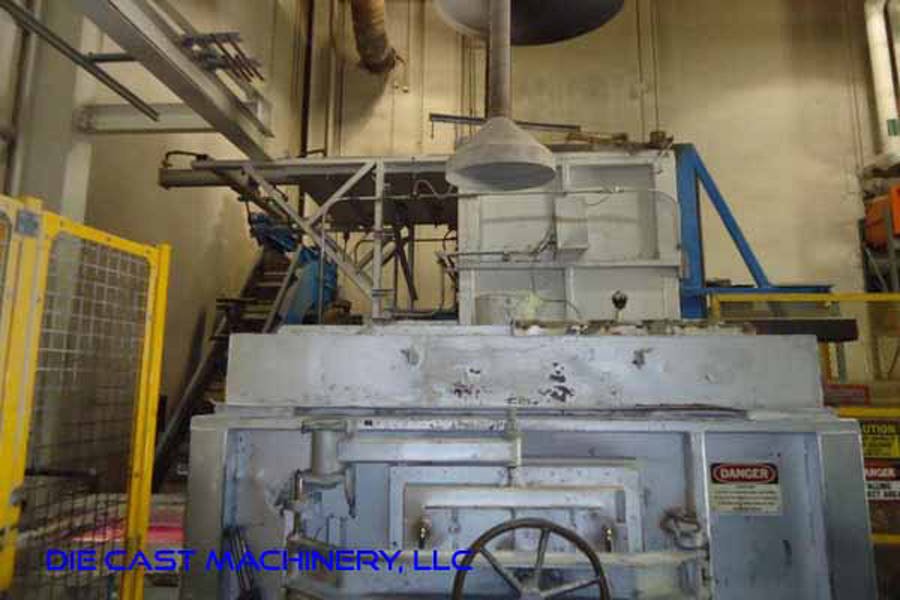

See jumbo large photos of this Modern Equipment AL-2500 Jet Melter
