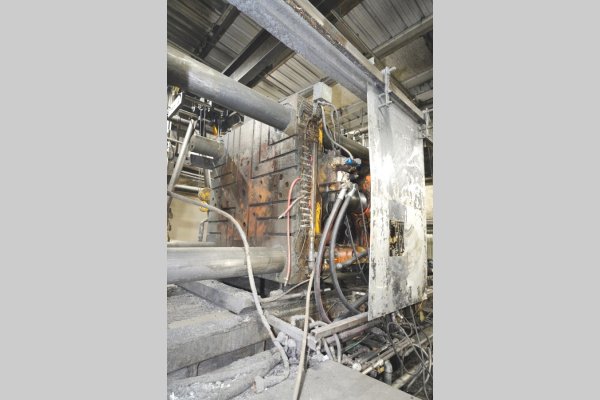

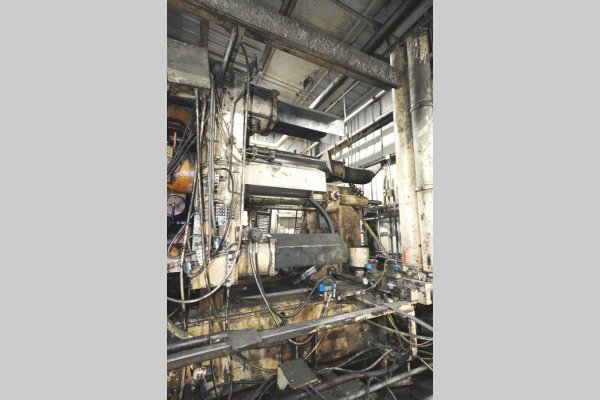

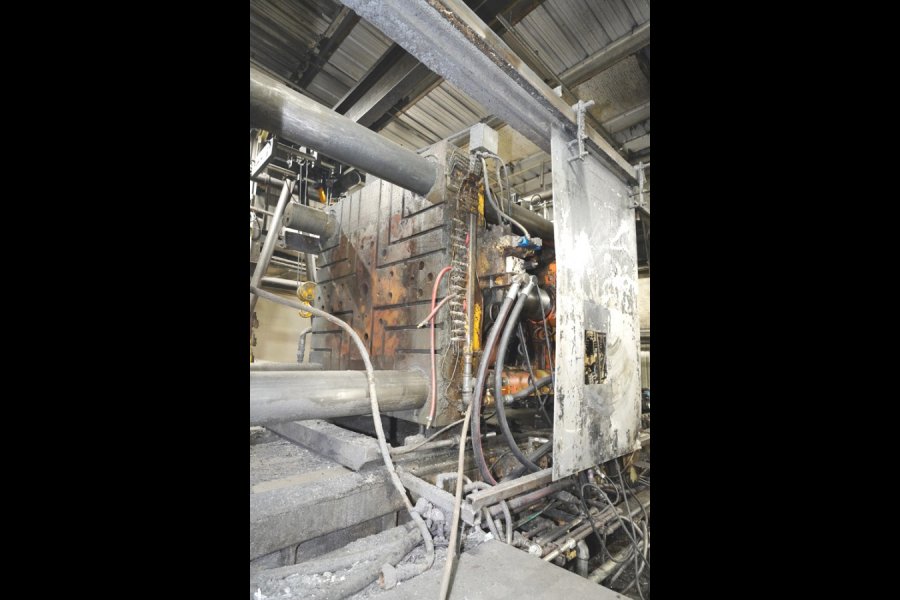

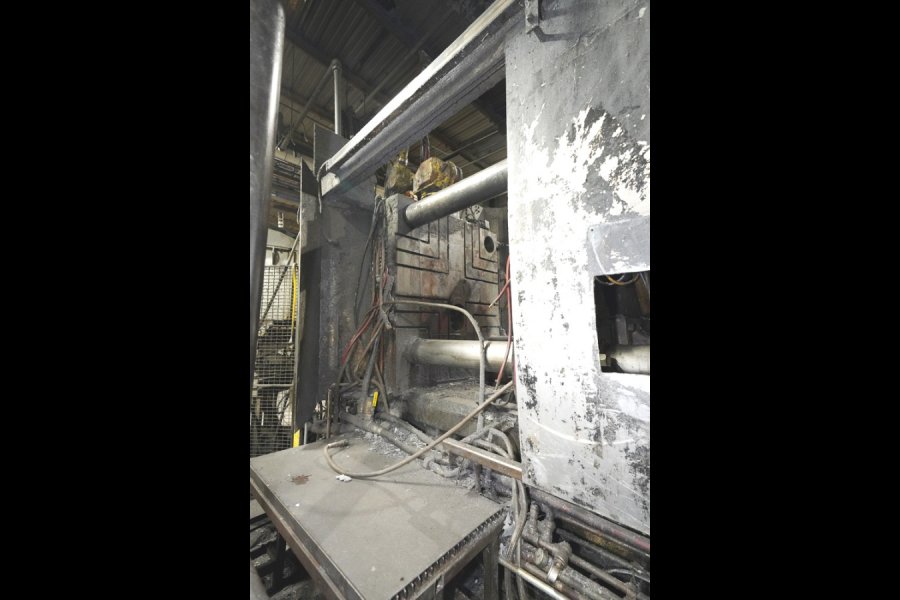

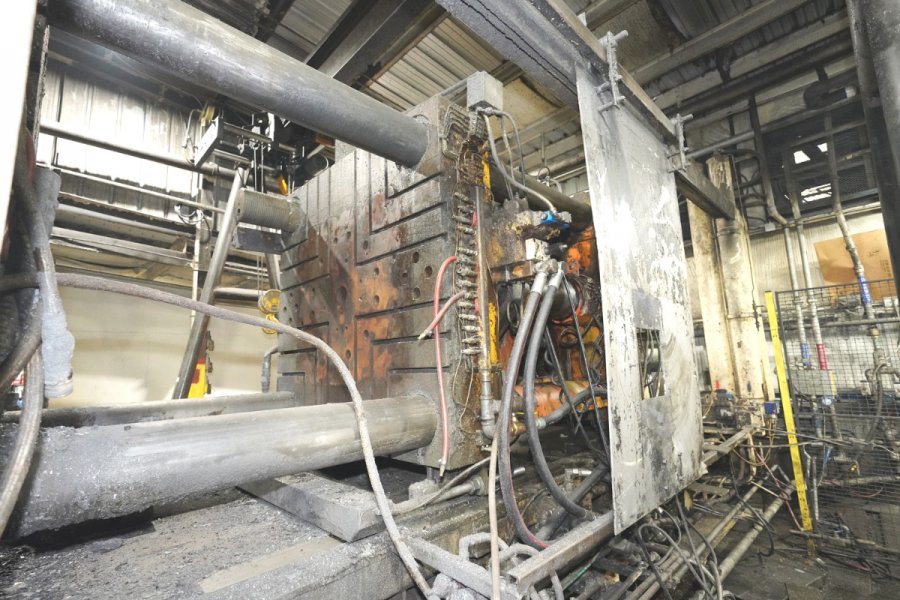

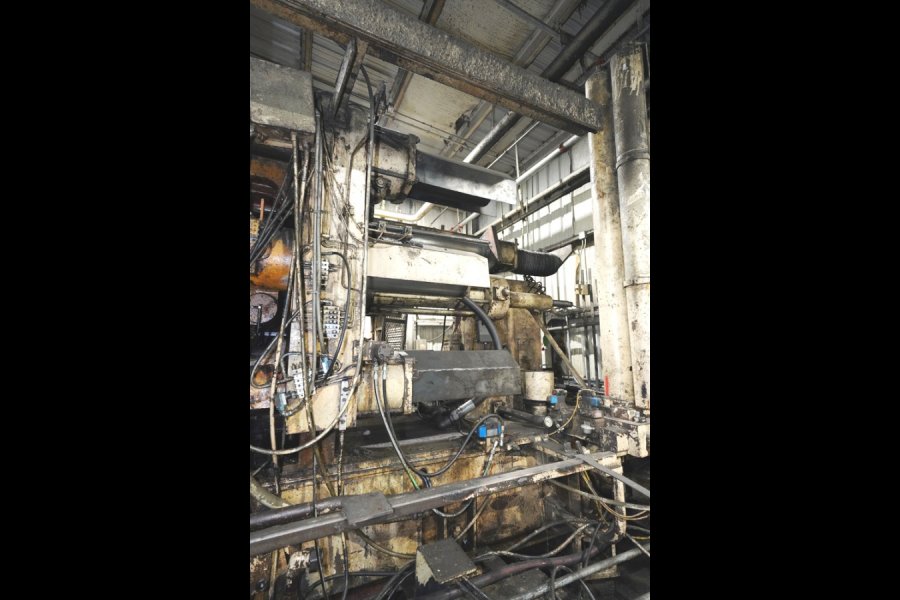

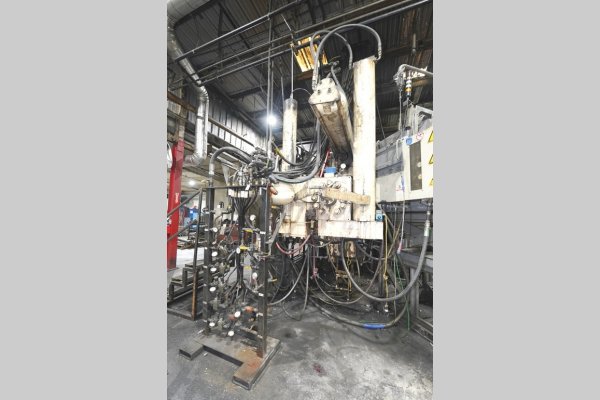

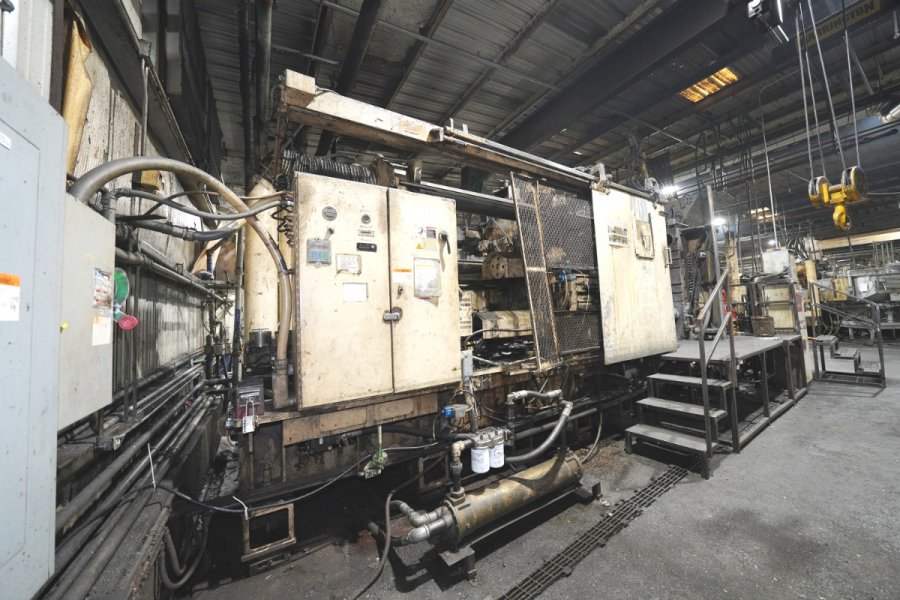

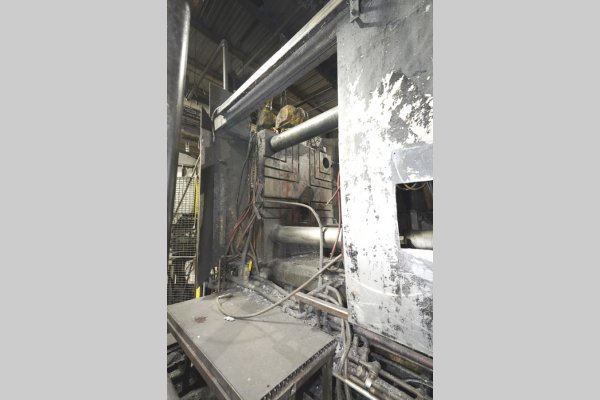

Used HPM Model: II-1200-A 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: HPM
Model: II-1200-A
Size: 1200 Ton
Inventory Number: DCM-5638
Used HPM Model: II-1200-A 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
View Available Cold Chamber Die Casting Machines
Features & Accessories:
- Top Operator Side Automatic Tie Bar Puller System
- Hydraulic Powered Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection System
- Trabon Automatic Lubrication System

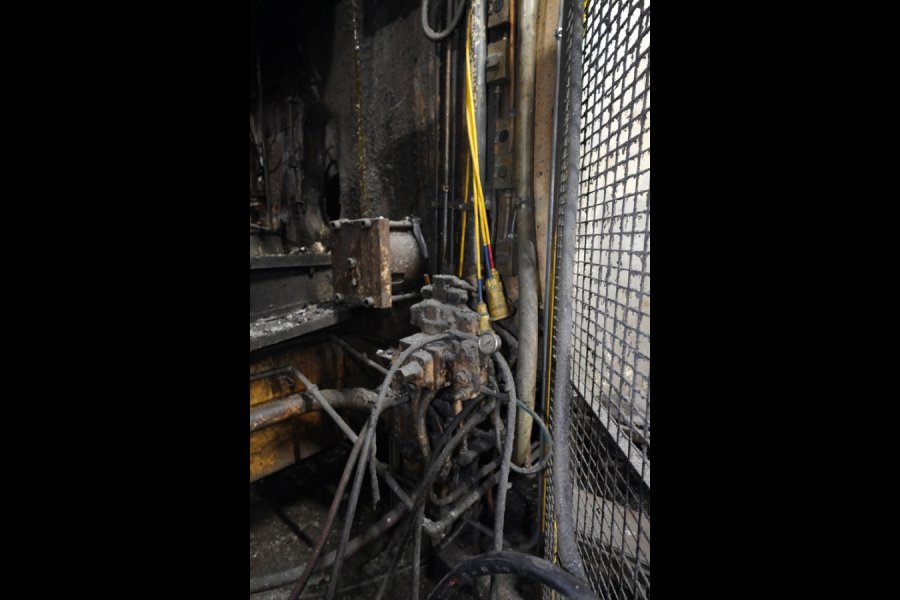

- Auxiliary Hydraulic Side Core Circuits
Item Specifications for DCM-5638
| Specifications | |
|---|---|
| Locking Force: |
1200 tons
|
| Tie Bar Diameter: |
9 inches
|
| Clearance Between Tie Bars: |
45 x 45 inches
|
| Die Thickness (minimum - maximum): |
24 - 50 inches
|
| Die Stroke (minimum - maximum): |
24 - 30 inches
|

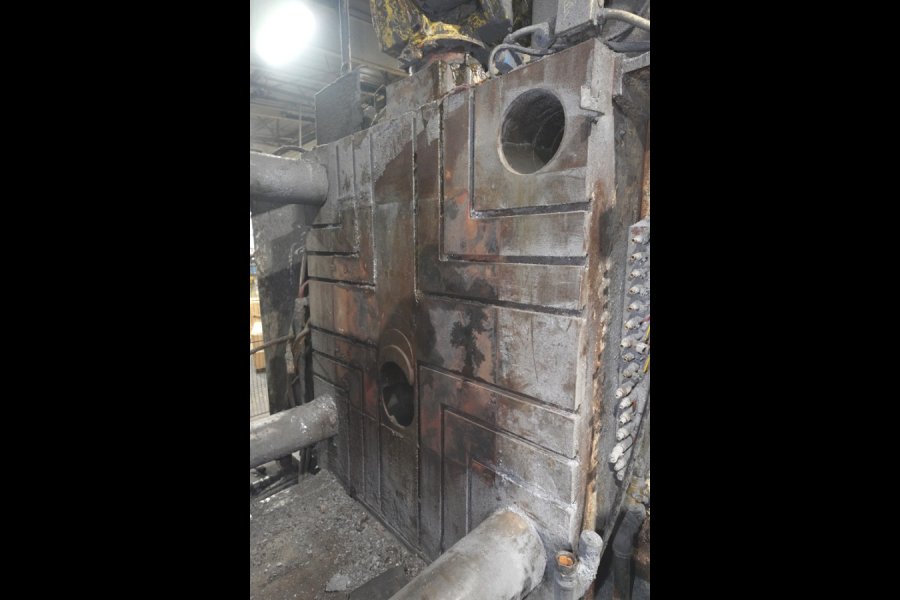

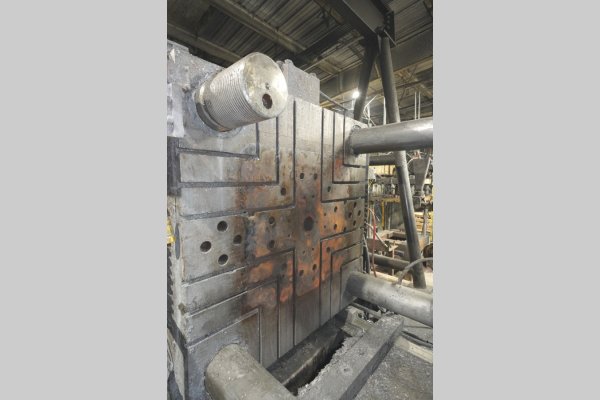

| Moving Platen Size: |
69 x 69 inches
|
| Shot Positions (removable Insert): |
Center, -9, -12 below center
|
| Injection Cylinder Stroke: |
32 - 38 inches
|
| Ejector Stroke & Force: |
5 inches & 31.9 tons
|
| Main Motor Power: |
75 HP
|
| Machine Size: |
36 x 10.3 x 12.5 feet
|
| Machine Weight: |
160,000 pounds
|
Description

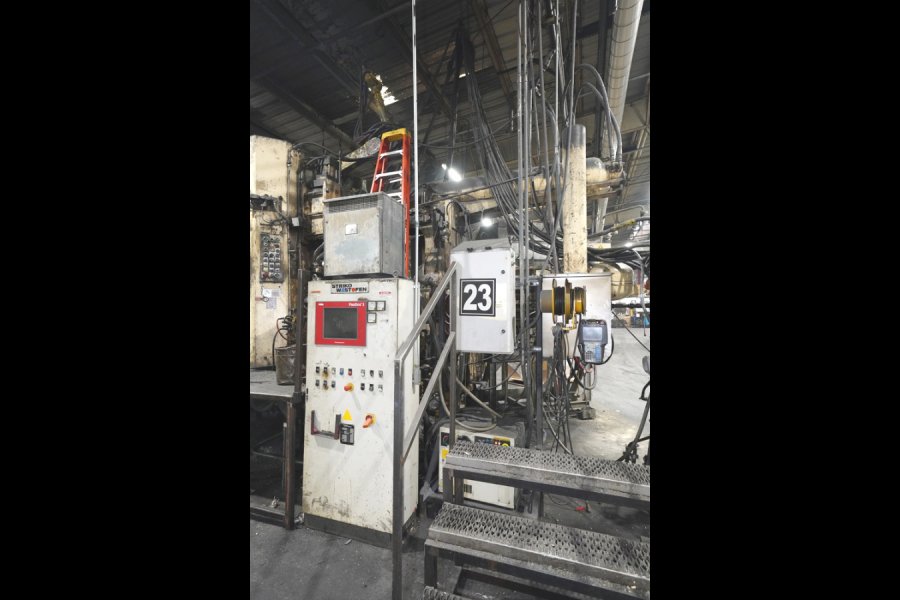

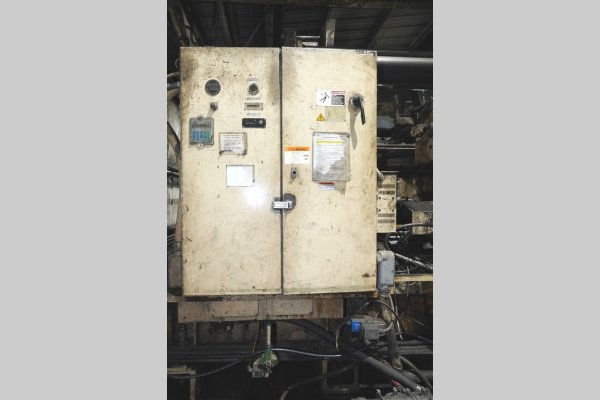

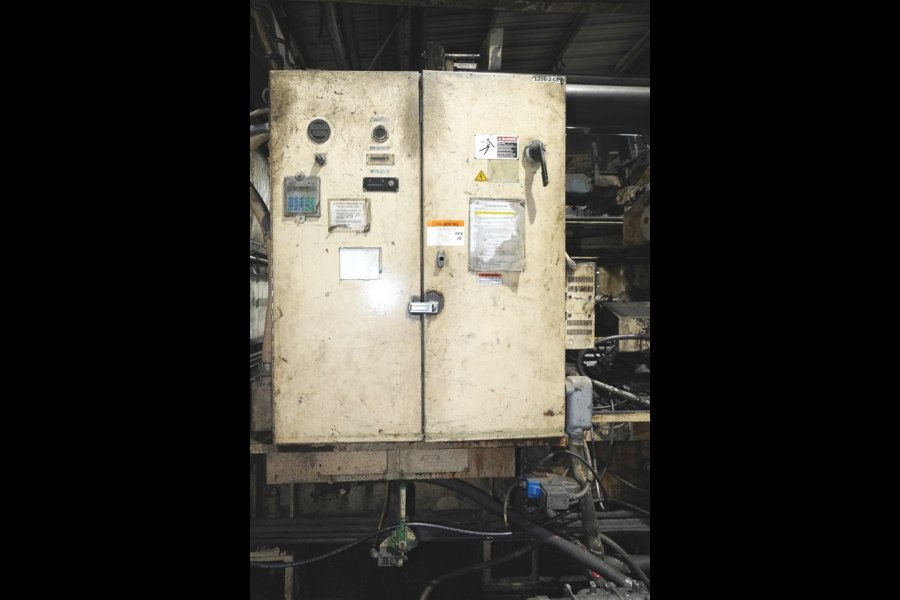

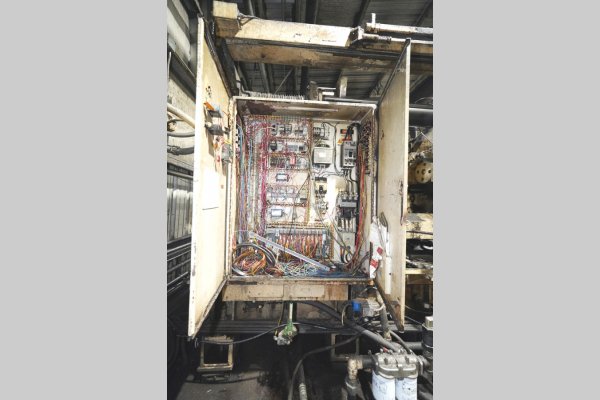

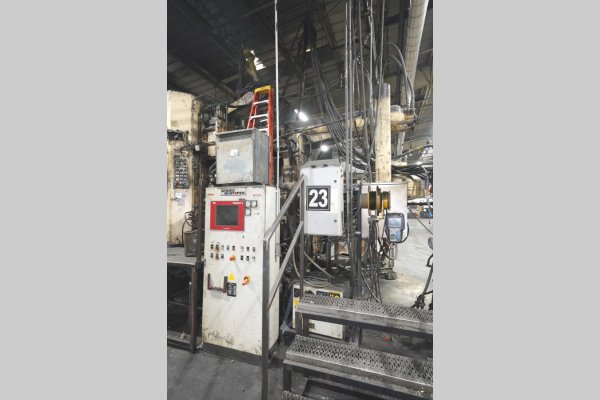

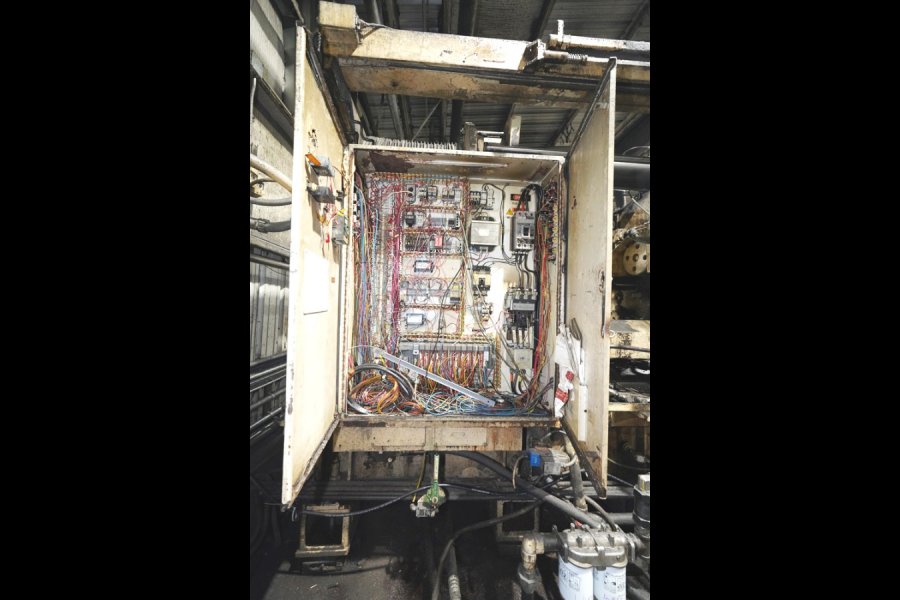

Used, HPM Model II-1200-A 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Hydraulic Powered Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Trabon Automatic Lubrication System, Auxiliary Hydraulic Side Core Circuits Allen Bradley SLC 5/03 PLC Control with 10 controls, second Hand, DCM-5638
