Used Frech Model: DAM 160 178 Metric Tons (1750 kN or 195 U.S. Ton) Horizontal Hot Chamber High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Frech

Model: DAM 160

Size: 178 Metric Tons (1750 kN or 195 U.S. Ton)

Inventory Number: DCM-5639

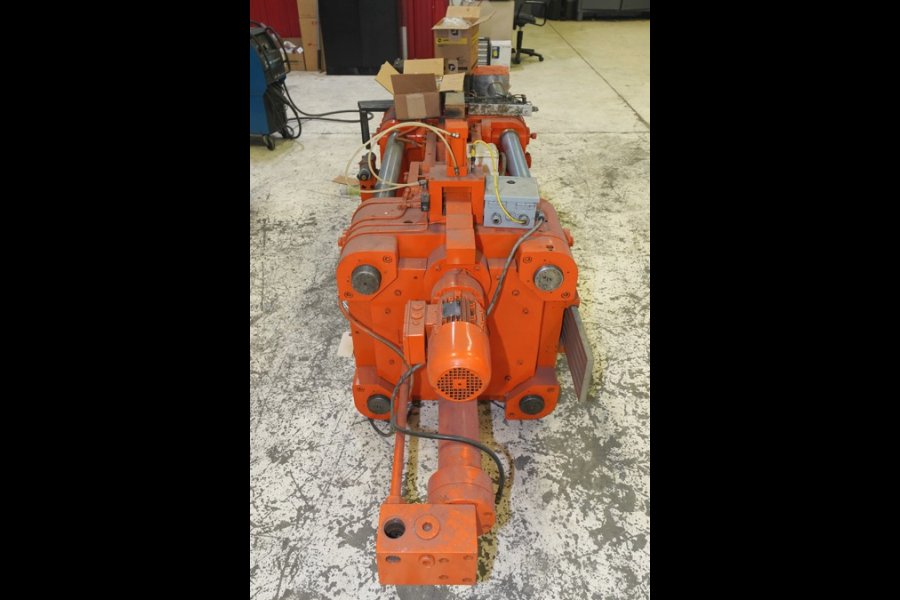

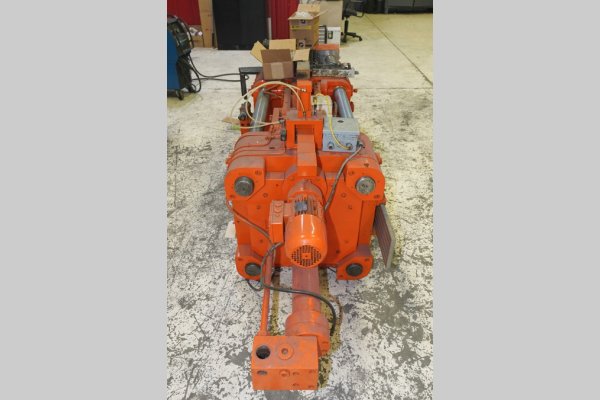

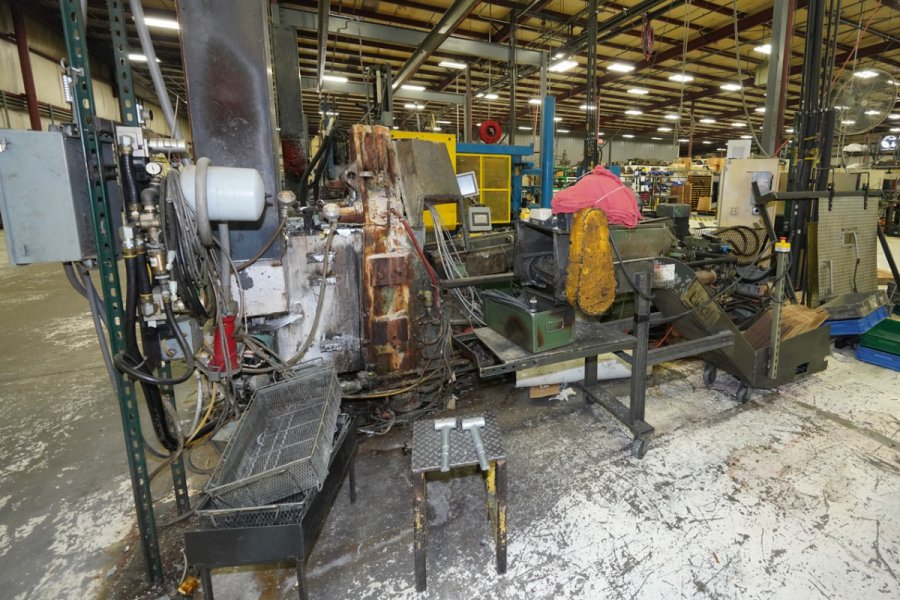

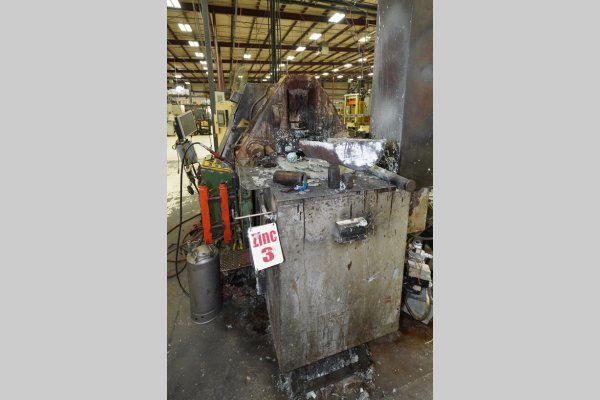

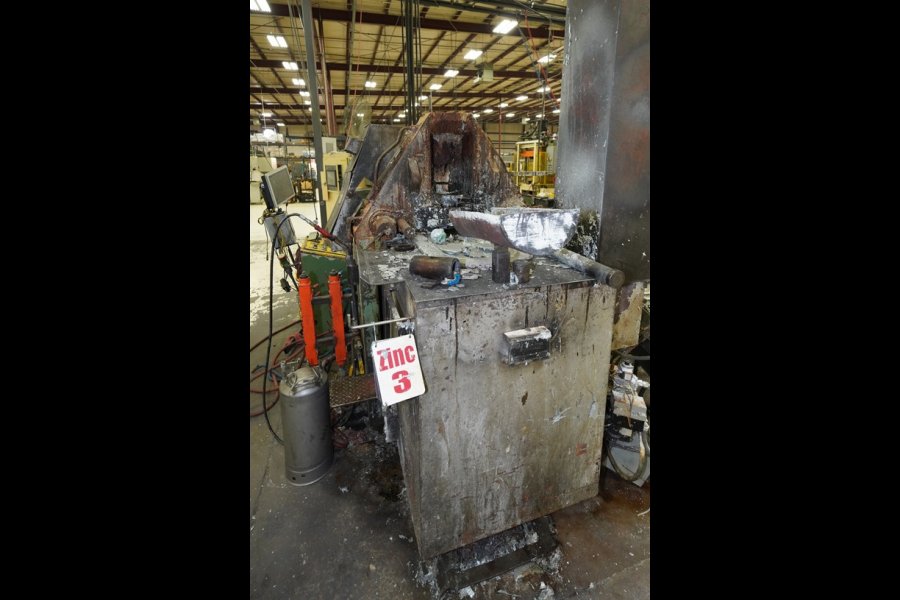

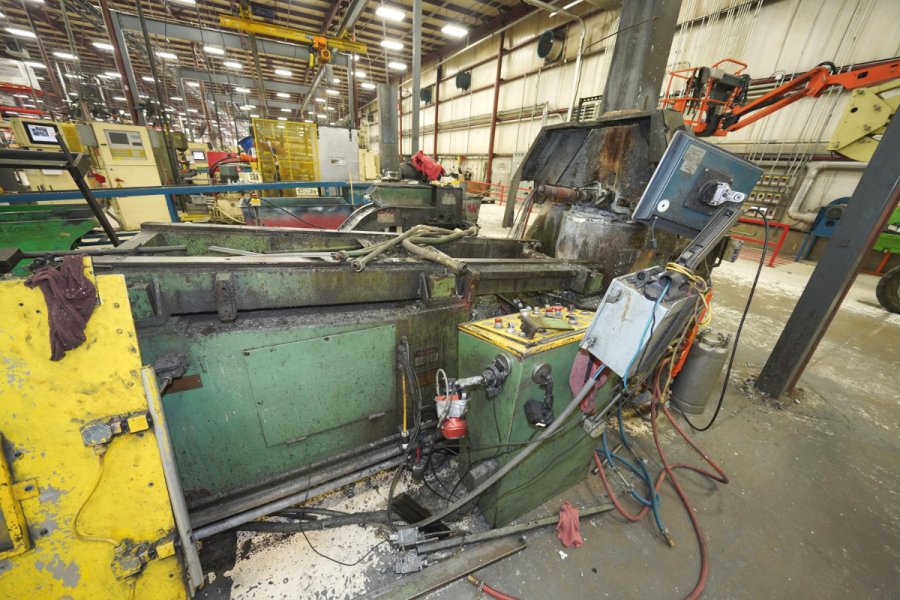

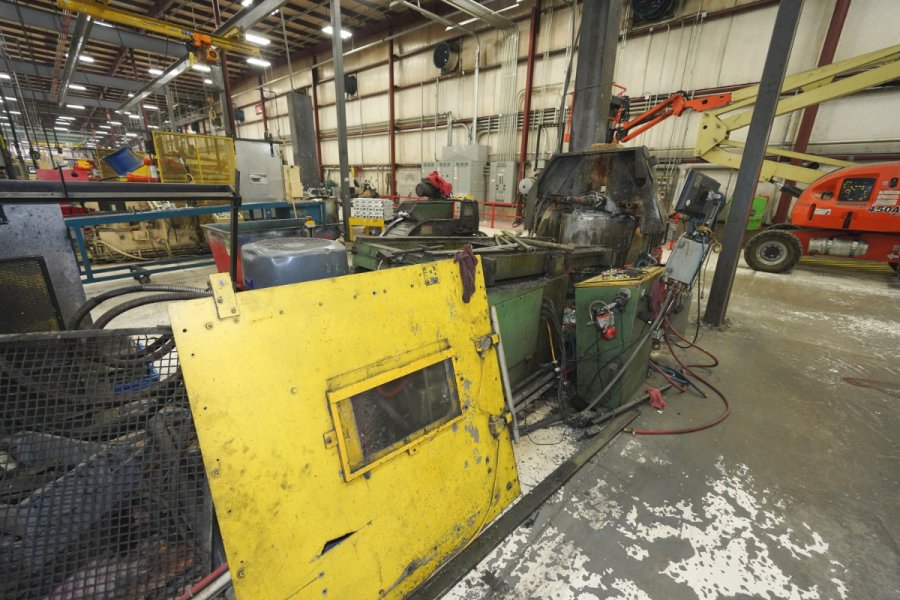

Used Frech Model: DAM 160 178 Metric Tons (1750 kN or 195 U.S. Ton) Horizontal Hot Chamber High Pressure Die Casting Machine.

View Available Hot Chamber Die Casting Machines

Features & Accessories:

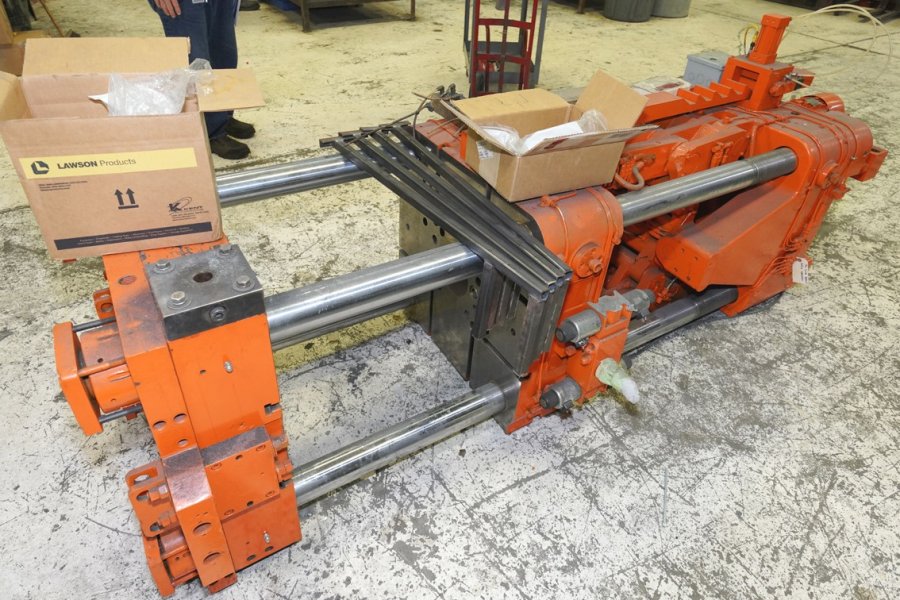

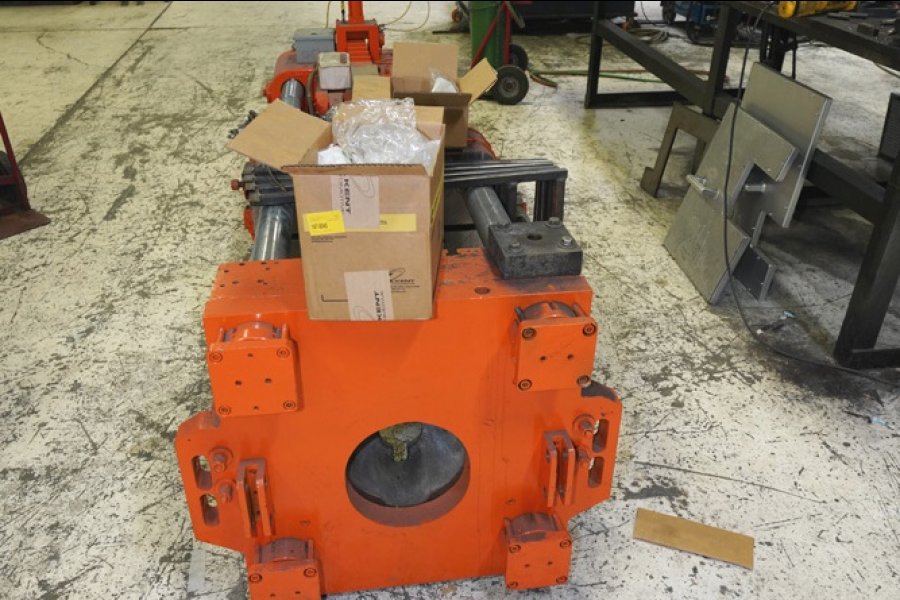

  • Linkage and Toggle just rebuilt
  • Motorized Die Height Adjustment
  • Air Safety Ratchet Device
  • Hydraulic Ejection System
  • Hydraulic Nozzle Clamping with Hydraulic Sprue Break

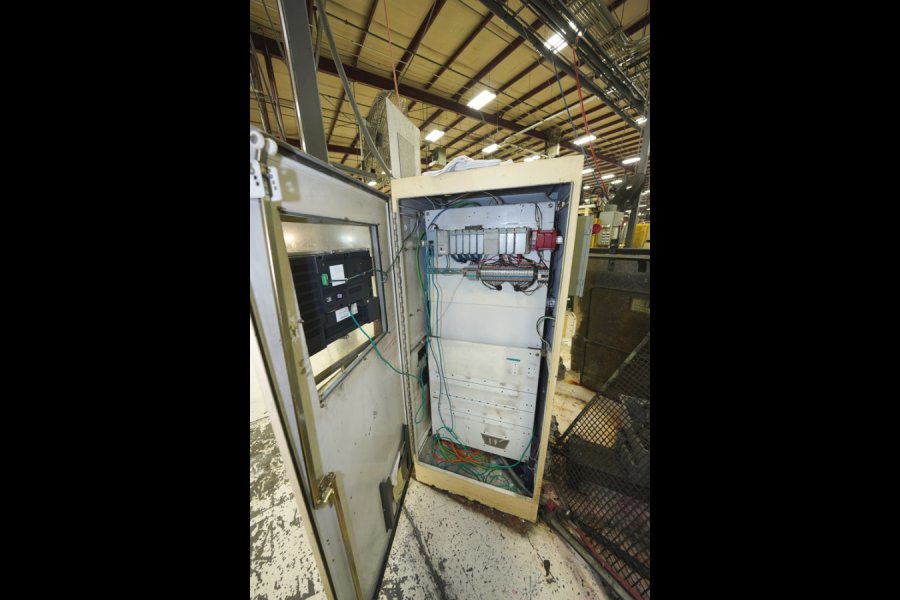

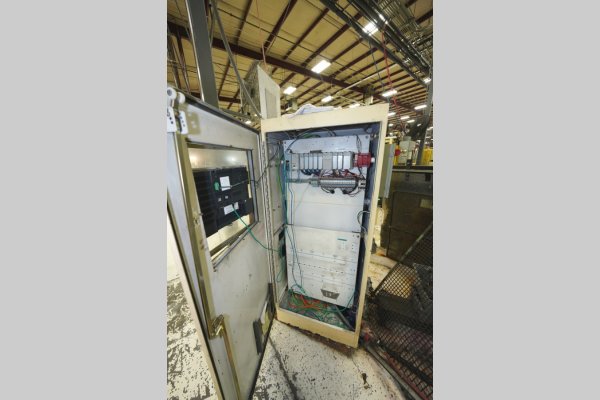

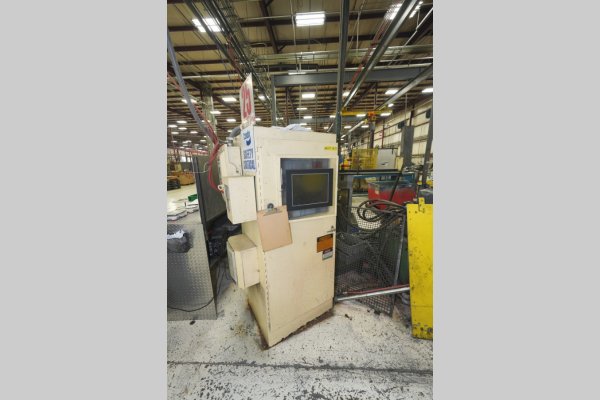

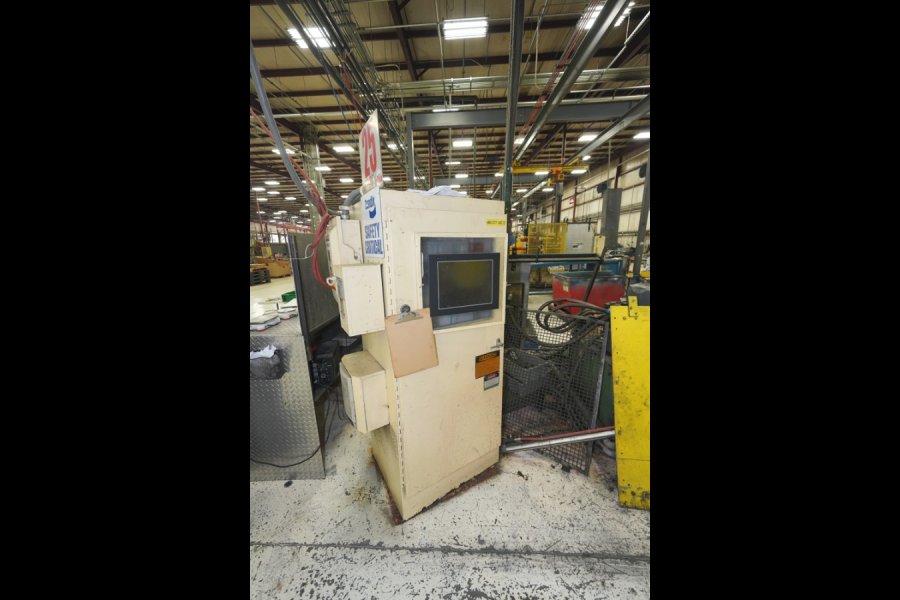

  • Upgraded to Allen Bradley SLC 5/03 Controls

Item Specifications for DCM-5639

Specifications
Clamping Force:
196 ton
Die Thickness (minimum - maximum):
9.8 - 23.6 inches
Platen Dimensions (horizontal x vertical):
27.75 x 27.75 inches
Clearance between tie bars:
17.71 x 17.71 inches
Tie Bar Diameter:
3.34 inches
Closing Stroke:
13.77 inches
Injection Force:
7.31 - 14.6 tons
Injection Plunger Diameter:
2.7, 3.1, 3.5 inches
Casting Volume:
27.4, 38.8, 52.2 Cubic Inches
Ejector Force:
12 tons
Ejector Stroke:
3.93 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Frech Model DAM 160 178 Metric Tons (1750 kN or 195 U.S. Ton) Horizontal Hot Chamber High Pressure Die Casting Machine For_Sale, Features Include: Motorized Die Height Adjustment, Air Safety Ratchet Device, Hydraulic Ejection System, Hydraulic Nozzle Clamping with Hydraulic Sprue Break, Upgraded to Allen Bradley SLC 5/03 Controls Allen Bradley SLC 5/03 PLC Control with 10 controls, second Hand, DCM-5639


See jumbo large photos of this Frech DAM 160
