Used Ube 800 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

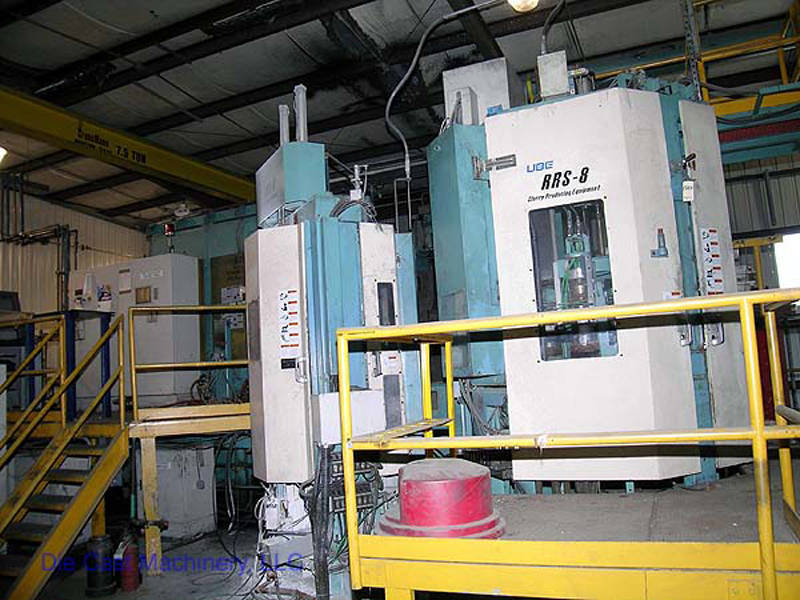

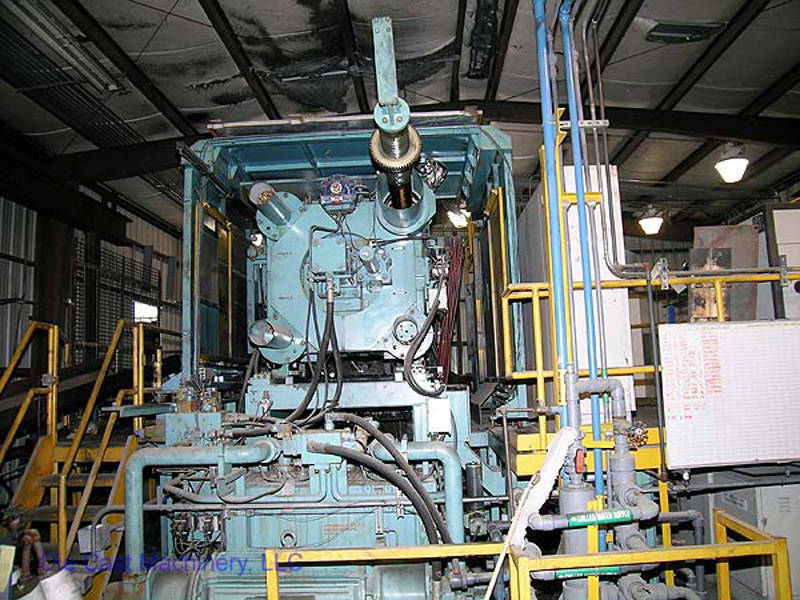

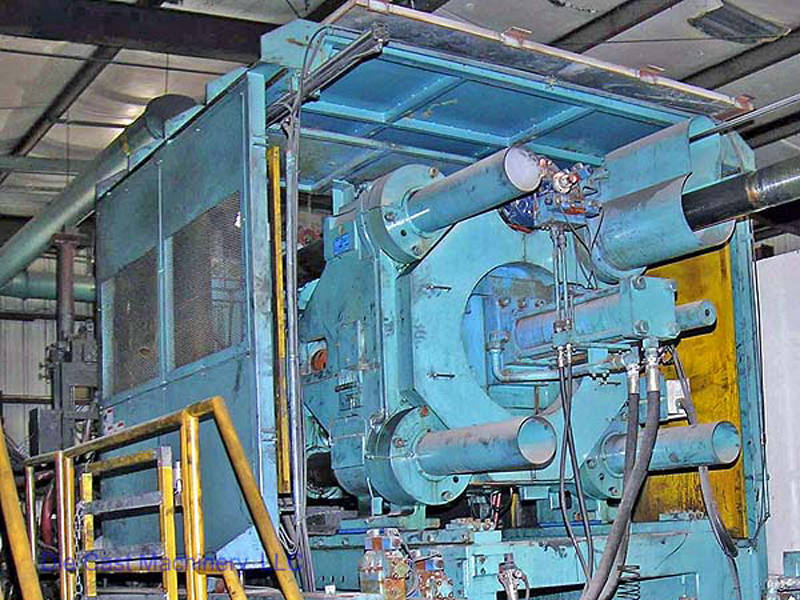

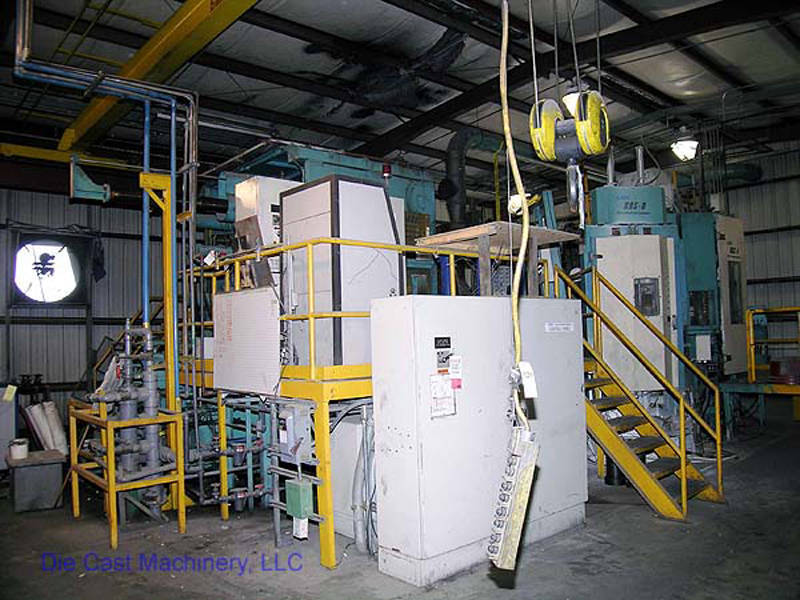

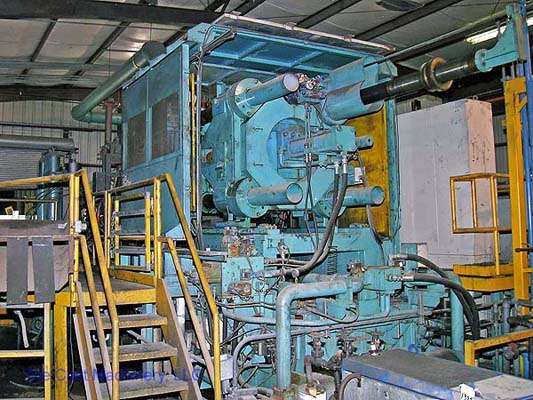

Used Ube 800 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine. Inventory item: DCM-1400.

Manufacturer: Ube

Model: 800 HVSC

Features & Accessories

  • This is a Horizontal Clamp Vertical Docking Shot Machine

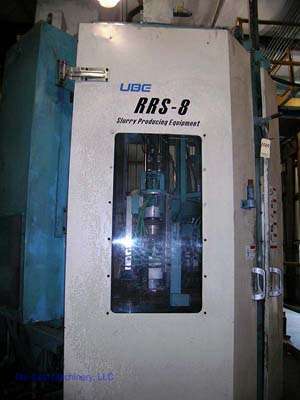

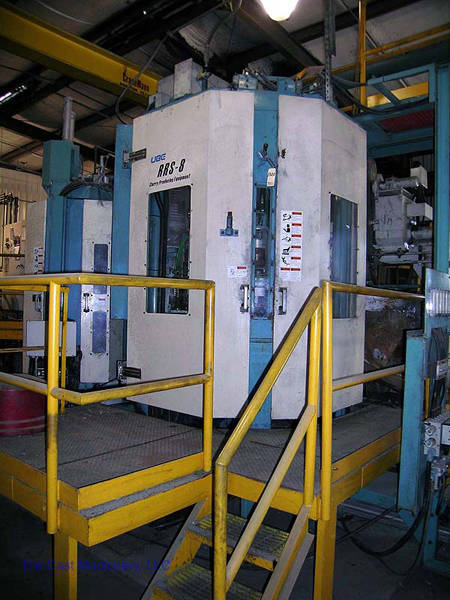

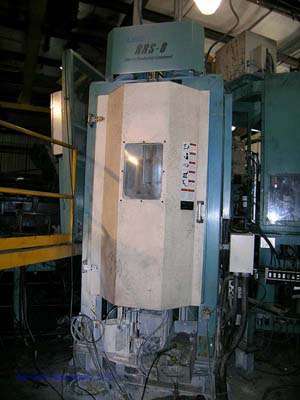

  • Ube RRS-8 Slurry Production Equipment Available
  • Horizontal Clamp with Vertical Shot Squeeze Cast, Semi-Solid, New Rheocast and Slurry Cast Capable
  • Top Operators Side Automatic Tie Bar Puller
  • Ube Automatic Ladle

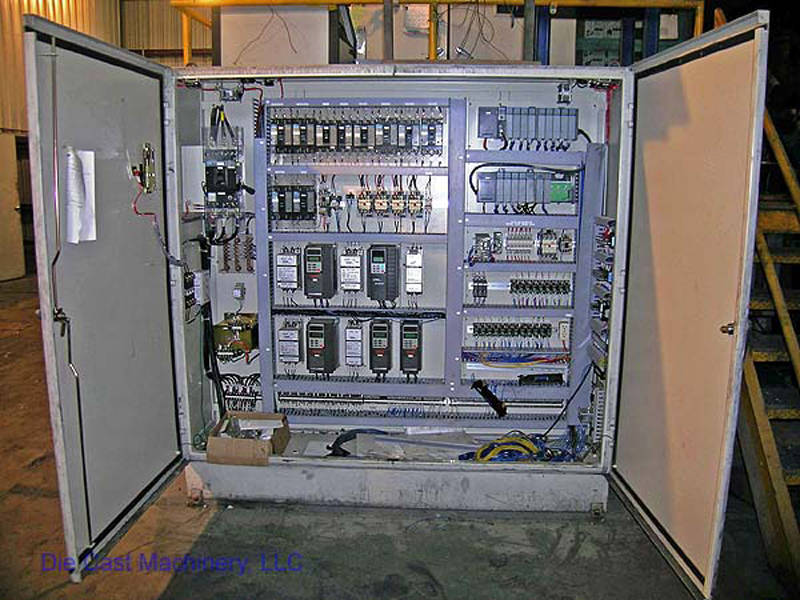

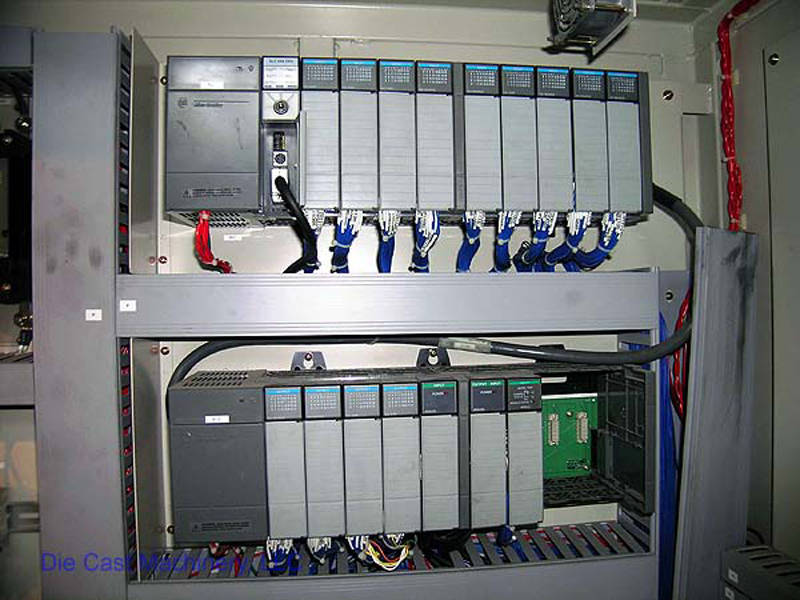

  • Allen Bradley PLC Controls

Item Specifications for DCM-1400

Specifications
Locking Force:
881 tons
Tie Bar Diameter:
7 inches
Clearance Between Tie Bars:
33.46 inches
Die Thickness:
21.65 x 37.4 inches
Die Stroke:
29.92 inches
Moving Platen Size:
53 x 53 inches
Shot Position (From Bottom of Die Setting surface to Center of Sleeve):
9.84 inches
Shot Cylinder Stroke:
29.53 inches
Shot Force:
103.34 tons
Shot Speed:
1.18 - 59 inches/sec
Machine Size (L x W x H):
23 x 15 x 14 feet
Machine Weight:
57 tons

Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description

Used, Ube Model 800 HVSC 800 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine For Sale, Features include: Ube RRS-8 Slurry Production Equipment Available, Horizontal Clamp with Vertical Shot Squeeze Cast, Semi-Solid, New Rheocast and Slurry Cast Capable, Top Operators Side Automatic Tie Bar Puller, Ube Automatic Ladle, Allen Bradley PLC Controls Allen Bradley PLC Controls, Second Hand, DCM-1400
