Cold Chamber Die Casting Machines Model 3569 One (1) Used Prince 3500 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 1478 Condition: Used Sold Prince - 3569 3500 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Controls used 1
Die Cast Machinery, LLC Inventory number: 1478
We offer for sale, subject to prior sale and the terms listed below:

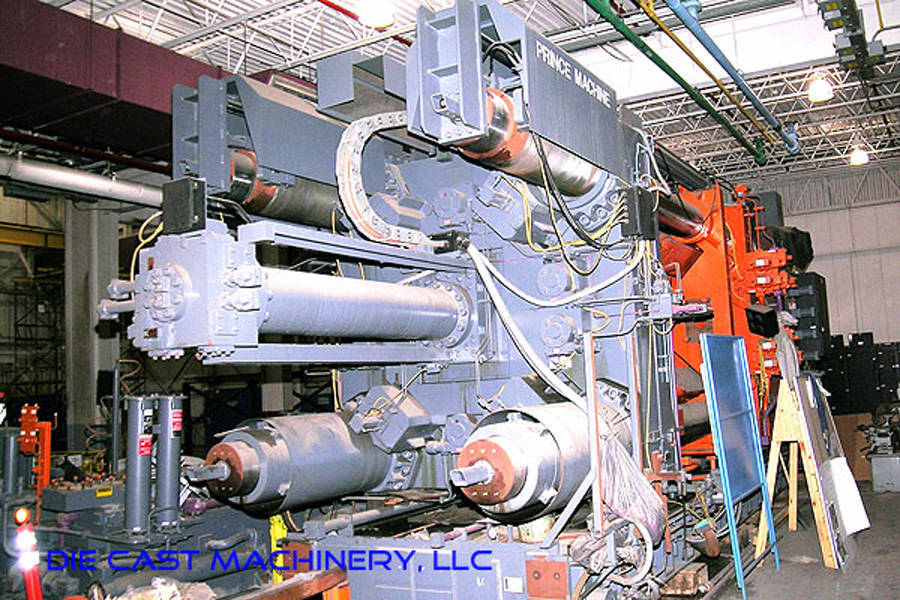

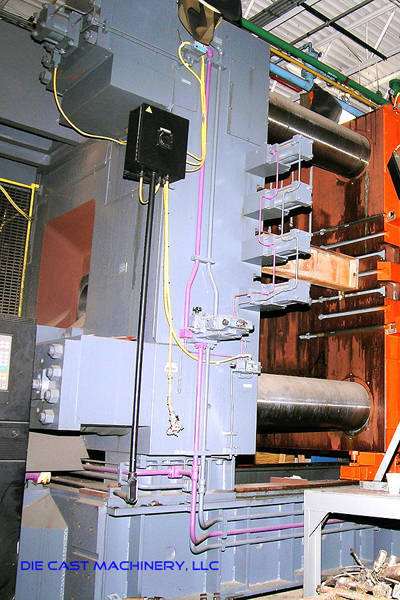

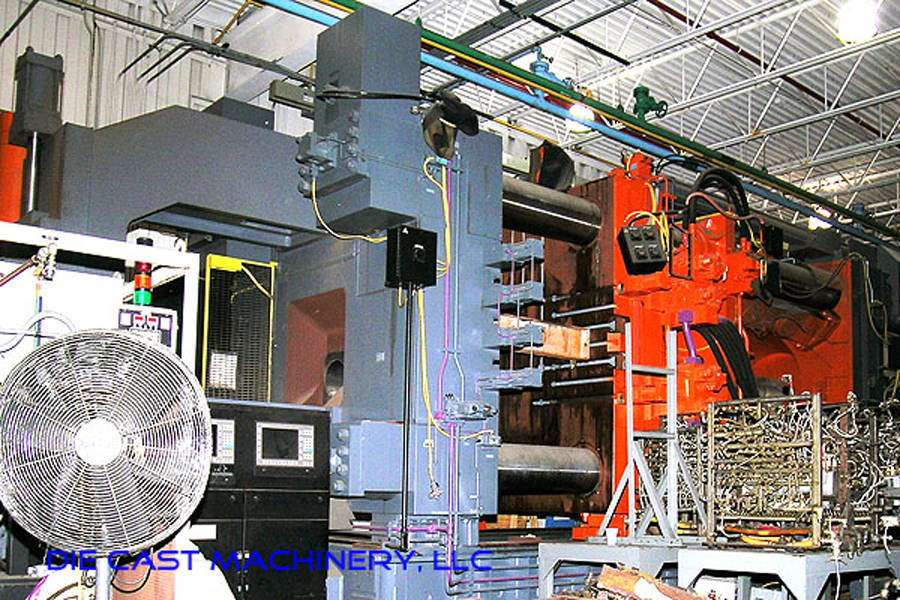

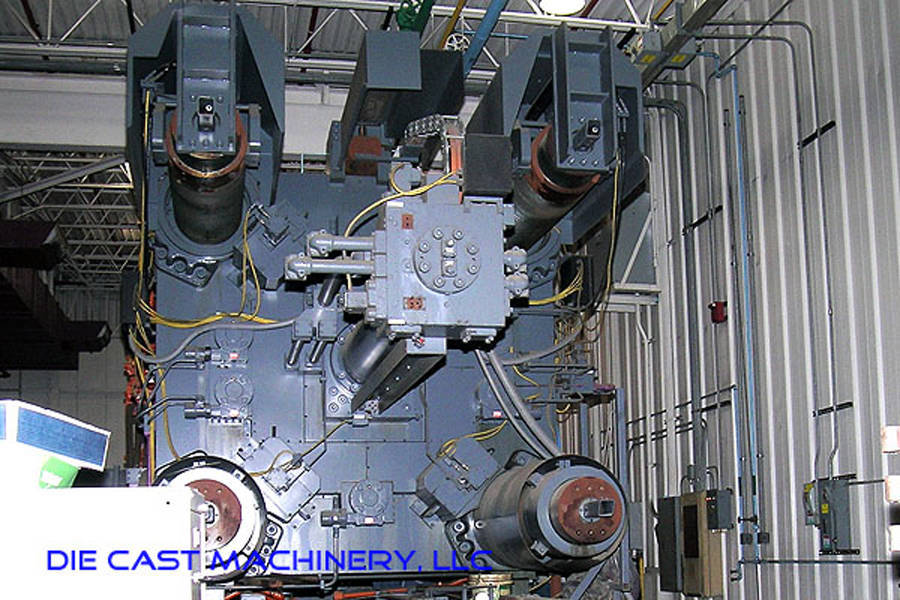

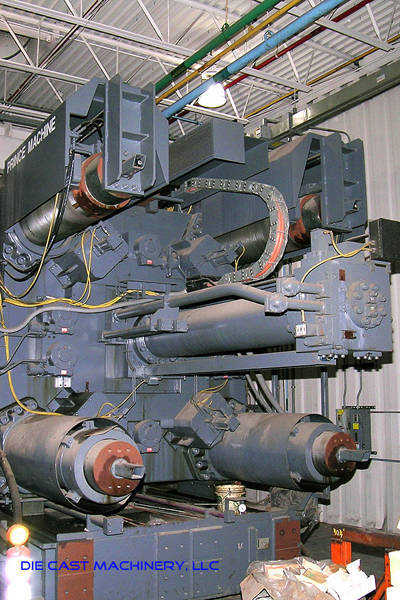

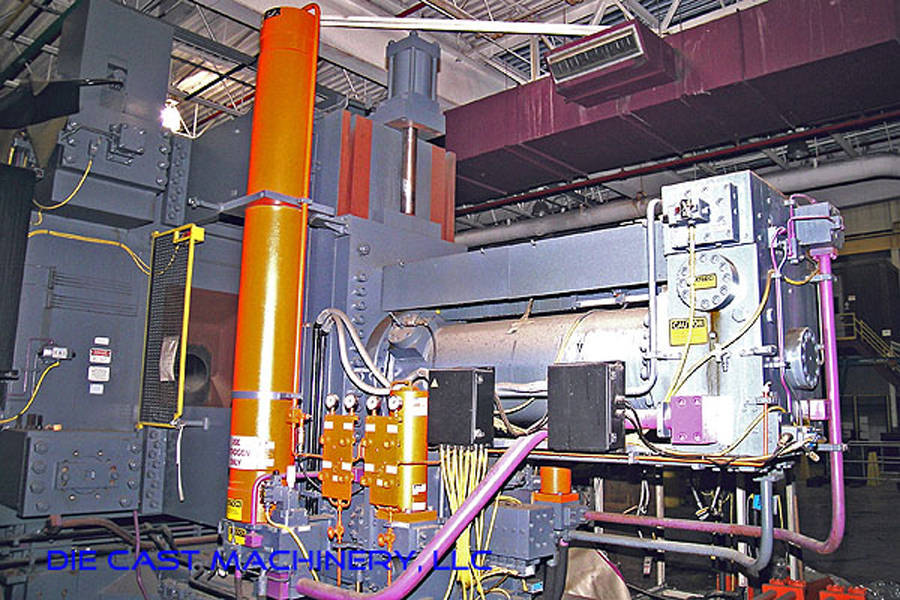

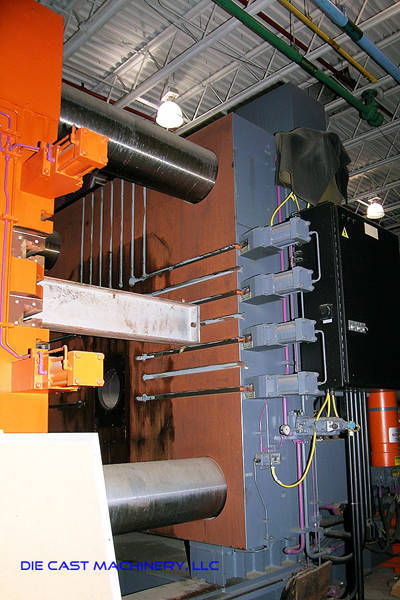

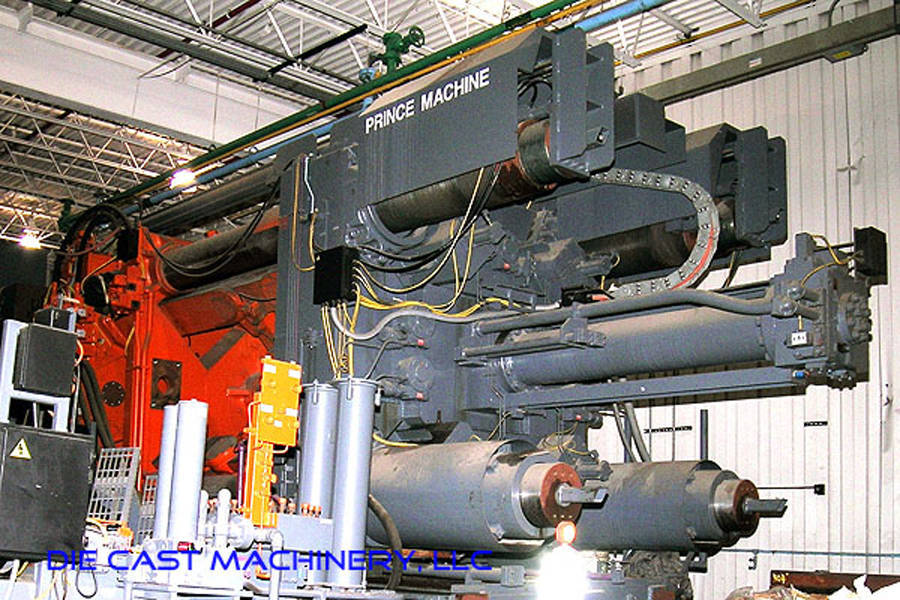

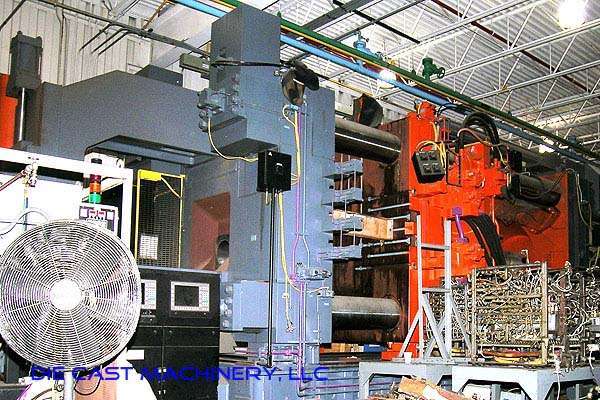

One (1) Used Prince 3500 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model 3569

Never Installed - Never Used

Status: Sold
Specifications: Metric / U.S. Standard
Maximum Rated Tonnage: 3636 Tons / 4,000 Tons
Tie Bar Diameter: 387 mm / 15.25 inches
Clearance between Tie Bars: 1752 mm / 69 inches
Die Thickness (Minimum to Maximum): 1143 - 2160 mm / 45 - 85 inches
Die Stroke: 1320 mm / 52 inches
Ejector Platen Stroke: 25.4 mm / 10 inches
Ejector Platen Force: 77 tons / 85 tons
Injection Force: 227 Tons / 250 Tons
Shot Positions: 300 - 600 mm below Centerline / 12 - 24 inches below Centerline
Maximum Dry Shot Velocity: 6100 mm per second / 240 inches per second
Main Motors: 150 kw & 56 kw / 200 HP & 75 HP
Machine Weight: 268,000 kg / 590,000 pounds
Features & Accessories:
Never Been Used
Dual Automatic Tie Bar Pullers
Power Die Clamping
Prince Binary Shot with Low Impact Circuit
Quick Die Change System
Real-Time Load Monitoring
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Prince Model 3569 3500 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Never Been Used, Dual Automatic Tie Bar Pullers, Power Die Clamping, Prince Binary Shot with Low Impact Circuit, Quick Die Change System, Real-Time Load Monitoring, Allen Bradley Controls, Second Hand, DCM-1478

The following technical terms are to assist you with searches: Used | Second Hand | Prince |3569 | 3500 Ton | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | Never Been Used | Dual Automatic Tie Bar Pullers | Power Die Clamping | Prince Binary Shot with Low Impact Circuit | Quick Die Change System | Real-Time Load Monitoring | Allen Bradley Controls | DCM-1478
