Cold Chamber Die Casting Machines Model DC-650-CE One (1) Used Toshiba 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 1900 Condition: Used Sold Toshiba - DC-650-CE 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine,  Controls used 1
Die Cast Machinery, LLC Inventory number: 1900
We offer for sale, subject to prior sale and the terms listed below:

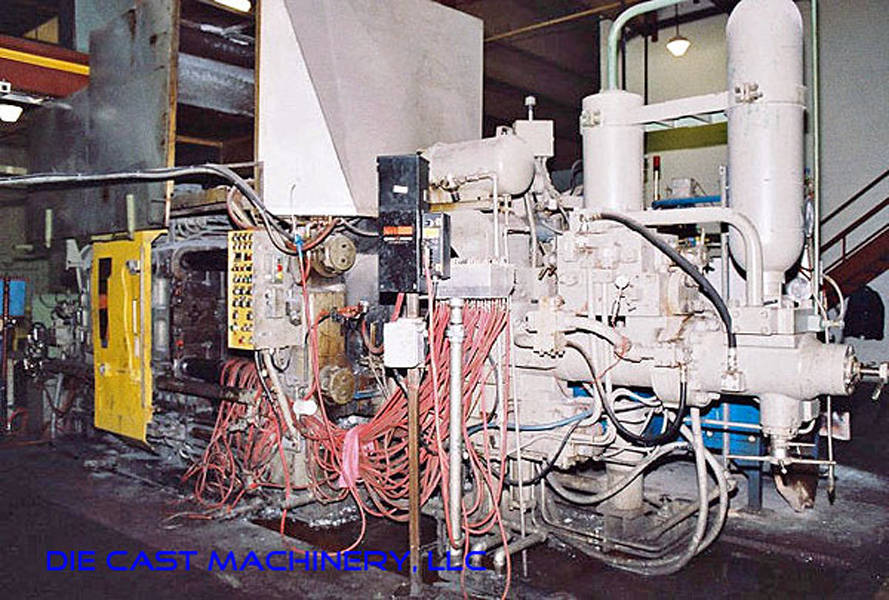

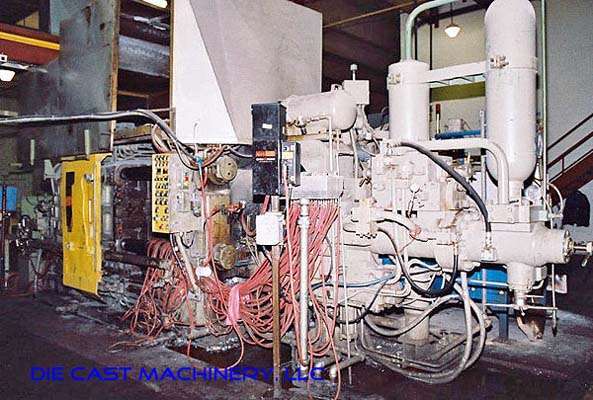

One (1) Used Toshiba 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model DC-650-CE

Status: Sold
Specifications: Metric / U.S. Standard
Locking Force 650 tons / 720 tons
Platen Size 1200 mm x 1200 mm / 47.25 inch x 47.25 inch
Tie Bar Diameter 170 mm / 6.69 inch
Clearance Between Tie Bars (V x H) 750 mm x 750 mm / 29.52 inches x 29.52 inches
Die Thickness (max - min) 350 mm - 900 mm / 13.78 inches - 35.43 inches
Die Stroke 600 mm / 23.62 inches
Injection Stroke (adjustable) 500 mm - 610 mm / 19.68 inches - 24 inches
Injection Positions 0 and -175 mm / Center and -6-89 inches
Ejection Stroke per Ejection Force 125mm per 30 mt / 4.9 inches per 33 tons
Pump Motors 22 and 18.5 kw / 30 and 25 HP
Machine Weight 30,000 Kg / 66,000 pounds
Machine Dimensions (L x W x H) 8 meters x 2.3 meters x 3 meters / 27 feet x 7 feet 6 inches x 10 feet 1 inch
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Toshiba Model DC-650-CE 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Controls, Second Hand, DCM-1900

The following technical terms are to assist you with searches: Used | Second Hand | Toshiba |DC-650-CE | 650 Metric Ton | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | DCM-1900


PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
