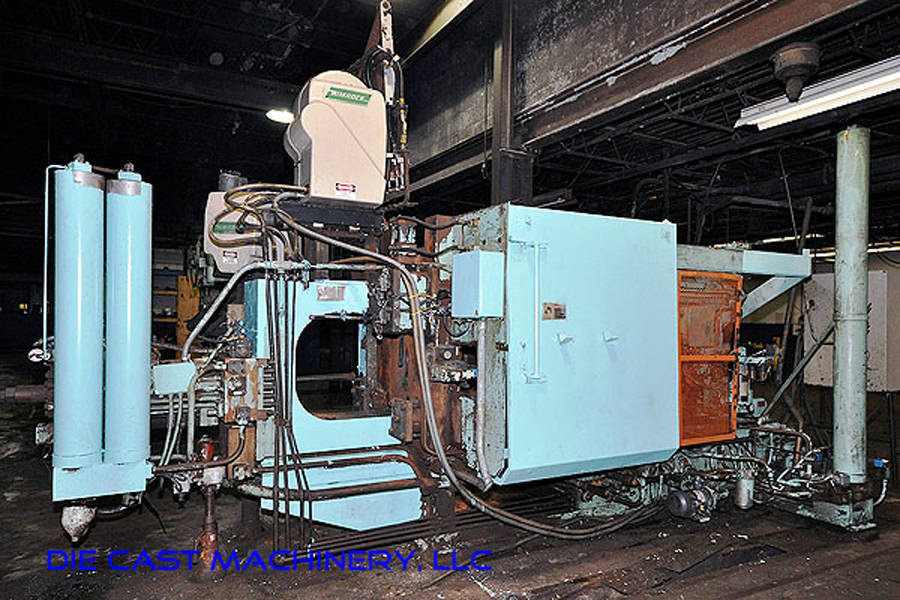

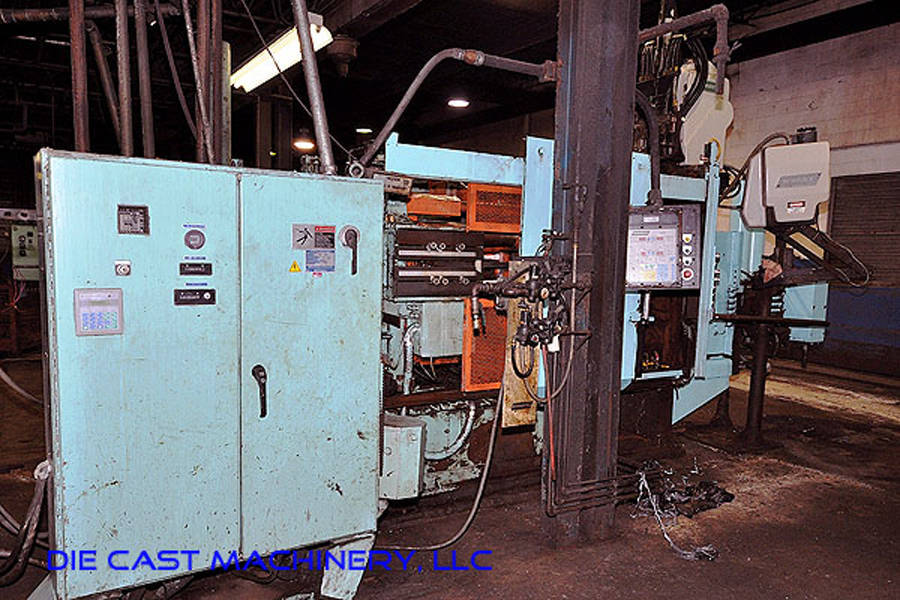

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: HPM
Model: II-400-A
Size: 400 Ton
Inventory Number: DCM-2487

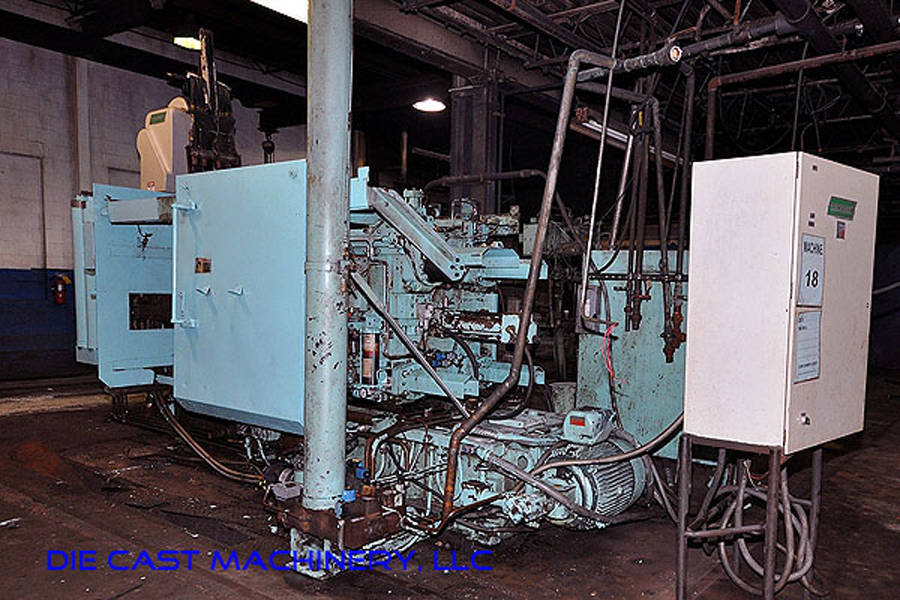

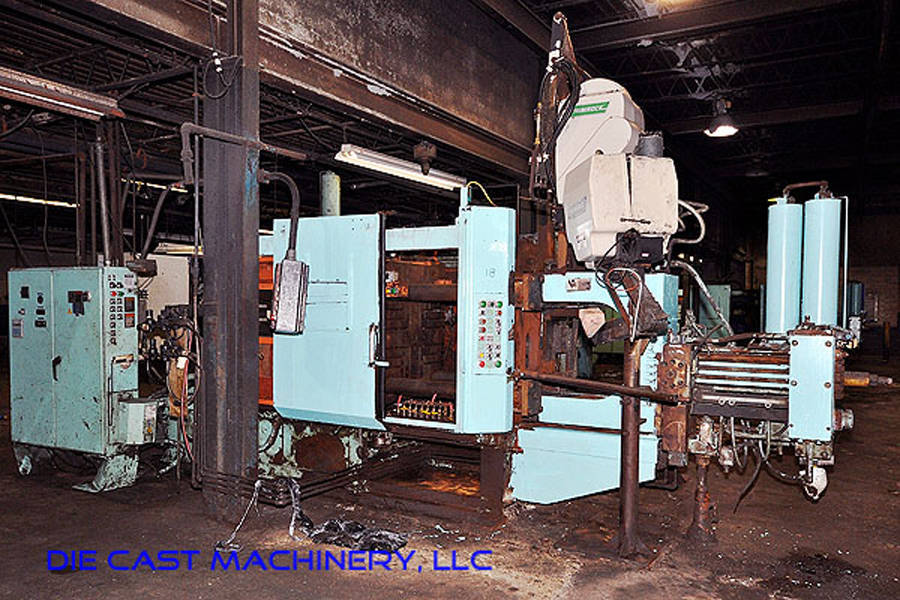

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- C-Frame Shot End with multiplier intensification cylinder
- Fully Automatic Top Helper Side Tie Bar Pulling System
- Hydraulic Motorized Central Die Height Adjustment
- One Auxiliary Core Circuit on Cover Side - One Auxiliary Core Circuit on Ejector Side
- Center and Six Inch Below Center Shot Position
- Hydraulic Ejection
Item Specifications for DCM-2487
| Specifications | |
|---|---|
| Clamping (Locking) Force: |
400 tons
|
| Tie Bar Diameter: |
5 inches
|
| Clearance between Tie Bars (H x V): |
24 x 24 inches
|
| Moving Platen Size (H x V x T) |
39 x 43.7 x 7.75
|
| Stationary (Fixed) Platen Size (H x V x T): |
39 x 42.7 x 8.25 inches
|
| Die Thickness (minimum to maximum): |
12 - 30 inches
|
| Die Stroke: |
15 inches
|
| Shot Cylinder Stroke: |
18.5 inches
|
| Rated Dry Cycles Per Hour: |
375
|
| Main Motor: |
40 hp
|
| Overall Size: |
6.7 x 21.4 x 9.8 feet
|
| Weight: |
34,000 pounds
|
Description

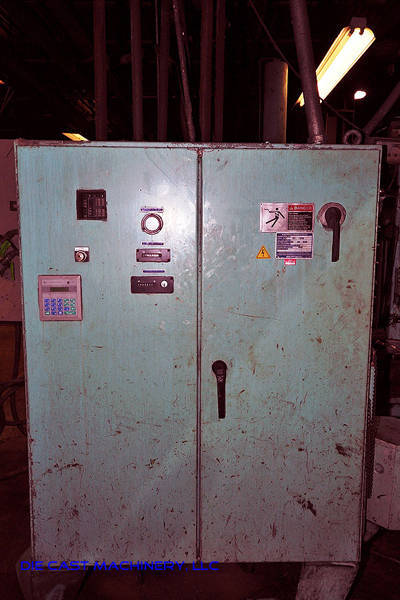

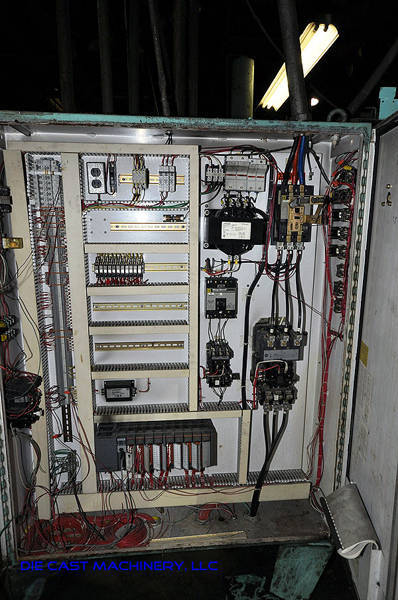

Used, HPM Model II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with multiplier intensification cylinder, Fully Automatic Top Helper Side Tie Bar Pulling System, Hydraulic Motorized Central Die Height Adjustment, One Auxiliary Core Circuit on Cover Side - One Auxiliary Core Circuit on Ejector Side, Center and Six Inch Below Center Shot Position, Hydraulic Ejection, Allen Bradley SLC 5/03 controls, second Hand, DCM-2487
