Cold Chamber Die Casting Machines Model BMC-850-A One (1) Used Birch 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 2500 Condition: Used Sold Birch - BMC-850-A 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls used 1
Die Cast Machinery, LLC Inventory number: 2500
We offer for sale, subject to prior sale and the terms listed below:

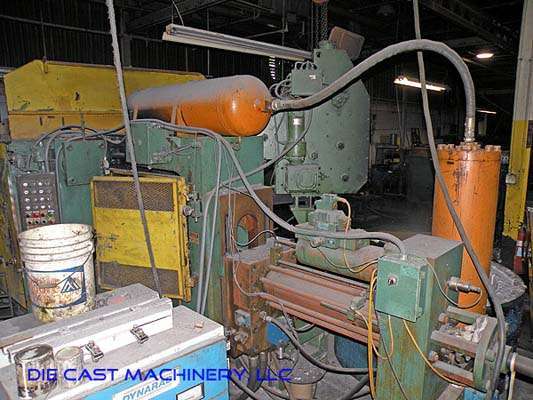

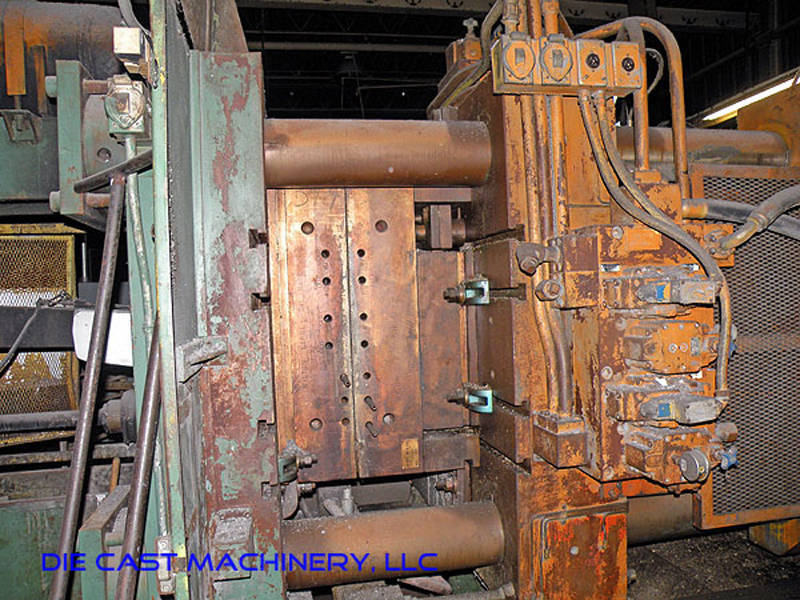

One (1) Used Birch 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model BMC-850-A

Inspect Under Power on factory floor

Status: Sold
Specifications: Metric / U.S. Standard
Locking Force: 771 tons / 850 tons
Tie Bar Diameter: 184 mm / 7.25 inches
Clearance Between Tie Bars: 920 x 920 mm / 36.25 x 36.25 inches
Die Thickness (minimum - maximum): 381 - 965 mm / 15 - 38 inches
Die Stroke (minimum - maximum): 406 - 558 mm / 16 - 22 inches
Moving Platen Size (H x V x T): 1511 x 1511 x 330 mm / 59.5 x 59.5 x 13 inches
Shot Positions: Center and -228.6 mm below center / Center and -9 inches
Cylinder Stroke: 660 - 762 mm / 26 - 30 inches
Power: 55.95 kw / 75 HP
Machine Size: 8.53 x 2.44 x 2.74 meters / 28 x 8 x 9 feet
Machine Weight: 46,000 kg / 92,000 pounds
Features & Accessories:

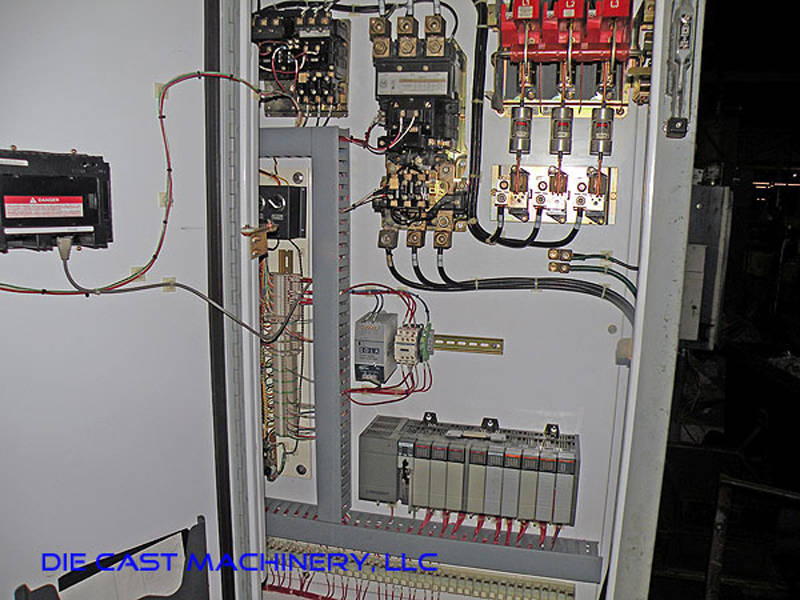

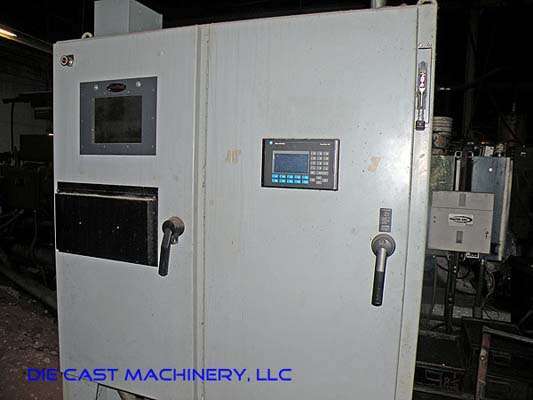

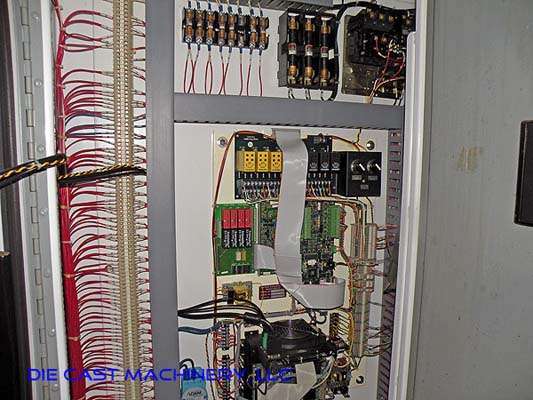

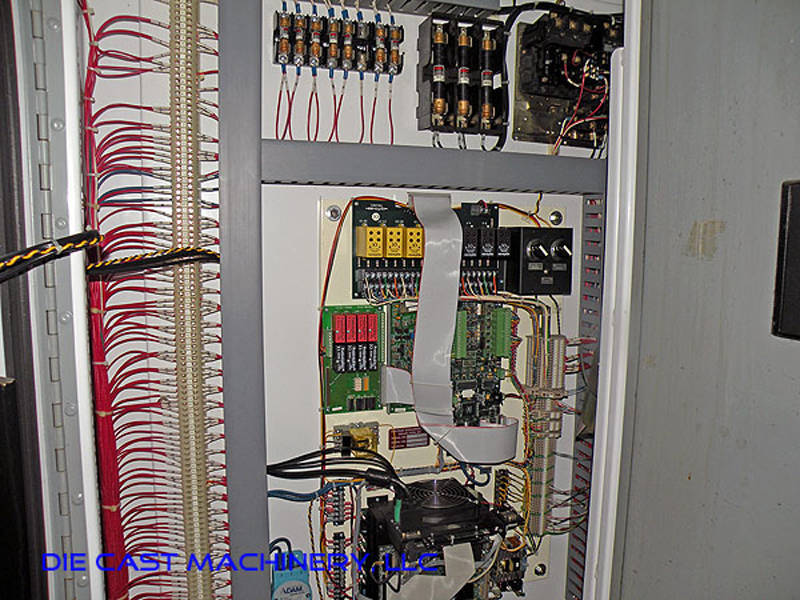

New Control Panel with AB SLC 5/03, Panel View HMI Display, Motor Starter, wiring, etc. installed in 2006
New Visi-Trak Sure-Track 2 Shot Control and Monitoring installed in 2006

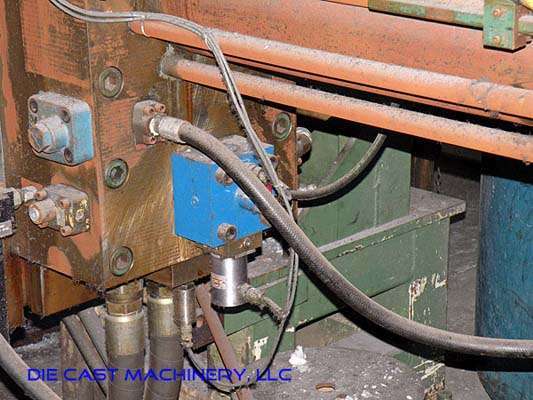

New Olmsted 50 mm meter out shot servo valve installed in 2006
Hydraulic Bumper Plate Ejection System
Electric Motorized Die Height System
Adjustable Shot and Die Stroke
Optional Equipment Available with Machine at additional cost: (click on item to view)

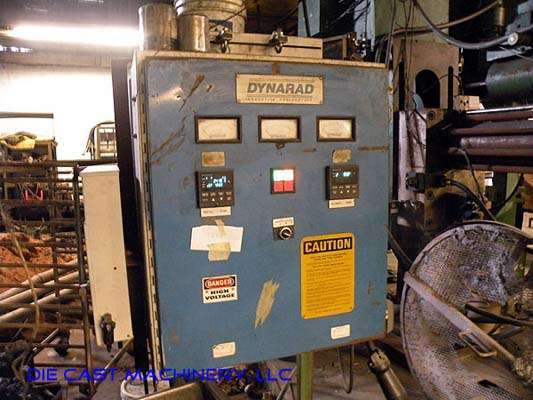

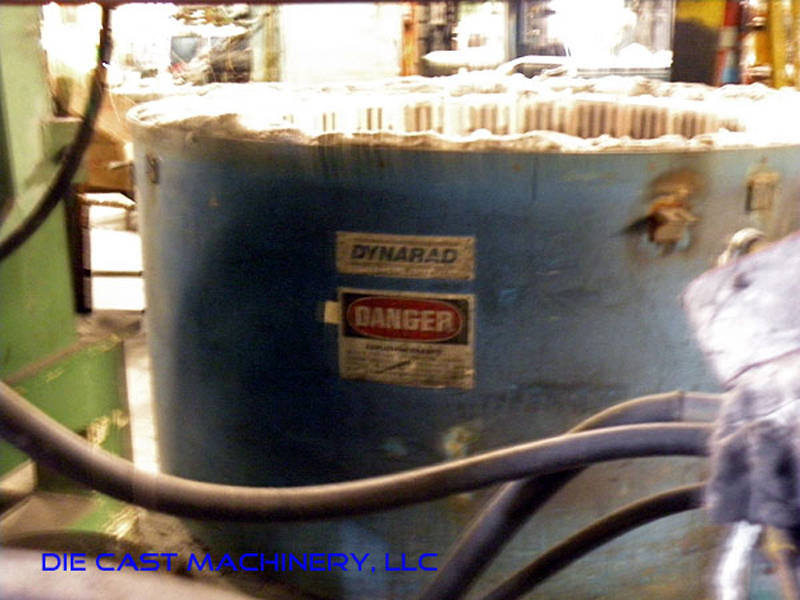

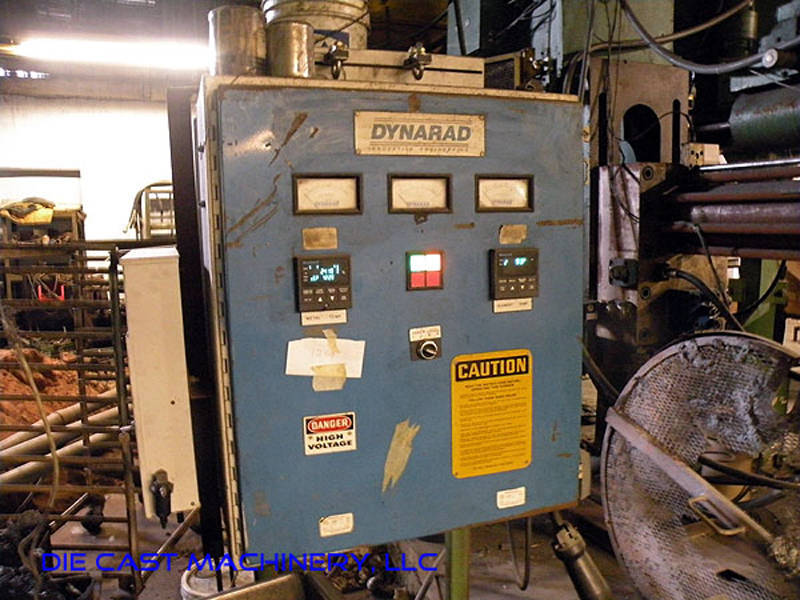

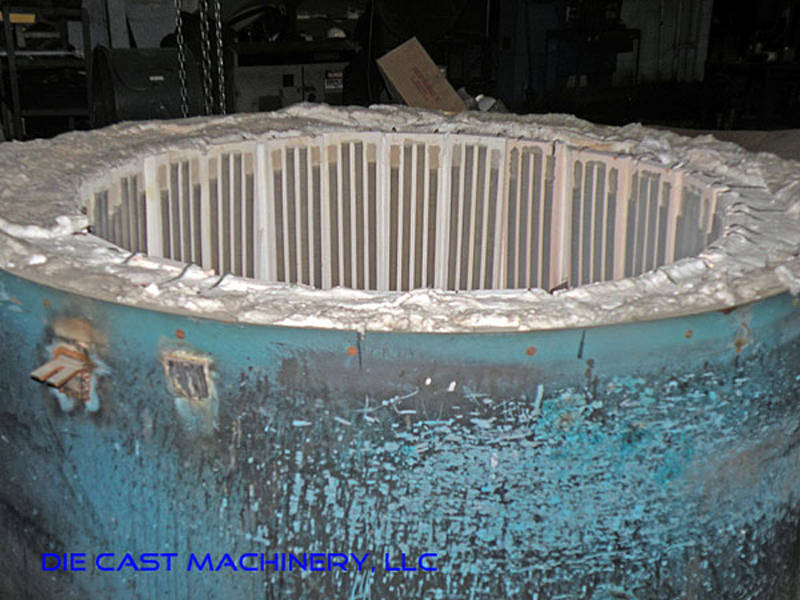

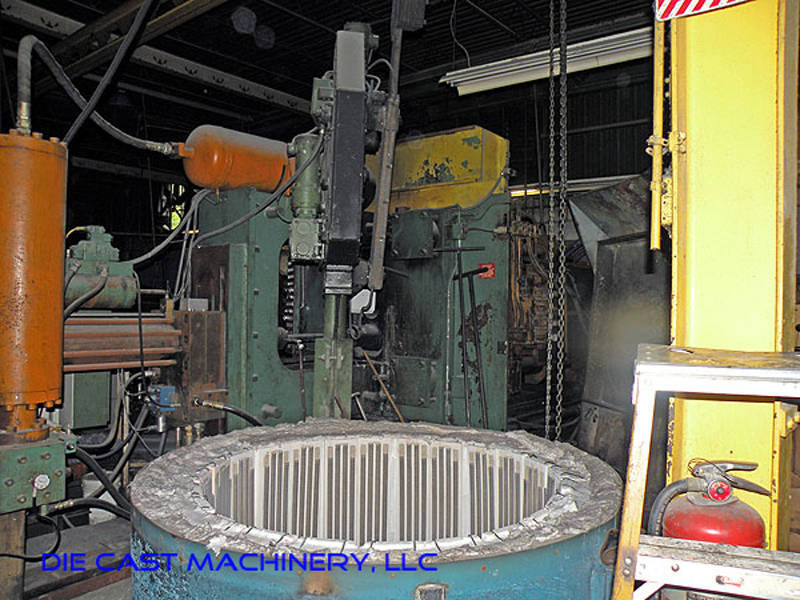

Dynarad Model EC 1500 Electric Resistance Melting and Holding Furnace

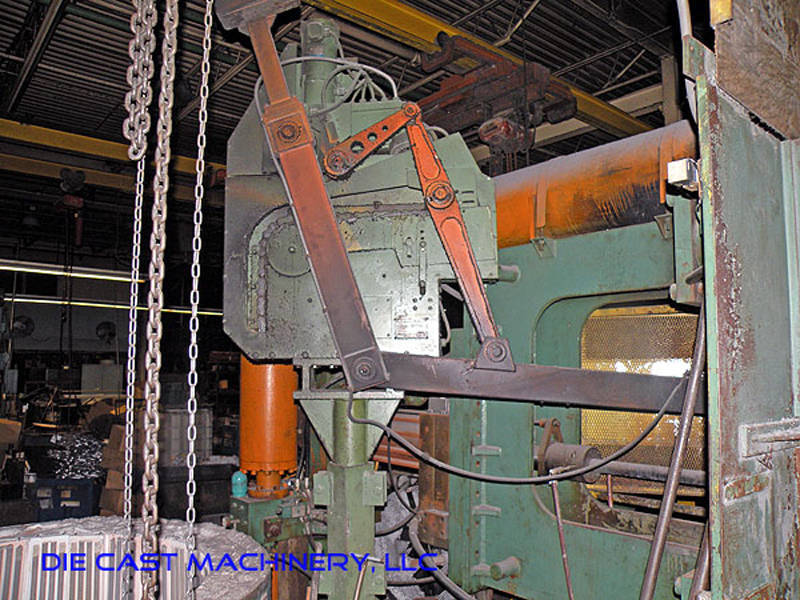

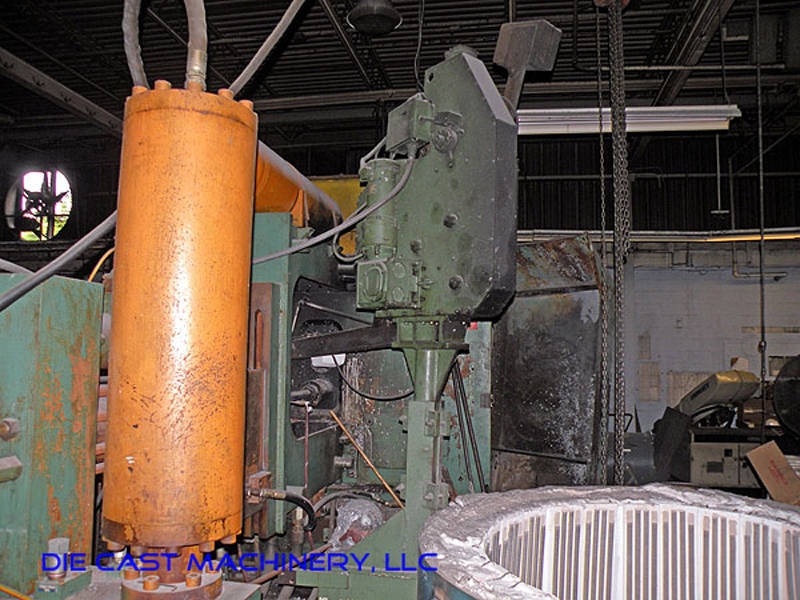

Snair Model 904Y Auto-Ladler
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America



Description: Used, Birch Model BMC-850-A 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: New Control Panel with AB SLC 5/03, Panel View HMI Display, Motor Starter, wiring, etc. installed in 2006, New Visi-Trak Sure-Track 2 Shot Control and Monitoring installed in 2006, New Olmsted 50 mm meter out shot servo valve installed in 2006, Hydraulic Bumper Plate Ejection System, Electric Motorized Die Height System, Adjustable Shot and Die Stroke, Allen Bradley SLC 5/03 Controls, Second Hand, DCM-2500
