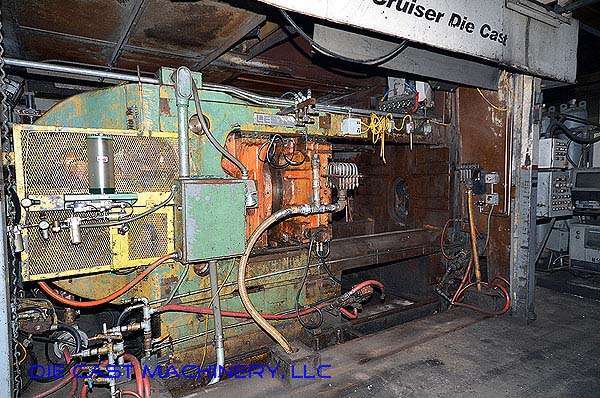

Used Lester Model: HP-1200X-SF 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Lester
Model: HP-1200X-SF
Size: 1200 Ton
Inventory Number: DCM-2753
Used Lester Model: HP-1200X-SF 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- T-Slotted Platens
- Air Safety Ratchet
- Upgraded Allen Bradley Controls
- Upgraded Shot System with Visi-Trak Shot Process and Monitoring
- Four Post Hydraulic Trim Press
- Rimrock Multi-link automatic Ladle and Sprayer
Item Specifications for DCM-2753
| Specifications | |
|---|---|
| Maximum Die Locking Pressure: |
1200
|
| Die Height Adjustment (w/ die spacer rings): |
48 - 18 inches
|
| Die Stroke (adjustable) |
10.250 - 30 inches
|
| Clearance between beams (Hor x Vert): |
42 inches by 42 inches
|
| Moving Platen Size (Hor x Vert): |
65 inches by 65 inches
|
| Maximum Die Size: |
65 inches by 42 inches
|
| Ejector Cylinder Stroke (adjustable): |
0 - 8 inches
|
| Ejector Cylinder Force: |
30 tons
|
| Shot Positions (inserted, adjustable): |
Center to -12 inches
|
| Machine Controls: |
Allen Bradley PLC 5
|
| Machine HMI |
Allen Bradley Panel View 550
|
| Approximate Machine Weight: |
112,000 pounds
|
Description
Used, Lester Model HP-1200X-SF 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: T-Slotted Platens, Air Safety Ratchet, Upgraded Allen Bradley Controls, Upgraded Shot System with Visi-Trak Shot Process and Monitoring, Four Post Hydraulic Trim Press, Rimrock Multi-link automatic Ladle and Sprayer, Allen Bradley controls, second Hand, DCM-2753
