Trim Presses Model SEP 10-65 D111 One (1) Used Reis Trim Press 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press Inventory #: 3220 Condition: Used Sold Reis Trim Press - SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press, Siemens CPU 315-20P Controls used 1
Die Cast Machinery, LLC Inventory number: 3220
We offer for sale, subject to prior sale and the terms listed below:

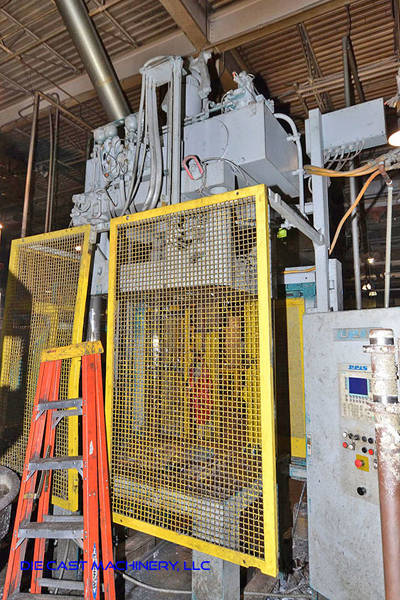

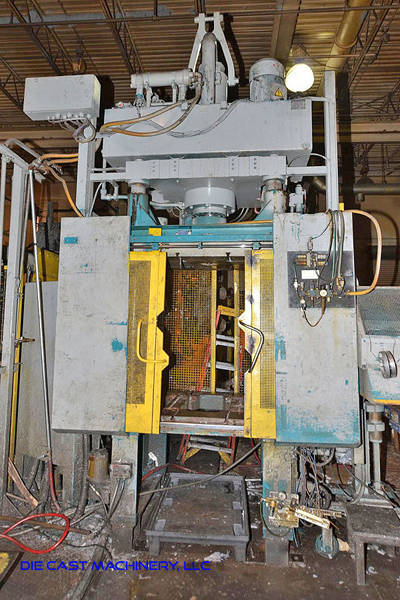

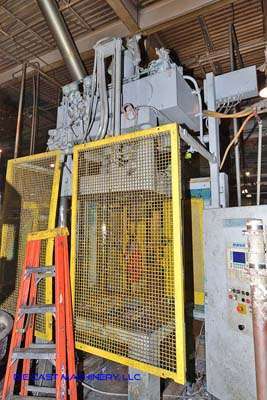

One (1) Used Reis Trim Press 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press

Model SEP 10-65 D111

Status: Sold
Specifications: Metric / U.S. Standard
Pressing Tonnage: 65 metric tons / 73 tons

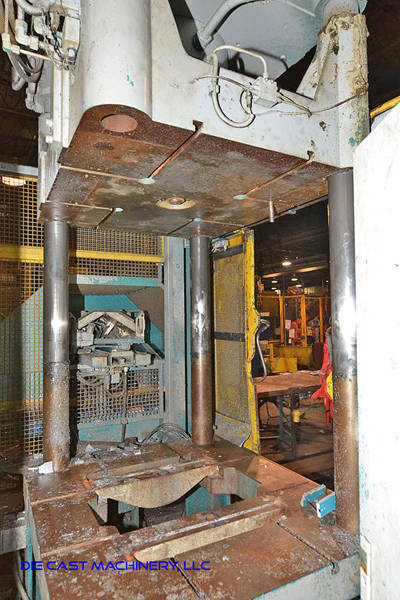

Number of Columns: 3 / 3
Column Diameter: 127 mm / 5 inches
Daylight: 914 mm / 36 inches
Stroke: 609 mm / 24 inches
Shut Height: 305 mm / 12 inches
Clearance between Tie Bars (Left to Right): 991 mm / 39 inches
Clearance between Tie Bars (Front to Back): 686 mm / 27 inches

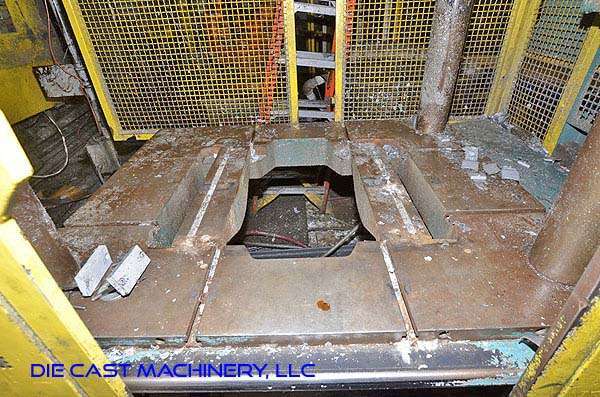

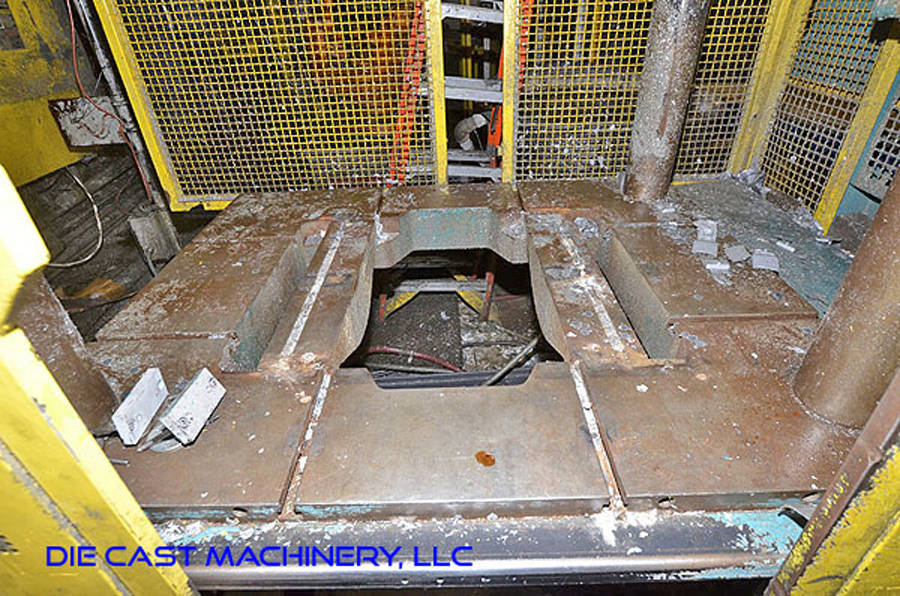

Bed Size (Left to Right by Front to Back): 1346 x 1092 mm / 53 x 43 inches
Cut out Size in Bed: (L/R x F/B): 787 x 584 mm / 31 x 23 inches
Overall Size (L x w x H): 2.7 x 1.5 x 4.9 meters / 9 x 5 x 16
Estimate Machine Weight: 6,500kg / 14,330 lbs
Features & Accessories:
Air Safety Ratchet

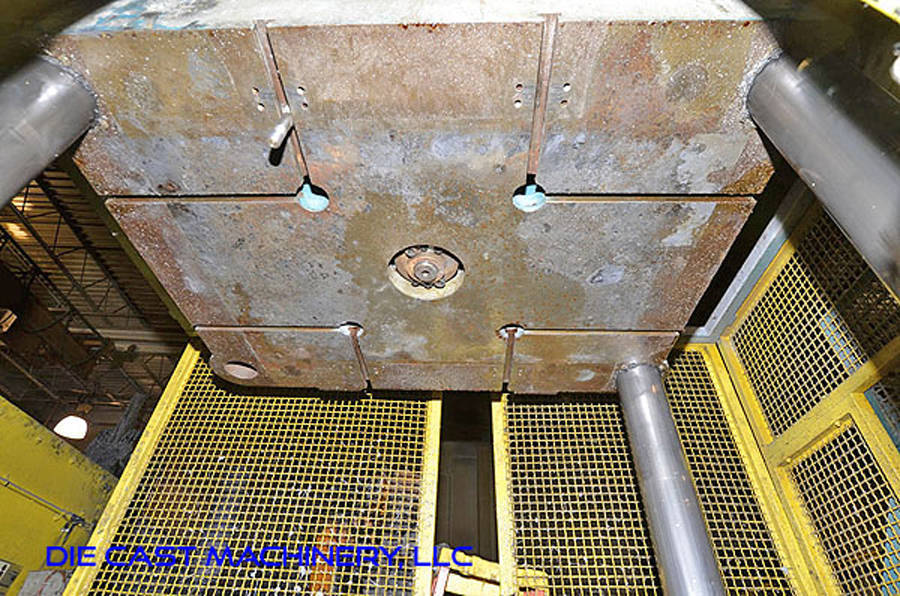

T-Slotted Moving and Bed Platens
Automatic Lubrication System
Fixed Ejector Plate

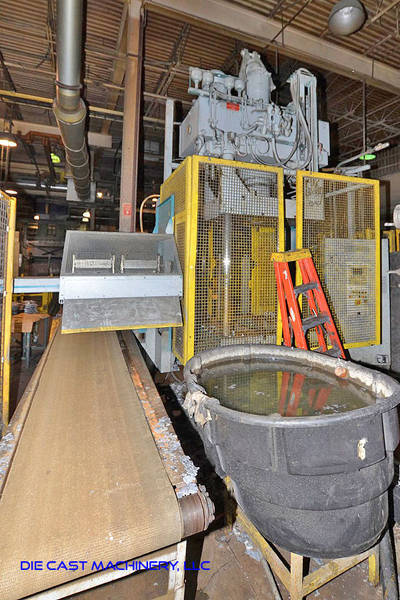

Top Mounted Hydraulics
PDF Documents for this Machine:
Reis Trim Presses Catalog.pdf
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Reis Trim Press Model SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press For Sale, Features include: Air Safety Ratchet, T-Slotted Moving and Bed Platens, Automatic Lubrication System, Fixed Ejector Plate, Top Mounted Hydraulics Siemens CPU 315-20P Controls, Second Hand, DCM-3220
