Used Kard Trim Press 30 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

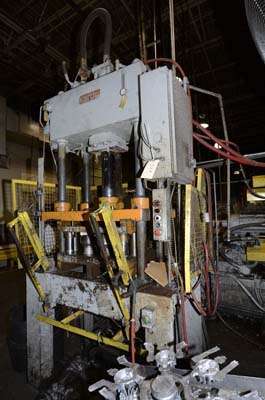

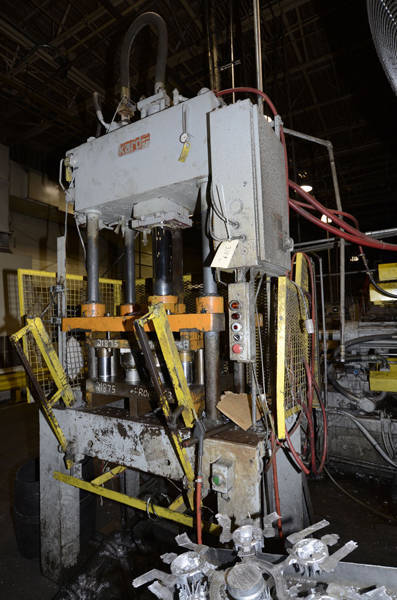

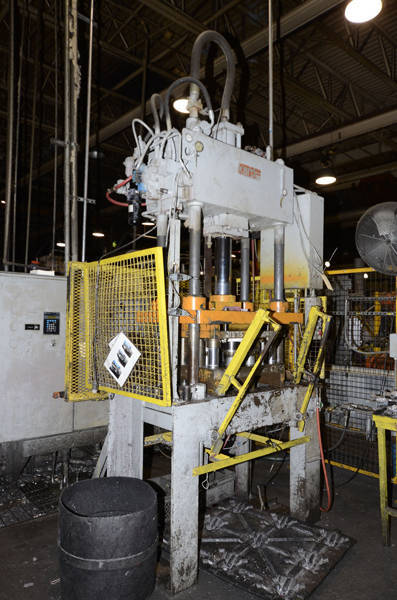

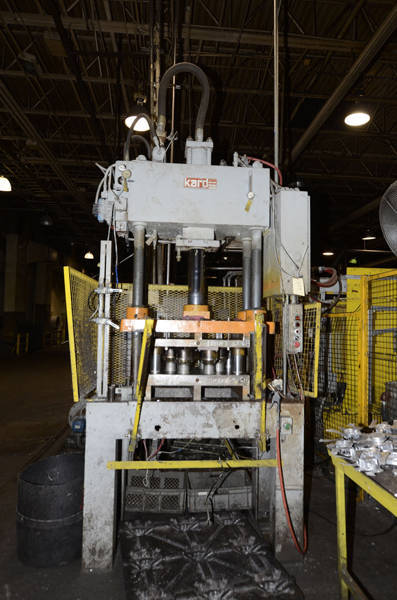

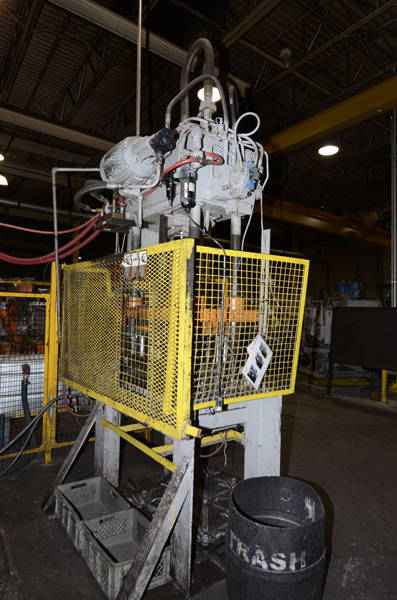

Used Kard Trim Press 30 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press. Inventory item: DCM-3258.

Manufacturer: Kard Trim Press

Features & Accessories:

  • Air Safety Ratchet
  • Drill & Tapped Bed and Moving Platen
  • Dual Palm Buttons Operation
  • Fixed Ejector Plate
  • Top Mounted Hydraulics

Item Specifications for DCM-3258

Specifications
Model:
Kard
Pressing Tonnage:
30 tons
Number of Columns:
4
Tie Bar Diameter:
3 inches
Daylight:
37 inches
Stroke:
24 inches
Shut Height:
13 inches
Clearance between Tie Bars (Left to Right):
33.75 inches
Clearance between Tie Bars (Front to Back):
12 inches
Bed Size (Left to Right by Front to Back):
60 x 30 inches
Cut out Size in Bed: (L/R x F/B)
26 x 17 inches
Overall Size:
6 x 4 x 13 feet

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Kard Trim Press Model 30 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For Sale, Features include: Air Safety Ratchet, Drill & Tapped Bed and Moving Platen, Dual Palm Buttons Operation, Fixed Ejector Plate, Top Mounted Hydraulics Allen Bradley SLC 500 Controls, Second Hand, DCM-3258
