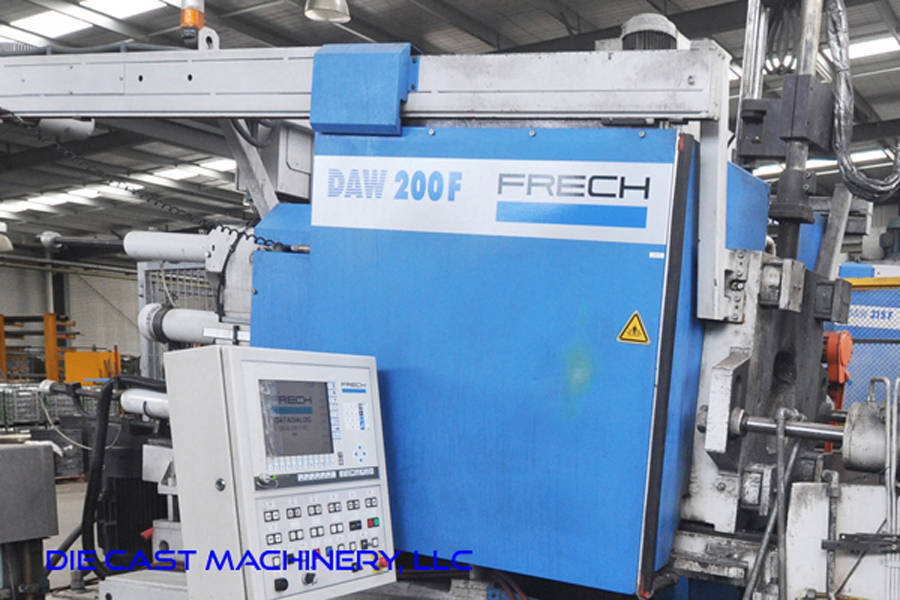

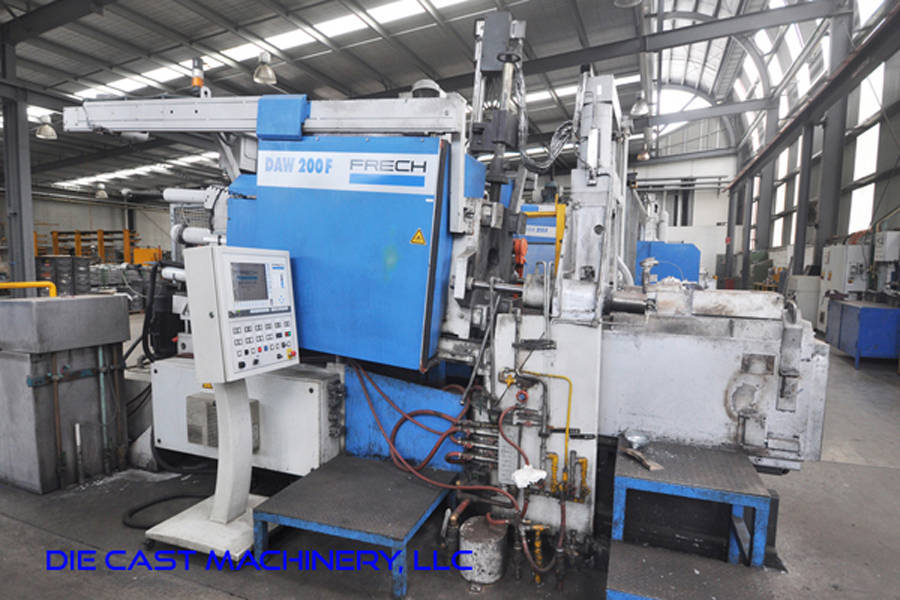

Used Frech 220 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used Frech 220 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine. Inventory item: DCM-3290.

Manufacturer: Frech

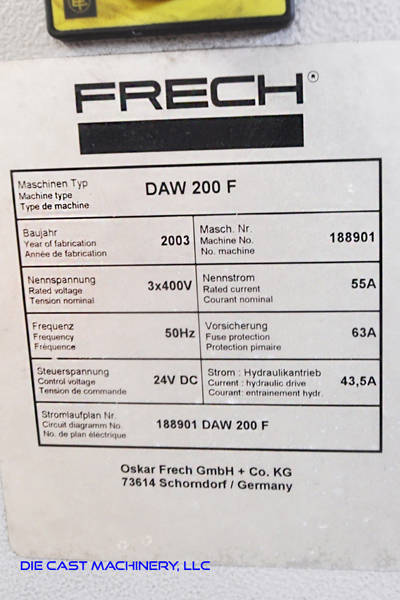

Model: DAW 200 F RC

Features & Accessories:

  • Factory Designed for Hot Chamber Magnesium and Zinc Capability - Only 19,131 Operating Hours

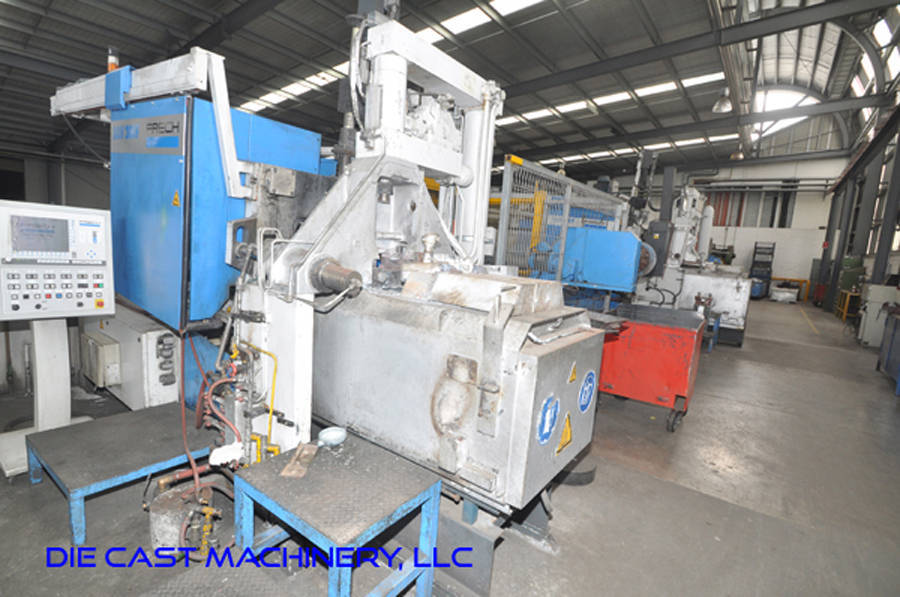

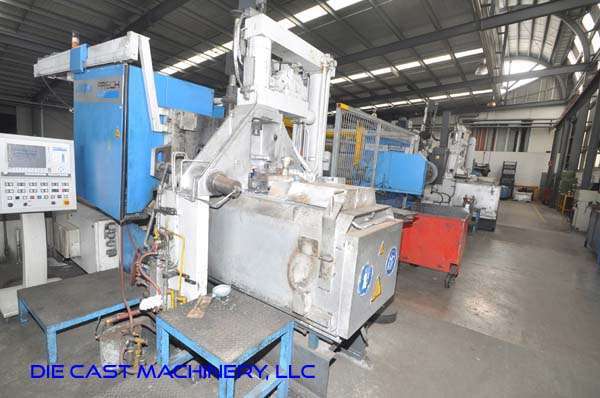

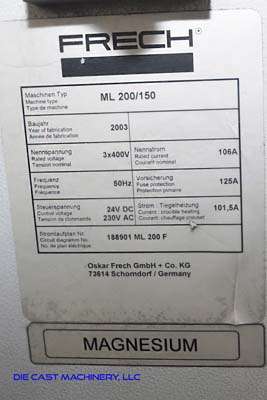

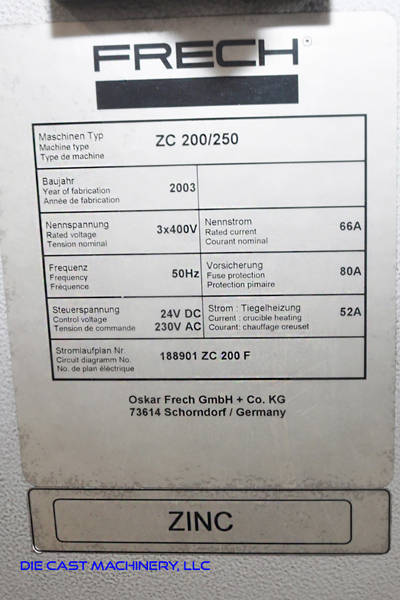

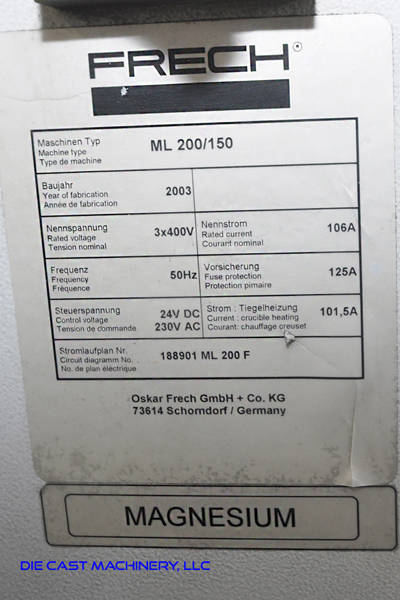

  • Machine is factory designed to be fully capable in both Zinc and Magnesium - is equipped with two furnaces One (1) ML 200/150 for Magnesium and one (1) ZC 200/250 for Zinc

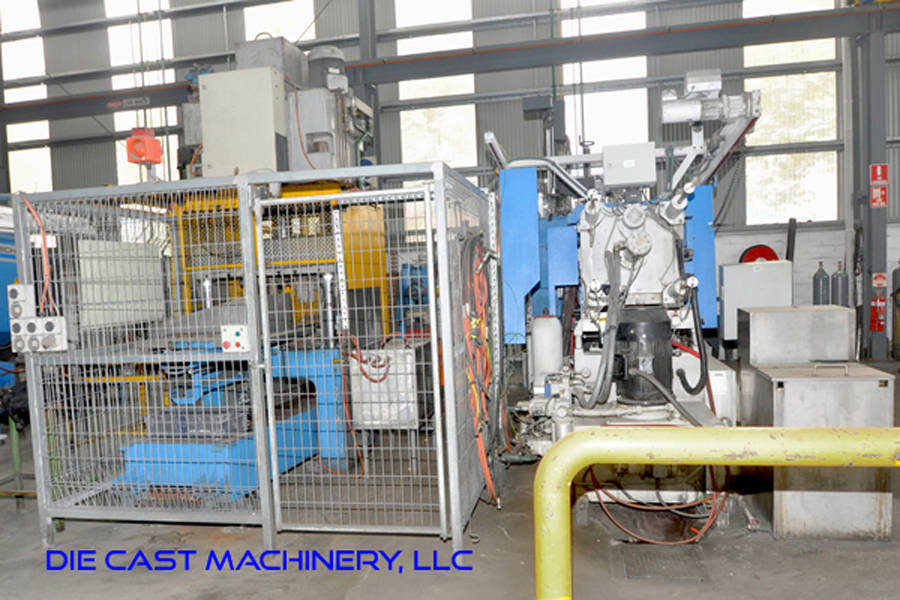

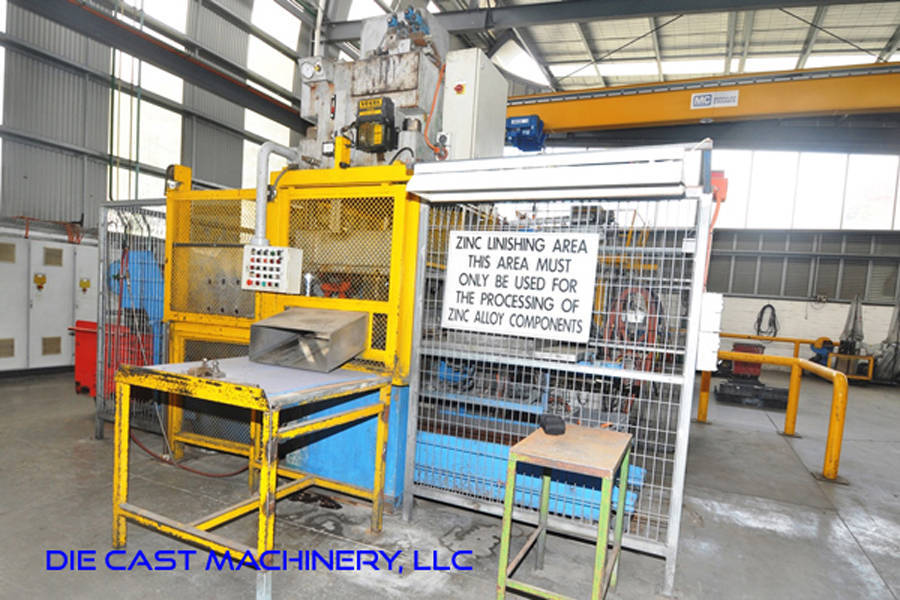

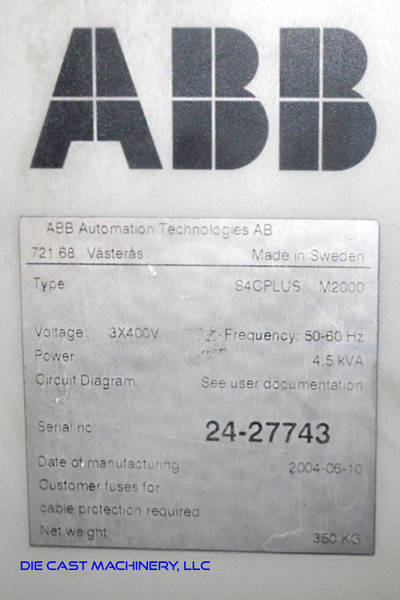

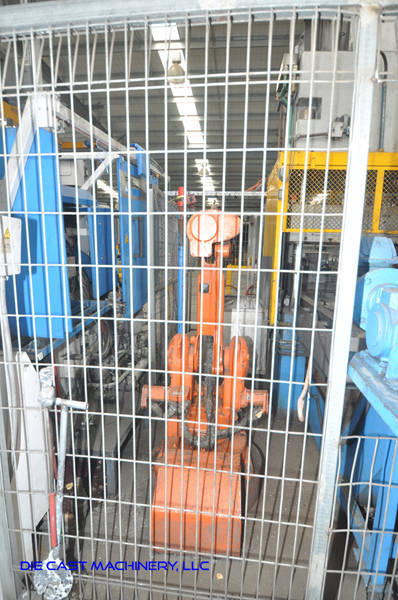

  • Cell also includes: ABB IRB 2400 Foundry Plus robot with S4CPlus M2000 controls, Four Post Hydrauilc Trim Press, Frech High Speed Linear Die Spray System, Gooseneck scrap return conveyor
  • Central Electric Powered Motorized Die Height Adjustment System with Frech Electronic Tie Bar Tonnage Strain Gauge System

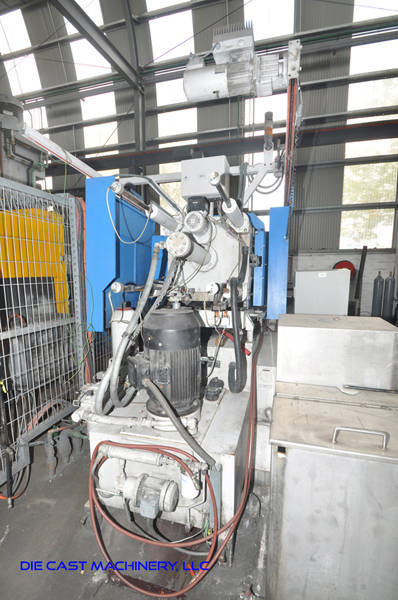

  • Frech Fully Proportional Hydraulic System for Injection and Die Close Circuits

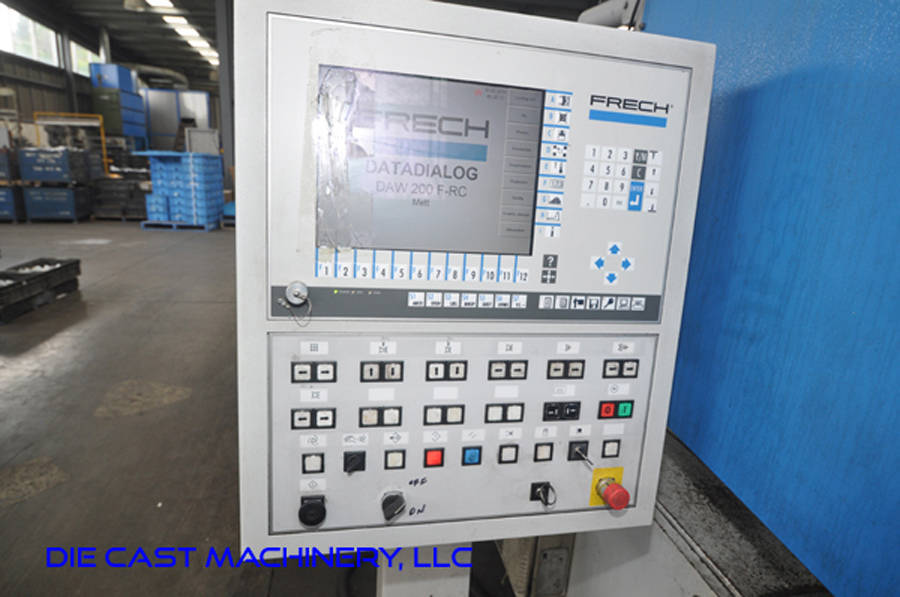

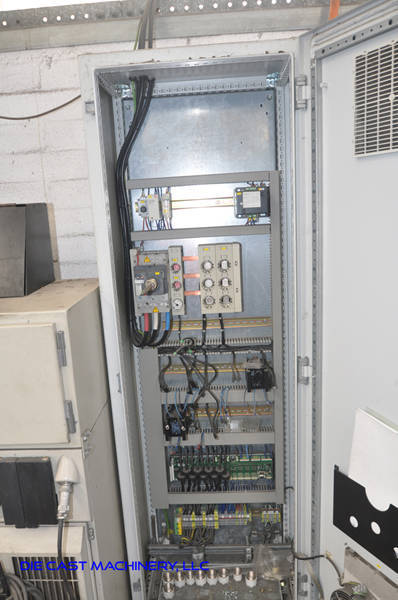

  • Frech Datadialog RC Controls with Color Flat Panel HMI monitor
  • Auxiliary Hydraulic Side Core Circuits, Power Operator Side Safety Door and Manual Helper Side Safety Door

Item Specifications for DCM-3290

Specifications
Clamping Force
243 tons
Die Thickness (Minimum - Maximum)
9.84 to 23.62 inches
Platen Dimensions (Horizontal x Vertical)
29.72 x 29.72 inches
Clearance Between Tie Bars
19.68 x 19.68 inches
Tie Bar Diameter
3.34 inches
Closing Stroke
16.93 inches
Maximum Injection Force
14.61 tons
Injection Plunger Diameter
2.75, 3.14, and 3.54 inches
Injection Positions:
center to -3.93 inches
Ejector Stroke - Force
3.93 inches - 12.36 tons
Dry Cycles per Hour (DIN 24480)
780
Weight of Machine
17,600 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Frech Model DAW 200 F RC 220 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For Sale, Features include: Machine is factory designed to be fully capable in both Zinc and Magnesium - is equipped with two furnaces One (1) ML 200/150 for Magnesium and one (1) ZC 200/250 for Zinc, Cell also includes: ABB IRB 2400 Foundry Plus robot with S4CPlus M2000 controls, Four Post Hydrauilc Trim Press, Frech High Speed Linear Die Spray System, Gooseneck scrap return conveyor, Central Electric Powered Motorized Die Height Adjustment System with Frech Electronic Tie Bar Tonnage Strain Gauge System, Frech Fully Proportional Hydraulic System for Injection and Die Close Circuits, Frech Datadialog RC Controls with Color Flat Panel HMI monitor, Auxiliary Hydraulic Side Core Circuits, Power Operator Side Safety Door and Manual Helper Side Safety Door, Frech Datadialog Controls, Second Hand, DCM-3290

The following technical terms are to assist you with searches: Used | Second Hand | Frech |DAW 200 F RC | 220 Metric Ton | Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine | For Sale | Machine is factory designed to be fully capable in both Zinc and Magnesium - is equipped with two furnaces One (1) ML 200/150 for Magnesium and one (1) ZC 200/250 for Zinc | Cell also includes: ABB IRB 2400 Foundry Plus robot with S4CPlus M2000 controls, Four Post Hydrauilc Trim Press, Frech High Speed Linear Die Spray System, Gooseneck scrap return conveyor | Central Electric Powered Motorized Die Height Adjustment System with Frech Electronic Tie Bar Tonnage Strain Gauge System | Frech Fully Proportional Hydraulic System for Injection and Die Close Circuits | Frech Datadialog RC Controls with Color Flat Panel HMI monitor | Auxiliary Hydraulic Side Core Circuits, Power Operator Side Safety Door and Manual Helper Side Safety Door | Frech Datadialog Controls | DCM-3290


See jumbo large photos of this Frech DAW 200 F RC
