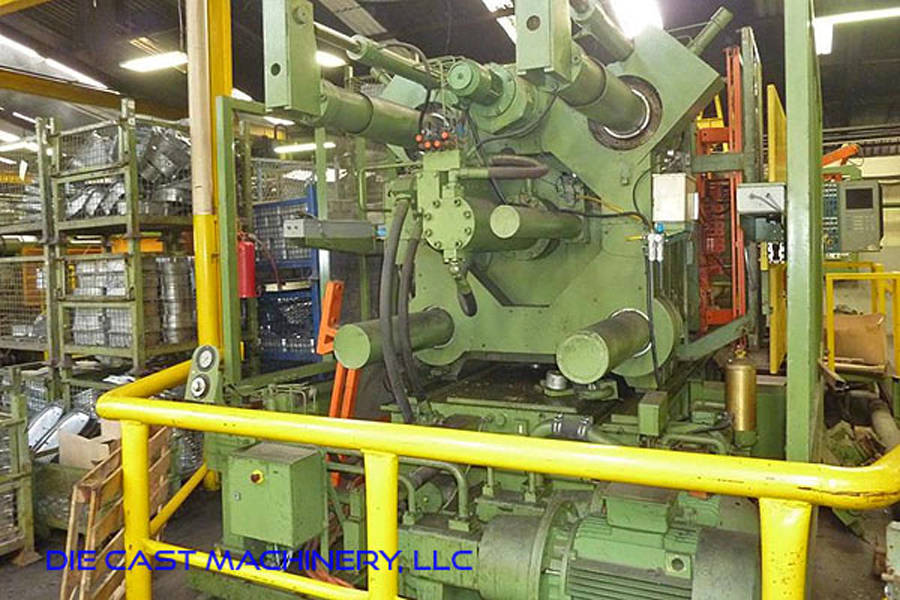

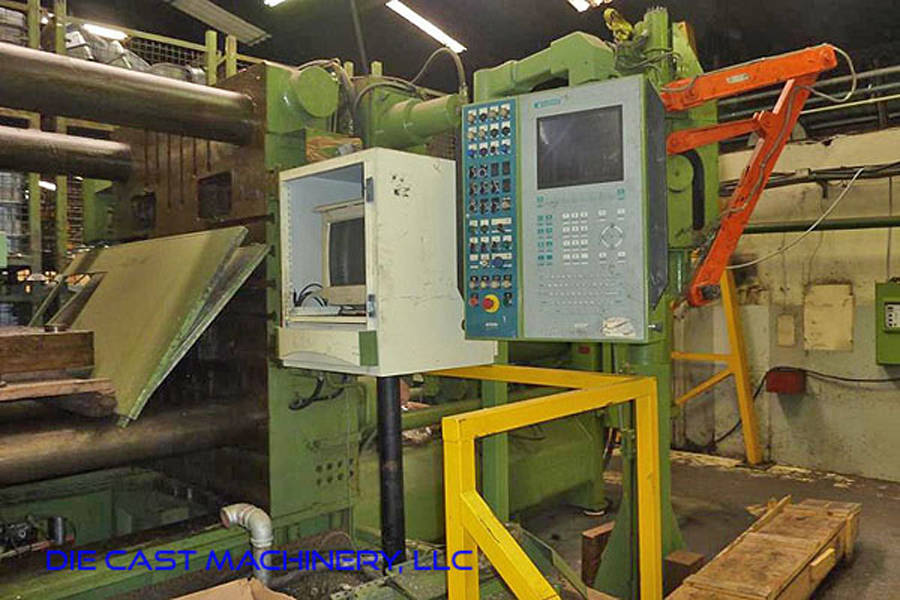

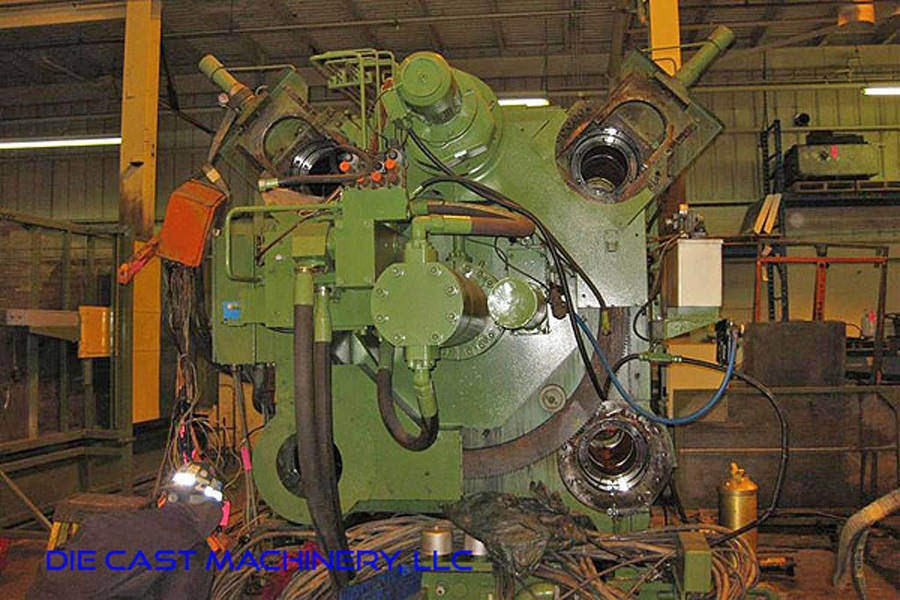

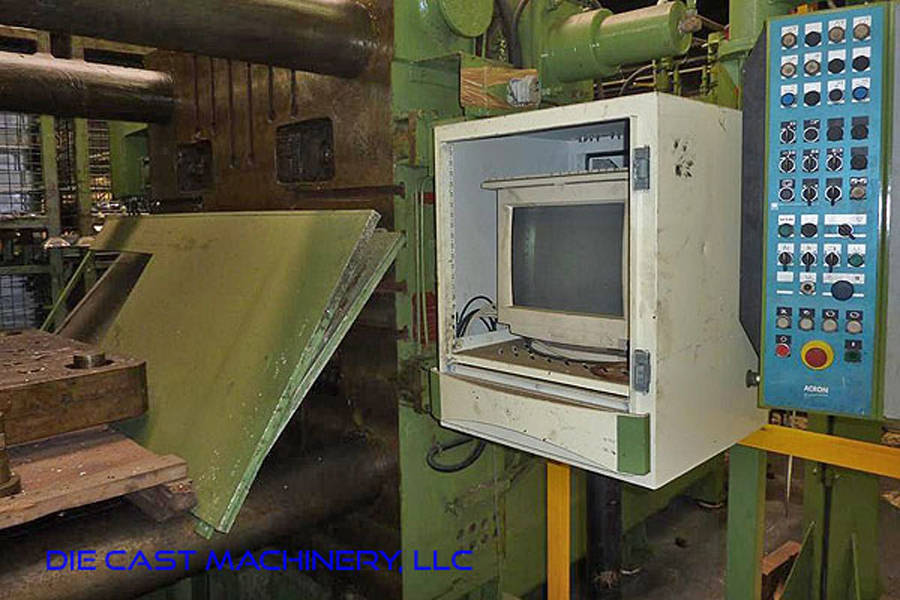

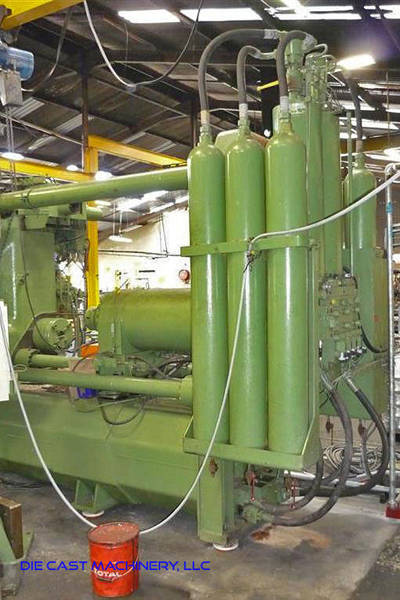

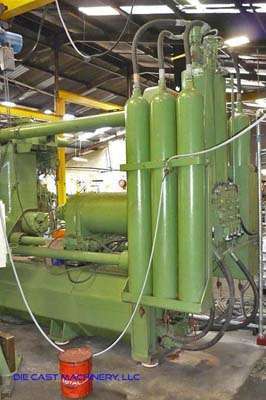

Used Buhler Model: SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Buhler
Model: SC 10 120
Size: 1200 Ton
Inventory Number: DCM-3316

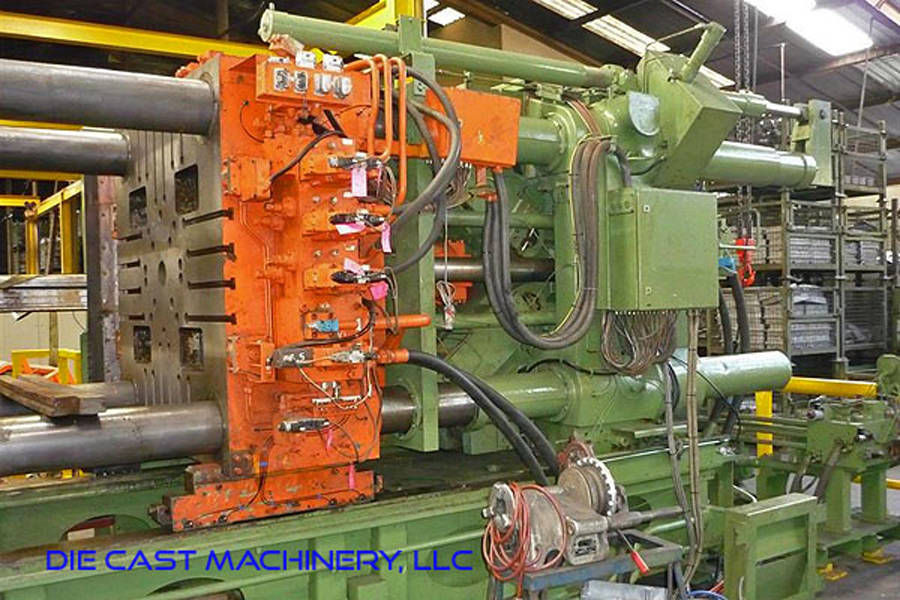

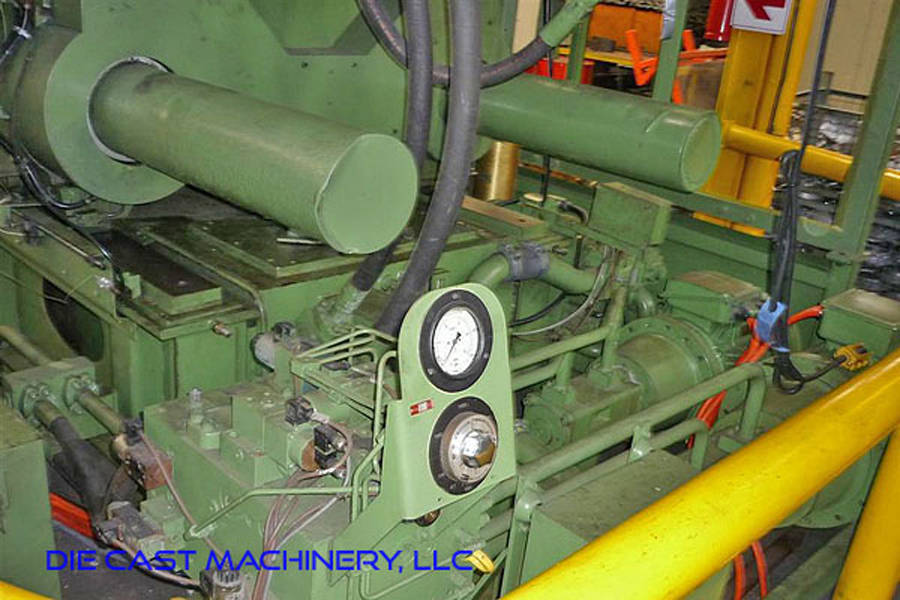

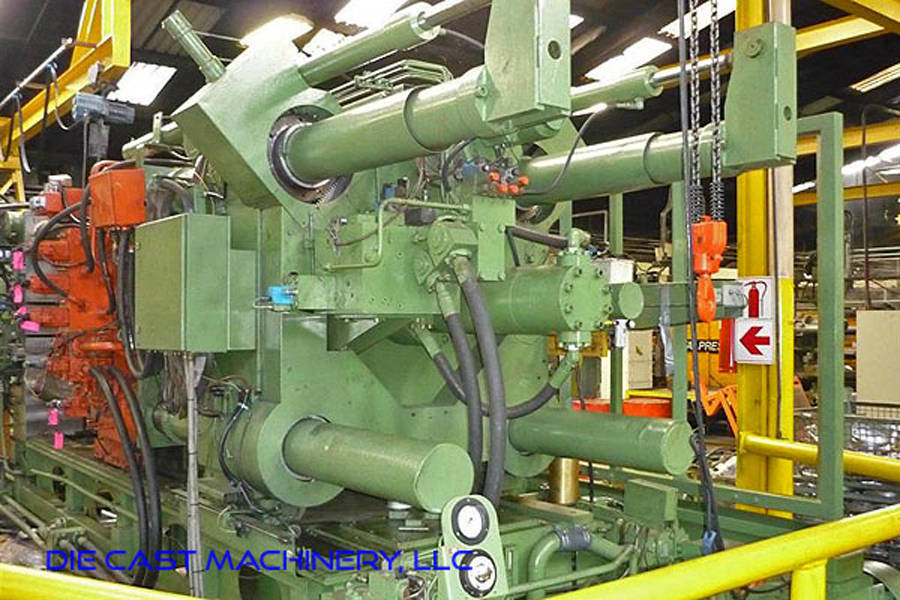

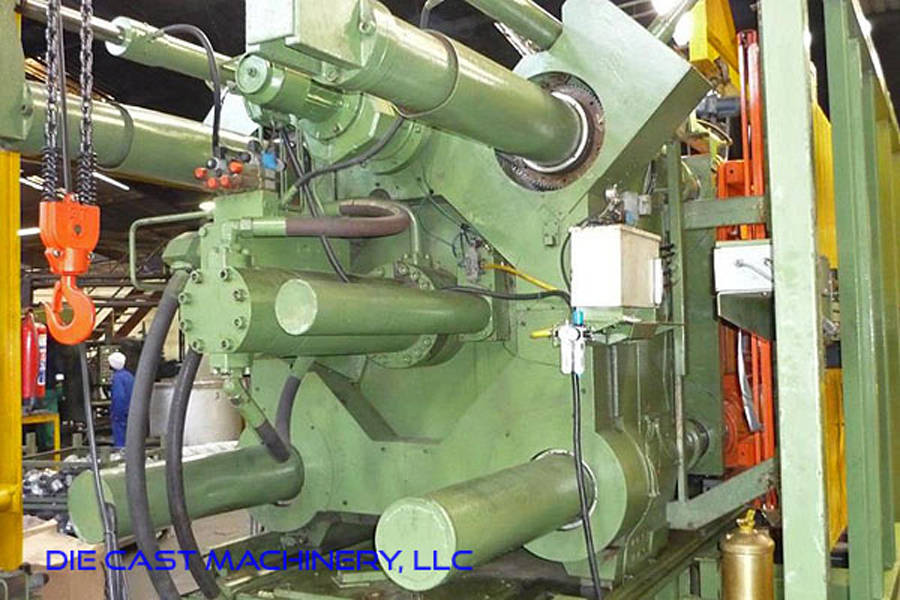

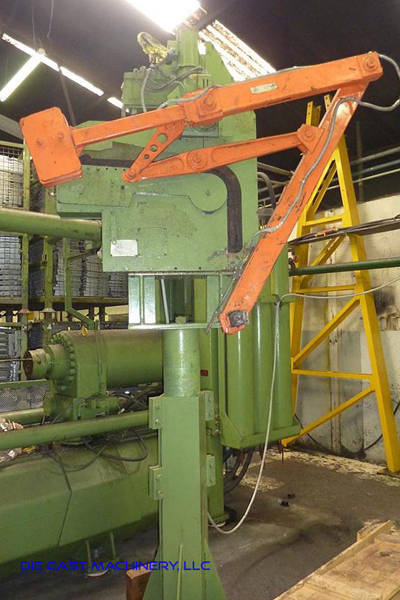

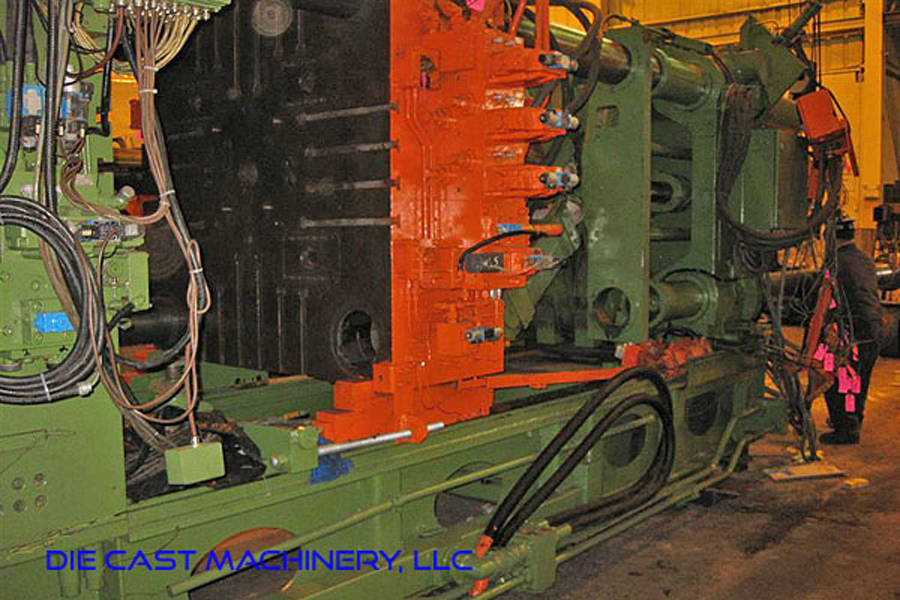

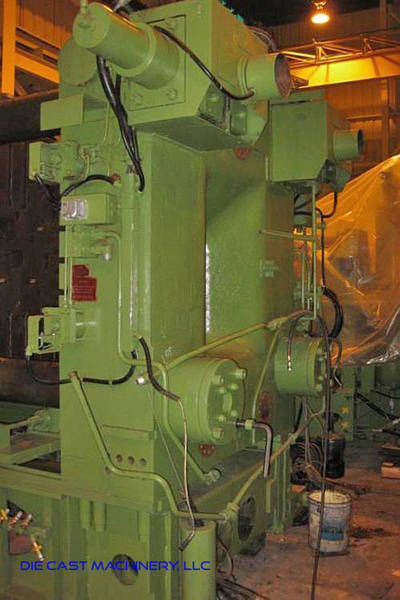

Used Buhler Model: SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.

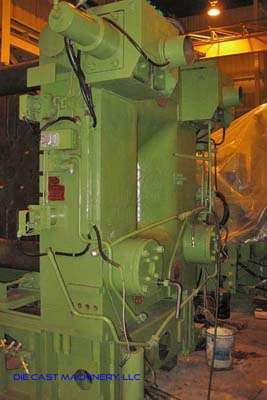

Click above for larger image
Features & Accessories:

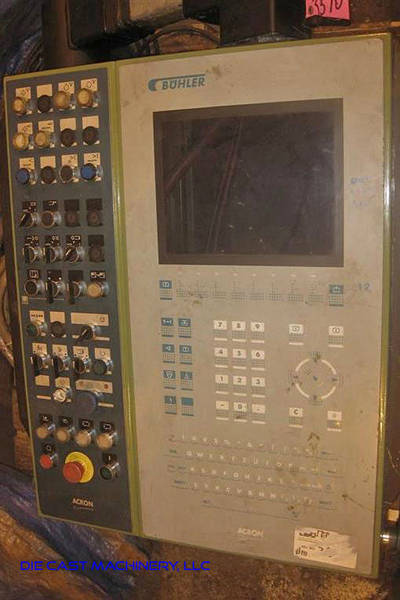

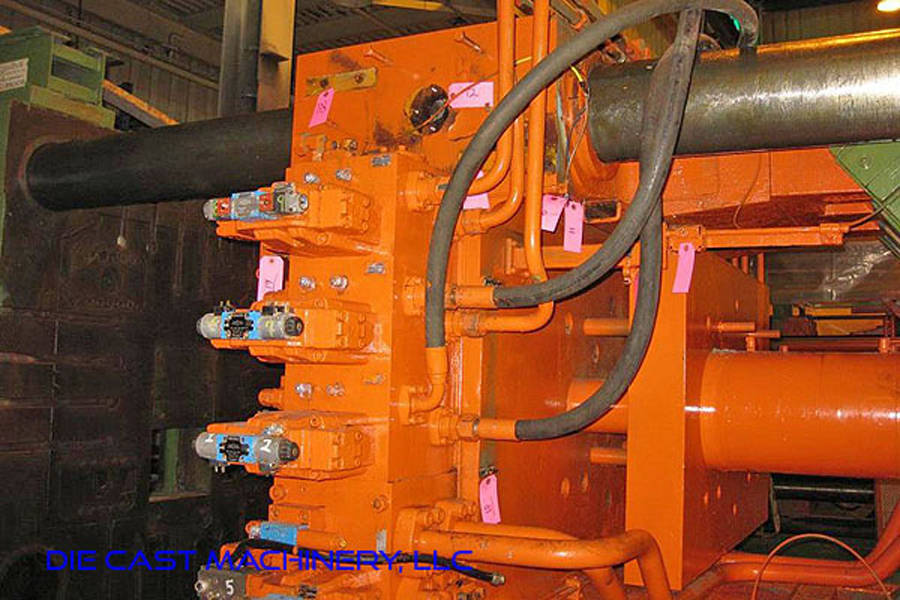

- Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system

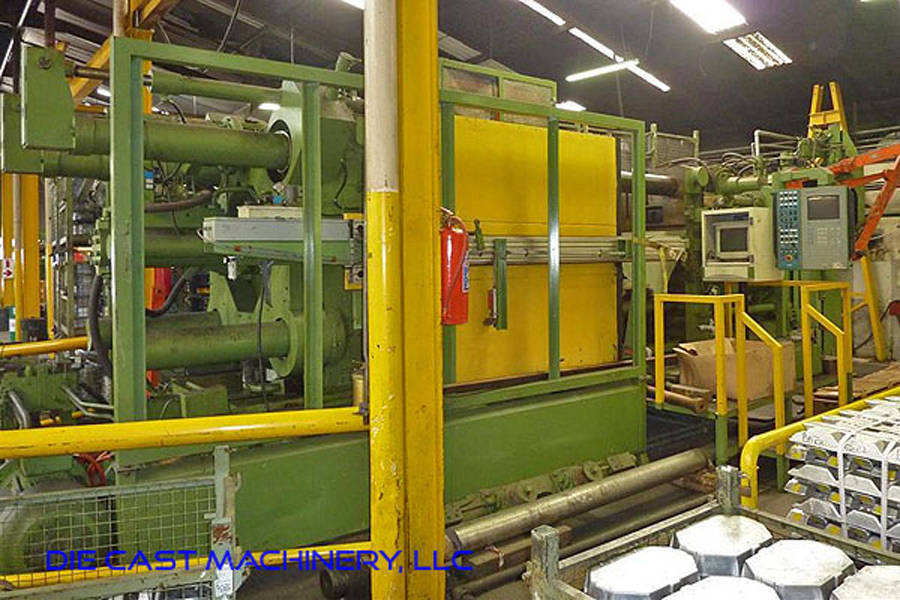

- Power Operator Side Safety Door
- Dual Fully Automated Tie bar puller of Top Tie Bars
- Electric Motorized Die Height Adjustment System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1)
Item Specifications for DCM-3316
Specifications | |
---|---|
Injection Force, Dynamic |
134.8 tons
|
Injection Force, Intensified |
123.8 tons
|
Plunger Diameter |
4.92 inches
|
Plunger Stroke |
31.5 inches
|
Ejector Force Forward/Backward |
76.4 / 40.46 tons
|
Ejection Stroke |
8.7 inches
|
Injection Pressure (Min - Max) |
75 to 197 square inches
|
Maximum Locking Force |
1,223 Tons
|

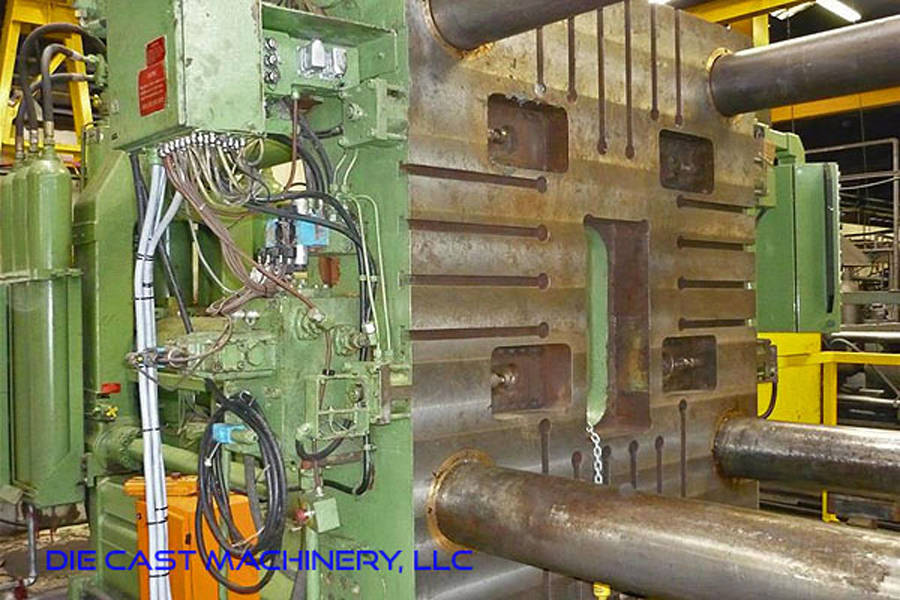

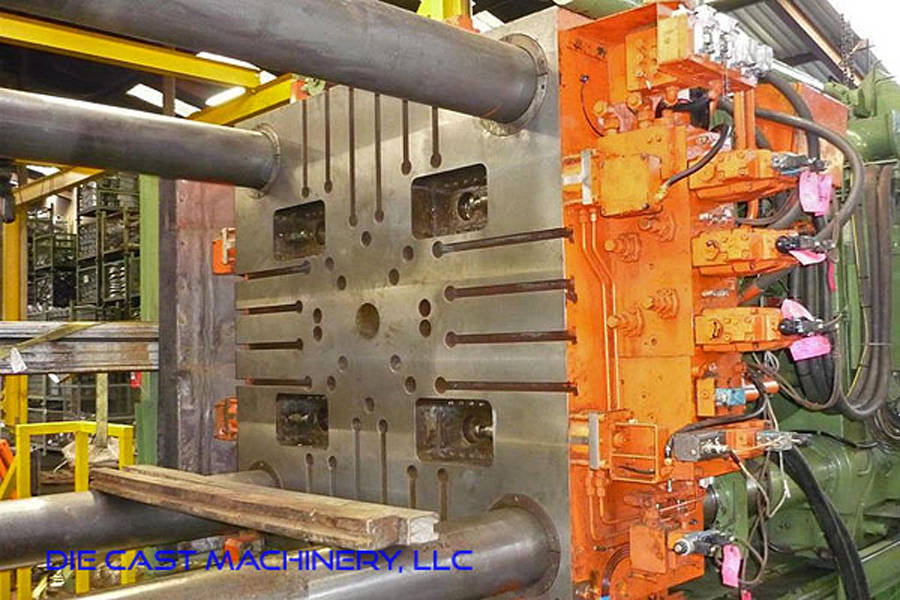

Platen Size |
66.5 x 66.5 inches
|

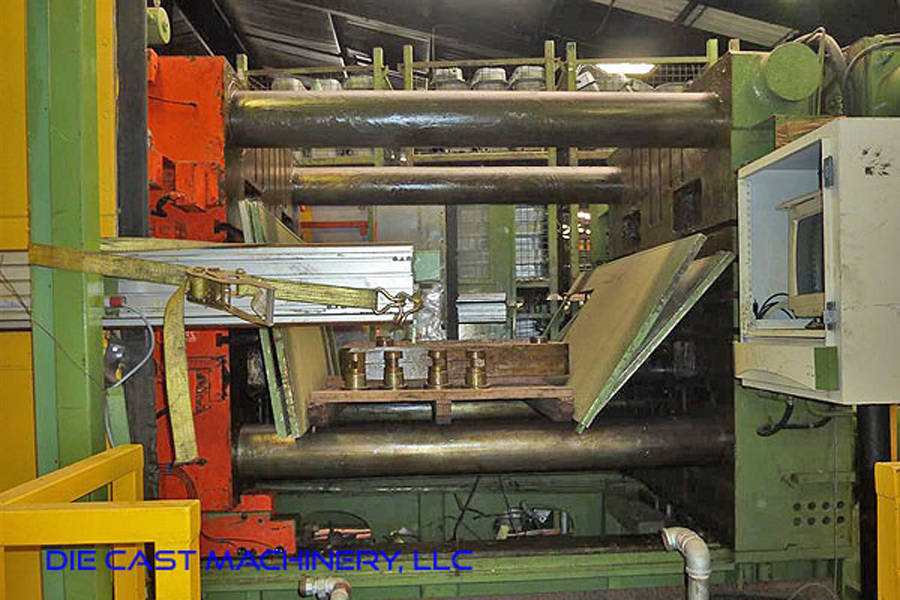

Tie Bar Clearance |
43.3 x 43.3 inches
|
Die Height (minimum - maximum) |
15.7 - 47.24 inches
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Buhler Model SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system, Power Operator Side Safety Door, Dual Fully Automated Tie bar puller of Top Tie Bars, Electric Motorized Die Height Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection, Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1), controls, second Hand, DCM-3316

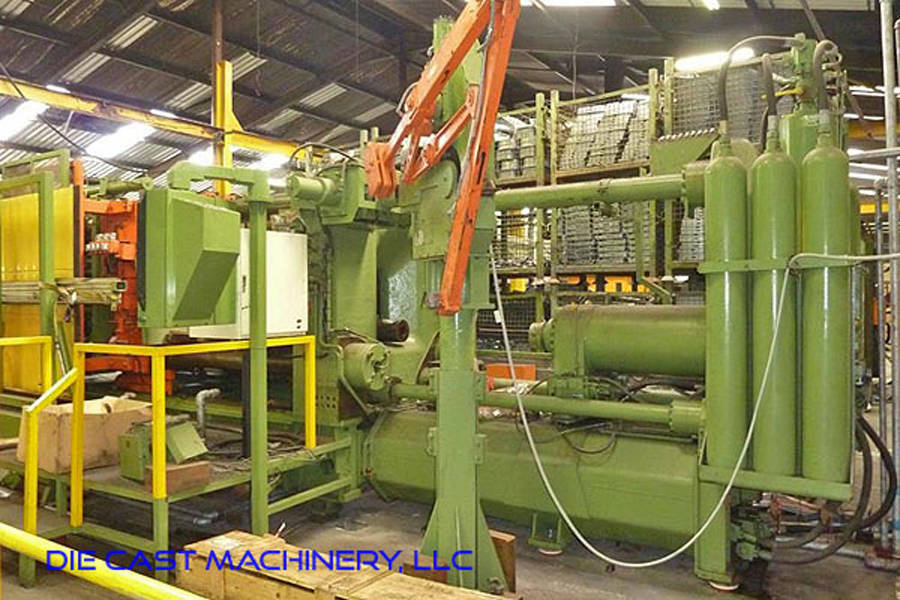

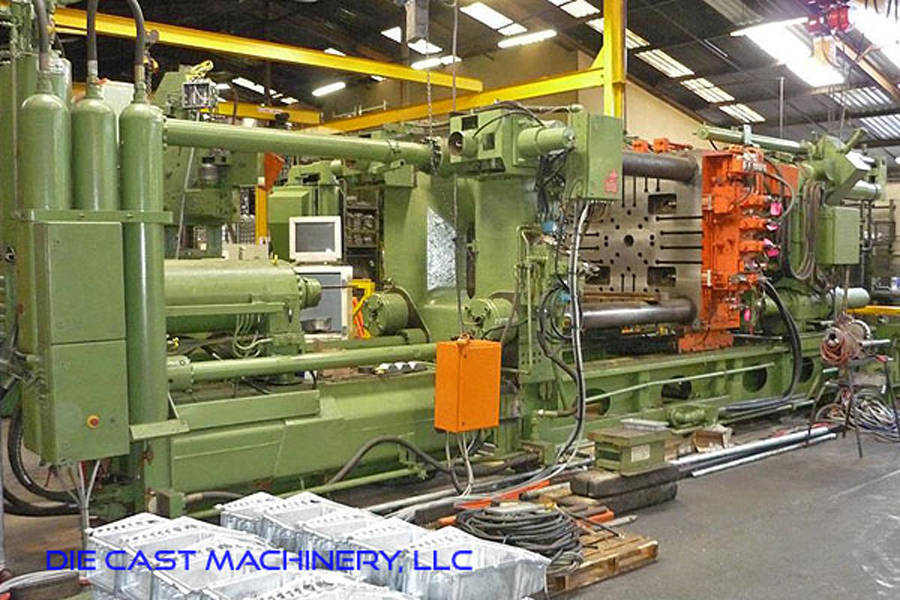

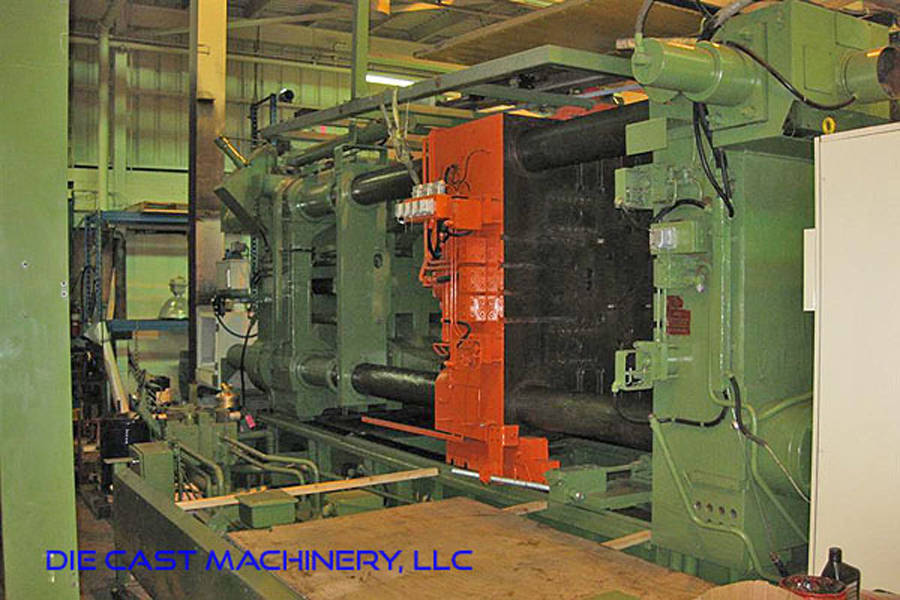

See jumbo large photos of this Buhler SC 10 120
