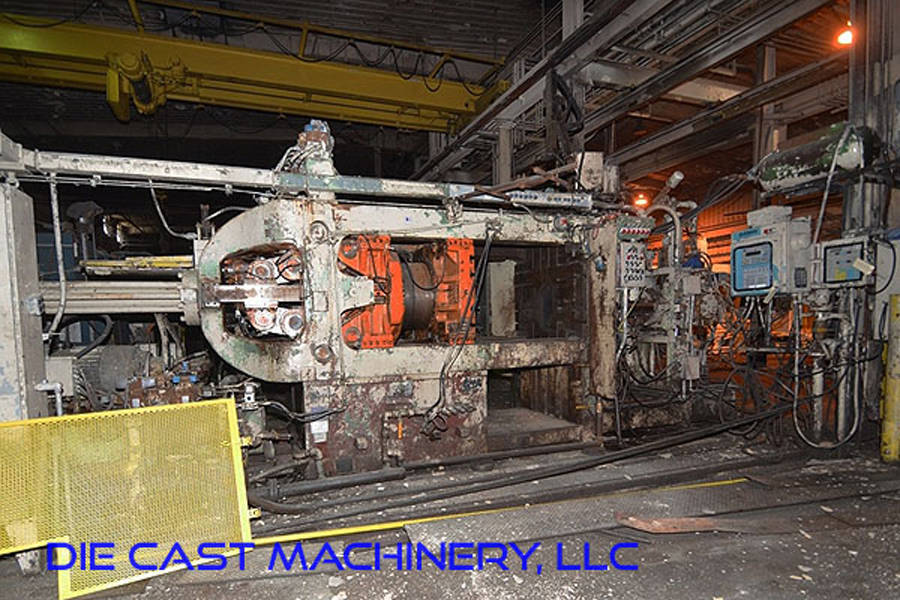

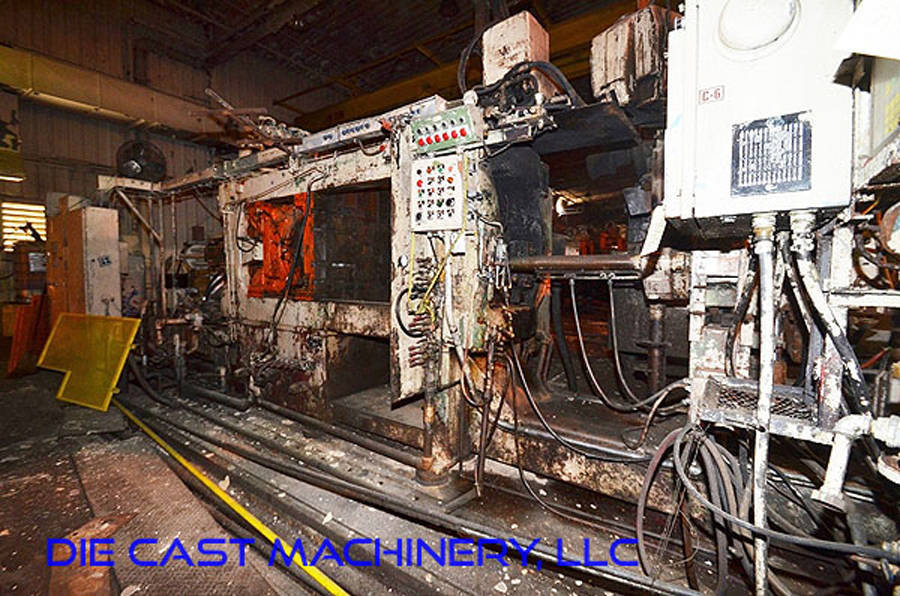

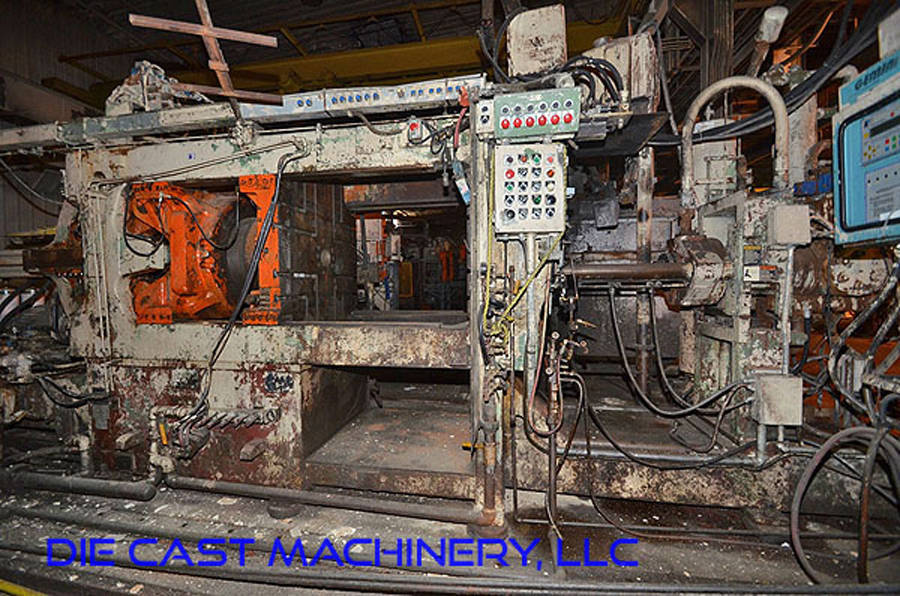

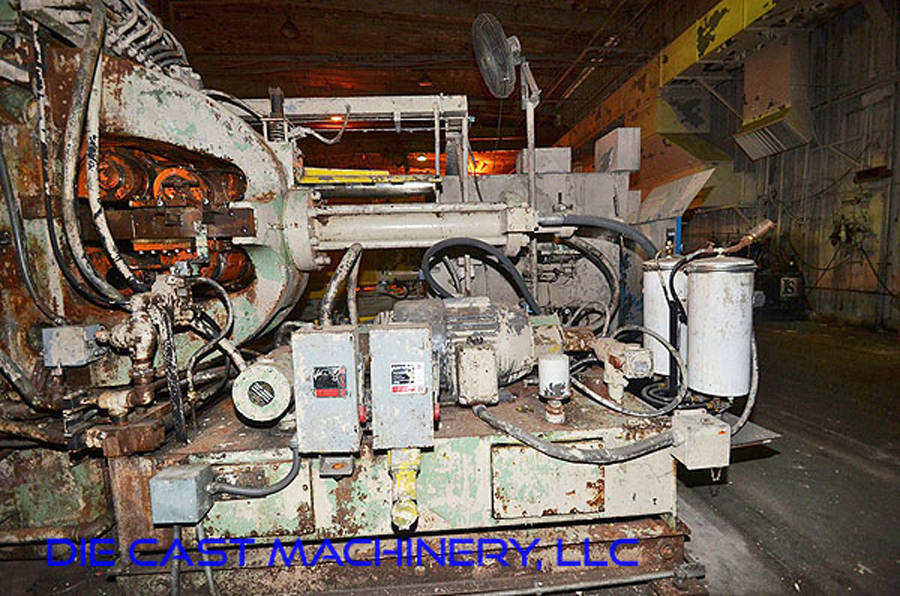

Used Lester Model: HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Lester
Model: HP-900X-SF
Size: 900 Ton
Inventory Number: DCM-3343
Used Lester Model: HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- Olmsted Prefill Shot Control System
- T-Slotted Moving & Stationary Platens
- Six Auxiliary Hydraulic Side Core Circuits
- Lincoln Pressurized Oil Type Central Lubrication System
- Hydraulic Center Platen Ejection System
- Air Safety Ratchet
Item Specifications for DCM-3343
| Specifications | |
|---|---|
| Maximum Die Locking Pressure: |
900 tons
|
| Die Height Adjustment (with die spacer rings): |
36 - 18 inches
|
| Die Stroke (adjustable) |
12 - 21 inches
|
| Clearance between beams (Hor x Vert): |
35 inches by 36 inches
|
| Moving Platen Size (Hor x Vert): |
50 inches by 50 inches
|
| Ejector Cylinder Stroke (adjustable): |
0 - 8 inches
|
| Ejector Cylinder Force: |
20 tons
|
| Shot Positions (inserted, adjustable): |
Center to -10 inches
|
| Machine Controls: |
Modicon PLC
|
| Main Motor Size: |
40 HP
|
| Approximate Machine Weight: |
75,000 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Lester Model HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Olmsted Prefill Shot Control System, T-Slotted Moving & Stationary Platens, Six Auxiliary Hydraulic Side Core Circuits, Lincoln Pressurized Oil Type Central Lubrication System, Hydraulic Center Platen Ejection System, Air Safety Ratchet, Modicon Solid State PLC controls, second Hand, DCM-3343
