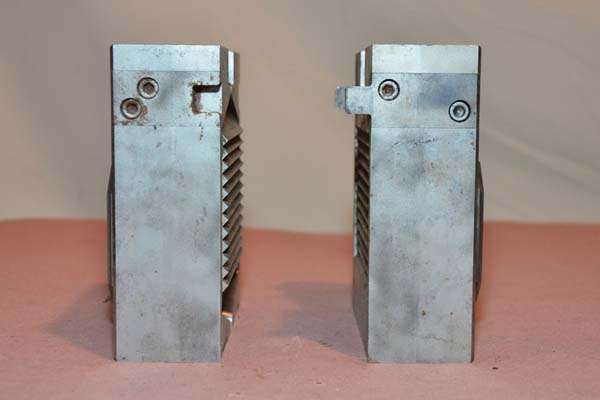

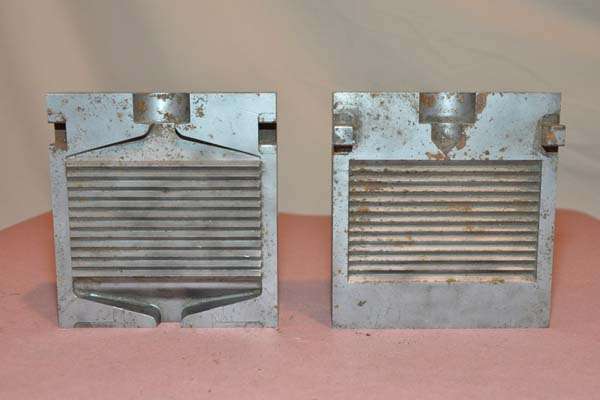

Used Lethiguel USA - Midland Technologies Model: SV5500 Valveless Vacuum Chill Block 5500 Valve Size Valve-Less Super Chill Block for Evacuating Dies


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Lethiguel USA - Midland Technologies

Model: SV5500 Valveless Vacuum Chill Block

Size: 5500 Valve Size

Inventory Number: DCM-3490

Used Lethiguel USA - Midland Technologies Model: SV5500 Valveless Vacuum Chill Block 5500 Valve Size Valve-Less Super Chill Block for Evacuating Dies.

View Available Vacuum Equipment

Click above for larger image

Features & Accessories:

  • Vacuum Block made of H-13 Steel.
  • Easy to mount to process.
  • Can be utilized with Hot & Cold chamber machines.
  • They can be used in the Zinc, Aluminum, and Magnesium process.
  • The vacuum blocks are also designed for gravity casting and low pressure process.
  • Midland Technologies Valve-Less vacuum blocks are used to reduce porosity and poorfill in the casting process.

Item Specifications for DCM-3490

Specifications
Stationary-Width:
5.512 inches
Stationary-Thickness:
2.000 inches
Stationary-Length:
5.940 inches
Ejector-Length:
5.900 inches
Ejector-Thickness:
2.000 inches
Ejector-Width:
5.512 inches

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Midland Technologies SV-5500
Midland Technologies SV-5500
Midland Technologies SV-5500
Midland Technologies SV-5500

Document(s) For This Machine

Description

Used, Lethiguel USA - Midland Technologies Model SV5500 Valveless Vacuum Chill Block 5500 Valve Size Valve-Less Super Chill Block for Evacuating Dies For_Sale, Features Include: Vacuum Block made of H-13 Steel., Easy to mount to process., Can be utilized with Hot & Cold chamber machines., They can be used in the Zinc, Aluminum, and Magnesium process., The vacuum blocks are also designed for gravity casting and low pressure process., Midland Technologies Valve-Less vacuum blocks are used to reduce porosity and poorfill in the casting process., controls, second Hand, DCM-3490
