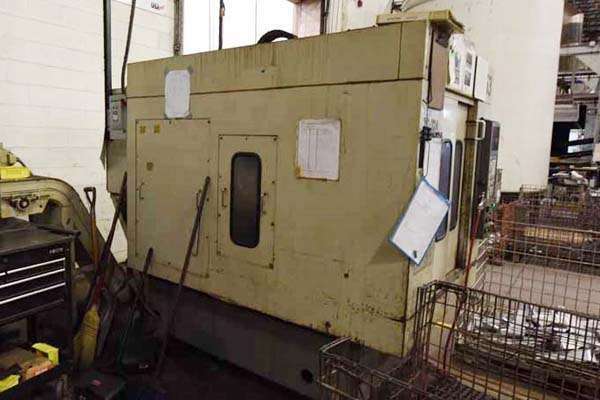

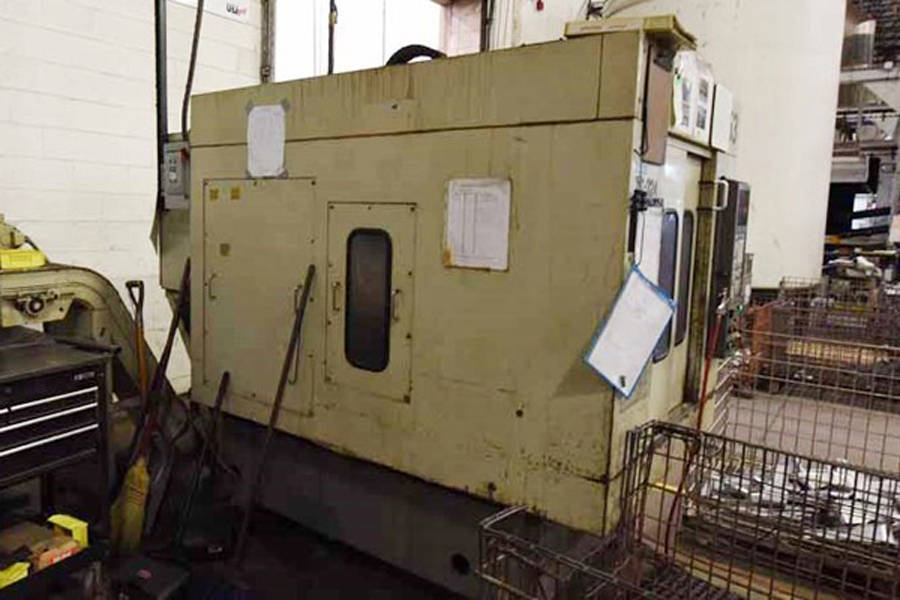

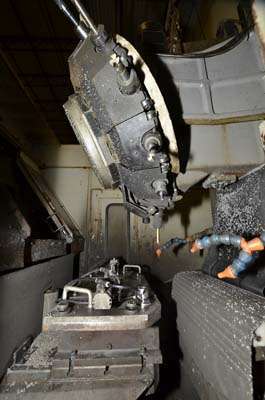

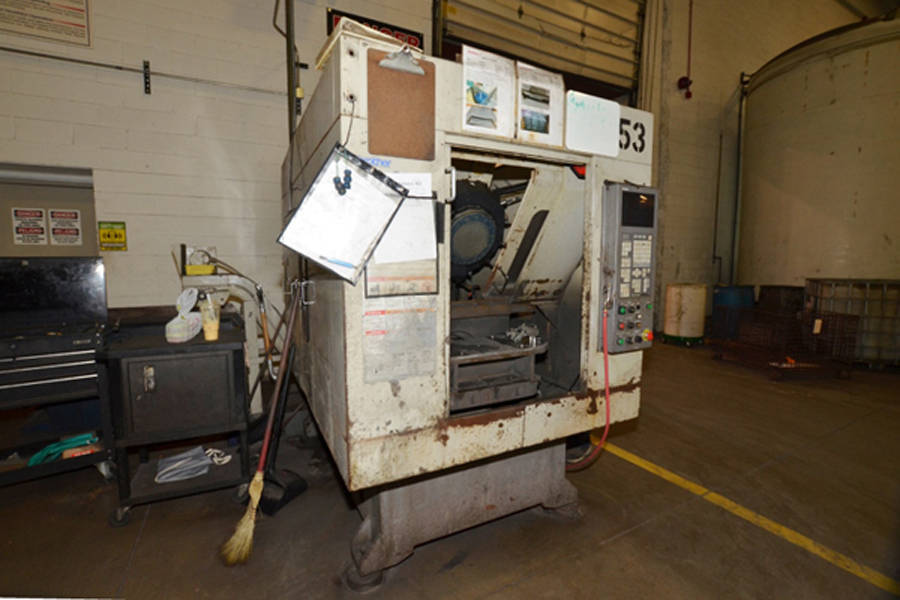

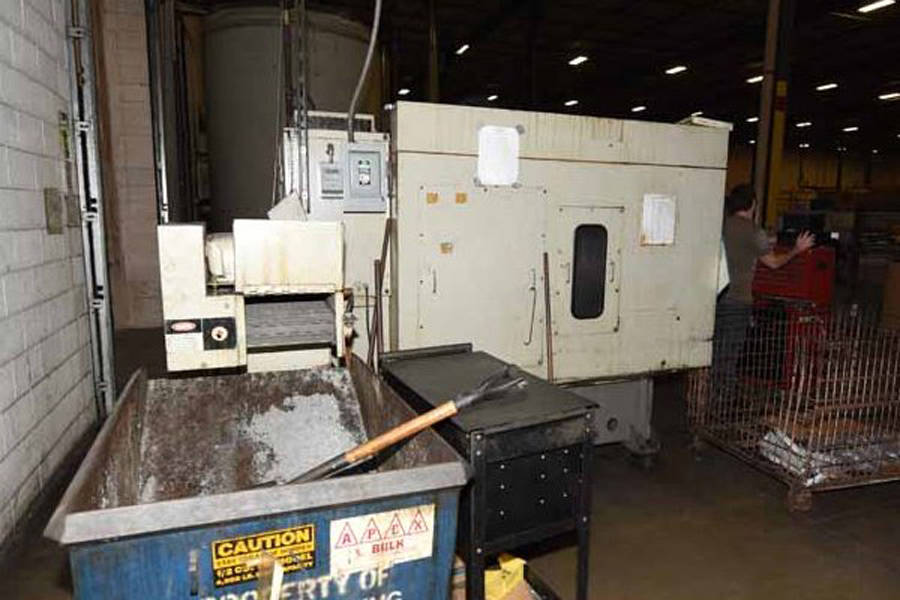

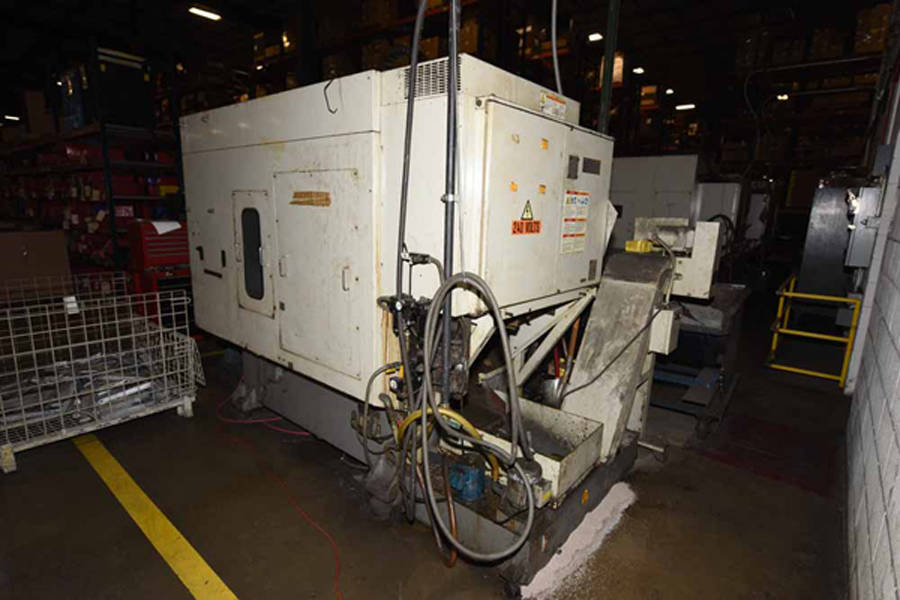

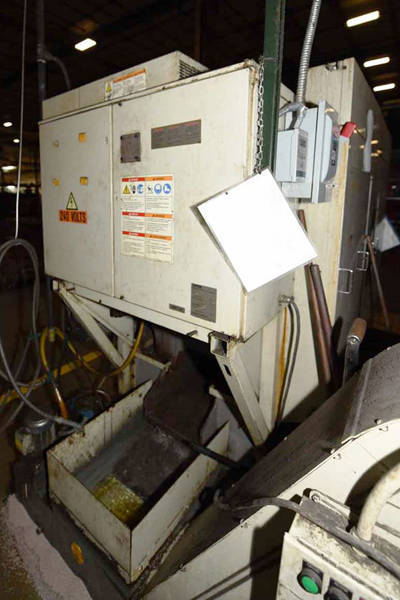

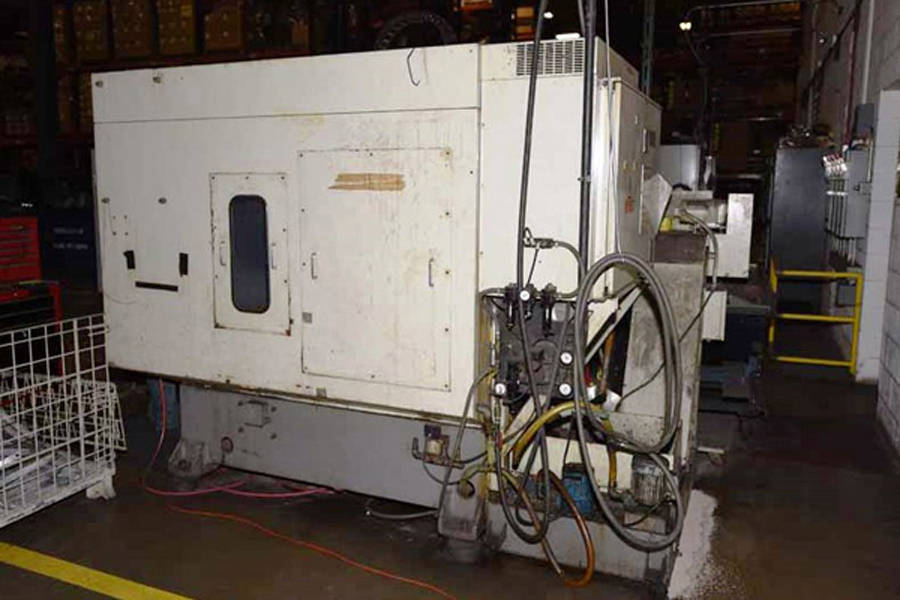

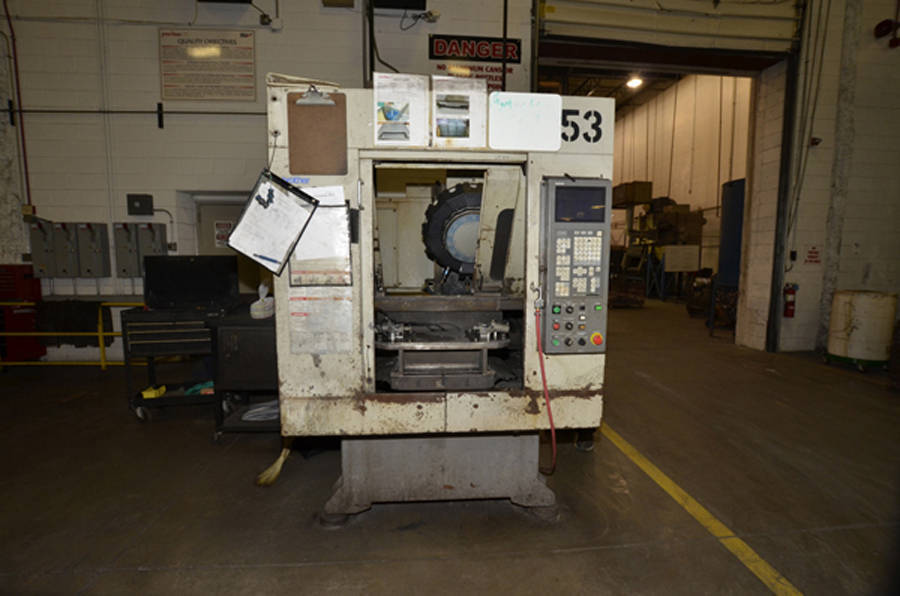

Used Brother Model: TC-324 500 x 300 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC


Print PDF
Play Video

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Brother

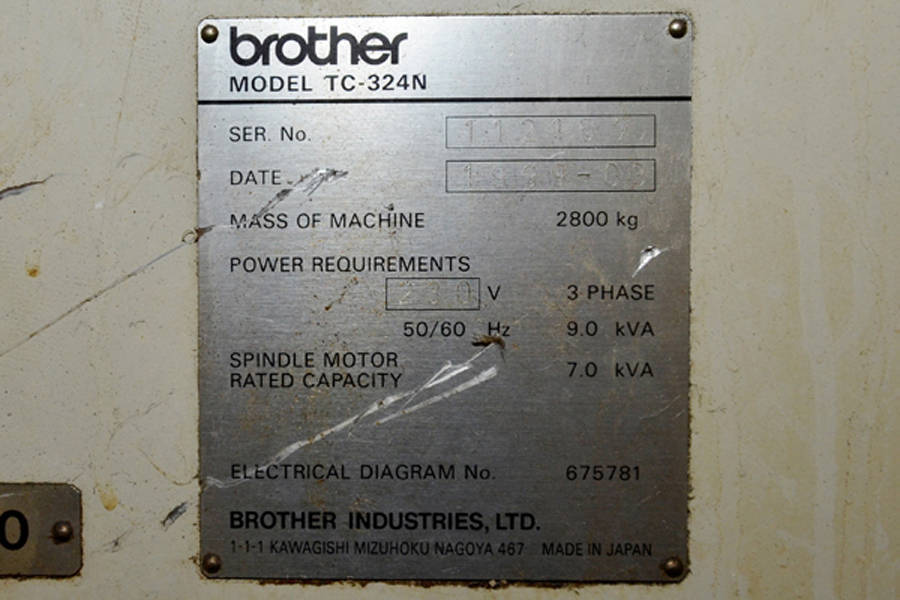

Model: TC-324

Size: 500 x 300 mm

Inventory Number: DCM-3691

Used Brother Model: TC-324 500 x 300 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC.

Features & Accessories:

  • New in March 1999, 20,307 run hours indicated

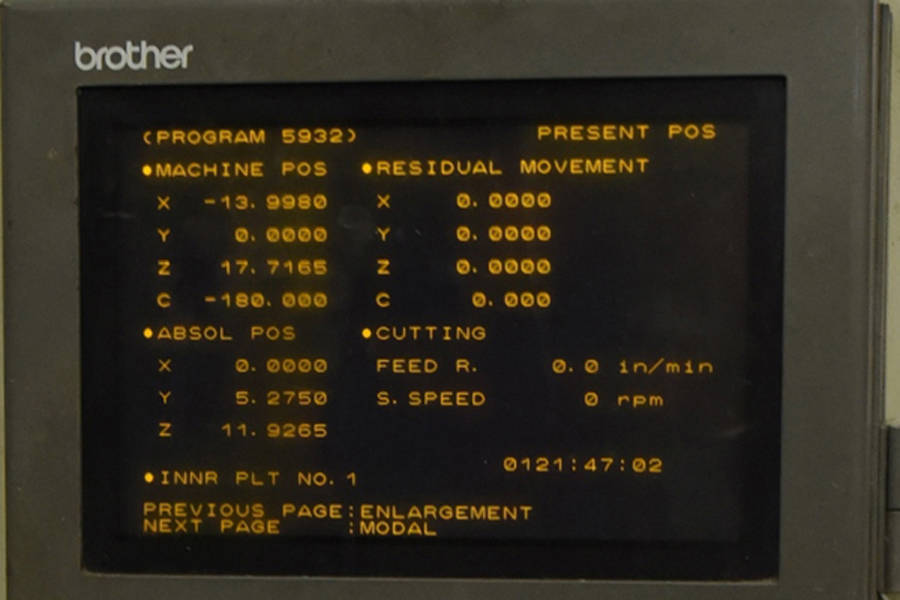

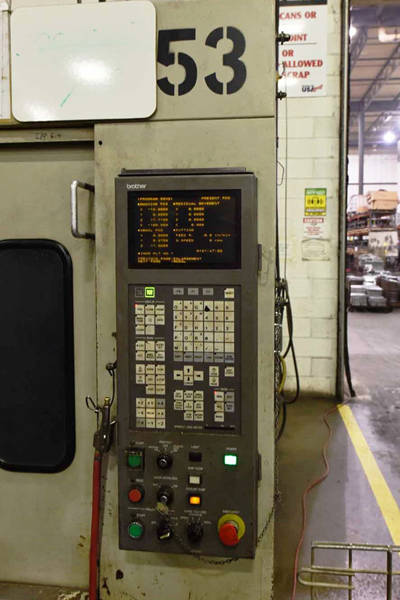

  • Brother 830 CNC Control

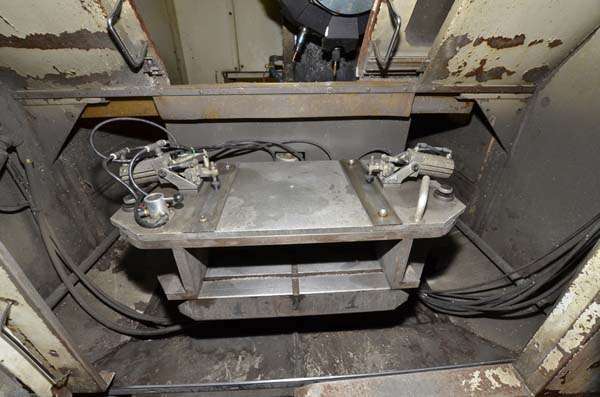

  • Integrated High Speed Pallet Changer

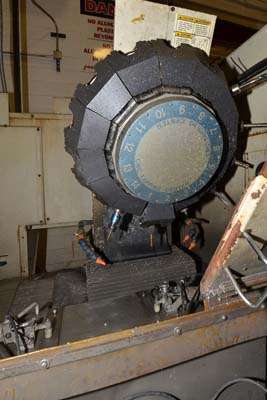

  • 10 Station ATC
  • G-Code Control Programing

Item Specifications for DCM-3691

Specifications
Table Pallet Size:
19.69 x 11.81 inches
X Axis Travel:
16.5
Y Axis Travel:
12.6
Z Axis Travel:
10.6
Maximum Spindle Speed:
10,000 RPM
Number to Tool Positions:
10
Spindle Nose to Table (minimum/maximum)
7.48 - 17.71
Number of Pallet Positions:
2
Pallet Change Time:
2.8 second
Pallet Load Capacity:
388 pounds
Approximate Machine Height:
94 inches
Approximate Weight:
6,176 pounds

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Brother TC-32A

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Brother Model TC-324 500 x 300 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC For_Sale, Features Include: Brother 830 CNC Control, Integrated High Speed Pallet Changer, 10 Station ATC, G-Code Control Programing, Brother CNC-830 controls, second Hand, DCM-3691


See jumbo large photos of this Brother TC-324
