Trim Presses Model DCP-40 One (1) Used Die Cast Press Trim Press 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press Inventory #: 3714 Condition: Used Sold Die Cast Press Trim Press - DCP-40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Programmable Solid State Controls Controls used 1
Die Cast Machinery, LLC Inventory number: 3714
We offer for sale, subject to prior sale and the terms listed below:

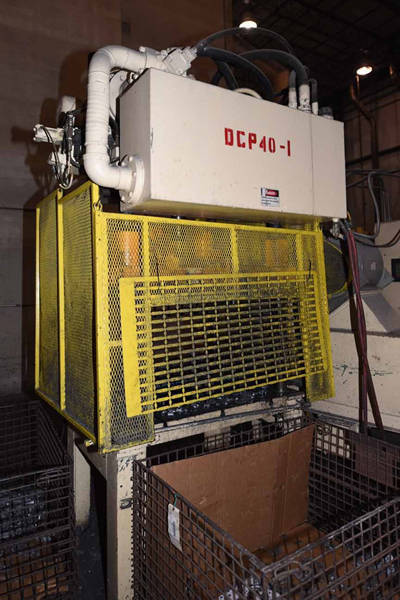

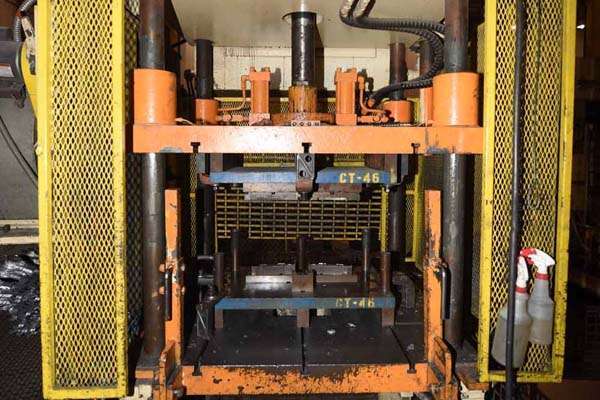

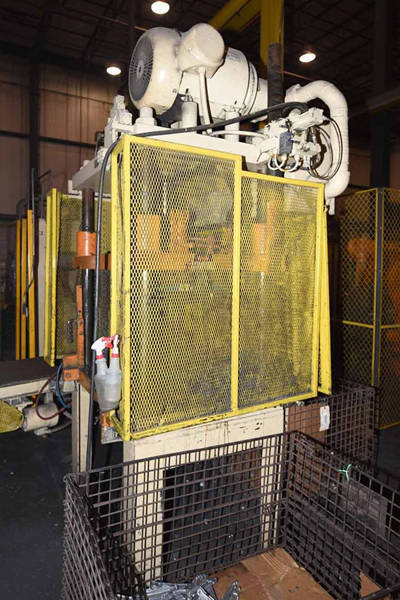

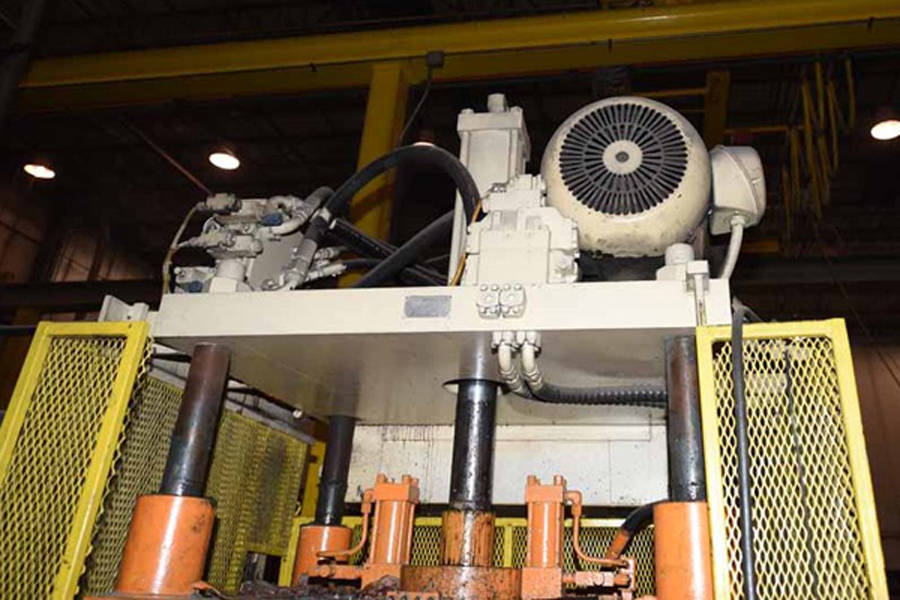

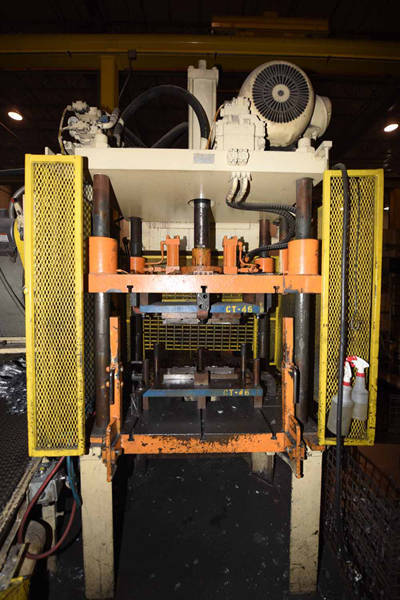

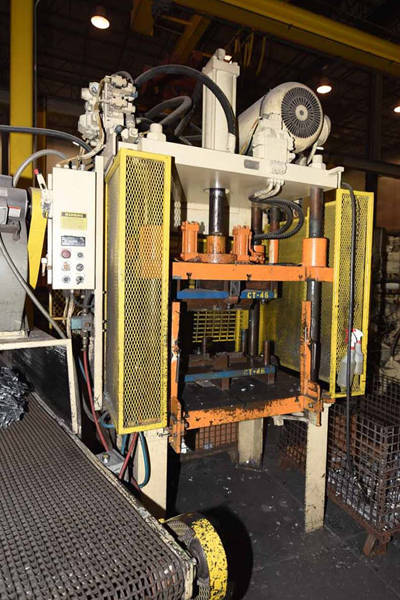

One (1) Used Die Cast Press Trim Press 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

Model DCP-40

Status: Sold
Specifications: Metric / U.S. Standard
Model: DCP-40 / DCP-40
Pressing Tonnage: 36 Tons / 40 tons
Number of Columns: 4 / 4
Column Diameter: 762 mm / 3 inches
Daylight: 965 mm / 38 inches
Stroke: 609 mm / 24 inches
Shut Height: 355 mm / 14 inches
Clearance between Tie Bars (Left to Right): 965 mm / 38.5 inches
Clearance between Tie Bars (Front to Back): 673 / 26.5 inches
Bed Size (Left to Right by Front to Back): 1219 x 933 mm / 48 x 36.75 inches
Cut out Size in Bed: (L/R x F/B) 254 x 203 mm / 10 x 8 inches
Overall Height: 3.175 meter / 125 Inches
Features & Accessories:
Air Safety Ratchet
Twin Cylinder Hydraulic Ejection
One (1) Auxiliary Hydraulic Side Core/Punch Circuits
T-Slotted Moving and Bed Platens
Dual Safety Pull-Out Bar Operation
Allen Bradley Programmable Solid State Control
Optional Equipment Available with Machine at additional cost: (click on item to view)
Prince Model 633 CCA Cold Chamber Aluminum Die Casting Machine
Rimrock Combination 305 automatic ladle and Rimrock 310 automatic die sprayer with upgraded control package
ABB IRB 6400 2.4-120 Robot Extractor
MPH Holimesy Electric Powered Aluminum Holding Furnace with Dynarad EC-950 Power Supply & Control
Custom Built Steel Mesh Conveyor with forced air cooling tunnel, 24 x 186 inches
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Die Cast Press Trim Press Model DCP-40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For Sale, Features include: Air Safety Ratchet, Twin Cylinder Hydraulic Ejection, One (1) Auxiliary Hydraulic Side Core/Punch Circuits, T-Slotted Moving and Bed Platens, Dual Safety Pull-Out Bar Operation, Allen Bradley Programmable Solid State Control, Allen Bradley Programmable Solid State Controls Controls, Second Hand, DCM-3714
