Used Ube Model: UB850iS2 850 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Ube

Model: UB850iS2

Size: 850 Metric Ton

Inventory Number: DCM-3781

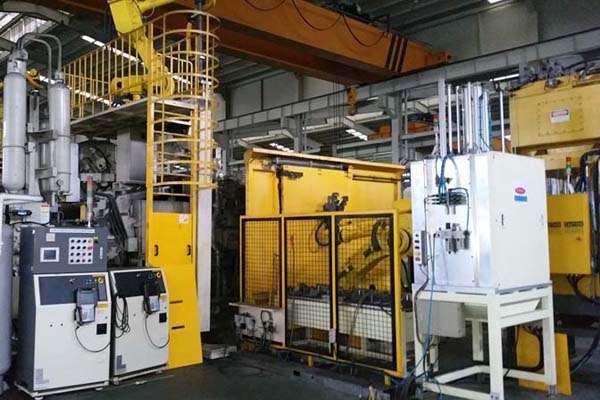

Used Ube Model: UB850iS2 850 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Features & Accessories:

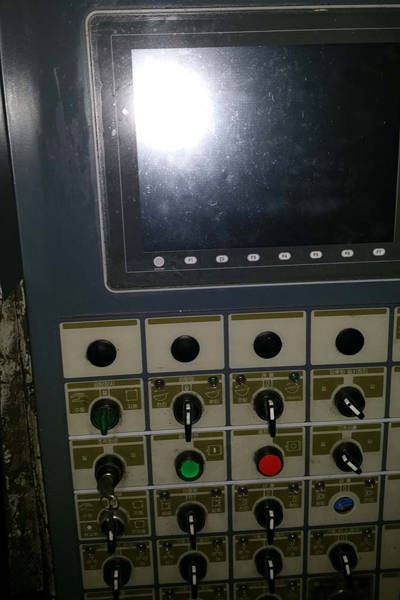

  • CastNavi, New Human Machine Interface Controller with 12.1 inche color touch panel screen
  • S-DDV (Electric Servo Valve) allows real time feedback shot control with multi speed control; 10 point parameter setting

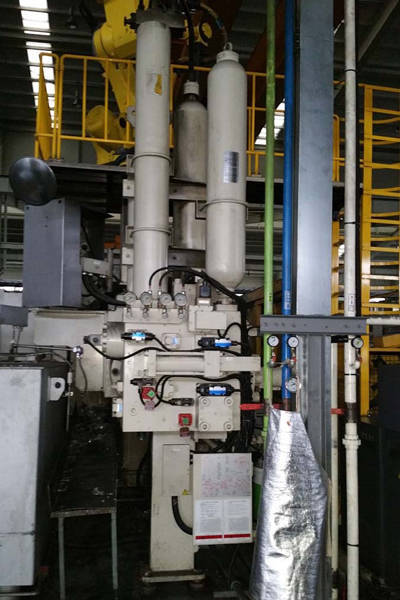

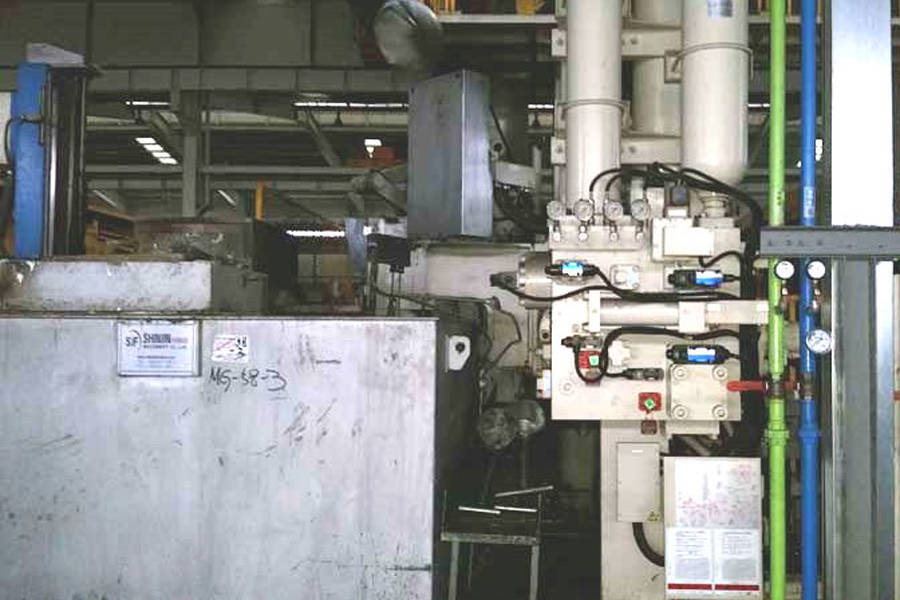

  • (Shot Stabilized Circuit) Accurate shot repeatability and stability with 2 accumulators
  • Center Press Platen allows equal clamping force through the die with center press technology

Item Specifications for DCM-3781

Specifications
Clamping Force:
936 tons
Platen Size:
55.11 x 55.11 inches
Distance Between Tie Bars:
36.65 x 36.65 inches
Die Stroke:
29.9 inches
Die Thickness (min - max):
15.75 - 37.40 inches
Ejection Force:
38 tons
Ejection Stroke:
0 - 4.92 inches
Shot Force (max - min):
72.6 - 36.3 tons
Shot Stroke:
29.5 inches
Plunger Tip Diameter (min - max):
3.15, 3.54, 3.94 inches
Shot Positions:
center to -9.8 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Ube Model UB850iS2 850 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: CastNavi, New Human Machine Interface Controller with 12.1 inche color touch panel screen, S-DDV (Electric Servo Valve) allows real time feedback shot control with multi speed control; 10 point parameter setting, (Shot Stabilized Circuit) Accurate shot repeatability and stability with 2 accumulators, Center Press Platen allows equal clamping force through the die with center press technology, CastNavi, New Human Machine Interface controls, second Hand, DCM-3781

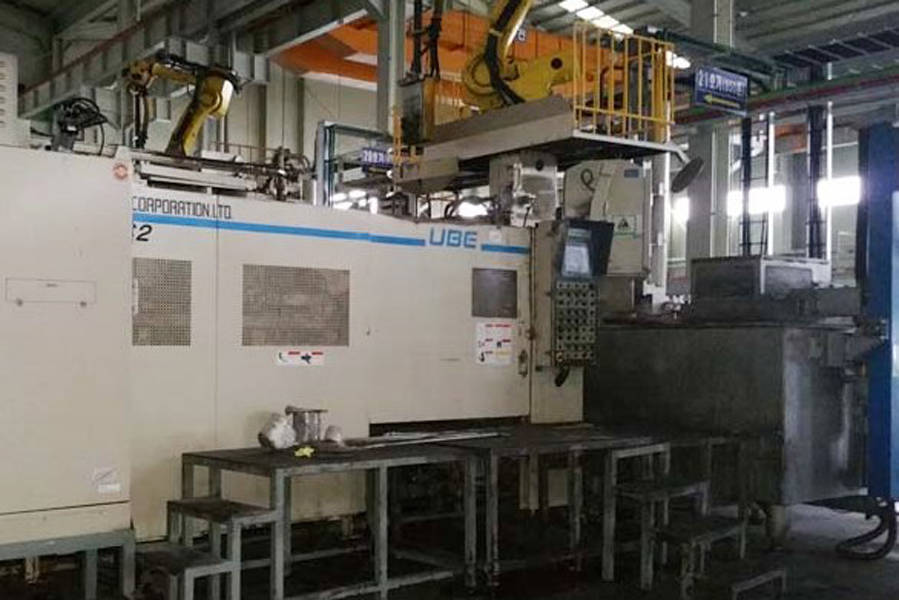

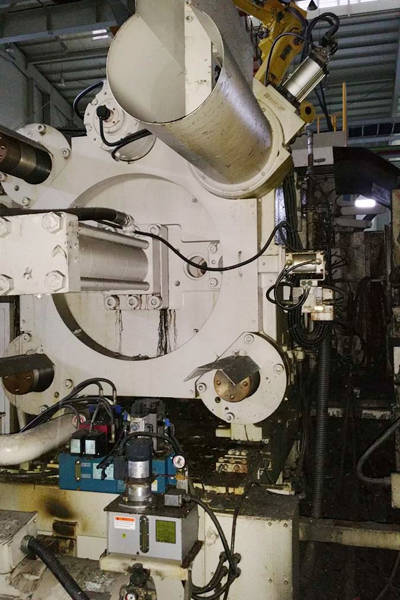

See jumbo large photos of this Ube UB850iS2
