Used Buhler 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF!

Status: Available

We offer for sale, subject to prior sale and the terms listed below:

Used Buhler 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine. Inventory item: DCM-3958.

Manufacturer: Buhler

Model: SC 10 120

Features & Accessories:

  • Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system
  • Power Operator Side Safety Door
  • Dual Fully Automated Tie bar puller of Top Tie Bars
  • Electric Motorized Die Height Adjustment System
  • Twin Cylinder Hydraulic Bumper Plate Ejection
  • Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1)

Item Specifications for DCM-3958

Specifications
Injection Force, Dynamic
134.8 tons
Injection Force, Intensified
123.8 tons
Plunger Diameter
4.92 inches
Plunger Stroke
31.5 inches
Ejector Force Forward/Backward
76.4 / 40.46 tons
Ejection Stroke
8.7 inches
Injection Pressure (Min - Max)
75 to 197 square inches
Maximum Locking Force
1,345 tons
Platen Size
66.5 x 66.5 inches
Tie Bar Clearance
43.3 x 43.3 inches
Die Height (minimum - maximum)
15.7 - 47.24 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Buhler Model SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system, Power Operator Side Safety Door, Dual Fully Automated Tie bar puller of Top Tie Bars, Electric Motorized Die Height Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection, Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1), Buhler Controls, Second Hand, DCM-3958

The following technical terms are to assist you with searches: Used | Second Hand | Buhler |SC 10 120 | 1200 Ton | Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine | For Sale | Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system | Power Operator Side Safety Door | Dual Fully Automated Tie bar puller of Top Tie Bars | Electric Motorized Die Height Adjustment System | Twin Cylinder Hydraulic Bumper Plate Ejection | Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1) | Buhler Controls | DCM-3958

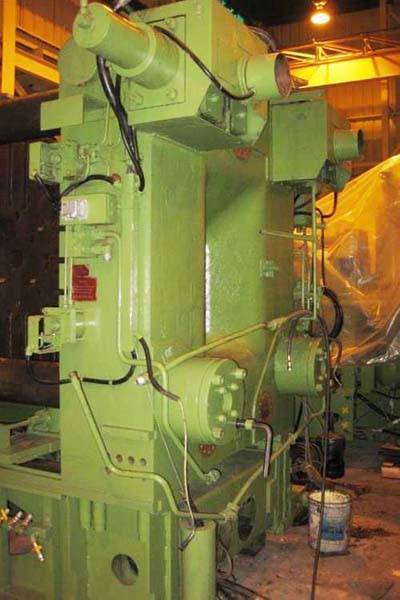

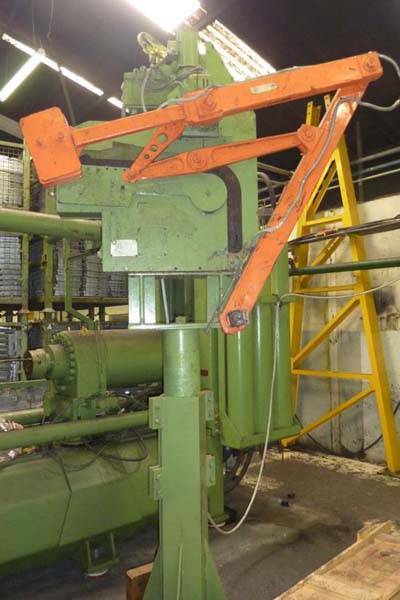

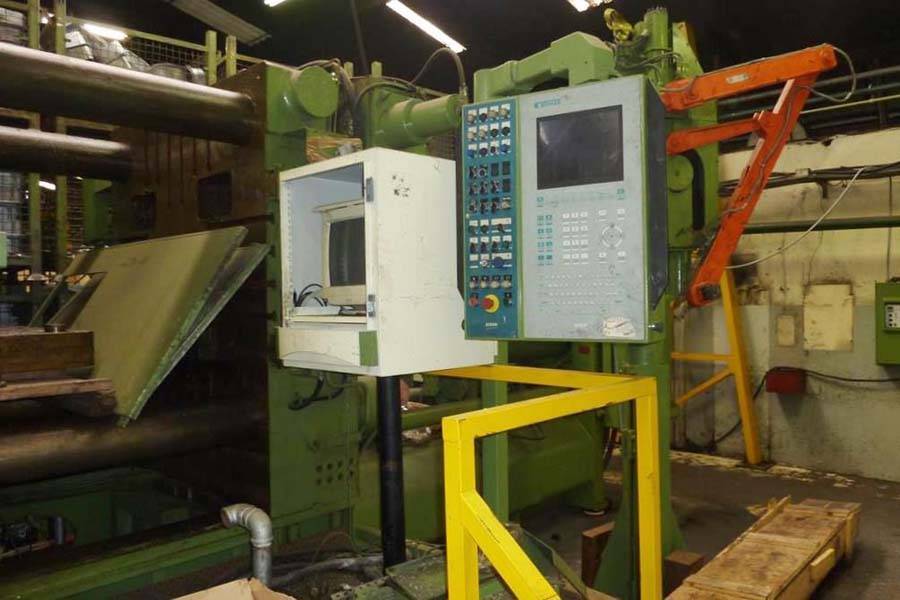

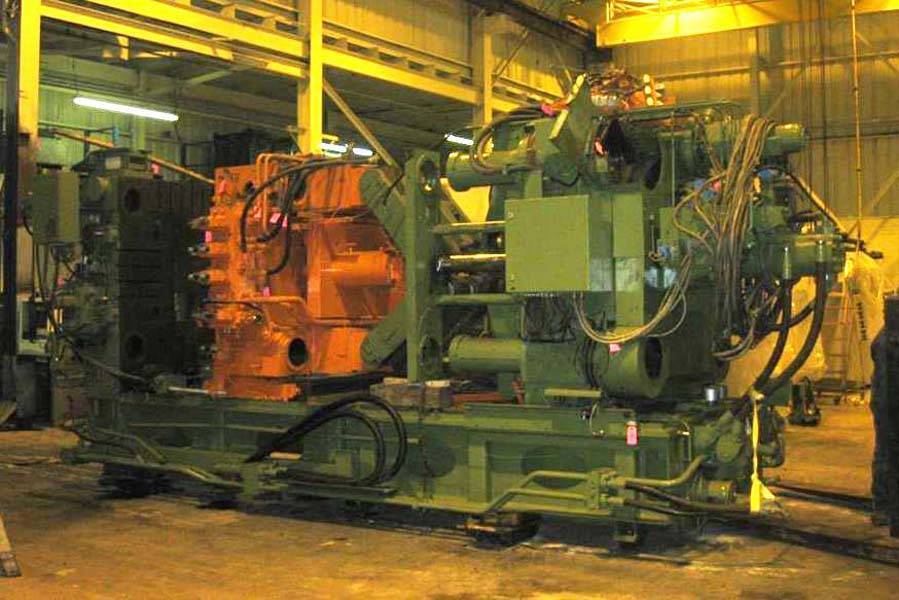

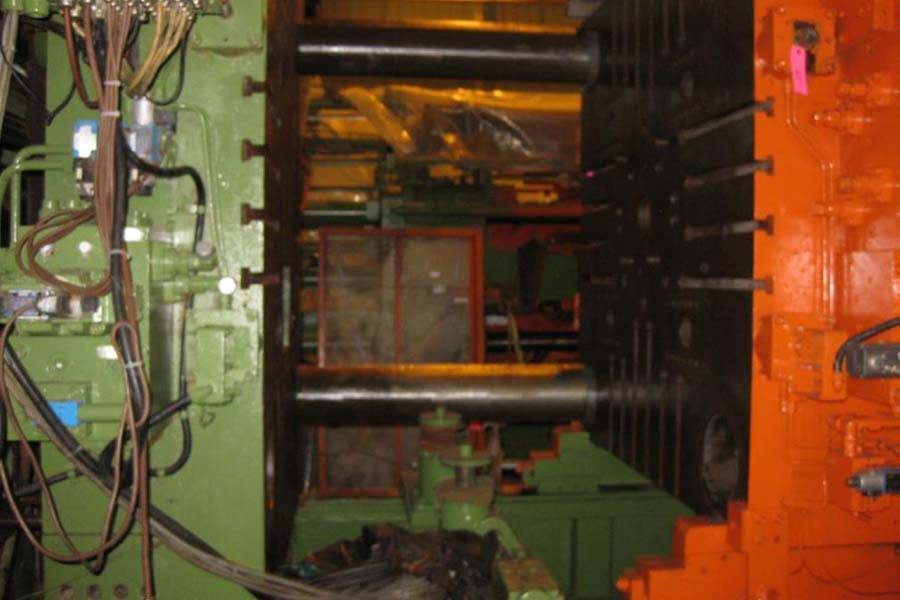

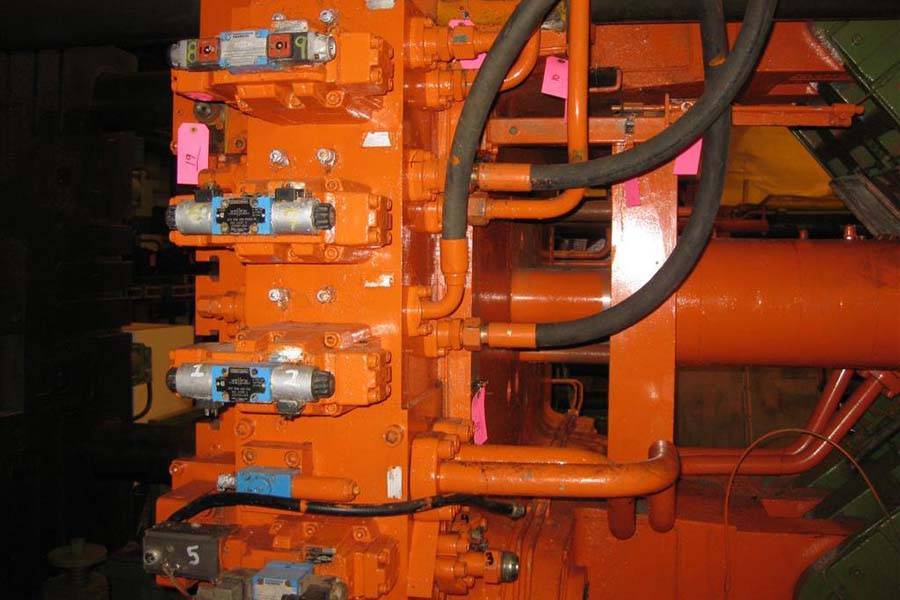

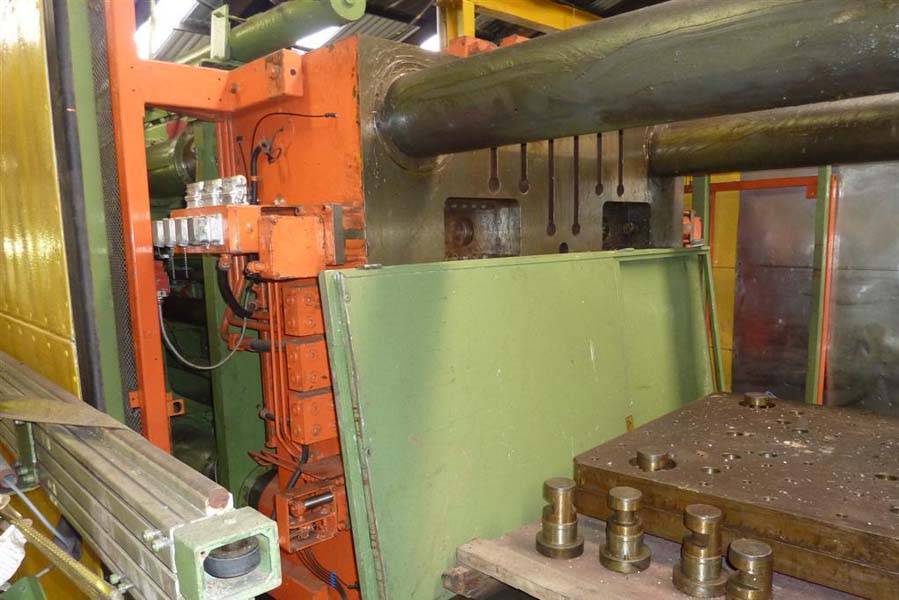

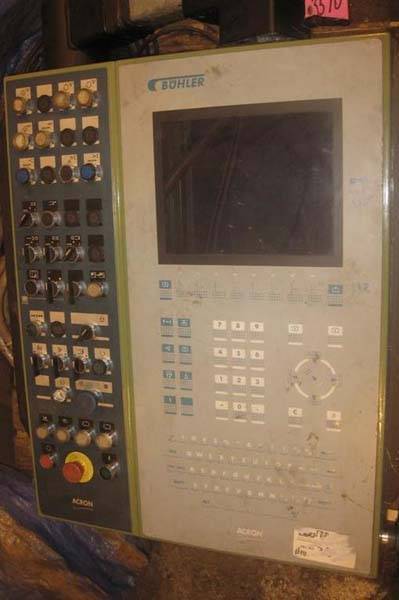

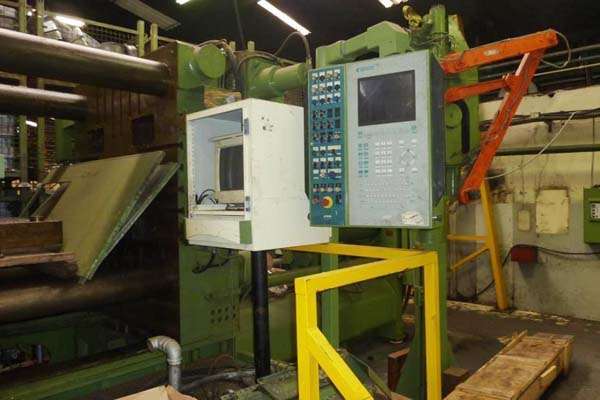

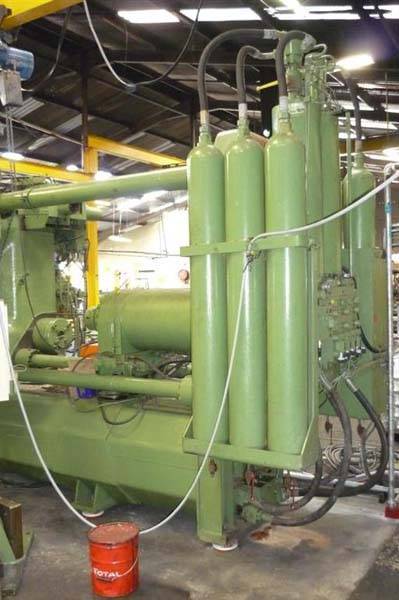

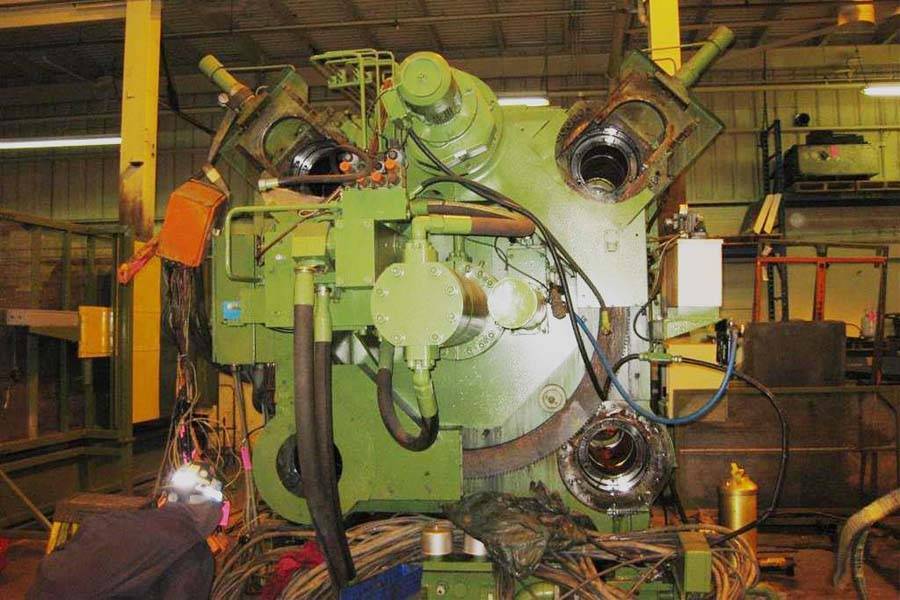

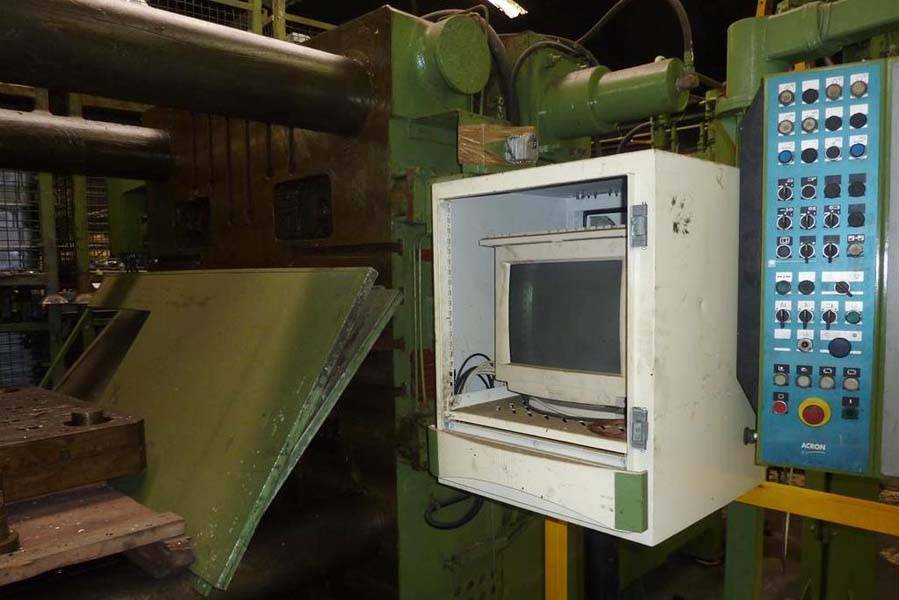

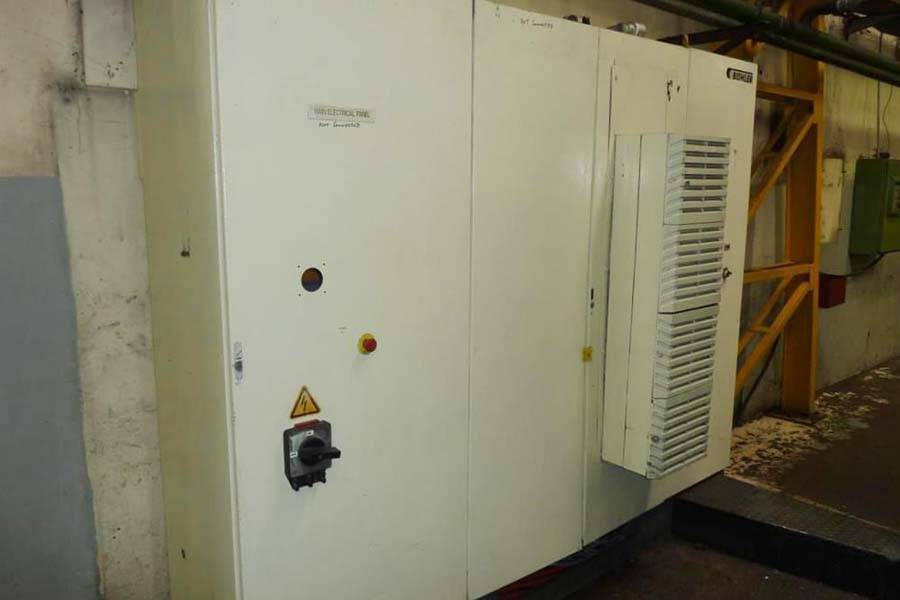

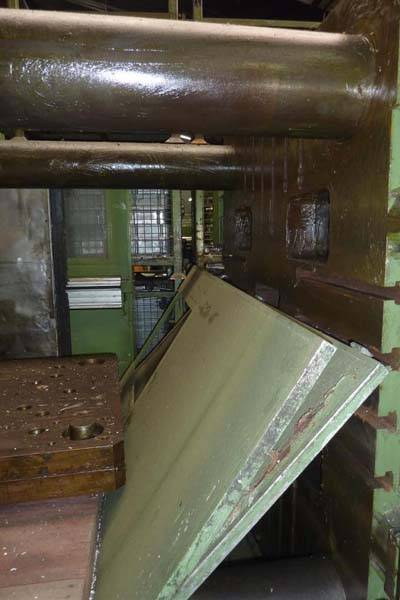

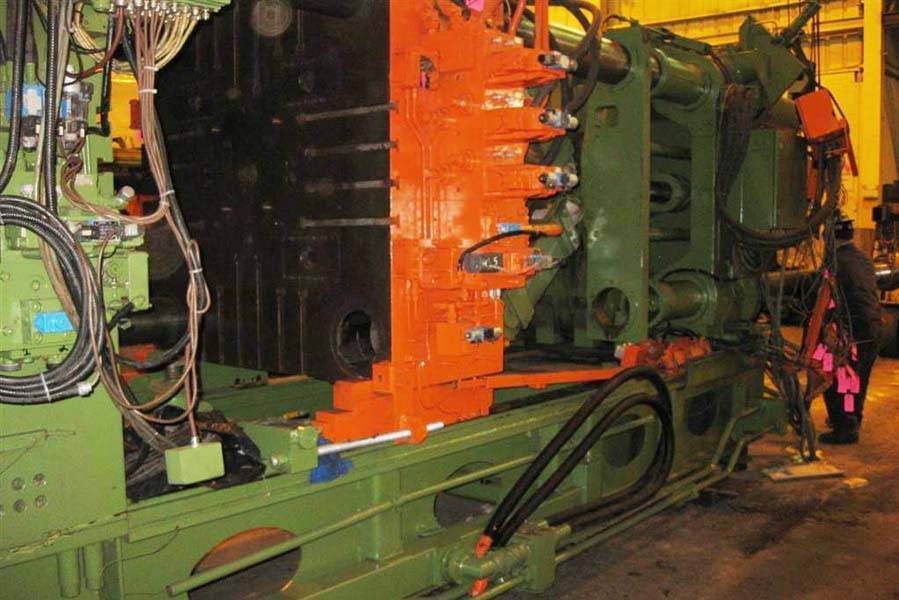

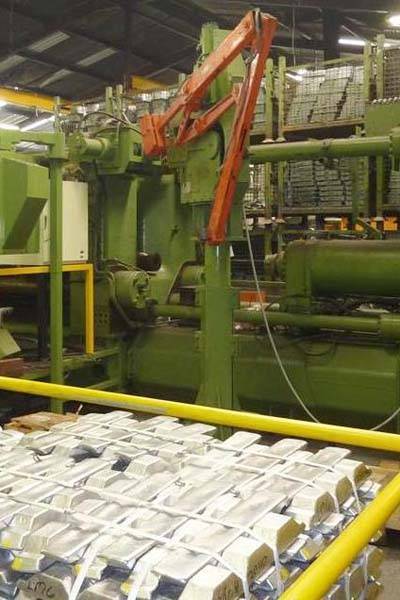

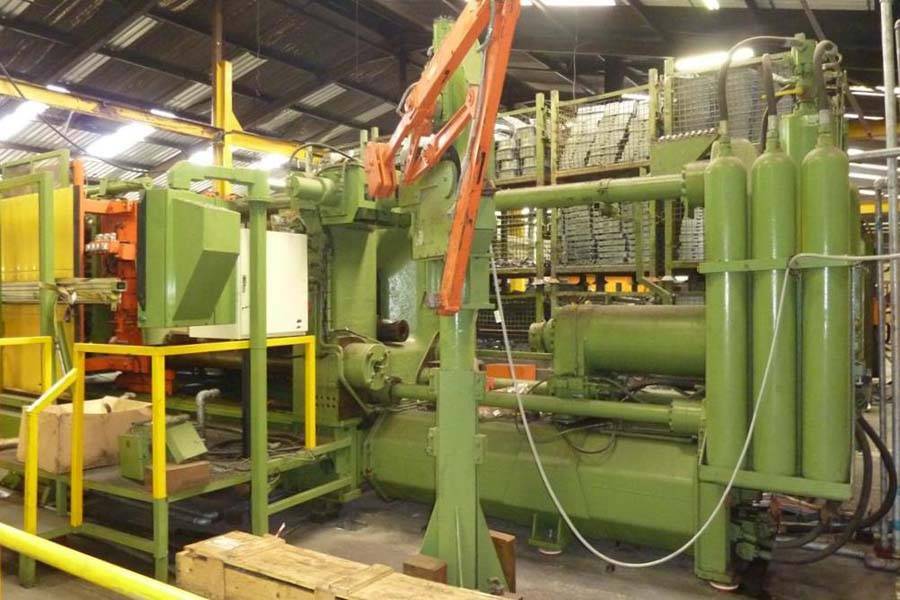

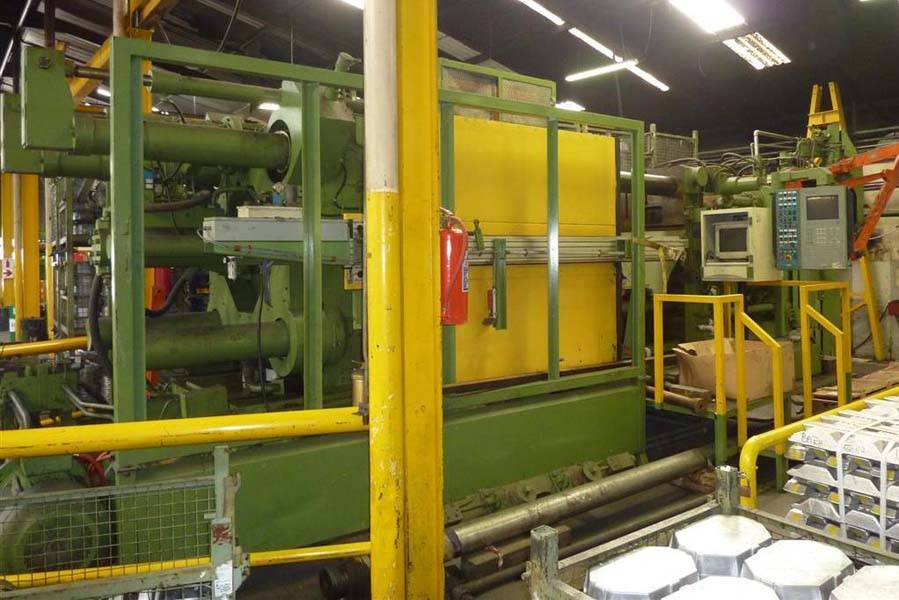

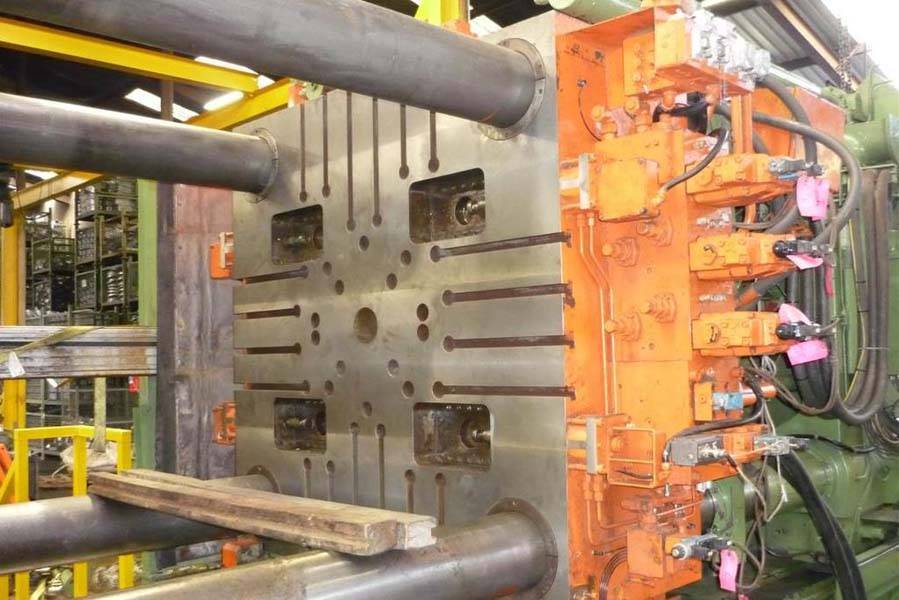

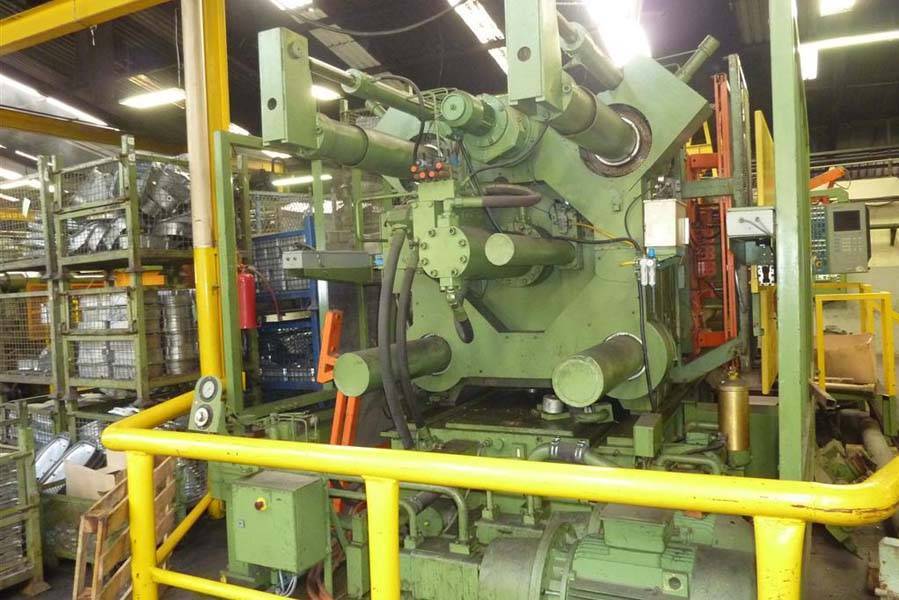

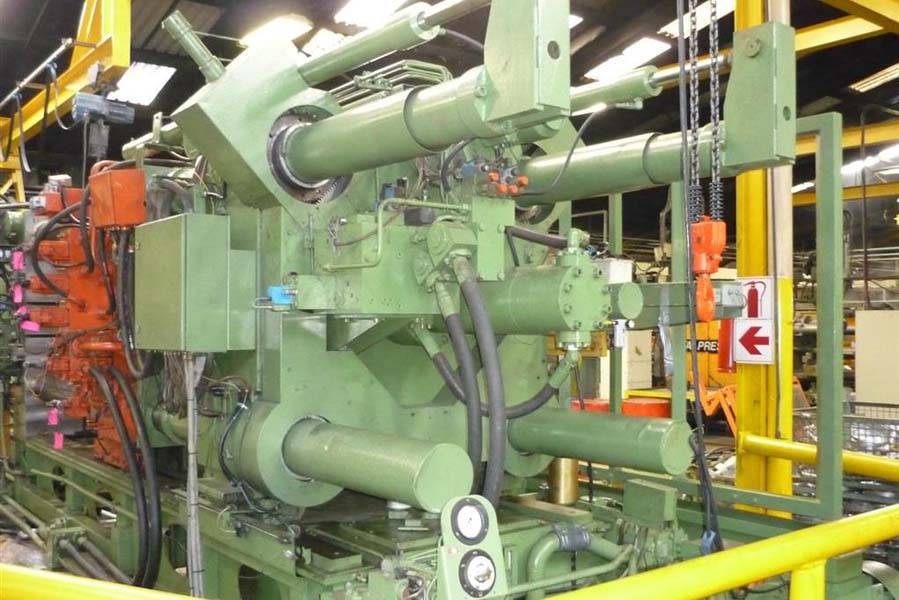

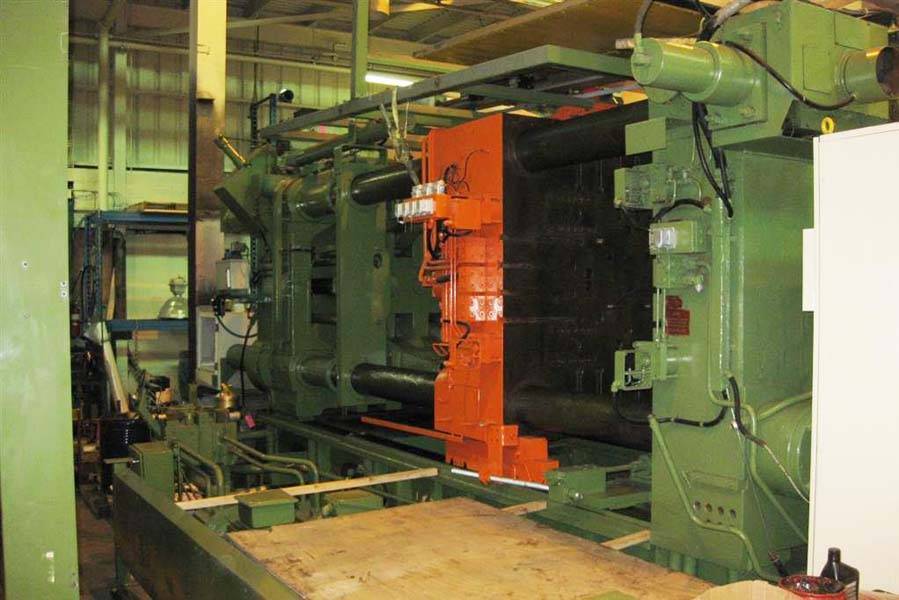

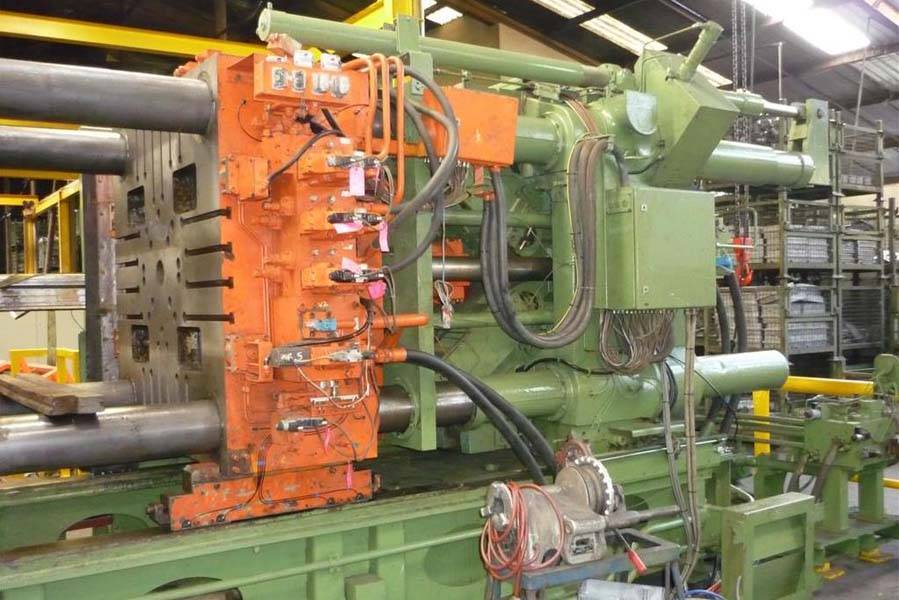

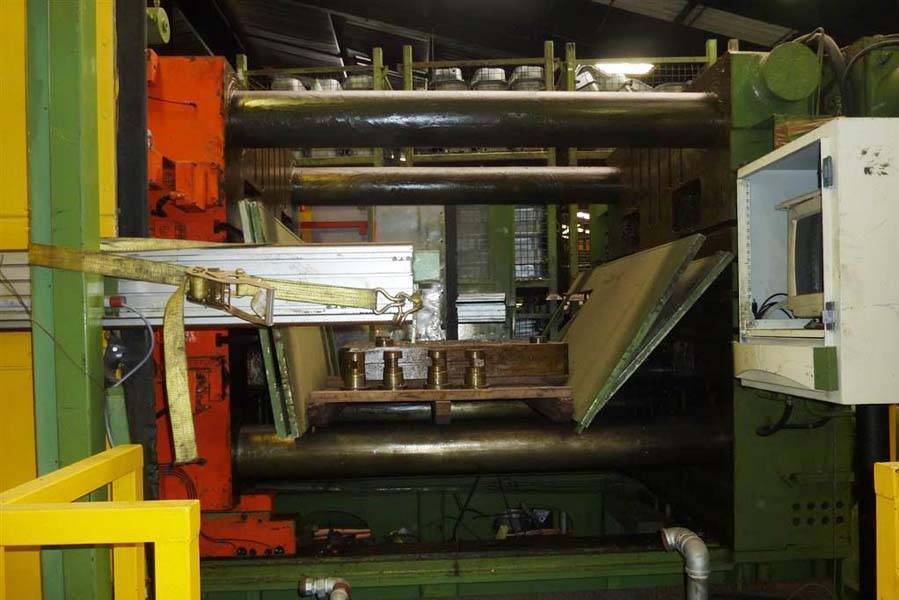

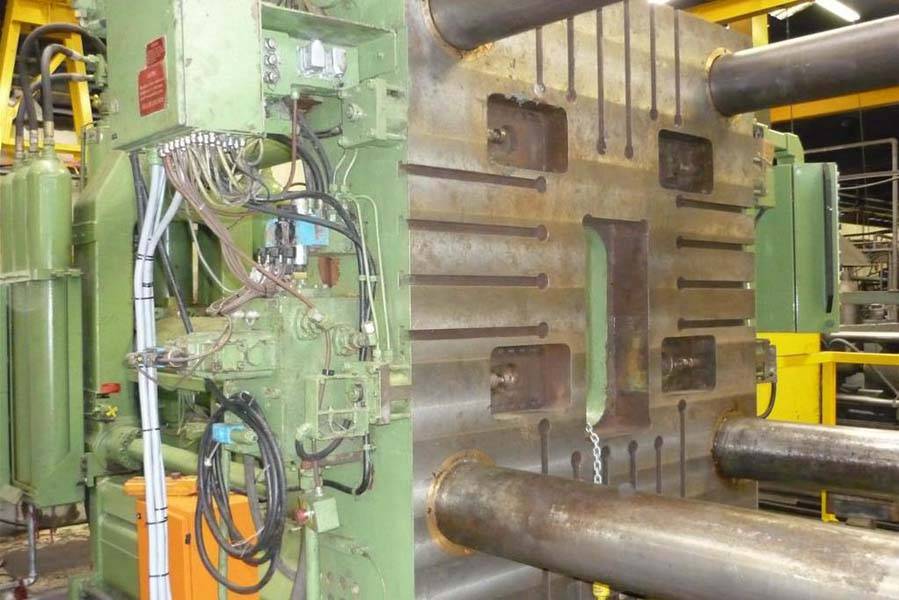

See photos of this Buhler SC 10 120
