Cold Chamber Die Casting Machines Model 836 CCA One (1) Used Prince 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 4046 Condition: Used Available Prince - 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/20 with Visi-Trak Monitoring Controls used 1
Die Cast Machinery, LLC Inventory number: 4046
We offer for sale, subject to prior sale and the terms listed below:

One (1) Used Prince 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model 836 CCA

Status: Available
Specifications: Metric / U.S. Standard
Rated Tonnage: 816.5 tons / 900 tons

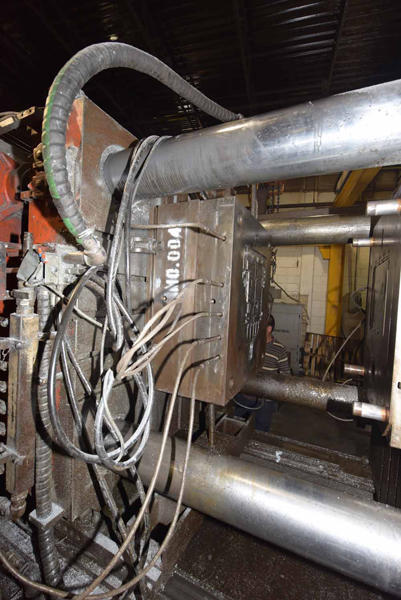

Tie Bar Diameter: 190.5 mm / 7.5 inches

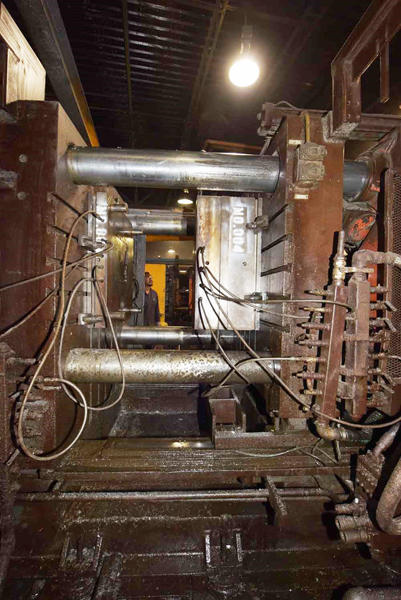

Clearance Between Tie bars: 927.1 x 927.1 mm / 36.5 x 36.5 inches
Front Platen Size (T x W x H): 323.9 x 1524 x 1524 / 12.75 x 60 x 70 inches

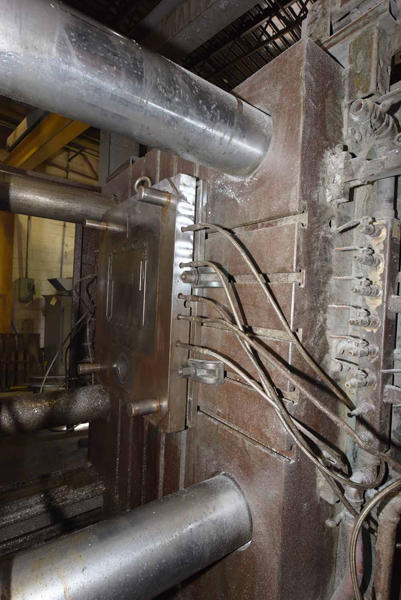

Moving Platen Size (T x W x H): 298.5 x 1524 x 1524 / 11.75 x 60 x 60 inches
Die Thickness (min. - max.): 508 - 1016 mm / 20 - 40 inches
Die Stroke: 558.8 mm / 22 inches
Ejection Stroke: 152.4 / 6 inches
Injection Cylinder Bore/Stroke: 203.2 mm x 762 mm / 8 x 30 inches

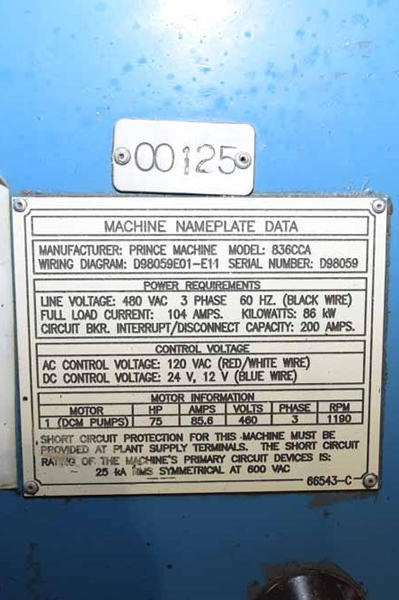

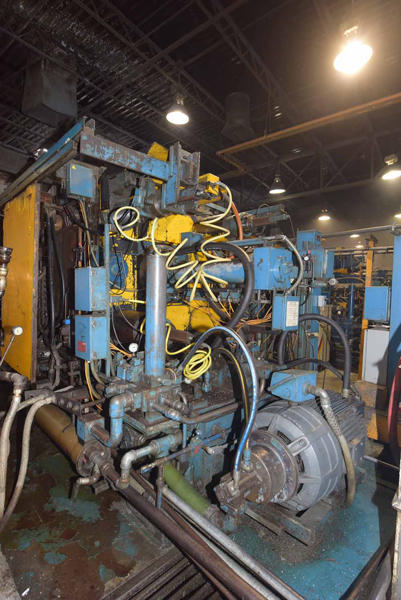

Motor Size: 55.16 kw / 75 HP
Machine Size (L x W x H): 8.5 x 2.4 x 3.4 meters / 28 x 8 x 11 feet
Features & Accessories:

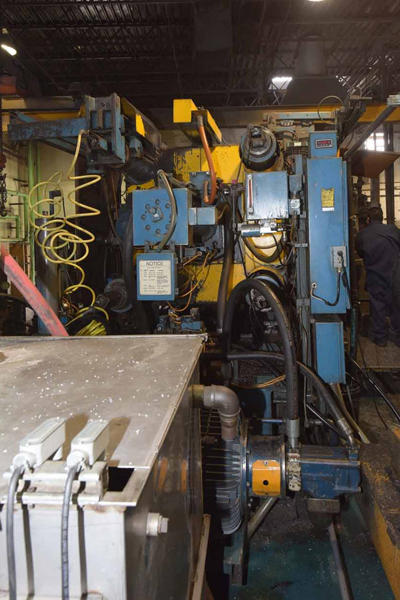

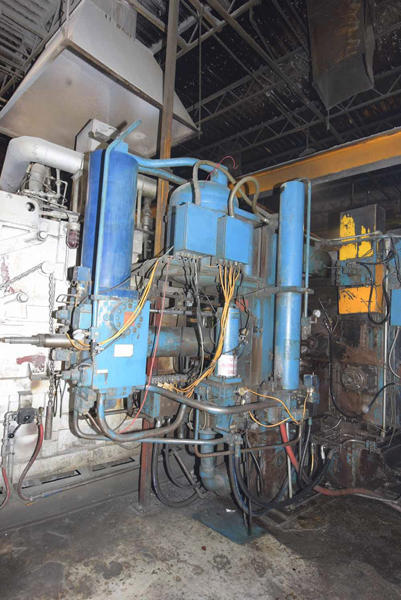

Equipped with Prince Low Impact Shot End with Prince Binary II shot control

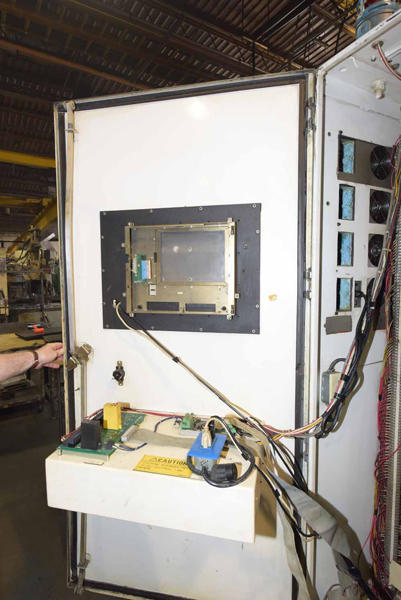

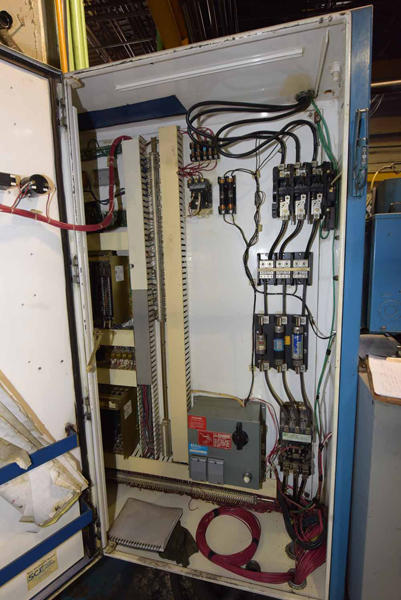

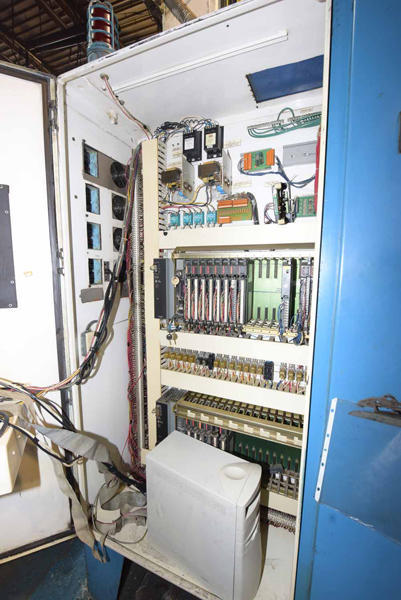

Allen Bradley PLC 5/20 Controls with Prince ProManager
Twin Cylinder Hydraulic Bumper Plate Ejection System
Fully Automatic Top Helper Side Tie Bar Pulling System including power rear split-ring
Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System

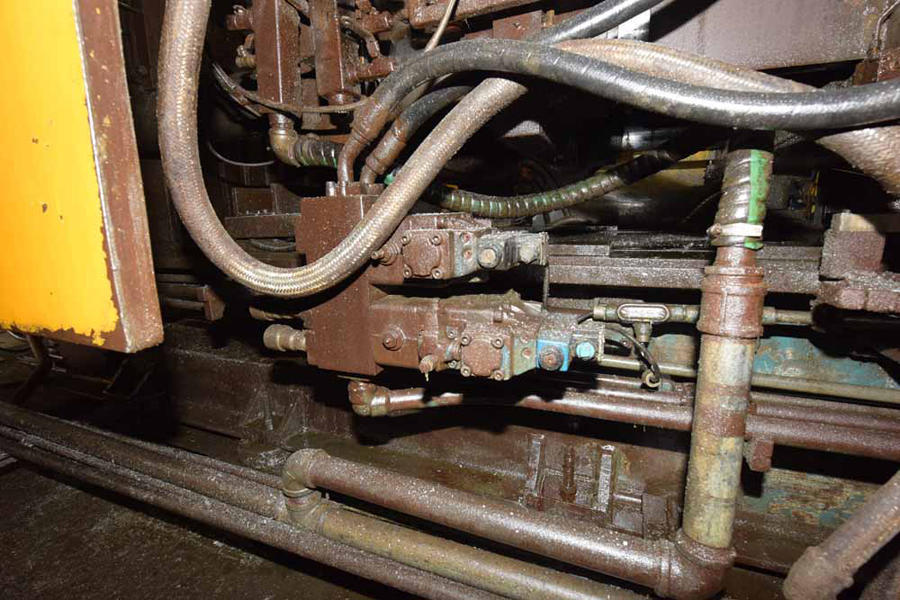

Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Hydraulic Shot Position Adjustment
Optional Equipment Available with Machine at additional cost: (click on item to view)

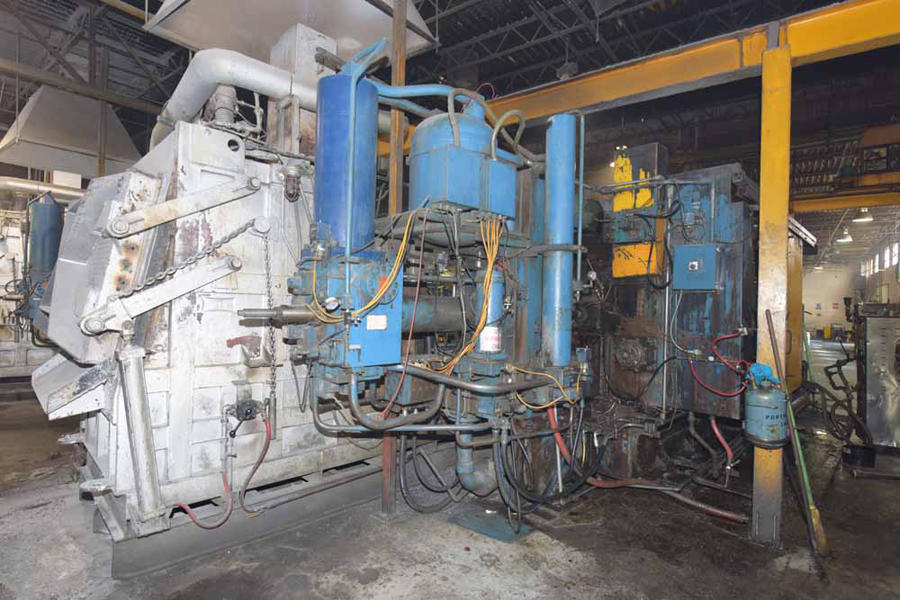

Rimrock 305 Multi Link Ladle with Allen Bradley Control Package Update
PDF Documents for this Machine:
Prince 900 Ton Platen Drawings for DCM 4046.pdf
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Prince Model 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Equipped with Prince Low Impact Shot End with Prince Binary II shot control, Allen Bradley PLC 5/20 Controls with Prince ProManager, Twin Cylinder Hydraulic Bumper Plate Ejection System, Fully Automatic Top Helper Side Tie Bar Pulling System including power rear split-ring, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Hydraulic Shot Position Adjustment, Allen Bradley PLC 5/20 with Visi-Trak Monitoring Controls, Second Hand, DCM-4046
