Cold Chamber Die Casting Machines Model 1246 CCA One (1) Used Prince 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine Inventory #: 4239 Condition: Used Available Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls used 1
Die Cast Machinery, LLC Inventory number: 4239
We offer for sale, subject to prior sale and the terms listed below:

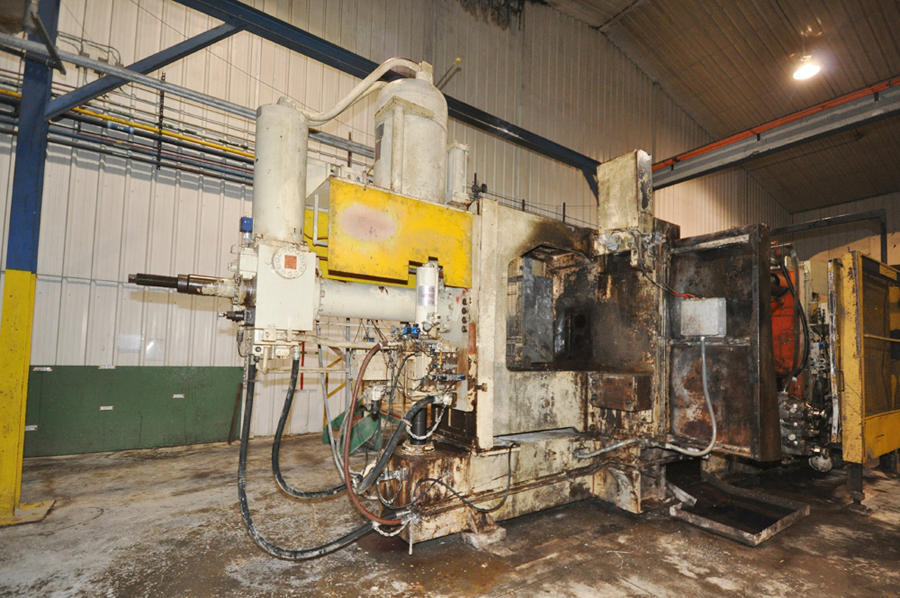

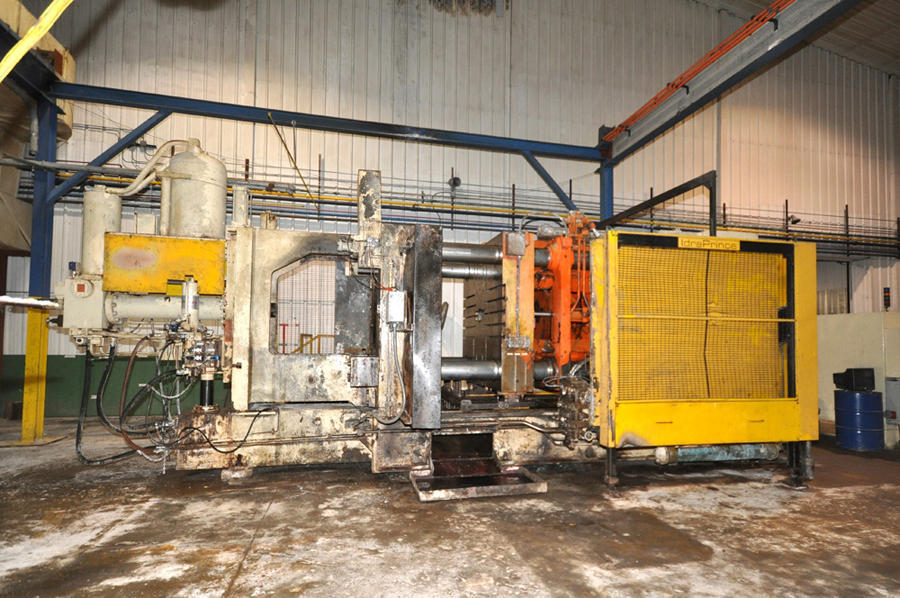

One (1) Used Prince 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

Model 1246 CCA

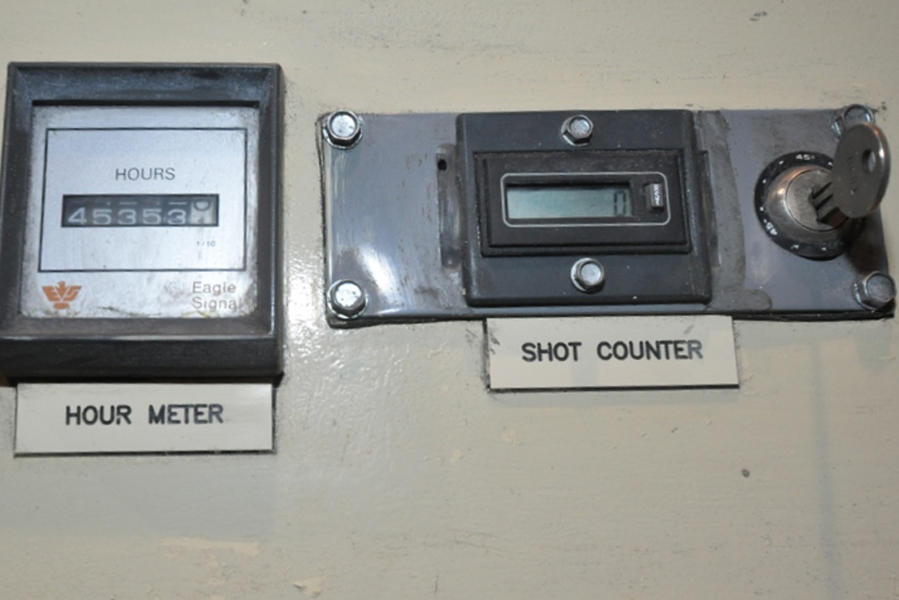

Very low hour machine - less than 46,000 hours of total operation

Status: Available
Specifications: Metric / U.S. Standard
Rated Tonnage: 1088 tons / 1200 tons

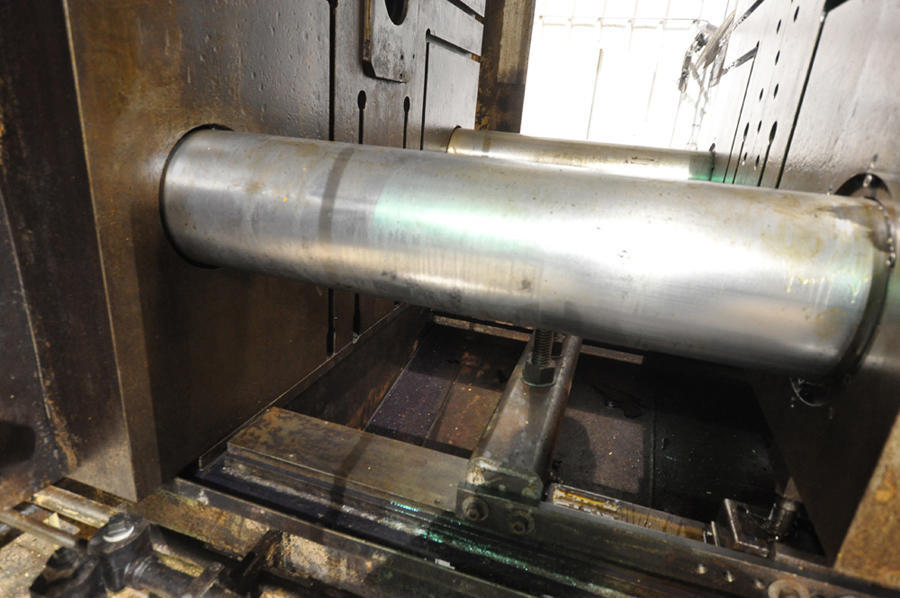

Tie Bar Diameter: 241 mm / 9.5 inches
Clearance between Tie Bars: 1181 x 1181 mm / 46.5 x 46.5 inches

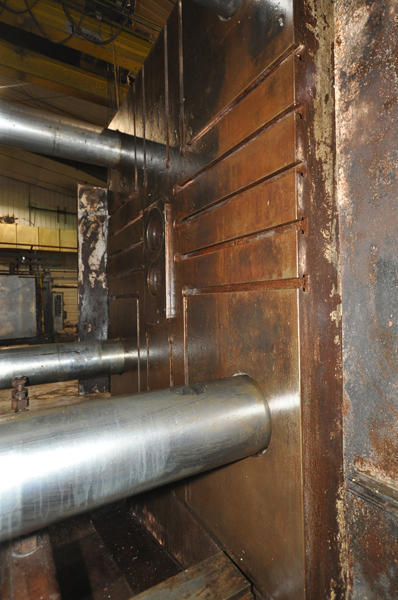

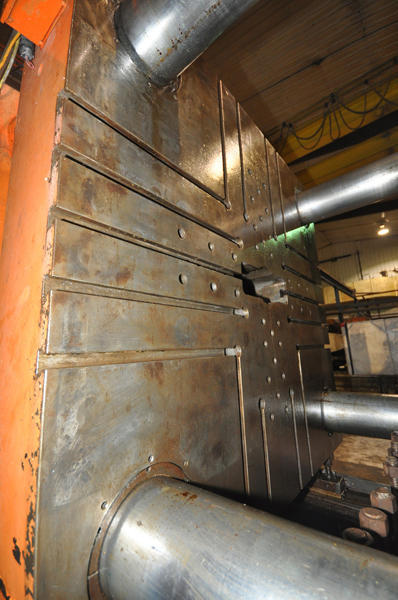

Front Platen Size (T x W x H): 450 x 1778 x 2032 mm / 17.75 x 75 x 85 inches
Moving Platen Size (T x W x H): 400 x 1905 x 1905 mm / 15.75 x 75 x 75 inches
Die Thickness (minimum to maximum): 609 - 1117 mm / 24 - 44 inches
Die Stroke: 762 mm / 30 inches
Shot Position Standard: Adjustable - Center to -304 mm below Center / Adjustable - Center to -12 inches below Center
Shot Cylinder Stroke: 762 - 914 mm / 30 - 36 inches

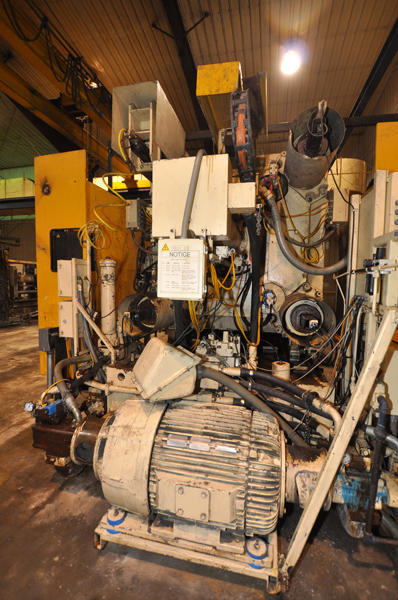

Motor Size: (2) 55.95 and 11.19 Kw / (2) 75 and 15 HP
Machine Size (L x W x H): 10.97 x 2.74 x 3.96 meters / 36 x 9 x 13 feet
Machine Weight: 75,000 kg / 165,000 pounds
Features & Accessories:

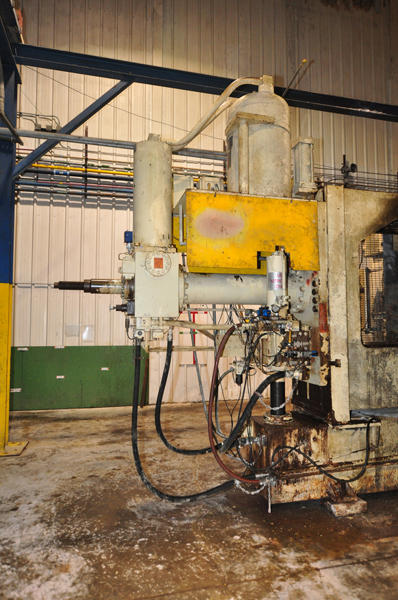

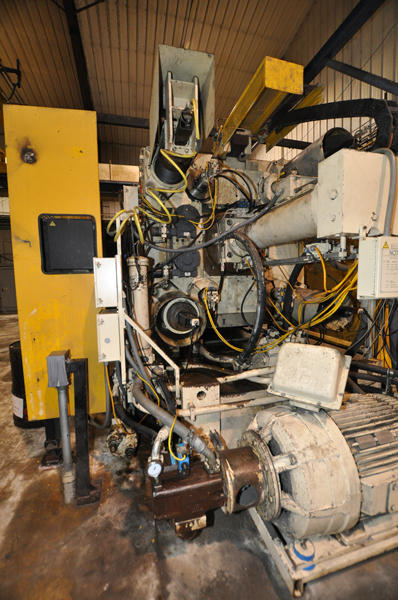

Prince Binary II-M (magnesium capable) Shot System with Low-Impact Feature and Closed-Coupled 5,000 PSIG Piston Bottle Intensification
Hydraulic Motorized Die Height Adjustment System Powered by Dual Motors featuring Individual Tie Bar Tonnage Adjustment System with Electronic Strain-Gauges
Top Helper Side Automatic Tie Bar Puller; Floor Mounted Manual Helper Side Safety Door and Power Operator Side Safety Door

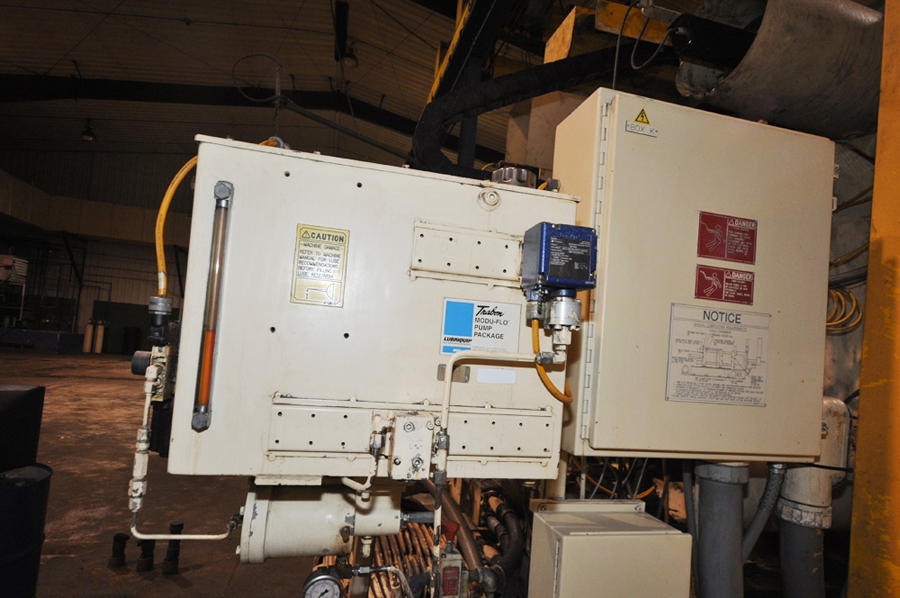

Air Safety Ratchet Device; Trabon Oil Type Automatic Lubrication System
Adjustable Die Stroke; Adjustable Shot Stroke

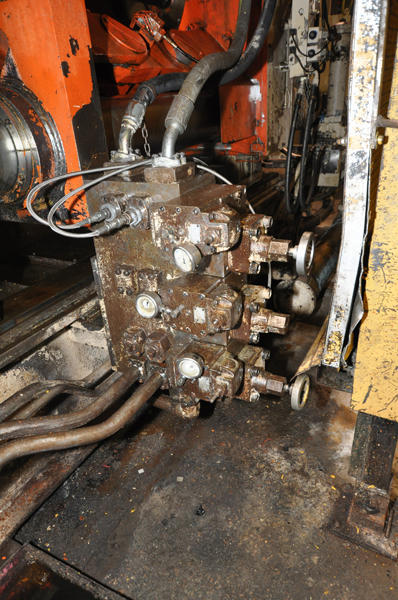

Twin Cylinder Hydraulic Bumper Plate Ejection System; Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

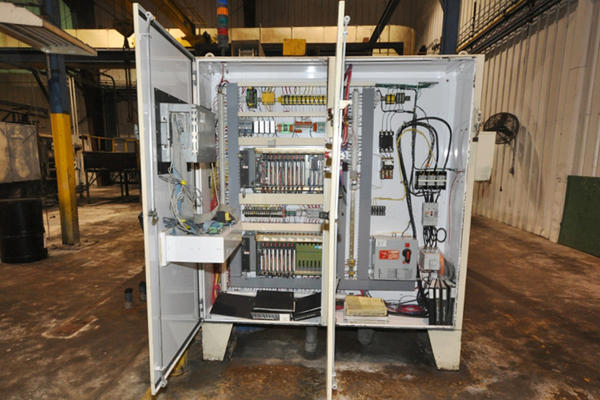

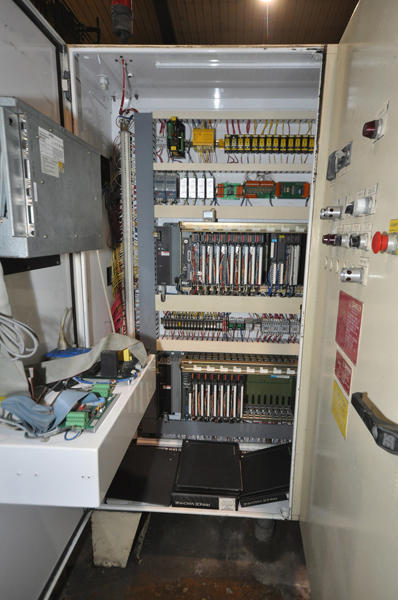

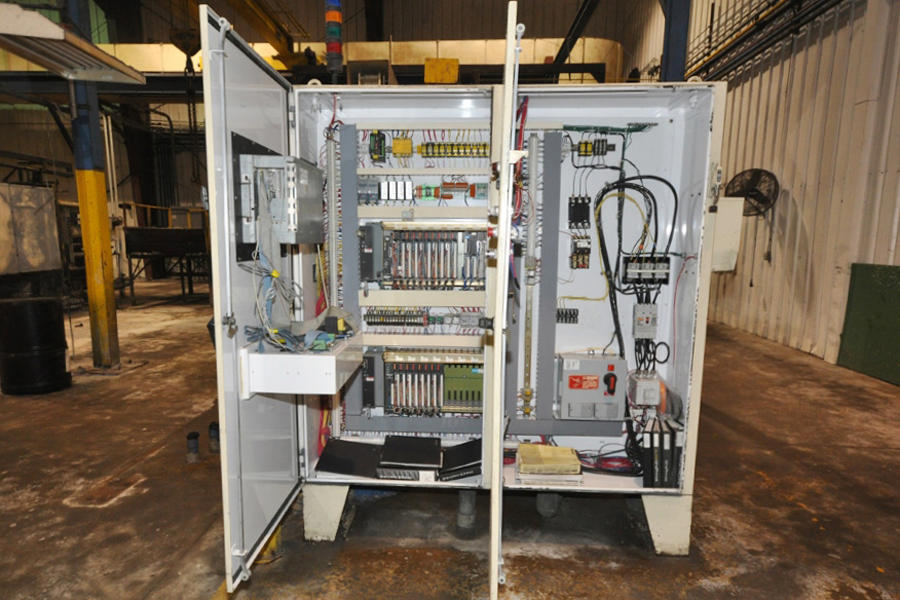

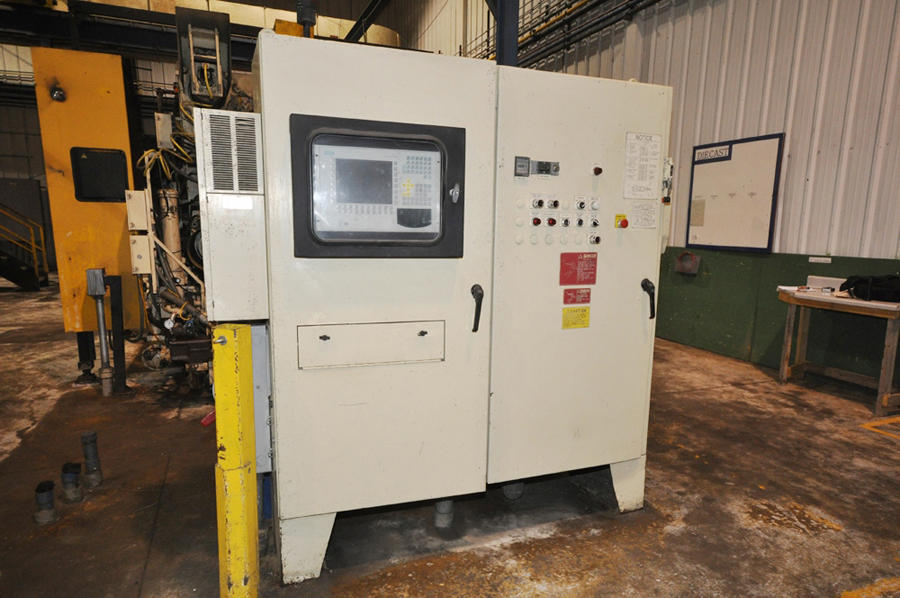

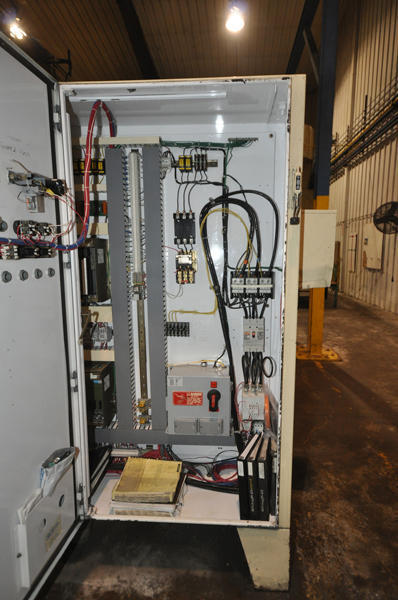

Description: Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Prince Binary II-M (magnesium capable) Shot System with Low-Impact Feature and Closed-Coupled 5,000 PSIG Piston Bottle Intensification, Hydraulic Motorized Die Height Adjustment System Powered by Dual Motors featuring Individual Tie Bar Tonnage Adjustment System with Electronic Strain-Gauges, Top Helper Side Automatic Tie Bar Puller; Floor Mounted Manual Helper Side Safety Door and Power Operator Side Safety Door, Air Safety Ratchet Device; Trabon Oil Type Automatic Lubrication System, Adjustable Die Stroke; Adjustable Shot Stroke, Twin Cylinder Hydraulic Bumper Plate Ejection System; Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen, Allen Bradley PLC 5/30 Controls, Second Hand, DCM-4239
