Cold Chamber Die Casting Machines Model 850 One (1) Used Prince 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 4257 Condition: Used Available Prince - 850 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls used 1
Die Cast Machinery, LLC Inventory number: 4257
We offer for sale, subject to prior sale and the terms listed below:

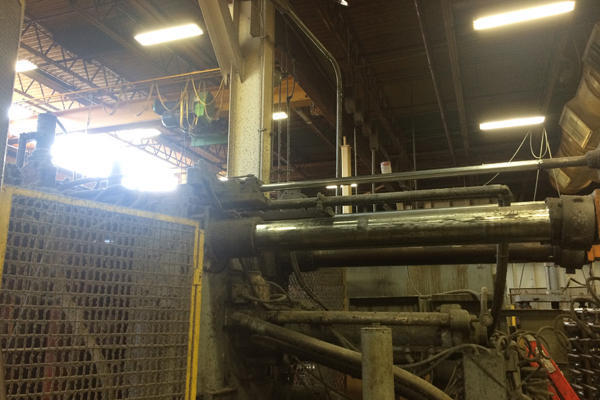

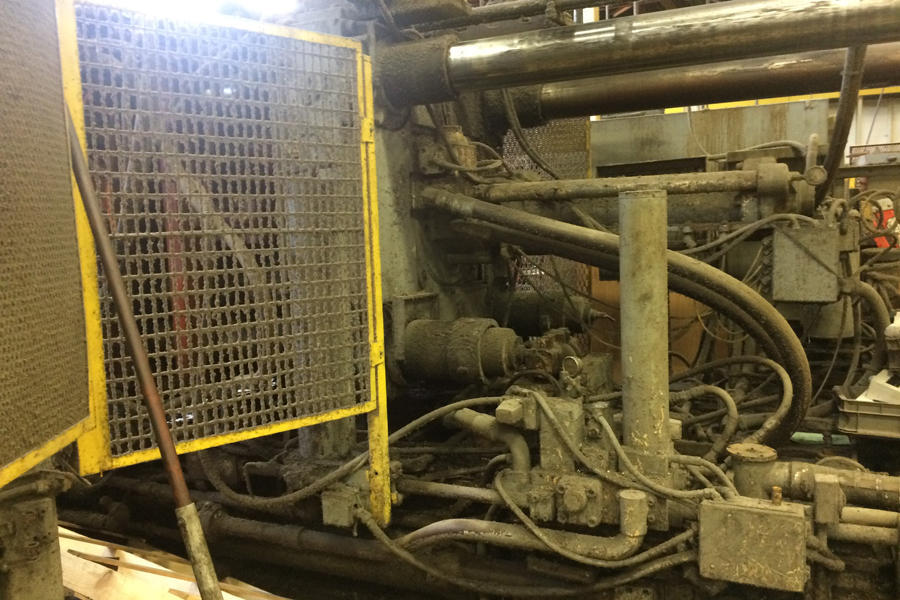

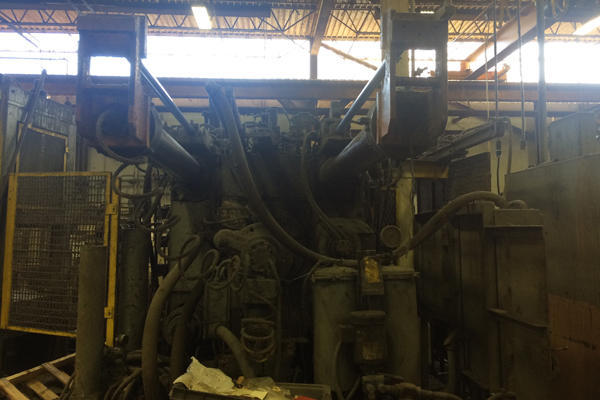

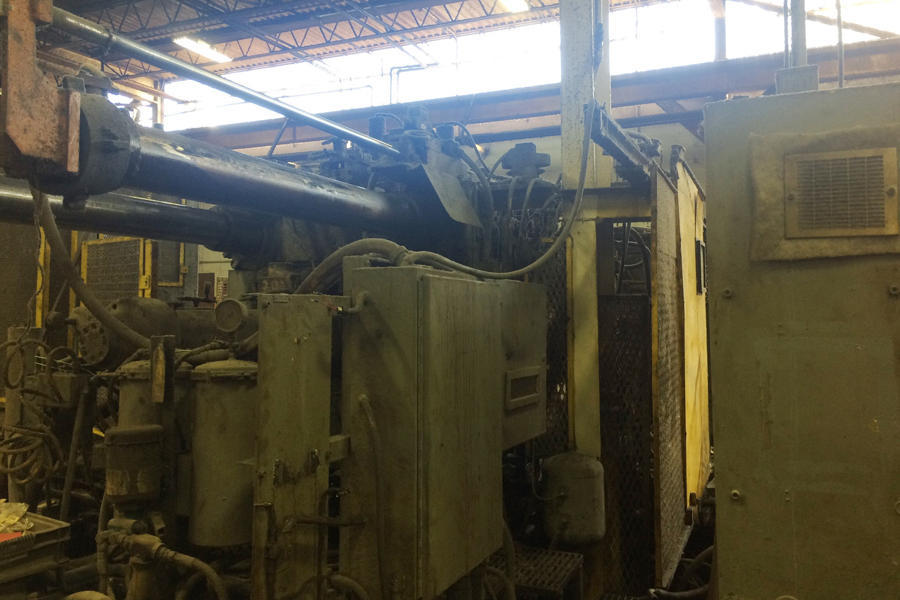

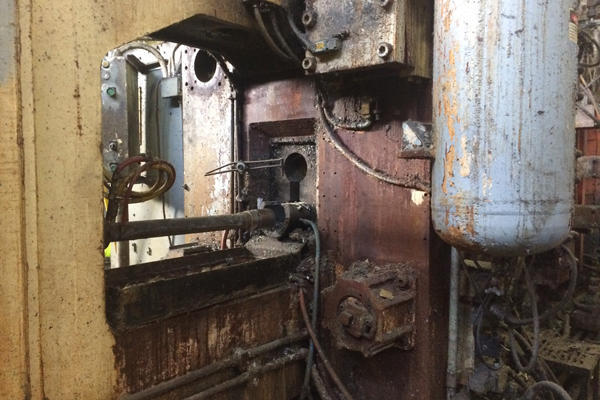

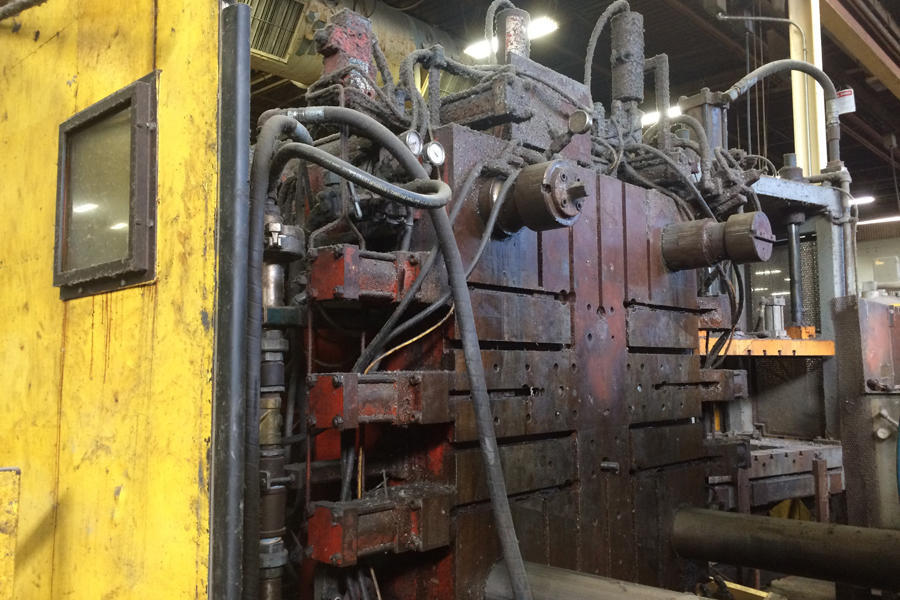

One (1) Used Prince 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model 850

Status: Available
Specifications: Metric / U.S. Standard
Rated Tonnage: 772 tons / 850 tons
Tie Bar Diameter: 190.5 mm / 7.5 inches
Clearance Between Tie bars: 927.1 x 927.1 mm / 36.5 x 36.5 inches
Front Platen Size (T x W x H): 323.9 x 1524 x 1524 / 12.75 x 60 x 70 inches
Moving Platen Size (T x W x H): 298.5 x 1524 x 1524 / 11.75 x 60 x 60 inches
Die Thickness (min. - max.): 508 - 1016 mm / 20 - 40 inches
Die Stroke: 558.8 mm / 22 inches
Injection System: Towler Proportional Valve / Towler Proportional Valve
Shot Positions: Inserted, Center to -9 inches / Inserted, Center to -9 inches
Approximate Machine Size (L x W x H): 8.5 x 2.4 x 3.4 meters / 28 x 8 x 11 feet
Machine Weight: 43,637kg / 96,000 pounds
Features & Accessories:

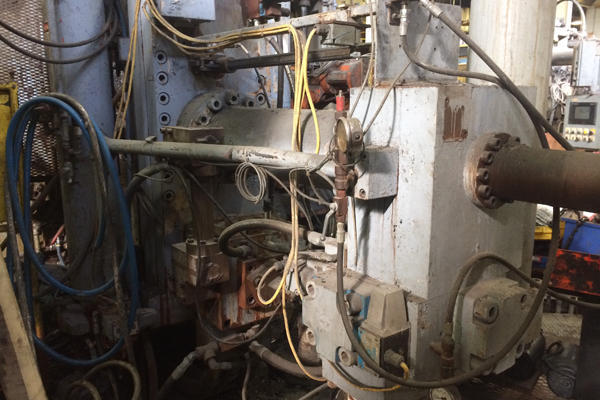

C-Frame Shot End with Hydraulic Shot Position Adjustment and Towler Proportional Shot Control Valve
Top Helper-Side Automatic Tie Bar Puller
Twin Cylinder Hydraulic Bumper Plate Ejection System
Hydraulic Motorized Die Height Adjustment System
Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen

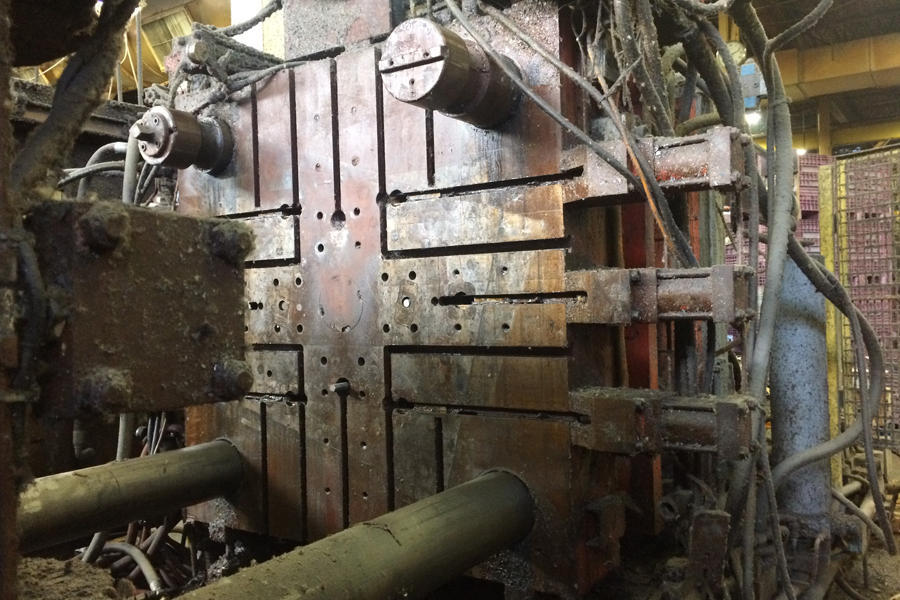

Prince Power Die Clamping System
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

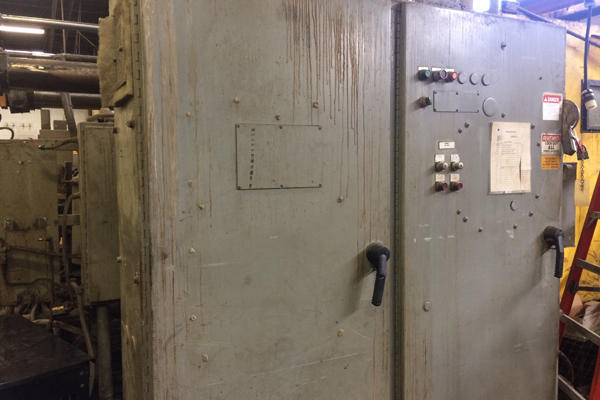

Description: Used, Prince Model 850 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: C-Frame Shot End with Hydraulic Shot Position Adjustment and Towler Proportional Shot Control Valve, Top Helper-Side Automatic Tie Bar Puller, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Prince Power Die Clamping System, Allen Bradley PLC Controls, Second Hand, DCM-4257
