Used Italpresse Model: IP/1650 1650 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF
Play Video

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Italpresse

Model: IP/1650

Size: 1650 Metric Ton

Inventory Number: DCM-4378

Used Italpresse Model: IP/1650 1650 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

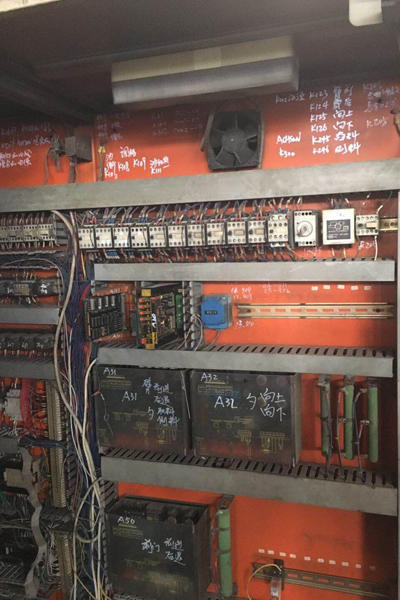

  • Italpresse SC Shot Control using Siemens S-5 PLC Controls
  • Hydraulic Bumper Plate Ejection System
  • Automatic Electric Motorized Die Height Adjustment
  • Inserted Shot Position (allows for multiple shot positions)
  • Central Automatic Lubrications System

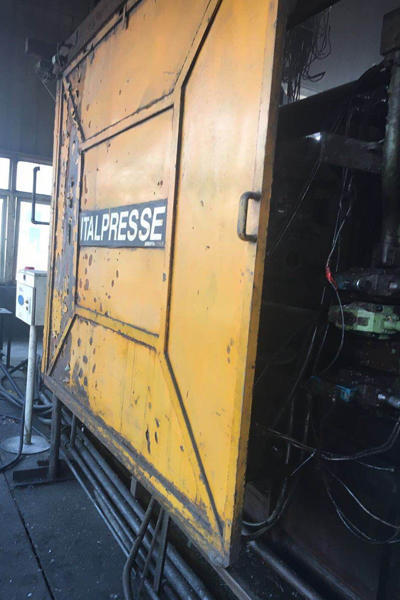

  • Operator and Helper Side Safety Doors

Item Specifications for DCM-4378

Specifications
Locking Force:
1818 tons
Tie Bar Diameter:
9.25 inches
Clearance Between Tie Bars:
44.49 x 44.49 inches
Die Thickness (minimum - maximum):
18.11 - 47.63 inches
Die Stroke (maximum):
41.33 inches

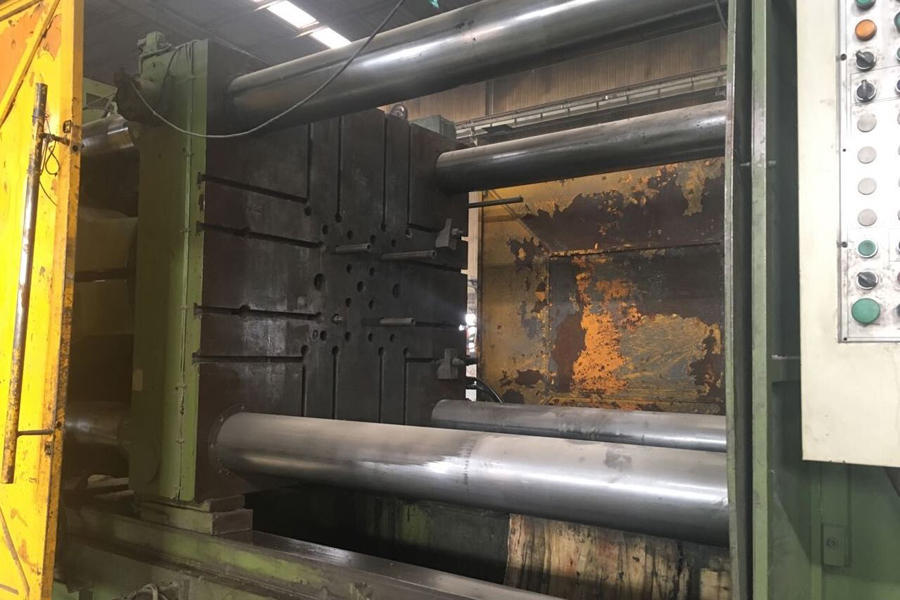

Moving Platen Size:
64.96 x 65.36 inches
Shot Positions:
center, -9.84, -19.68 inches
Shot Stroke:
29.13 inches
Central Ejection Stroke:
9.44 inches
Main Motor Power:
480/3/60 - 50 HP
Machine Size:
12.2 x 36.2 x 12.10 feet
Machine Weight:
209,500

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Italpresse Model IP/1650 1650 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Italpresse SC Shot Control using Siemens S-5 PLC Controls, Hydraulic Bumper Plate Ejection System, Automatic Electric Motorized Die Height Adjustment, Inserted Shot Position (allows for multiple shot positions), Central Automatic Lubrications System, Operator and Helper Side Safety Doors, controls, second Hand, DCM-4378


See jumbo large photos of this Italpresse IP/1650
