Used Haas Model: VF-7/50 VF-7-50_84_x_28 inch Four Axis CNC Vertical Machining Centers (VMC)


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Haas

Model: VF-7/50

Size: VF-7-50_84_x_28 inch

Inventory Number: DCM-4399

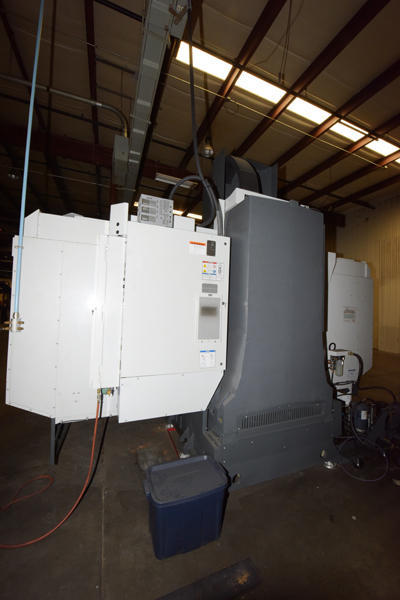

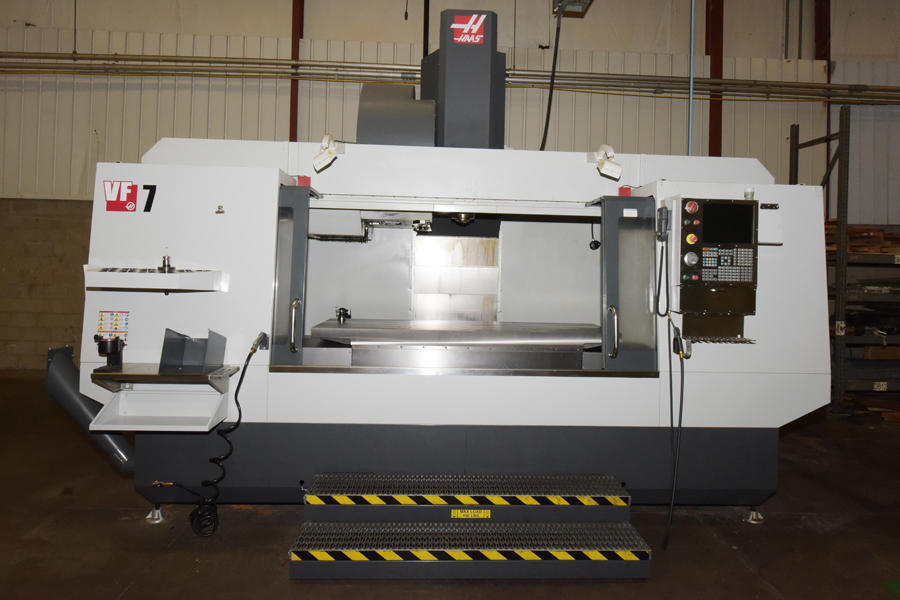

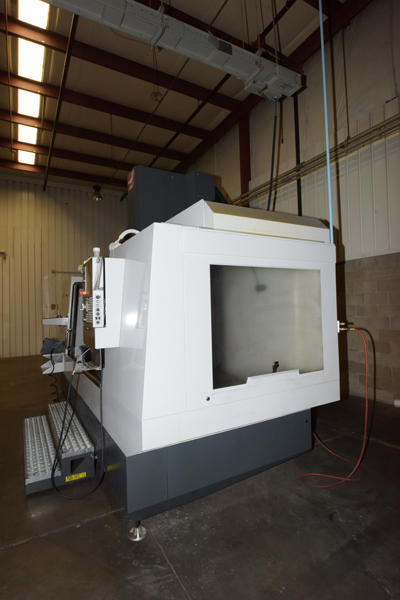

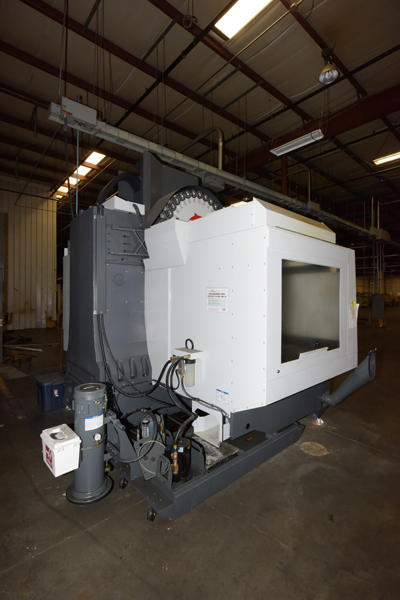

Used Haas Model: VF-7/50 VF-7-50_84_x_28 inch Four Axis CNC Vertical Machining Centers (VMC).

Click above for larger image

Features & Accessories:

  • New in 2015 - Very low Hours

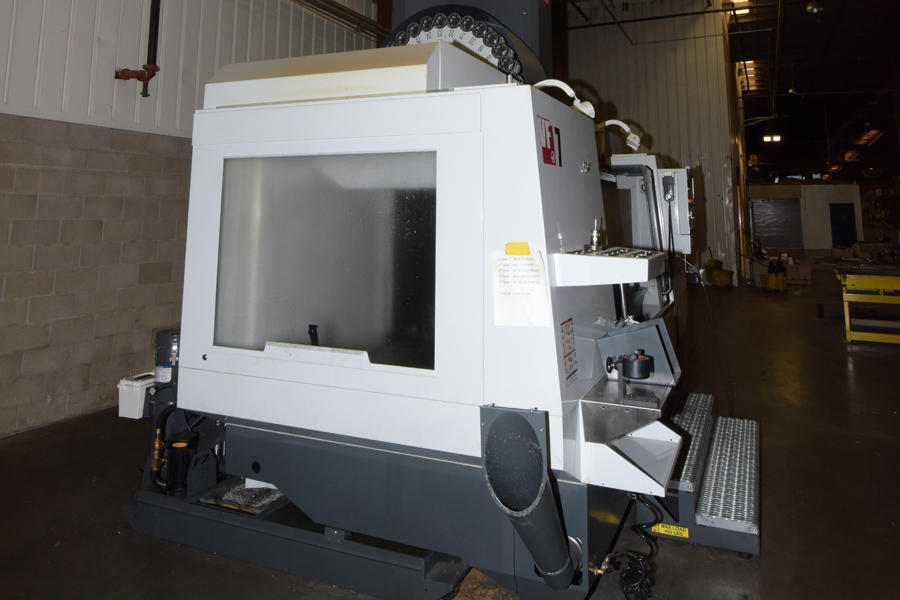

  • Auger Type Chip Conveyor
  • Two Speed Geared Head Spindle Drive

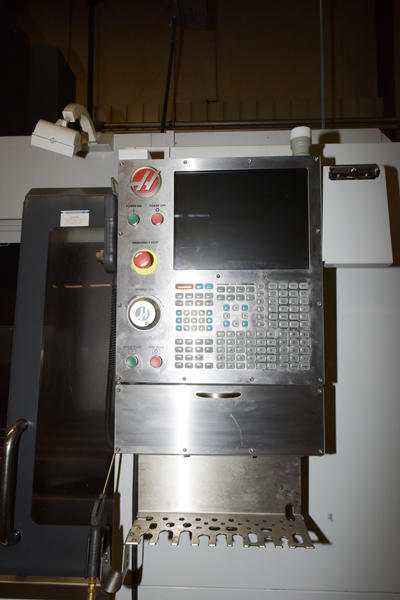

  • 15 Inch Color LCD Monitor
  • 1 GB Program Memory
  • Rigid Tapping
  • 95 Gallon Coolant Capacity with Flood Coolant System
Related Categories

Related Brands

Item Specifications for DCM-4399

Specifications
Spindle Power/Maximum Spindle Speed:
30 hp/7,500 rpm
Spindle Nose to Table Maximum/Minimum:
35/5 inches
Spindle Torque:
340 ft-lb @ 700 rpm
Spindle Taper:
CAT 50
Spindle Drive System:
Two Speed Geared Head
Table Size/Maximum Weight:
84 x 28 inches/4,000 pounds
Automatic Tool Changer (ATC) Capacity:
30+1
X-Axis Travel & Feedrate:
84 inch/600 inches per minute
Y-Axis Travel & Feedrate:
32 inch/600 inches per minute
Z-Axis Travel & Feedrate:
30 inches/600 inches per minute
Coolant Capacity:
95 gallon
Overall Dimensions (L x D x H):
201 x 112 x 112 inches

Description

Used, Haas Model VF-7/50 VF-7-50_84_x_28 inch Four Axis CNC Vertical Machining Centers (VMC) For_Sale, Features Include: Auger Type Chip Conveyor, Two Speed Geared Head Spindle Drive, 15 Inch Color LCD Monitor, 1 GB Program Memory, Rigid Tapping, 95 Gallon Coolant Capacity with Flood Coolant System, Haas CNC controls, second Hand, DCM-4399
