Sorry, this machine is sold.

Click here to view other available machines

Used Johnford Model: SL-500 SL-500_10_Inch_25 HP Two Axis CNC Turning Center (2 axis CNC lathe)


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Johnford

Model: SL-500

Size: SL-500_10_Inch_25 HP

Inventory Number: DCM-4403

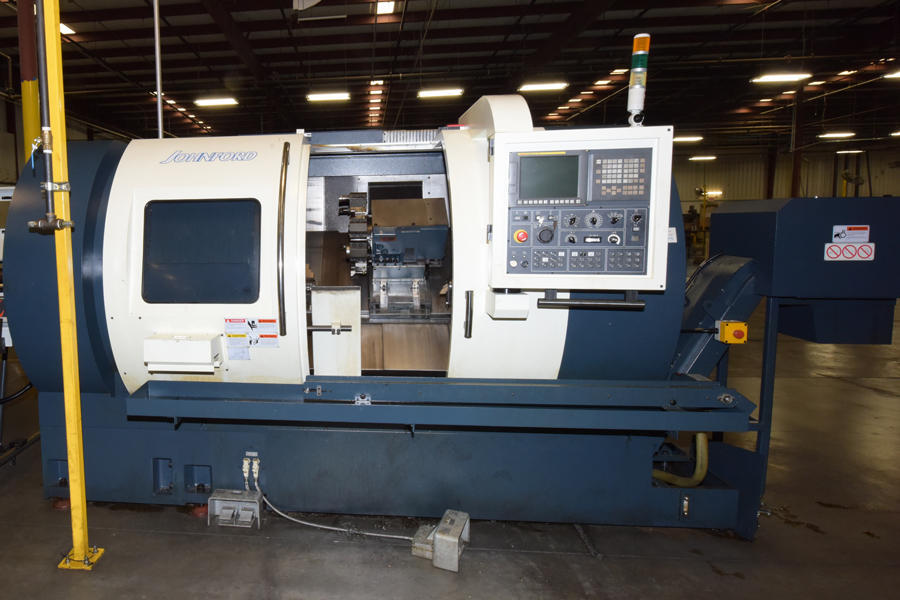

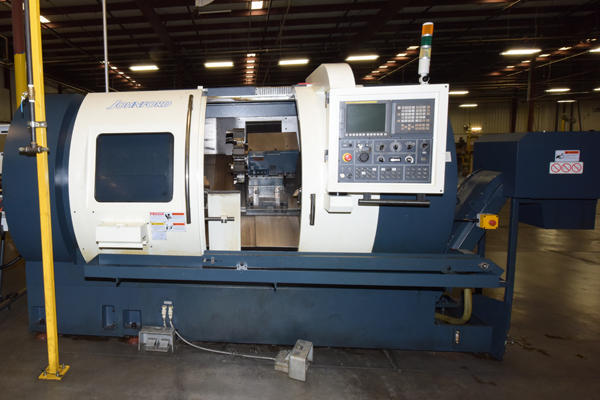

Used Johnford Model: SL-500 SL-500_10_Inch_25 HP Two Axis CNC Turning Center (2 axis CNC lathe).

Click above for larger image

Features & Accessories:

  • New in 2013 - Very low Hours
  • 2 Speed Gearbox on Spindle
  • Square Box Ways Design
  • Chip Conveyor
  • Hydraulic Programmable Tailstock and Quill
Related Categories

Related Brands

Item Specifications for DCM-4403

Specifications
Spindle Power/Maximum Spindle Speed:
25 hp/3,500 RPM
Spindle Nose & Bore:
A2-8/3.4 inch
Turret - Number of Tools:
12 Stations
X-Axis Travel & Rapid Traverse:
9.80 inch/590 inches per minute
Z-Axis Travel & Feedrate:
25.6 inch/393 inches per minute
Chuck Size:
10 inches
Swing Over Bed:
22.8 inches
Swing Over Cross Slide:
17.7 inches
Programmable Tailstock & Quill:
Yes
Coolant Capacity:
30 Gallon
Overall Dimensions (L x D x H):
167.9 x 91.3 x 81.1 inches
Machine Weight:
13,640 pounds

Description

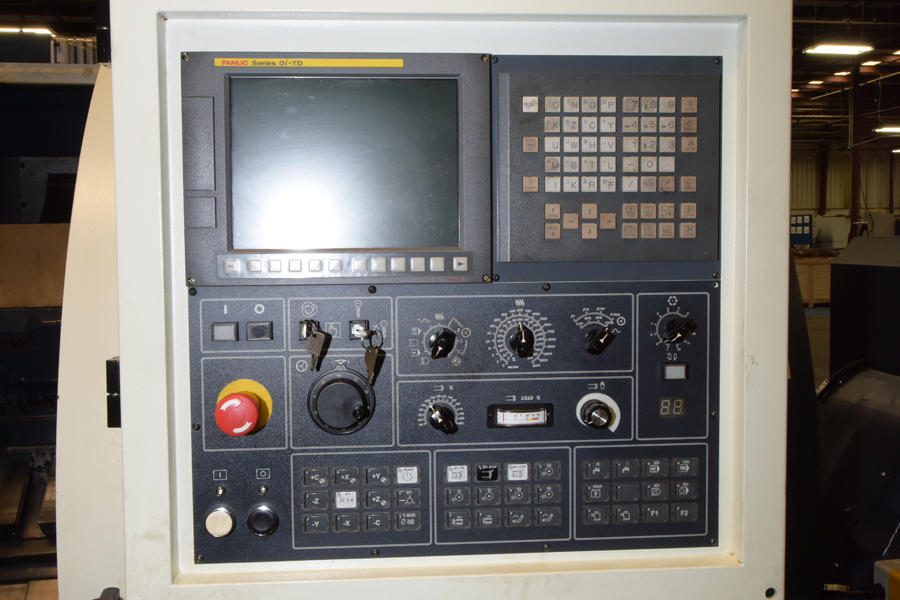

Used, Johnford Model SL-500 SL-500_10_Inch_25 HP Two Axis CNC Turning Center (2 axis CNC lathe) For_Sale, Features Include: 2 Speed Gearbox on Spindle, Square Box Ways Design, Chip Conveyor, Hydraulic Programmable Tailstock and Quill, Fanuc 0i-TD controls, second Hand, DCM-4403
