Sorry, this machine is sold.

Click here to view other available machines

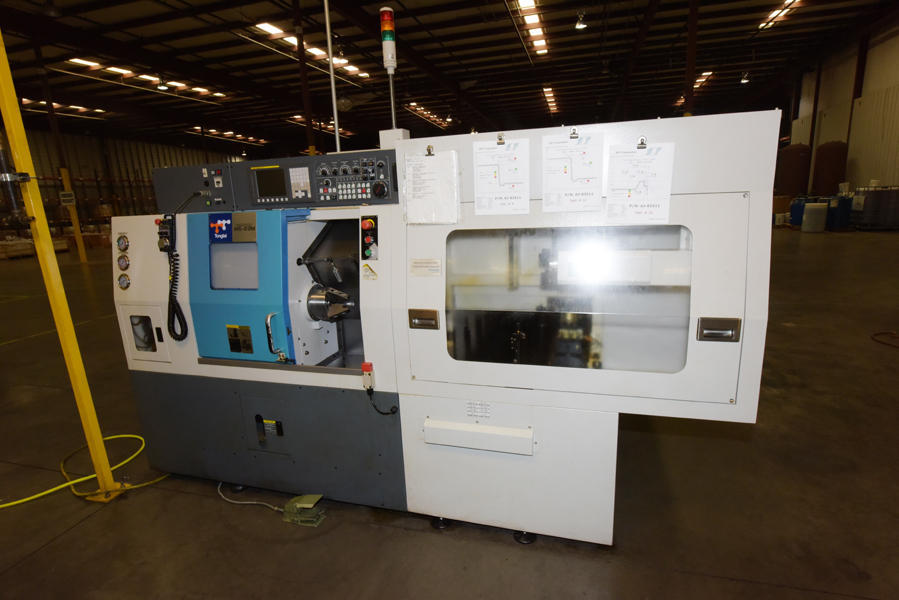

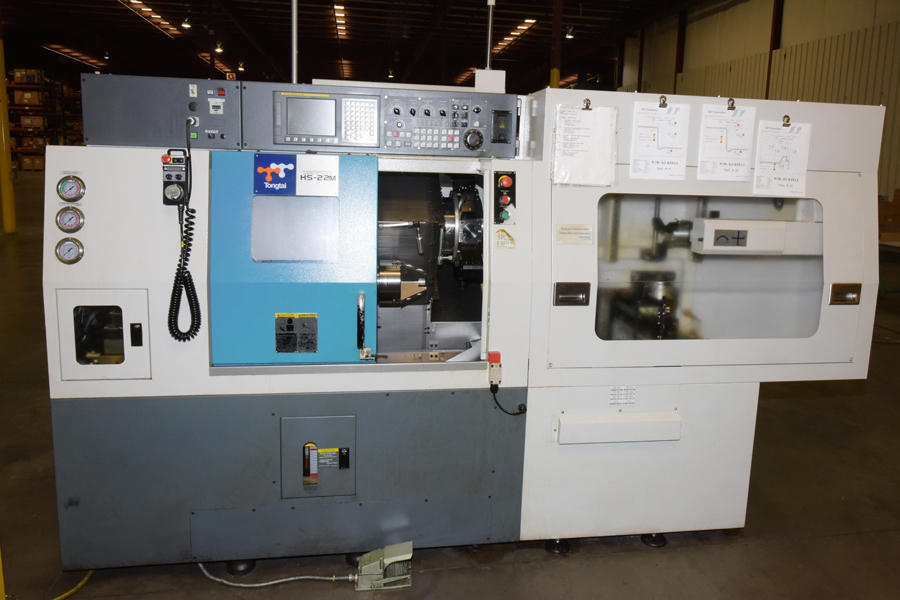

Used Tongtai Model: HS-22M+Loading Topper HS-22M_Milling_+_Loading_220 mm_Turning_Capacity Three Axis CNC Turning Centers (3 Axis Lathes)


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

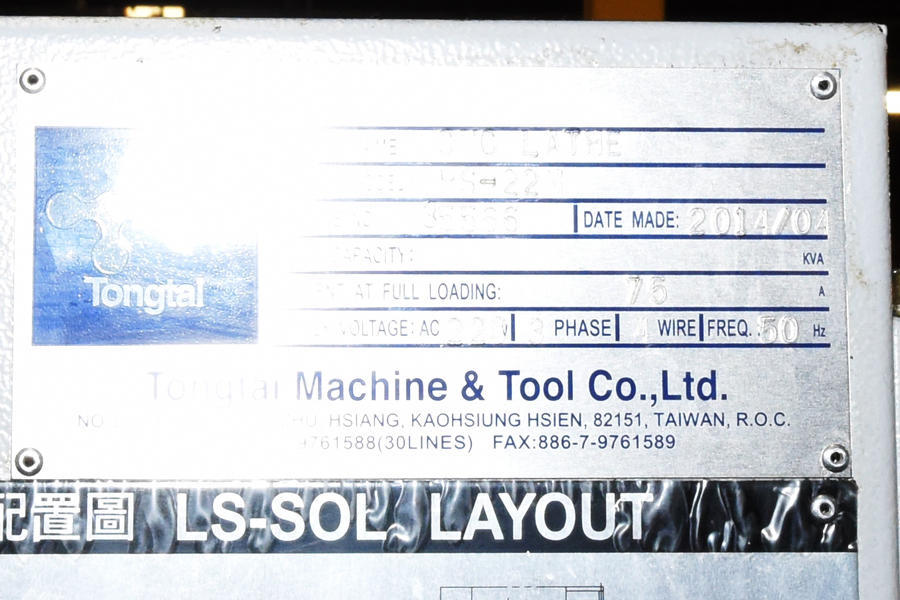

Manufacturer: Tongtai

Model: HS-22M+Loading Topper

Size: HS-22M_Milling_+_Loading_220 mm_Turning_Capacity

Inventory Number: DCM-4404

Used Tongtai Model: HS-22M+Loading Topper HS-22M_Milling_+_Loading_220 mm_Turning_Capacity Three Axis CNC Turning Centers (3 Axis Lathes).

Click above for larger image

Features & Accessories:

  • New in 2014 - Very low Hours

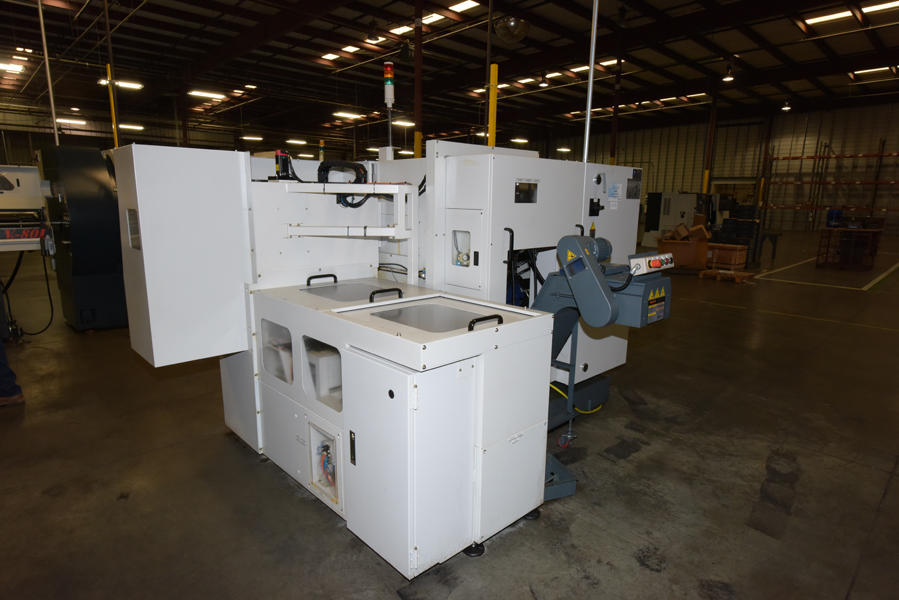

  • Tongtai Part Loader/Unloader
  • High Rigidity Square Box Ways Design

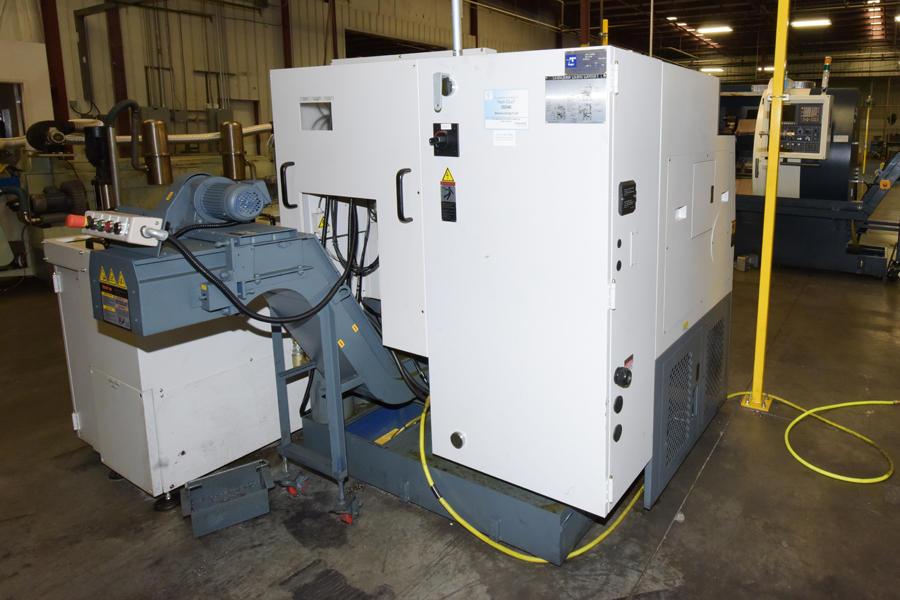

  • Chip Conveyor System

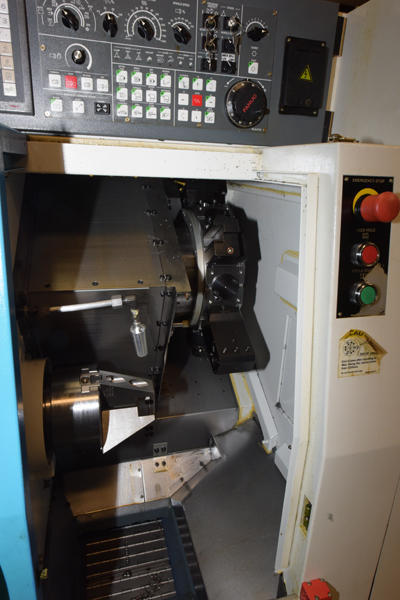

  • Live Tooling on Turret with VDI-40 Tooling and C-Axis
Related Categories

Related Brands

Item Specifications for DCM-4404

Specifications
Machine Type:
3 Axis CNC Turning/Milling Center (C-Axis)
Spindle Speed/Power:
6,000 RPM/10 hp
Maximum Turning Diameter:
7.87 inches
Maximum Work Length:
7.87 inches
Tooling Capacity:
12 Positions
Live Tooling - RPM/Power/Type
6,000 RPM/7.37 hp/VDI-40
X/Z Axis Motor Power:
2.4 hp & 2.4 hp
X/Z Axis Rapid Traverse:
787 inches per second
Coolant Capacity:
17 Gallon
Overall Dimensions (L x D x H):
103 x 76 x 70 inches
Machine Weight:
5,280 pounds

Description

Used, Tongtai Model HS-22M+Loading Topper HS-22M_Milling_+_Loading_220 mm_Turning_Capacity Three Axis CNC Turning Centers (3 Axis Lathes) For_Sale, Features Include: Tongtai Part Loader/Unloader, High Rigidity Square Box Ways Design, Chip Conveyor System, Live Tooling on Turret with VDI-40 Tooling and C-Axis, Fanuc 0i-TD controls, second Hand, DCM-4404
