Used Buhler Model: 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Buhler
Model: 84 DL
Size: 856 Metric Tons (944 US Tons)
Inventory Number: DCM-4506

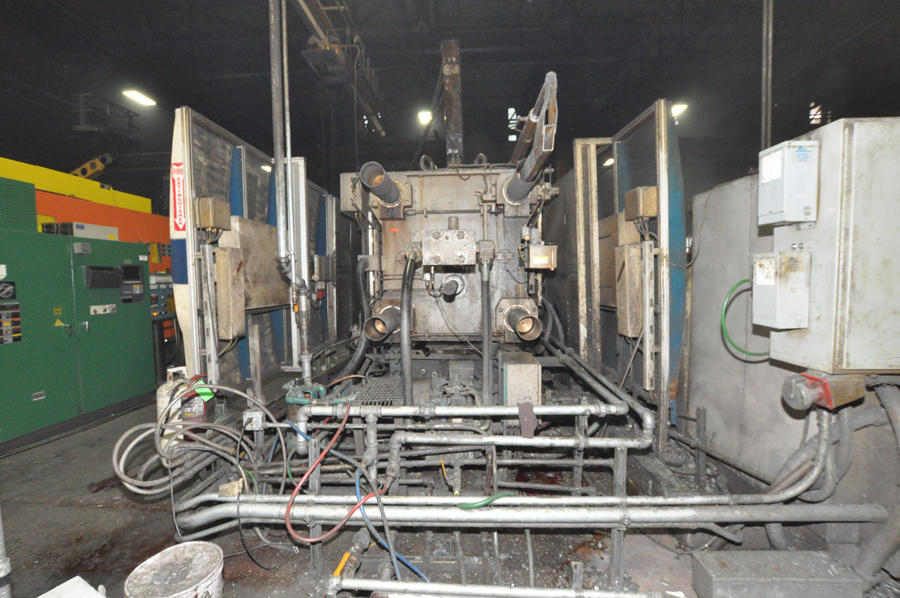

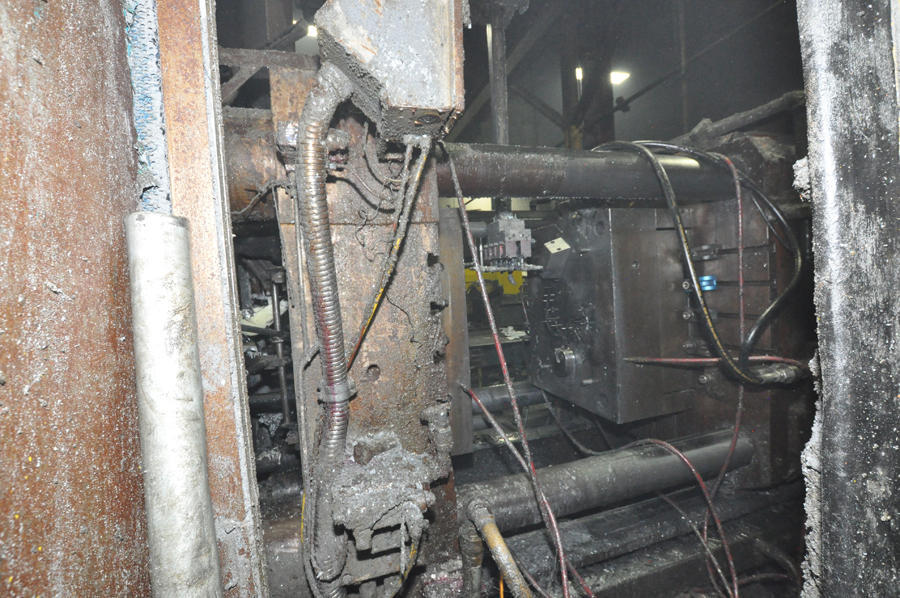

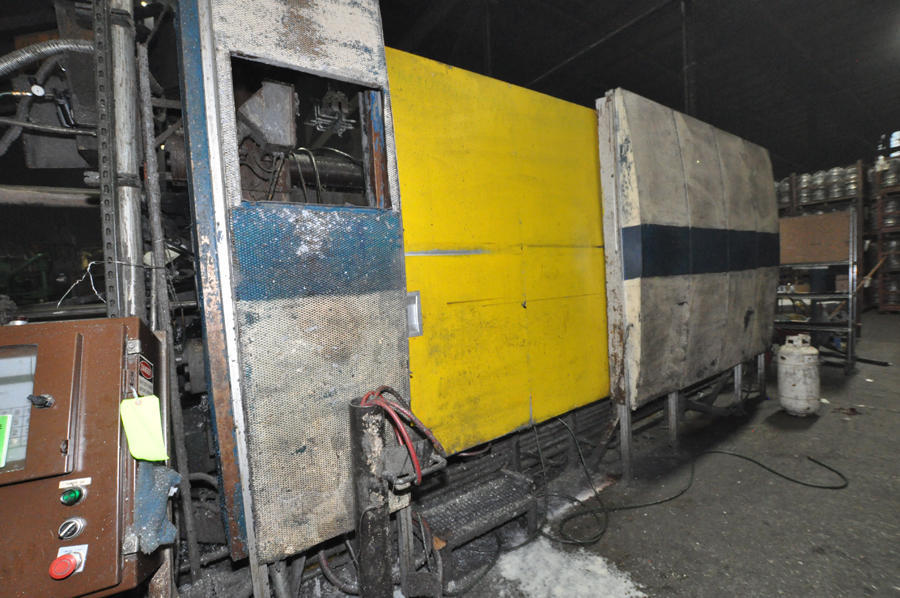

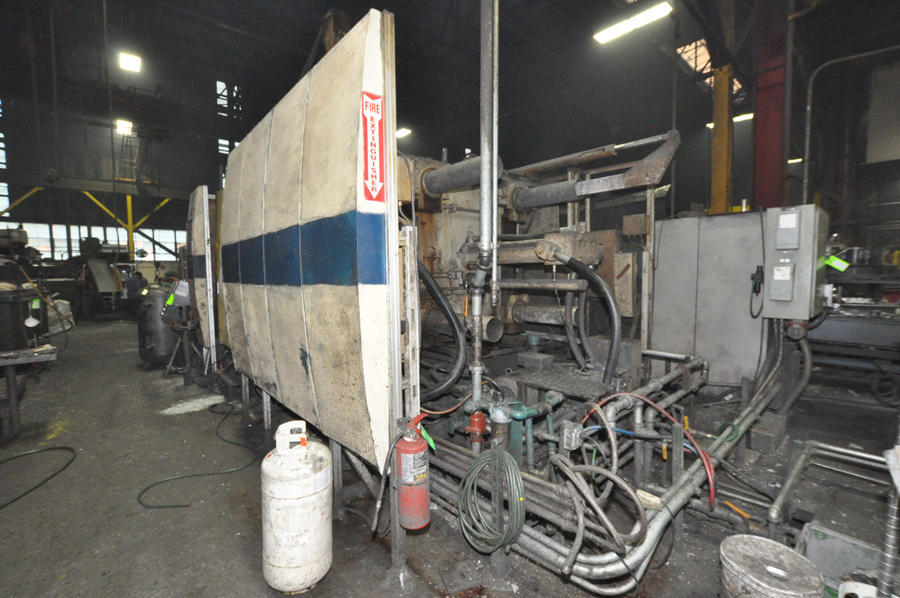

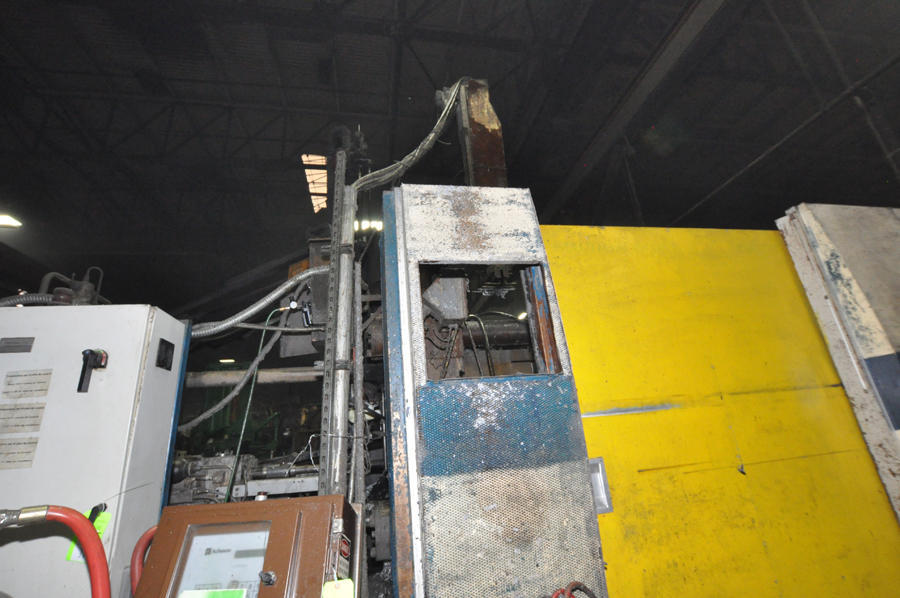

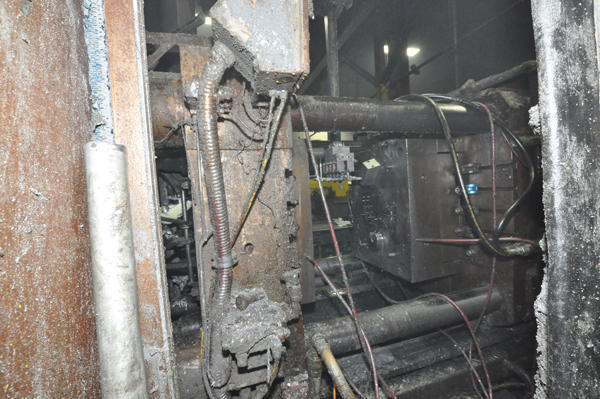

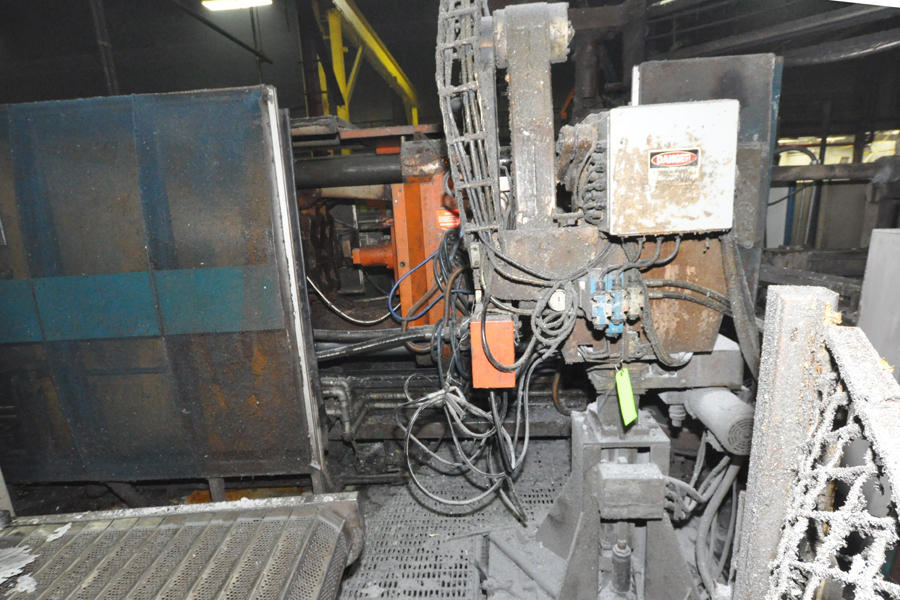

Used Buhler Model: 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.
Click above for larger image
Features & Accessories:

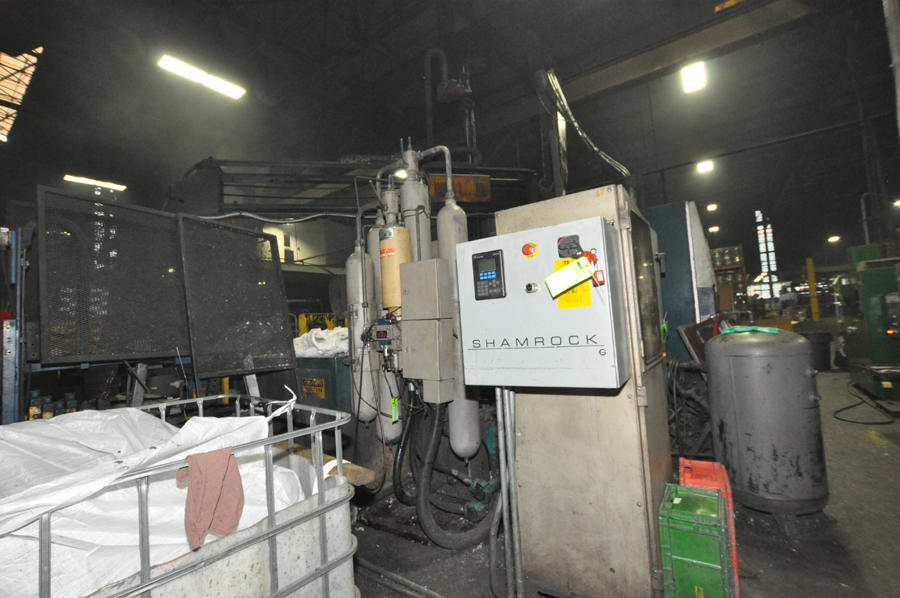

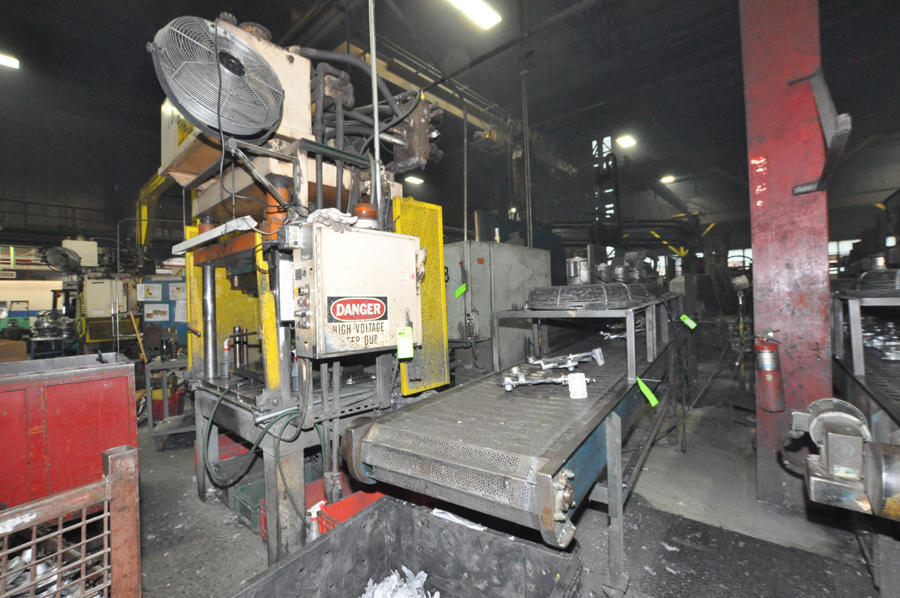

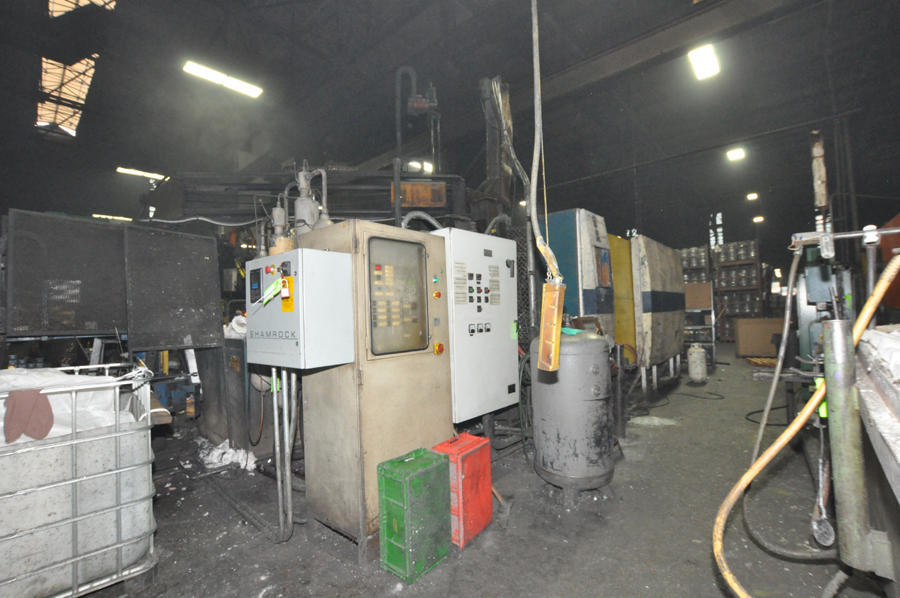

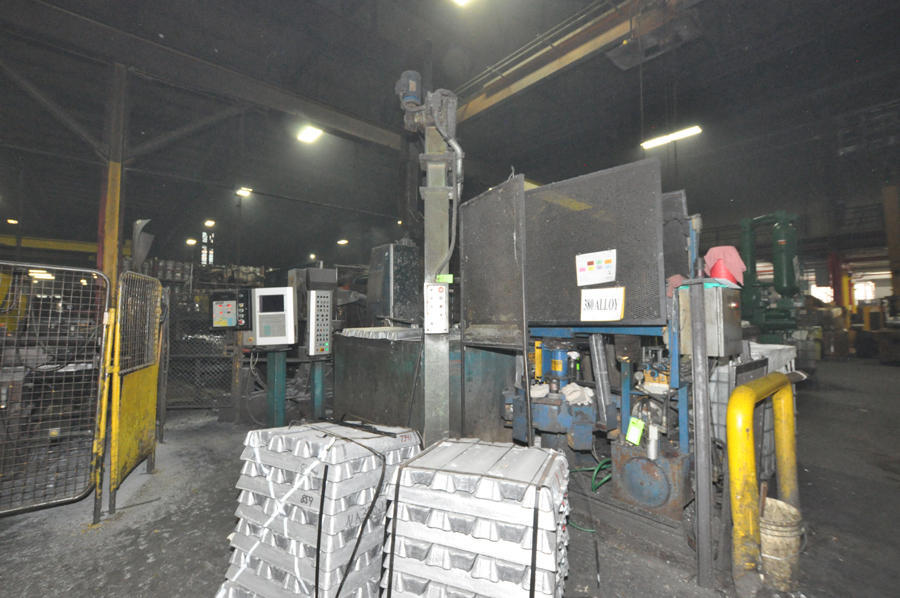

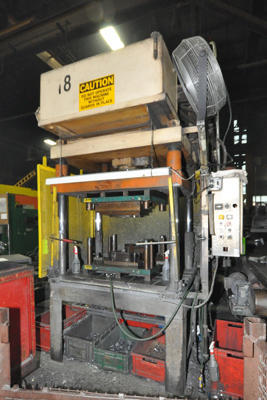

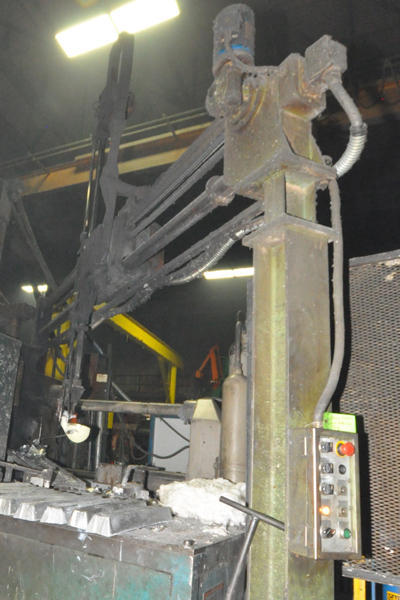

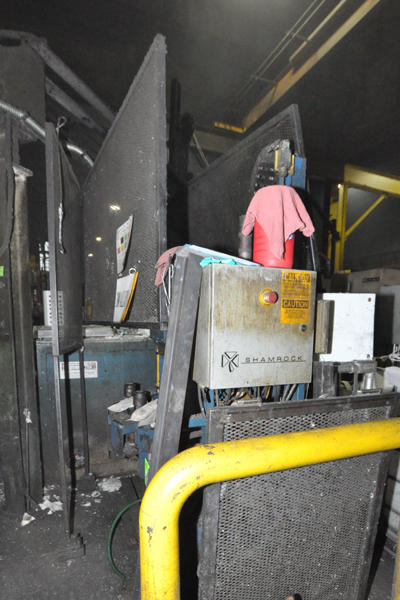

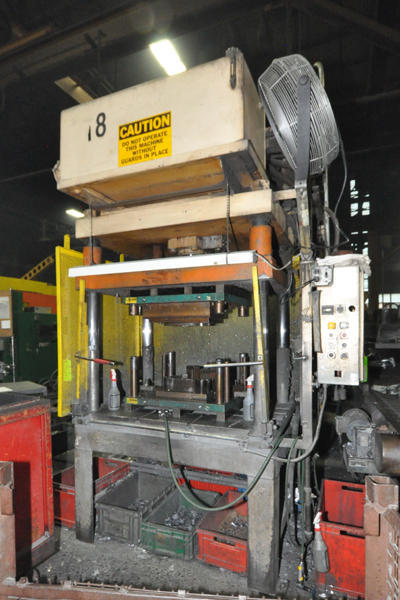

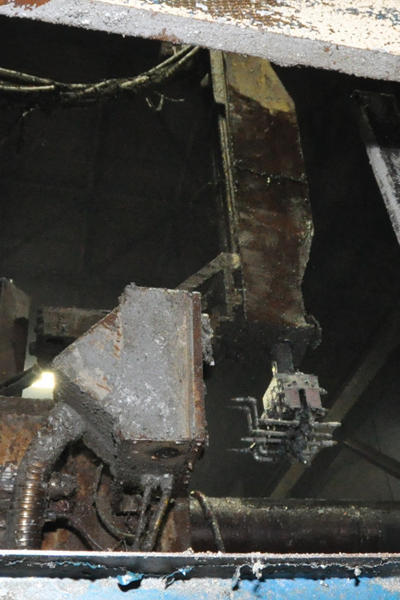

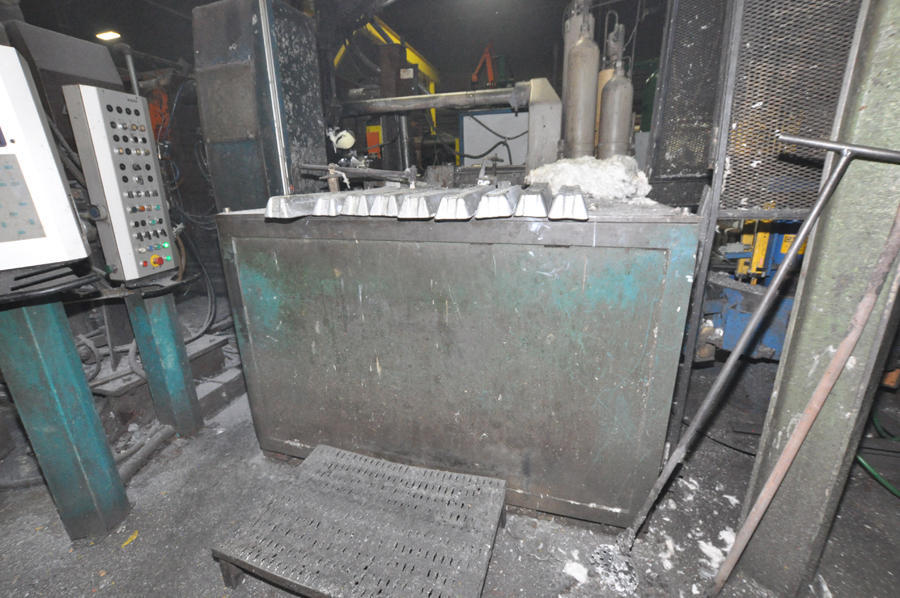

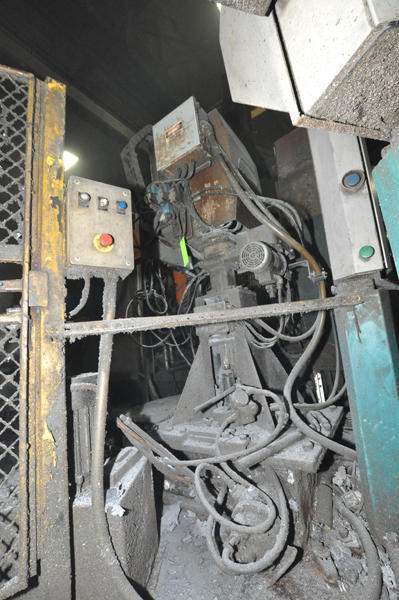

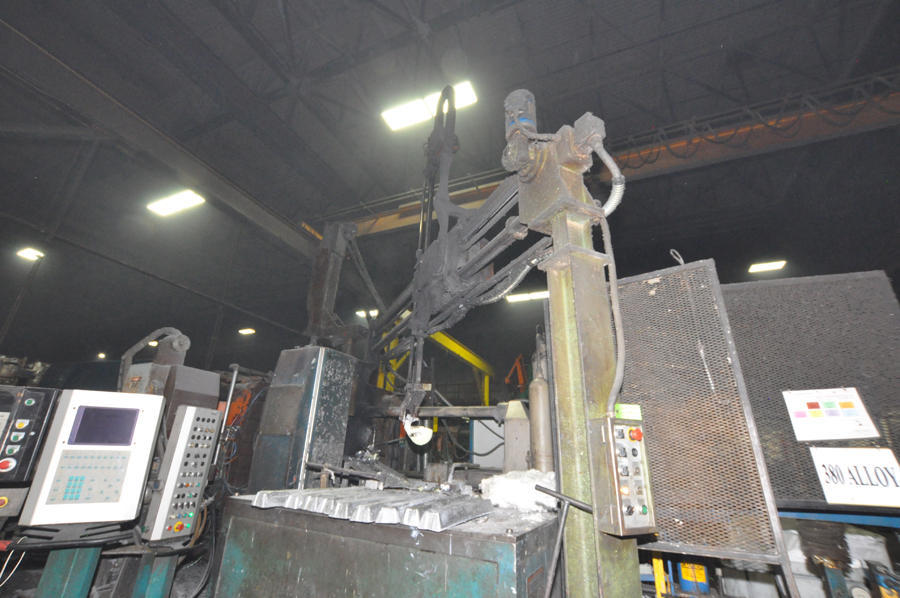

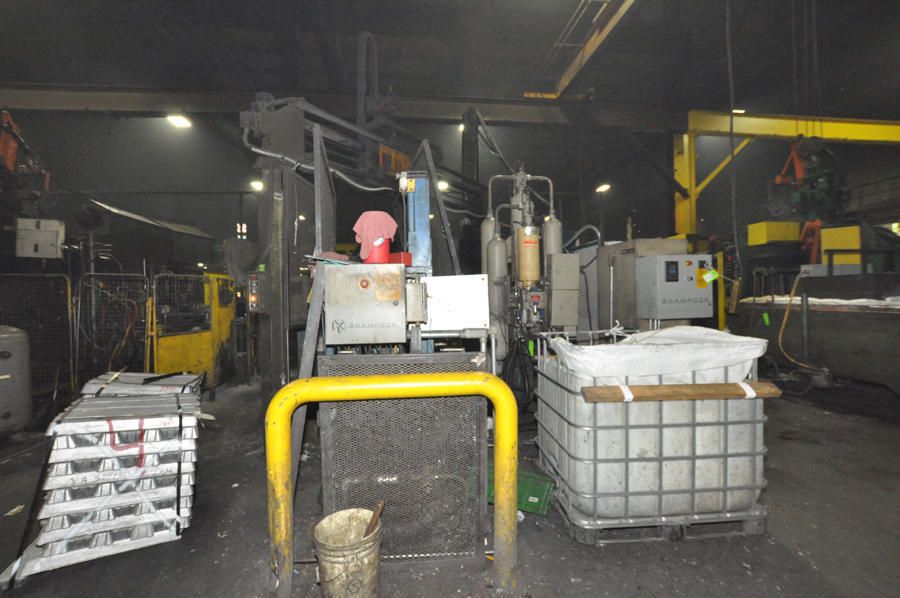

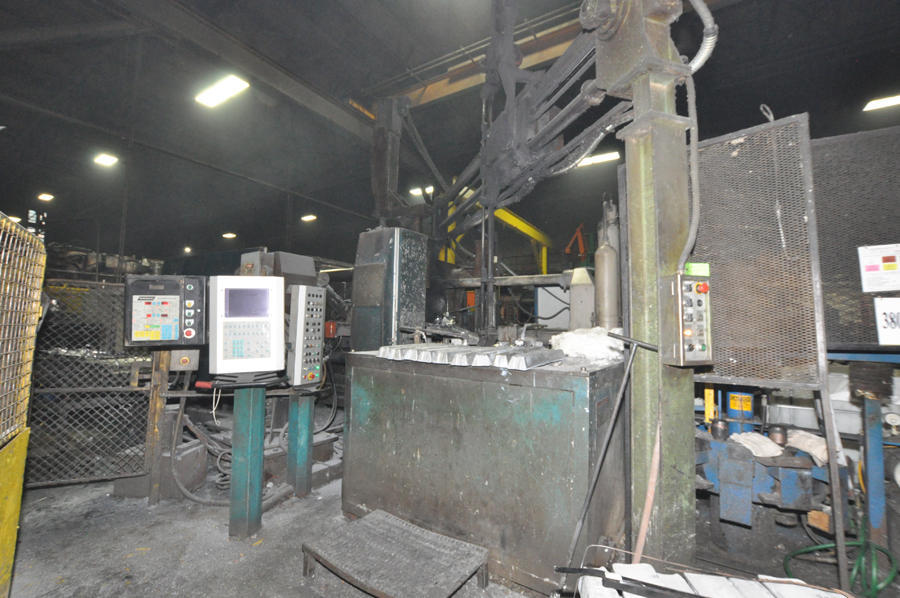

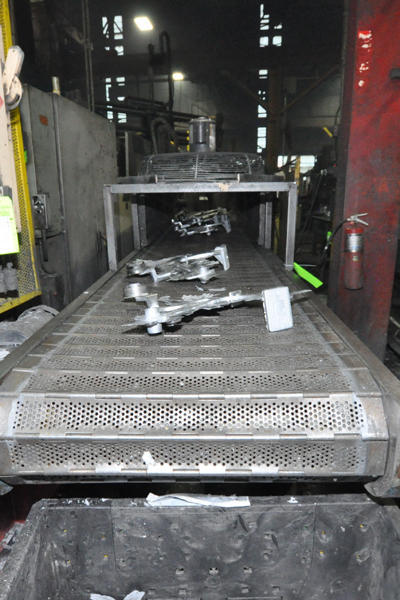

- Available as automated Cell including: Die Cast Machine, Acheson DAG sprayer, Italpresse CAM 3 ladle, Rimrock 320 Extractor, Thermaltek aluminum melt/hold furnace, Shamrock ingot loader, Forced Air Cooling conveyor and Metal Mechanics trim press

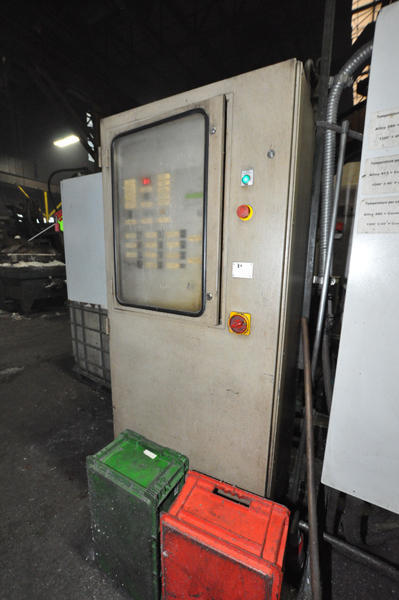

- Buhler Data Speed Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen

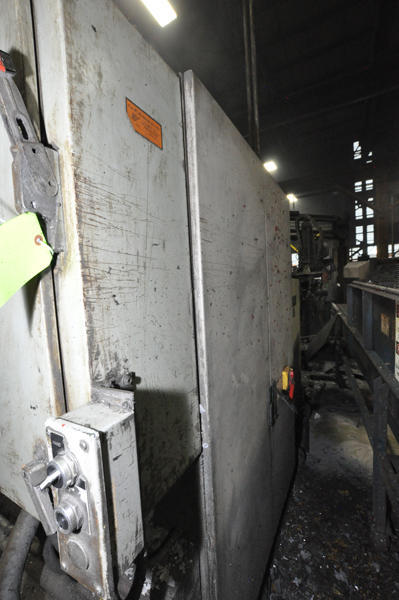

- Floor Mounted Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
- Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
Item Specifications for DCM-4506
Specifications | |
---|---|
Injection Force, Dynamic - Intensified: |
44.73 - 123.19 tons
|
Injection Positions: |
Center to -13.77 inches
|
Plunger Diameter (min - max) |
3.25 - 5.00 inches
|
Plunger Stroke |
35.4 inches
|
Projected area (min - Maximum) |
75 to 197 Square Inches
|
Ejector Force/Stroke: |
25.29 tons - 6.88 inches
|
Tie Bar Diameter: |
6.69 inches
|
Maximum Locking Force |
944 Tons
|
Stationary Platen Size (H x V) |
65.7 x 65.7 inches
|
Tie Bar Clearance |
39.37 x 39.37 inches
|
Die Height (minimum - maximum) |
15.74 - 39.37 inches
|
Die Opening Stroke |
31.49 inches
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Buhler Model 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Data Speed Control System, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen, Floor Mounted Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, Buhler DataSpeed controls, second Hand, DCM-4506
See jumbo large photos of this Buhler 84 DL
