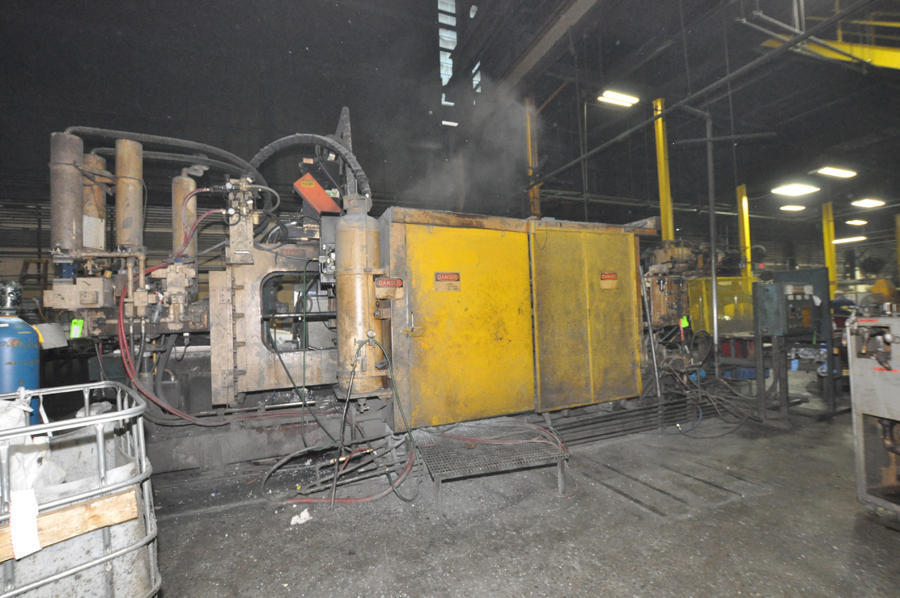

Used Birch Model: A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Birch
Model: A-650
Size: 650 Ton
Inventory Number: DCM-4541

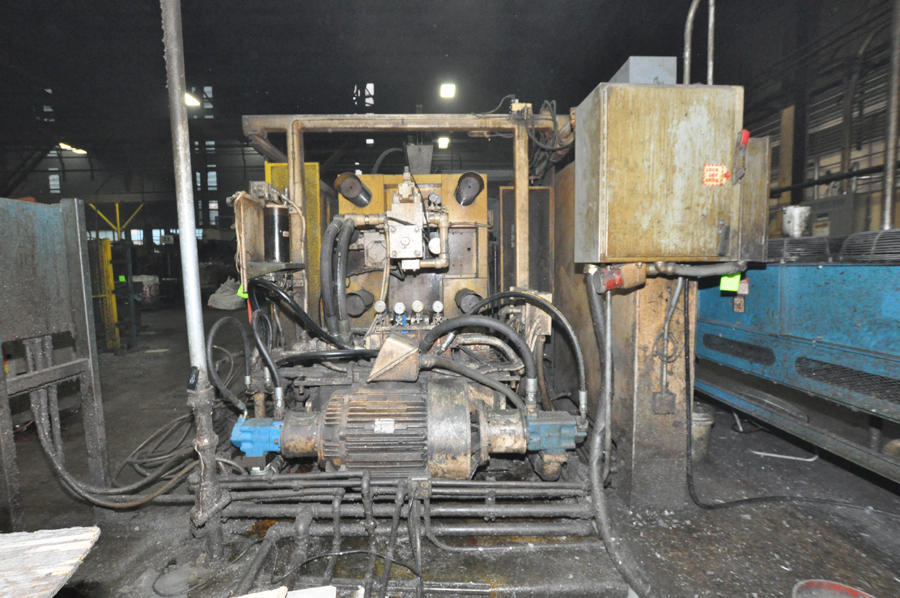

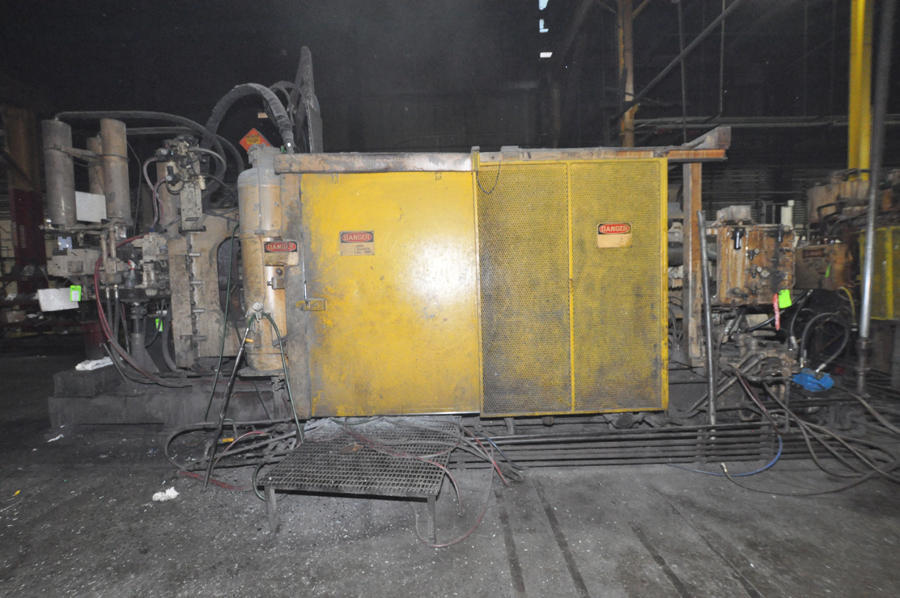

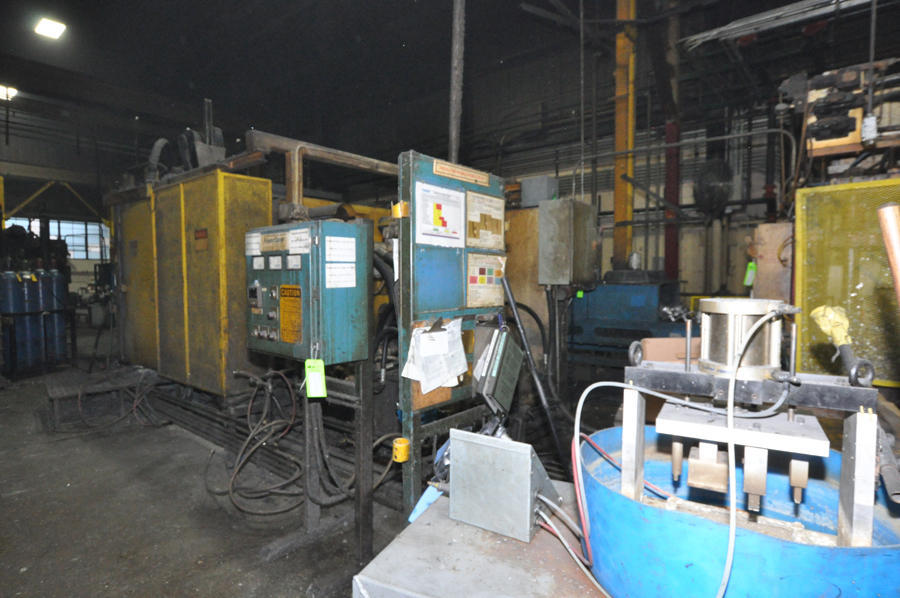

Used Birch Model: A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Click above for larger image
Features & Accessories:

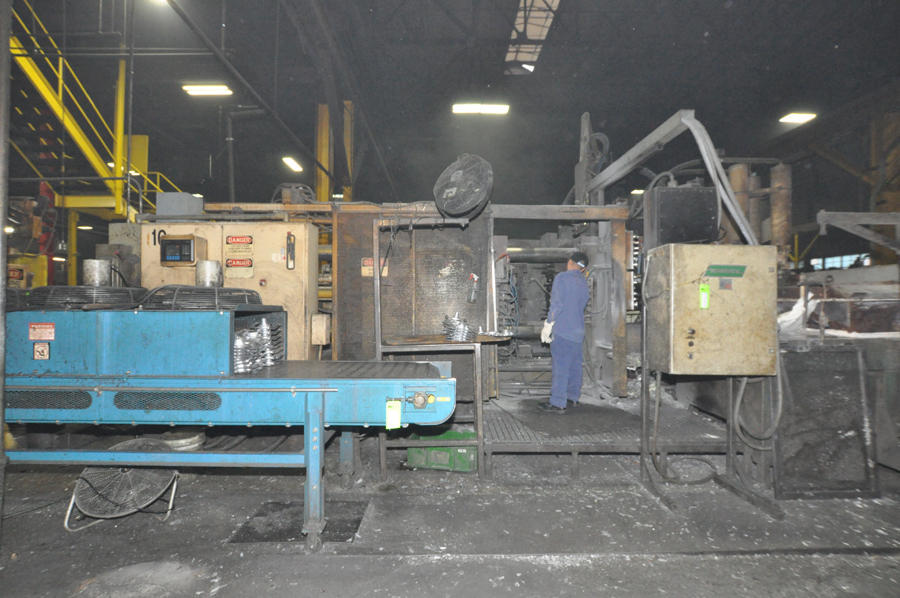

- Available as a complete cell including: Dynarad aluminum holding furnace, forced air cooling conveyor, Rimrock Combo 305 ladle and 410 reciprocating die sprayer and Melal Mechanics 35 ton trim press
- Electric Motorized Die Height Adjustment

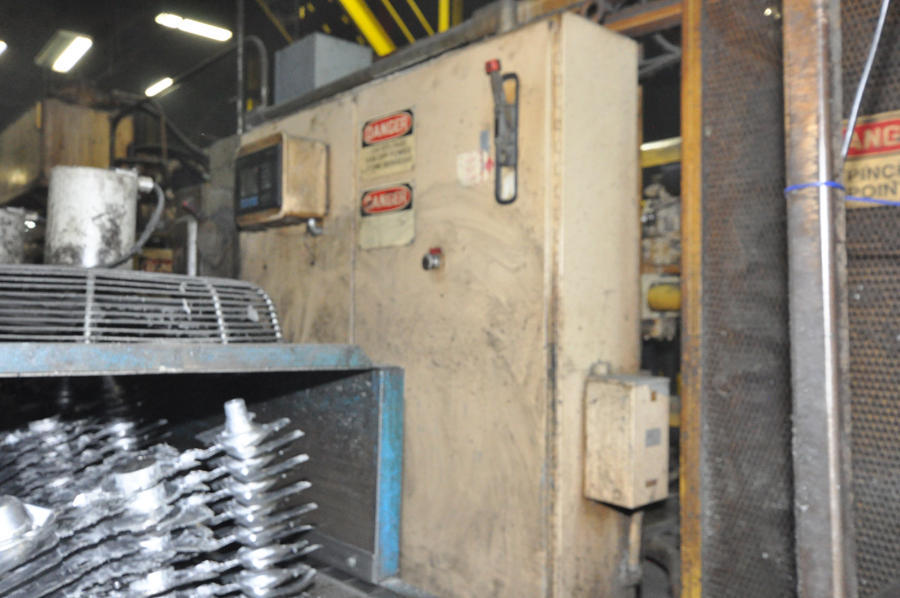

- Allen Bradley SLC 5/04 Solid State Programmable Controls PanelView 600 HMI (Human Machine Interface)
- Hydraulic Center Platen Ejection System
- Rebuilt by Systematic Technologies and upgraded to Fully Proportional Hydraulics
- Trabon Central Automatic Lubrication System
- One (1) Auxillary Hydraulic Core Circuit on Fixed Platen and One (1) on Moving Platen
Item Specifications for DCM-4541
Specifications | |
---|---|
Clamping (Locking) Force: |
650 tons
|
Tie Bar Diameter: |
6.25 inches
|
Tie Bar Clearance: |
29.75 x 29.75 inches
|
Fixed Platen: |
51 x 51 x 11 inches
|
Moving Platen: |
51 x 51 x 11 inches
|
Die Thickness (minimum to maximum): |
12 - 36 inches
|
Die Stroke: |
18 - 12 inches
|
Horsepower: |
60 HP
|
Shot Positions: |
Center and -9 inches below center
|
Machine Size: |
25 x 7 x 7.5 feet
|
Machine Weight: |
67,500 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)

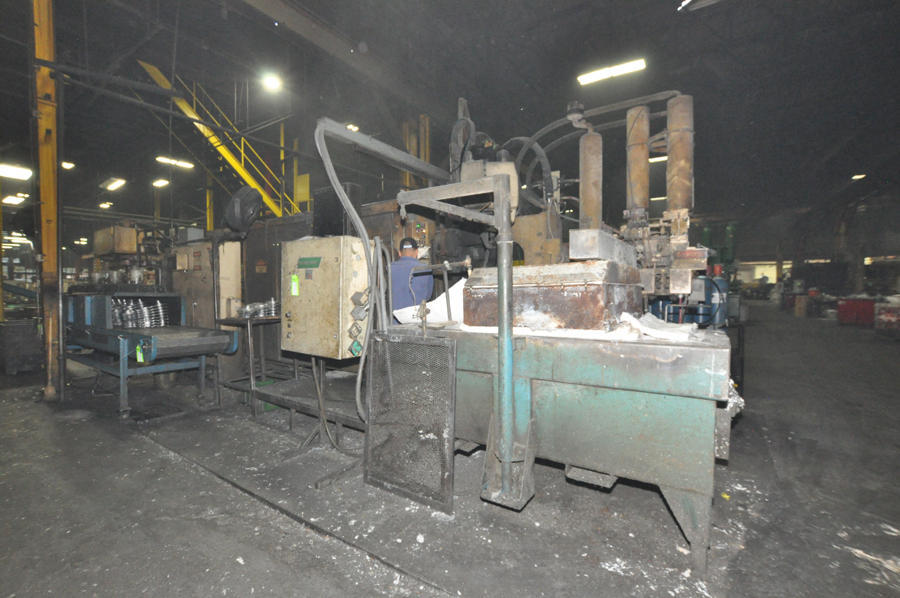

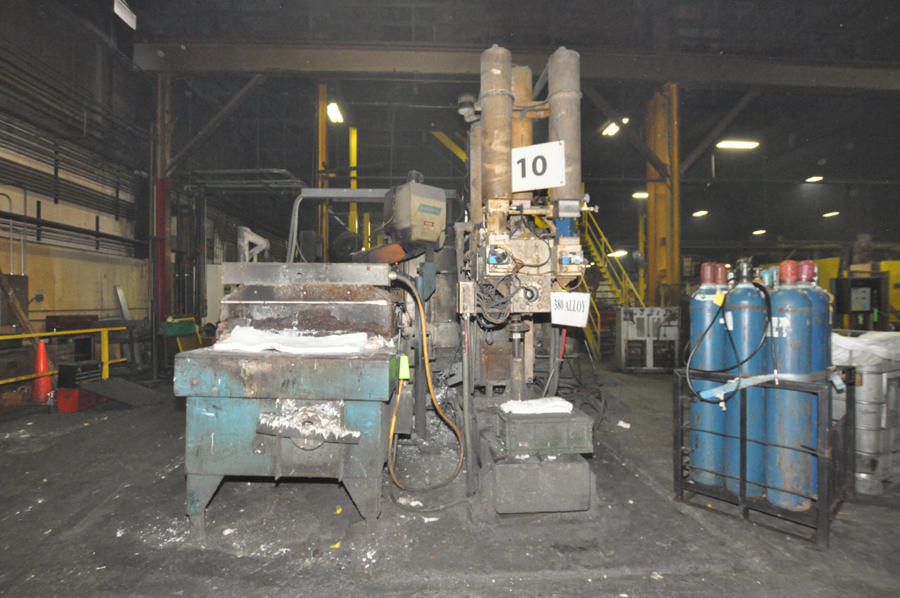

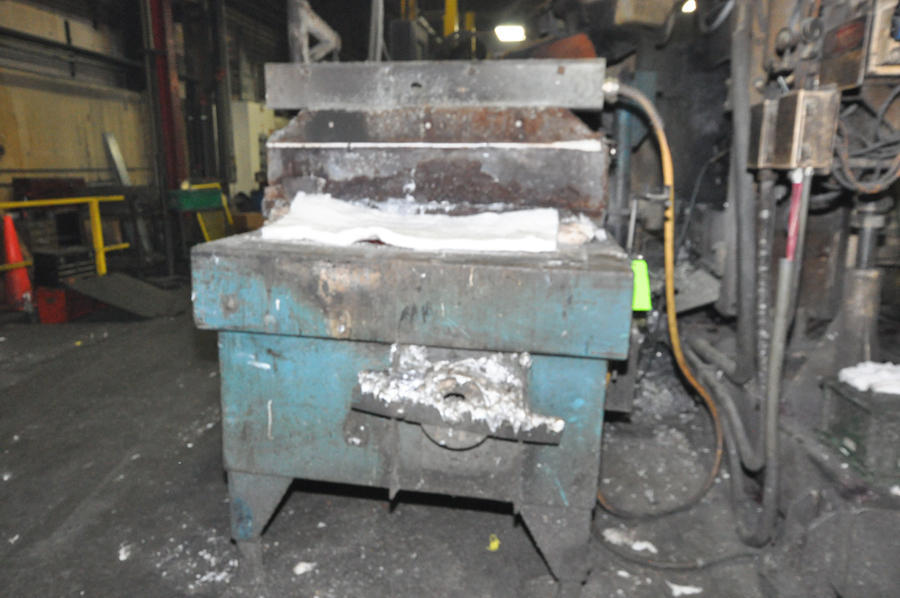

Dynarad EH-1700 Low Energy Electric Holding Furnace | |

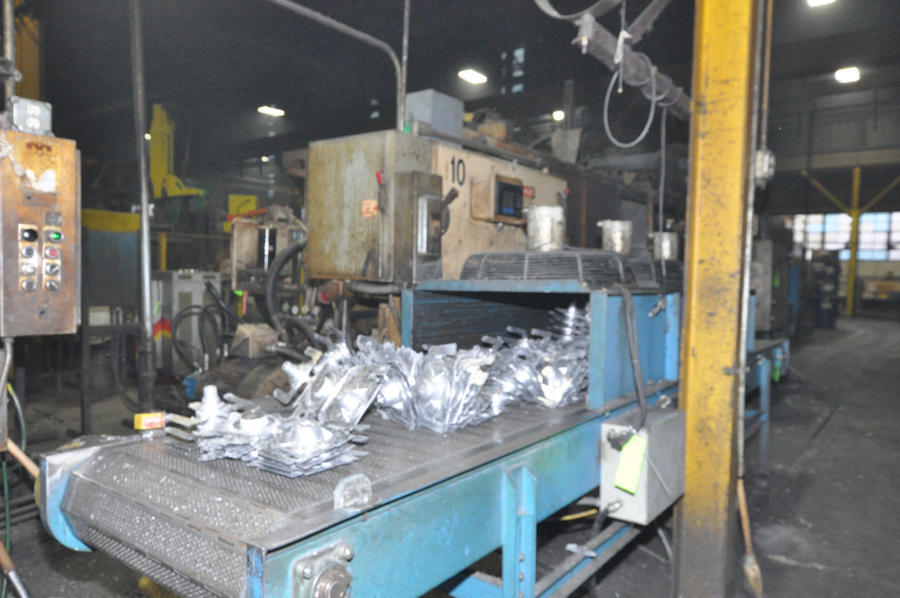

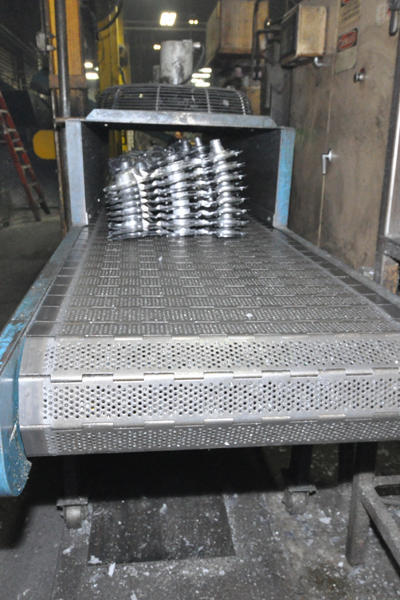

Forced Air Cooling Conveyor, 30 x 192 inches | |
Rimrock Combo 305 ladle and 410 Die Sprayer | |

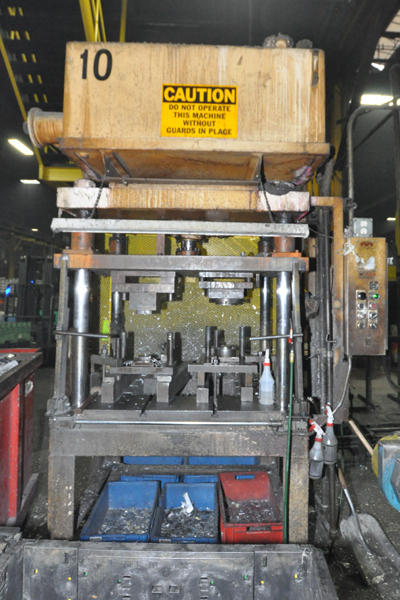

Metal Mechanics 35 Ton Four Post Hydraulic Trim Press |
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Birch Model A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Allen Bradley SLC 5/04 Solid State Programmable Controls PanelView 600 HMI (Human Machine Interface), Hydraulic Center Platen Ejection System, Rebuilt by Systematic Technologies and upgraded to Fully Proportional Hydraulics, Trabon Central Automatic Lubrication System, One (1) Auxillary Hydraulic Core Circuit on Fixed Platen and One (1) on Moving Platen, Allen Bradley SLC 5/04 Solid State Programmable controls, second Hand, DCM-4541
See jumbo large photos of this Birch A-650
