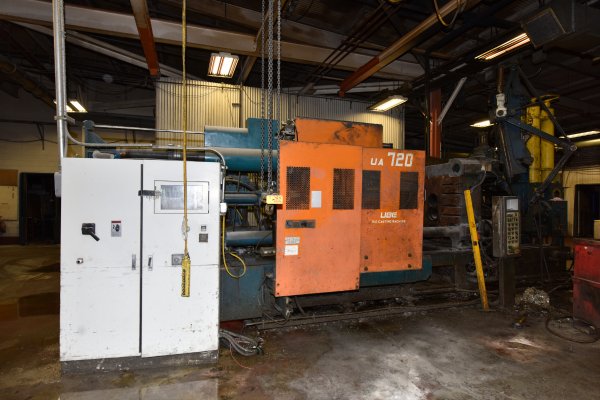

Used Ube 720 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF!

Status: Available

We offer for sale, subject to prior sale and the terms listed below:

Used Ube 720 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine. Inventory item: DCM-4660.

Manufacturer: Ube

Model: UA 720

Features & Accessories:

  • Fully Automatic Top Operator Side Automatic Tie Bar Pulling System
  • Hydraulic Bumper Plate Ejection System - Three (3) Core Circuits with two (2) on moving platen and one (1) on fixed platen

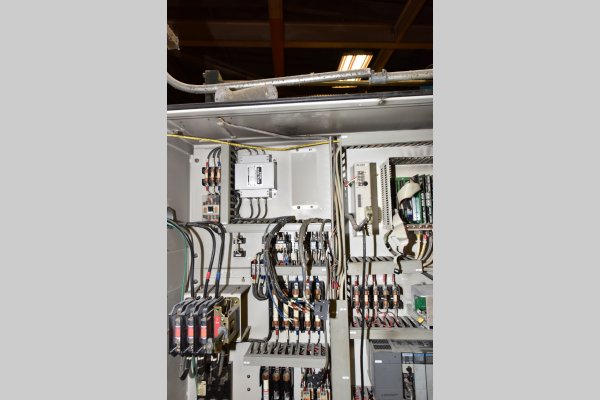

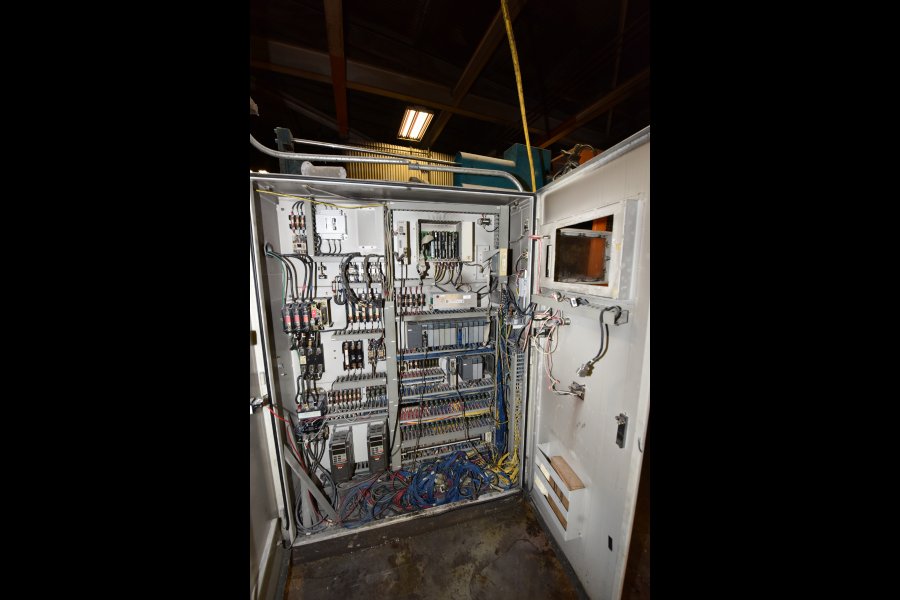

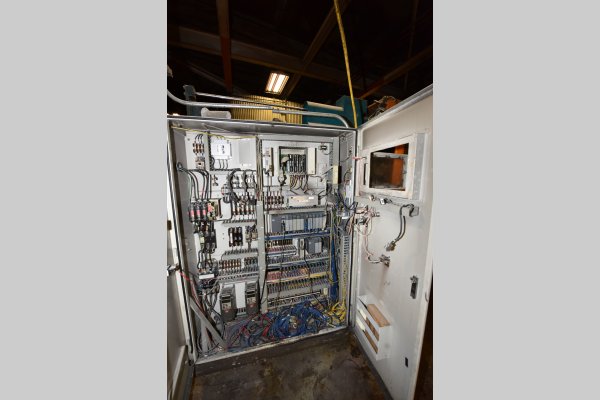

  • Ube HMI Operator Interface with color LCD Display
  • Factory Integrated Ube Operatorside Automatic Ladle
  • Electronic Servo-Valve S-DDV Shot Control System (Servo Direct Drive) including Ube Flashless Impact Control system
  • Ube Unique Meter-in/Meter-Out Shot control system - Allows for larger castings for a given size of machine

Item Specifications for DCM-4660

Specifications
Clamping Force:
750 tons
Platen Size:
47 x 47 inches
Distance Between Tie Bars:
33 x 33 inches
Die Stroke:
26 inches
Die Thickness (min - max):
13.8 - 35.4 inches
Ejection Force:
34.1 tons
Ejection Stroke:
0 - 4.9 inches
Shot Force (max - min):
61.6 - 30.8 tons
Shot Stroke:
27.5 inches
Plunger Tip Diameter (min - max):
2.95 - 3.74 inches
Shot Positions:
center to -9.8 inches
Machine Weight:
52,800 Pounds

Document(s) For This Machine

Shipping Terms: F.O.B. Location

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Ube Model UA 720 720 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Fully Automatic Top Operator Side Automatic Tie Bar Pulling System, Hydraulic Bumper Plate Ejection System - Three (3) Core Circuits with two (2) on moving platen and one (1) on fixed platen, Ube HMI Operator Interface with color LCD Display, Factory Integrated Ube Operatorside Automatic Ladle, Electronic Servo-Valve S-DDV Shot Control System (Servo Direct Drive) including Ube Flashless Impact Control system, Ube Unique Meter-in/Meter-Out Shot control system - Allows for larger castings for a given size of machine, Ube Controls, Second Hand, DCM-4660

The following technical terms are to assist you with searches: Used | Second Hand | Ube |UA 720 | 720 US Tons | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | Fully Automatic Top Operator Side Automatic Tie Bar Pulling System | Hydraulic Bumper Plate Ejection System - Three (3) Core Circuits with two (2) on moving platen and one (1) on fixed platen | Ube HMI Operator Interface with color LCD Display | Factory Integrated Ube Operatorside Automatic Ladle | Electronic Servo-Valve S-DDV Shot Control System (Servo Direct Drive) including Ube Flashless Impact Control system | Ube Unique Meter-in/Meter-Out Shot control system - Allows for larger castings for a given size of machine | Ube Controls | DCM-4660

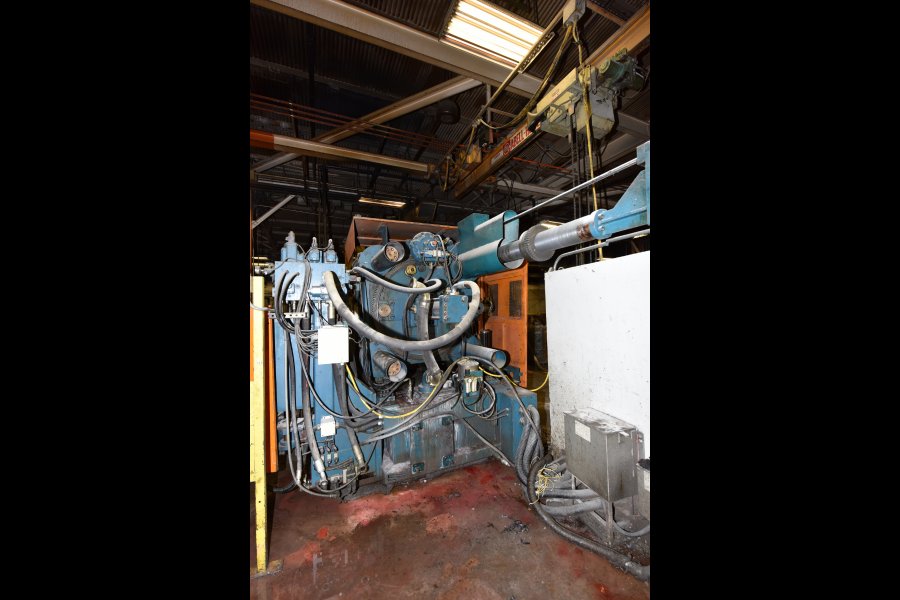

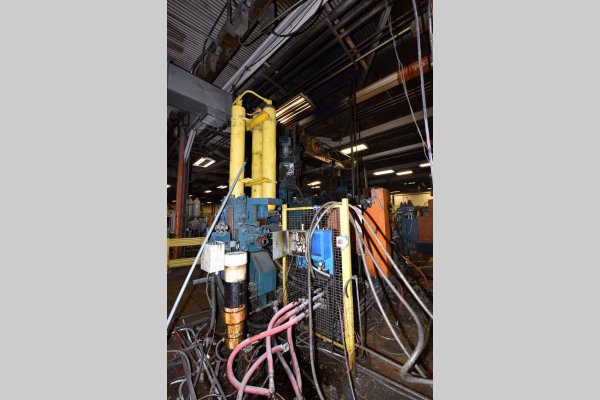

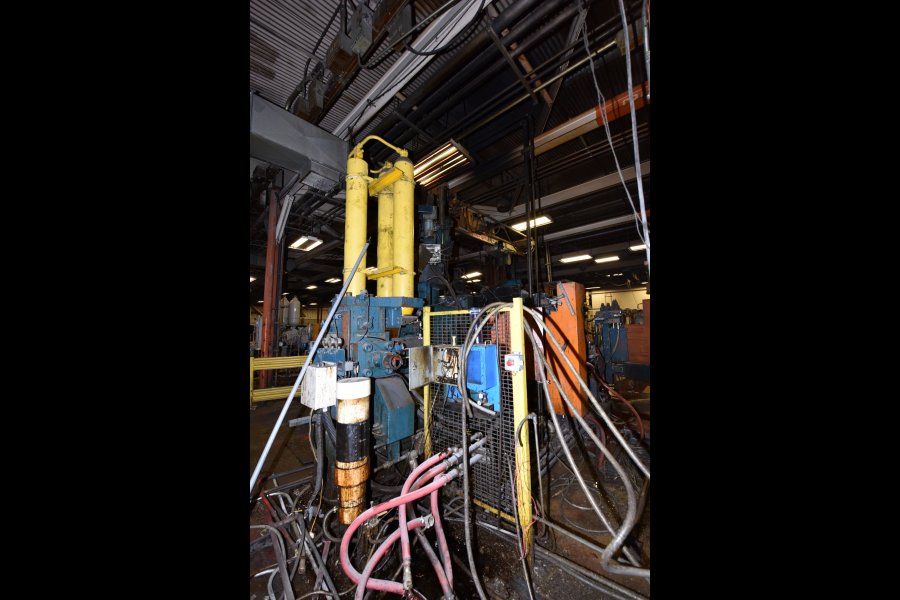

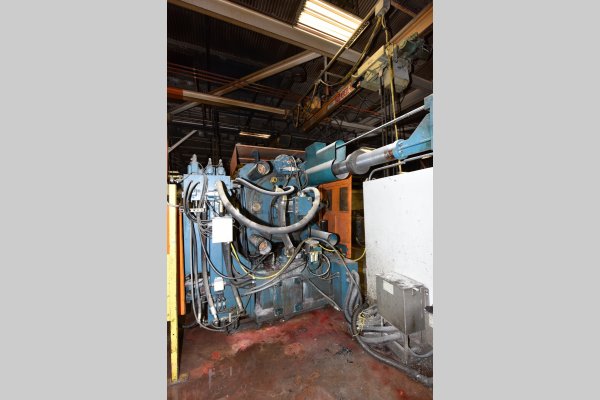

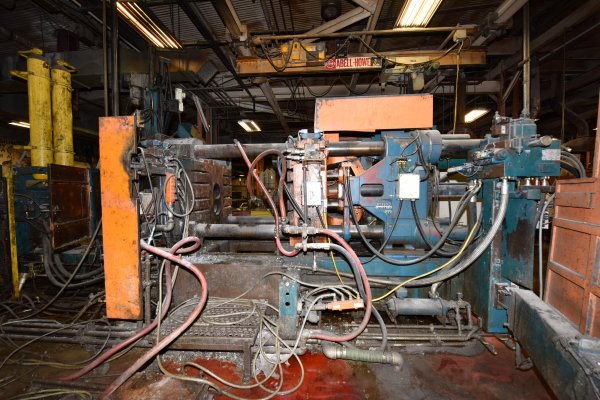

See jumbo large photos of this Ube UA 720
