Used Ube 2500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF!

Status: Available

We offer for sale, subject to prior sale and the terms listed below:

Manufacturer: Ube

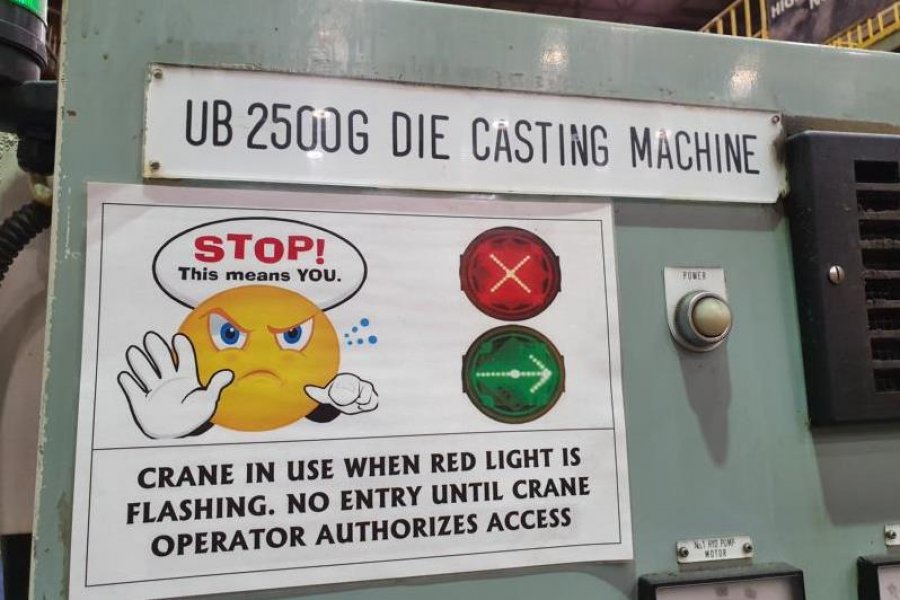

Model: UB 2500G

Size: 2500 Metric Ton

Inventory item: DCM-4904

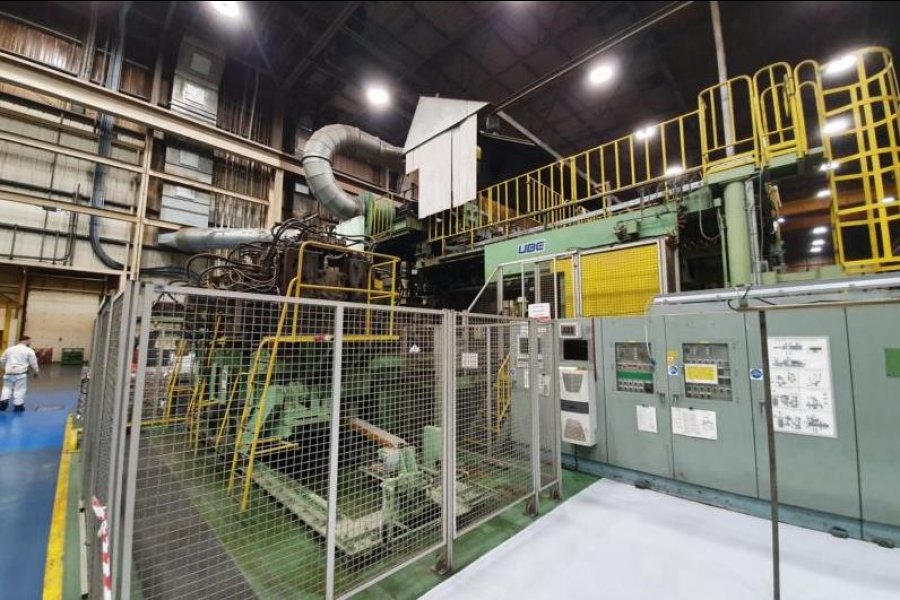

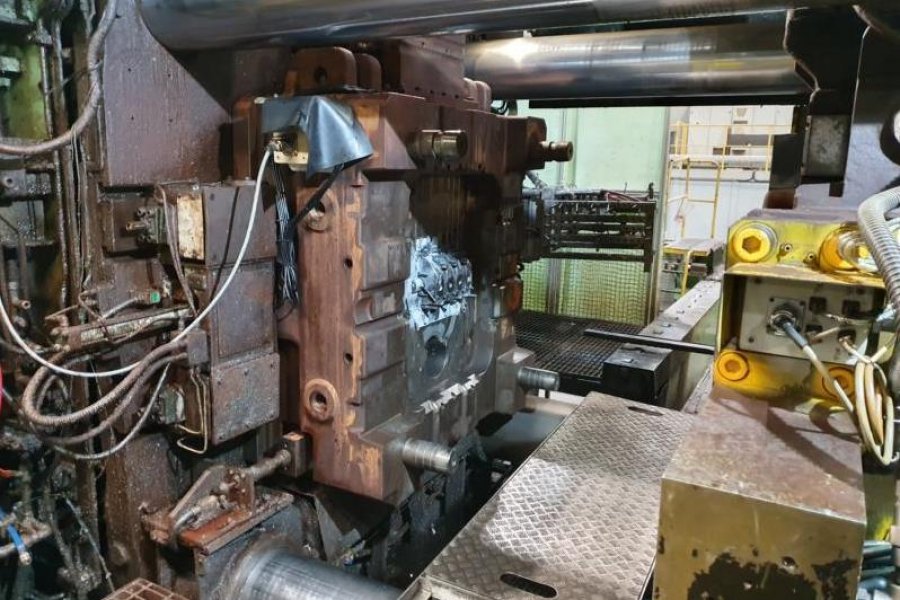

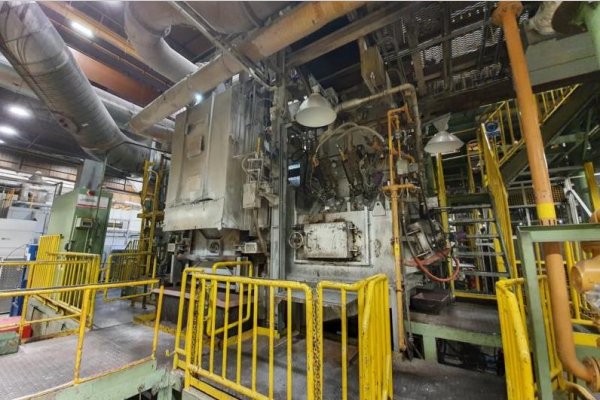

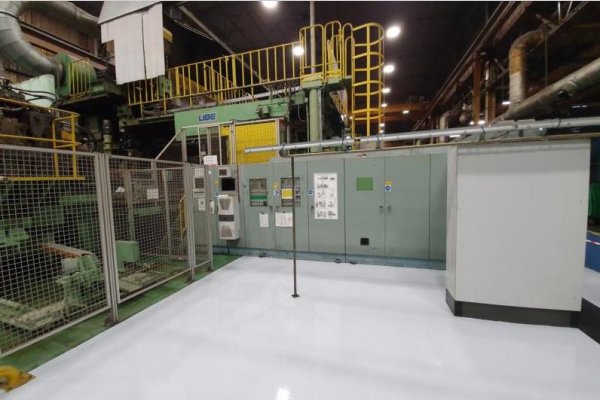

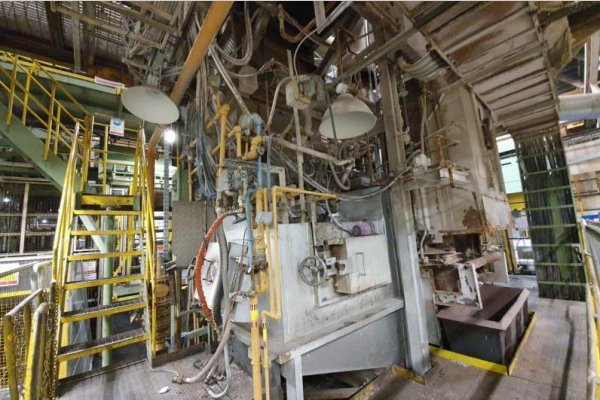

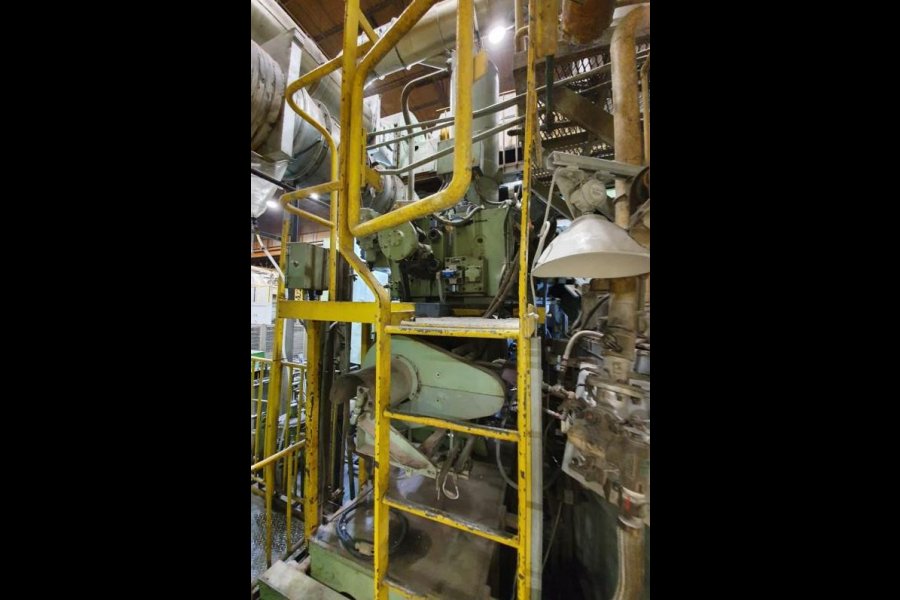

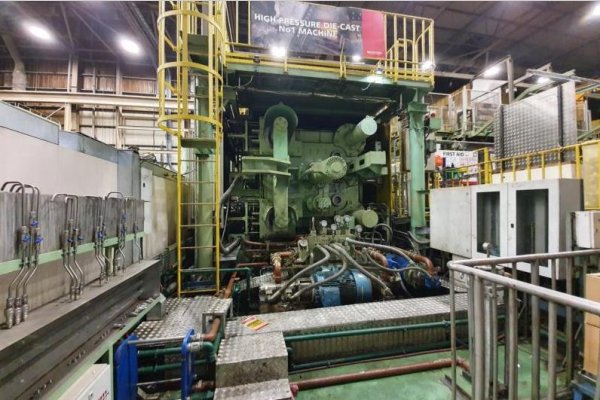

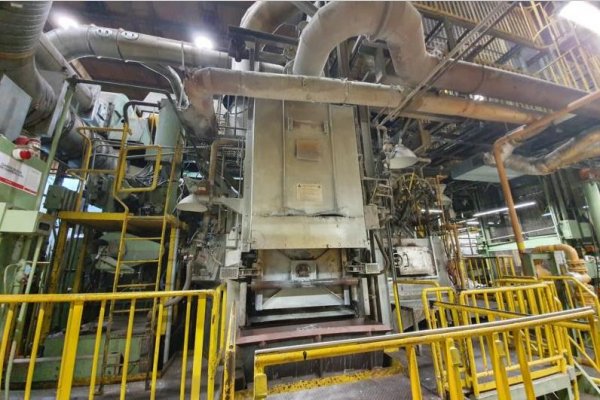

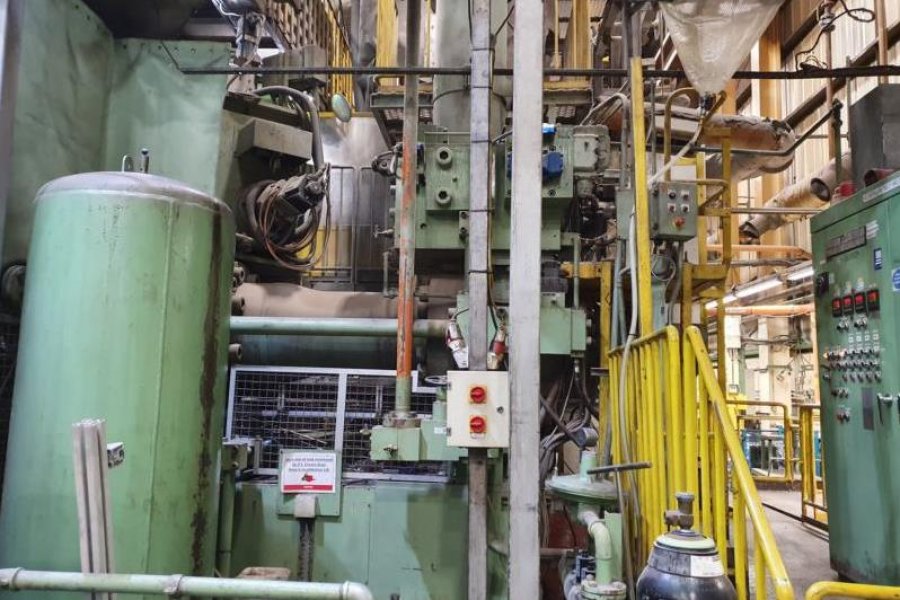

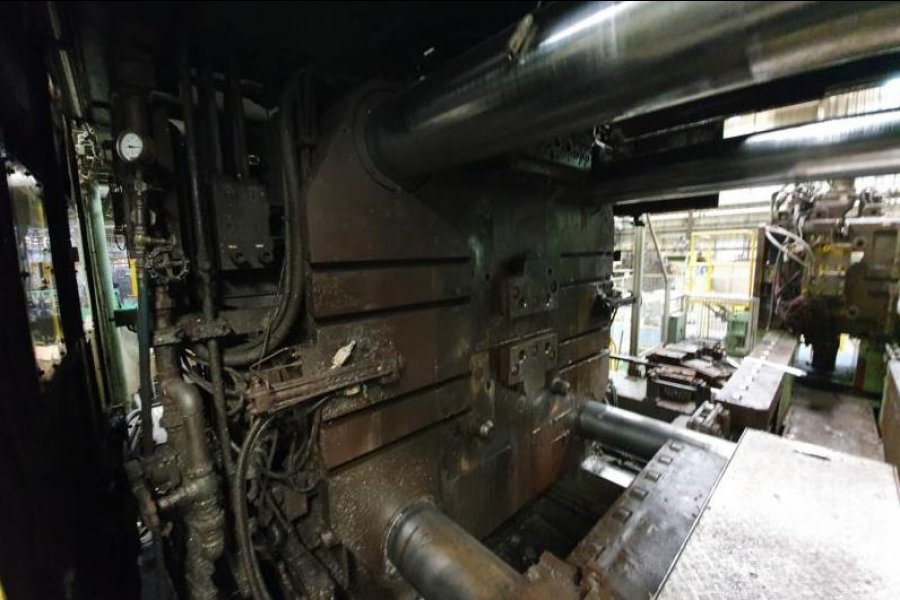

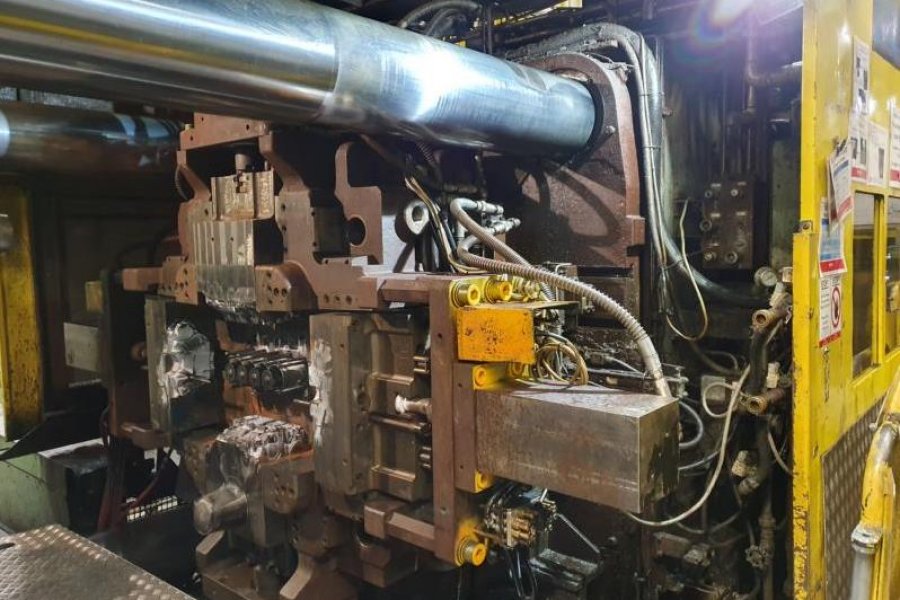

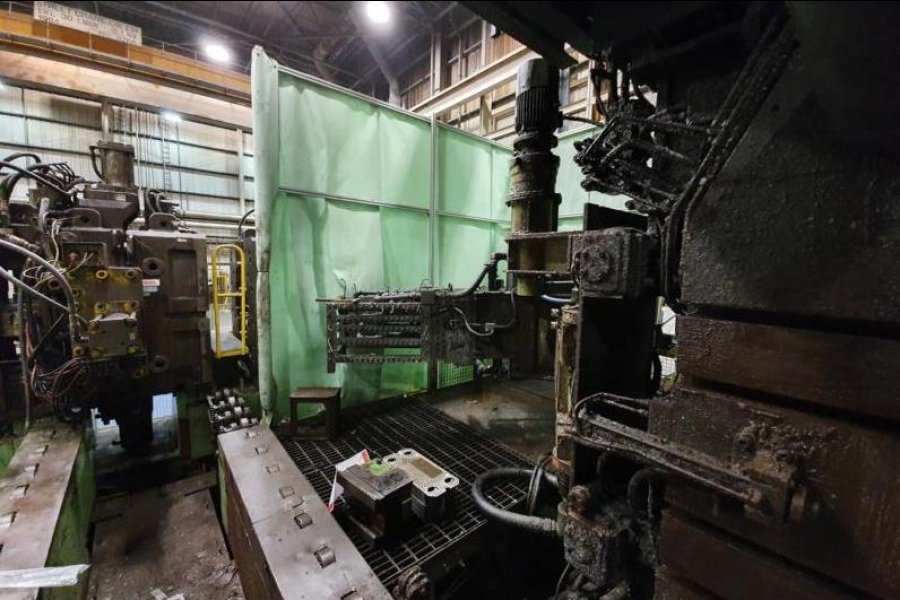

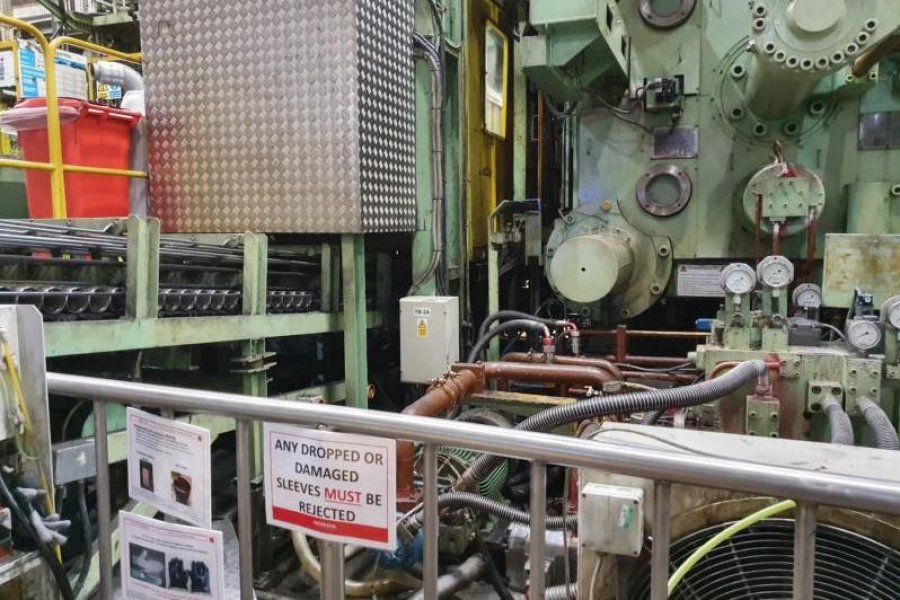

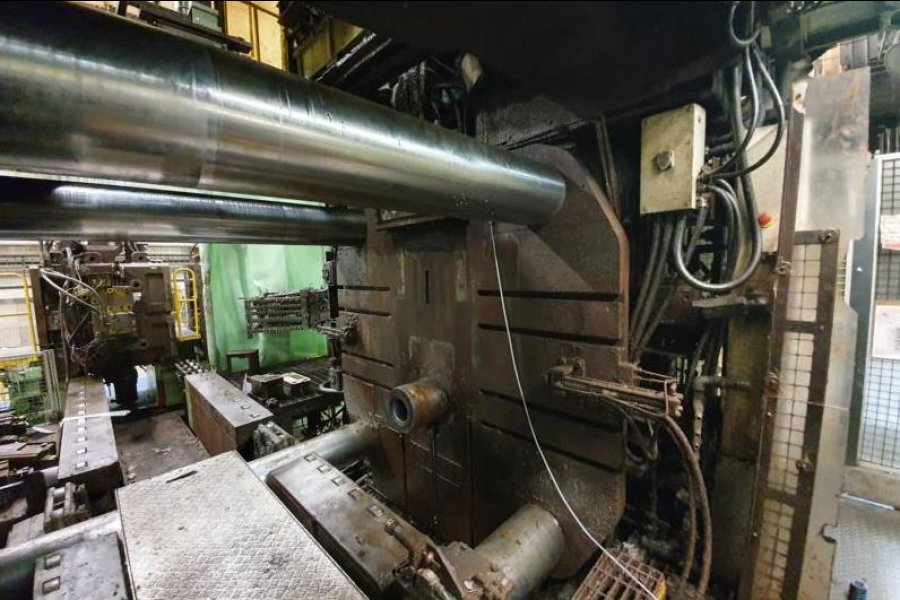

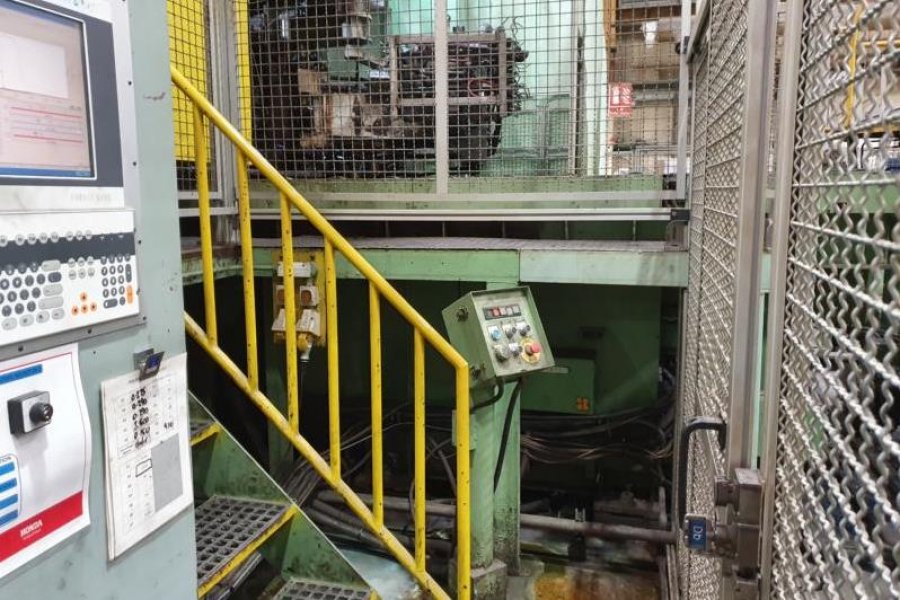

Used Ube 2500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Features & Accessories:

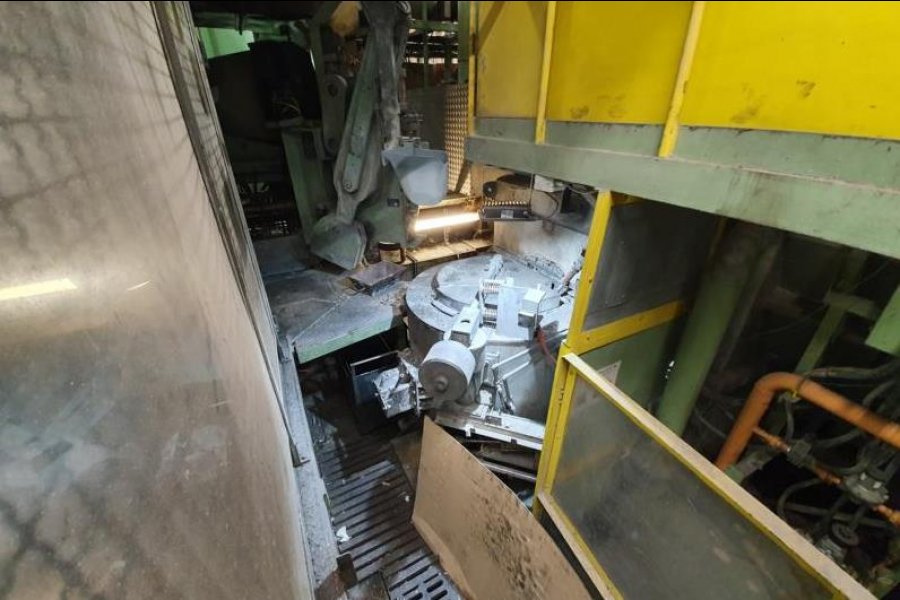

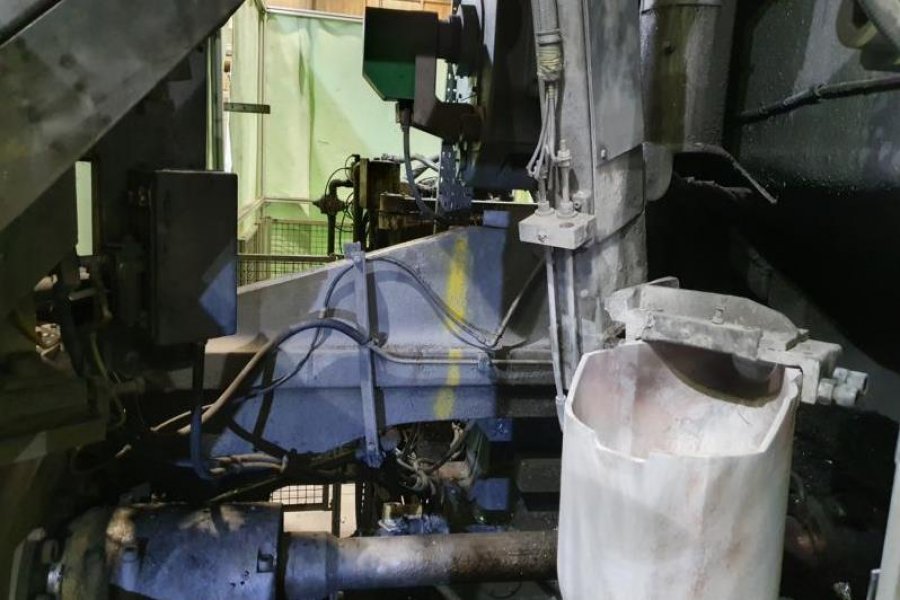

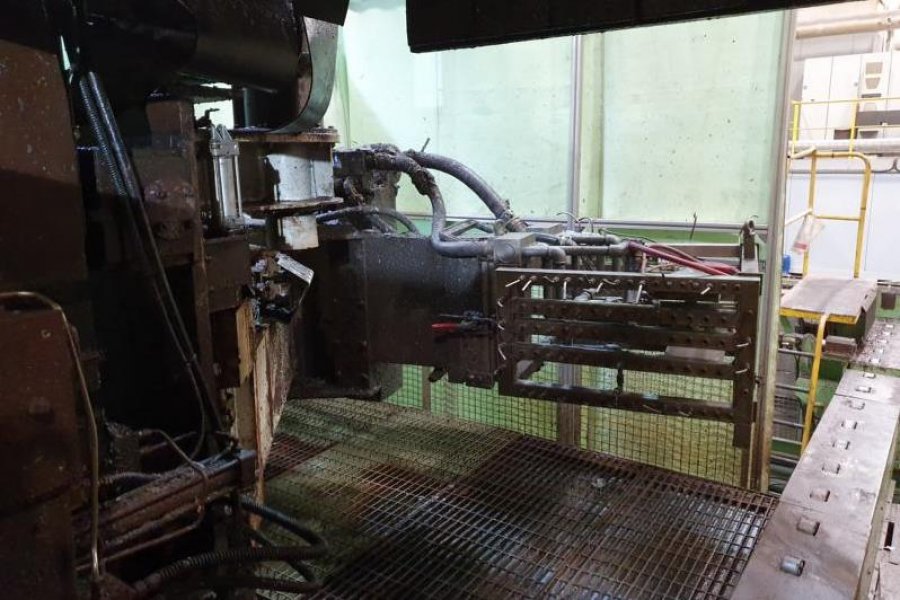

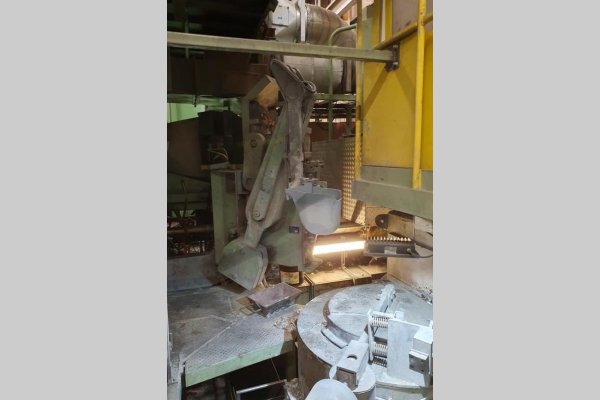

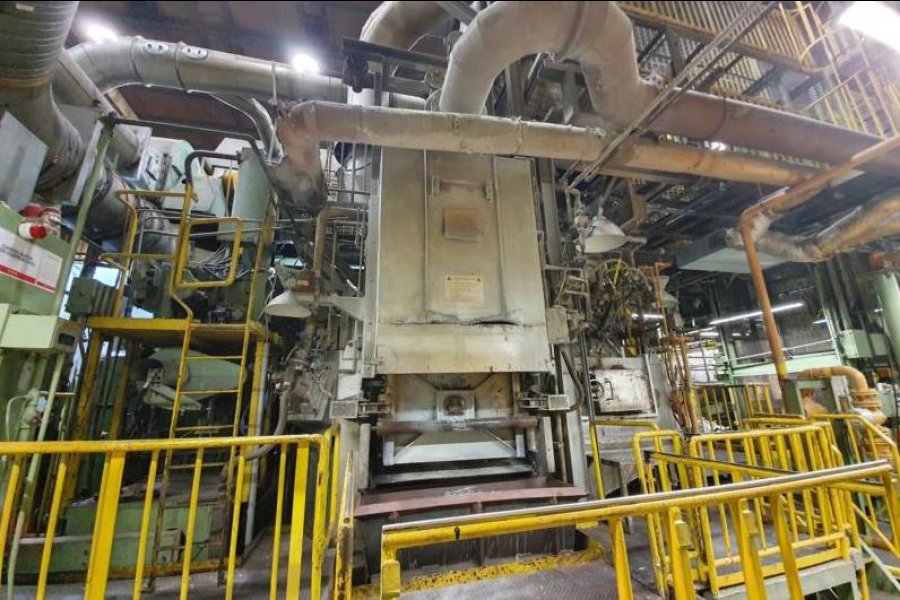

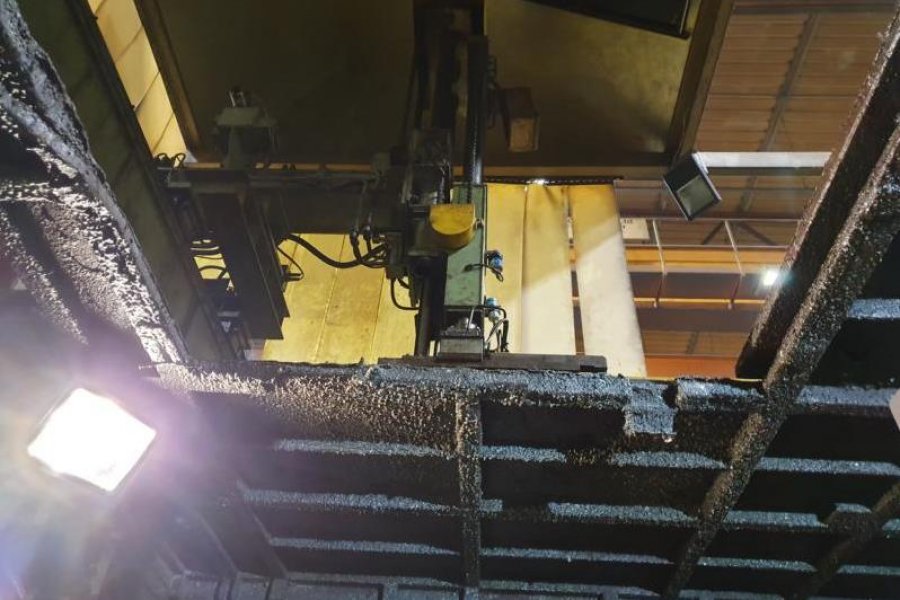

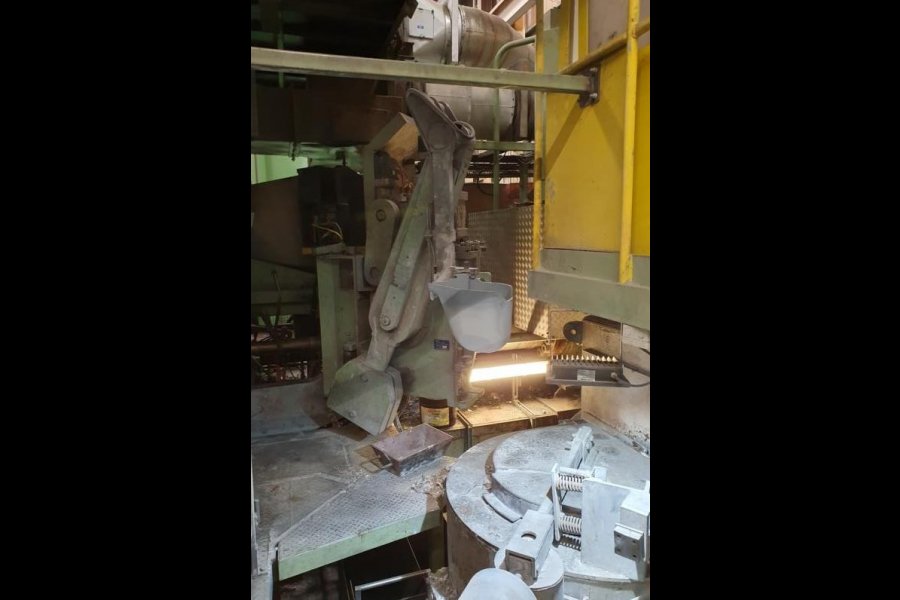

  • Fully automated with Ube automatic Ladle, Ube side-mounted die sprayer, Ube overhead part extractor, Ube Shuttle-bed Vertical Trim Press, PLC Controls Factory upgraded by Ube in 2013. New Ube Provicast Servo-Shot installed by Ube
  • Central Electric Motorized Die Height Adjustment

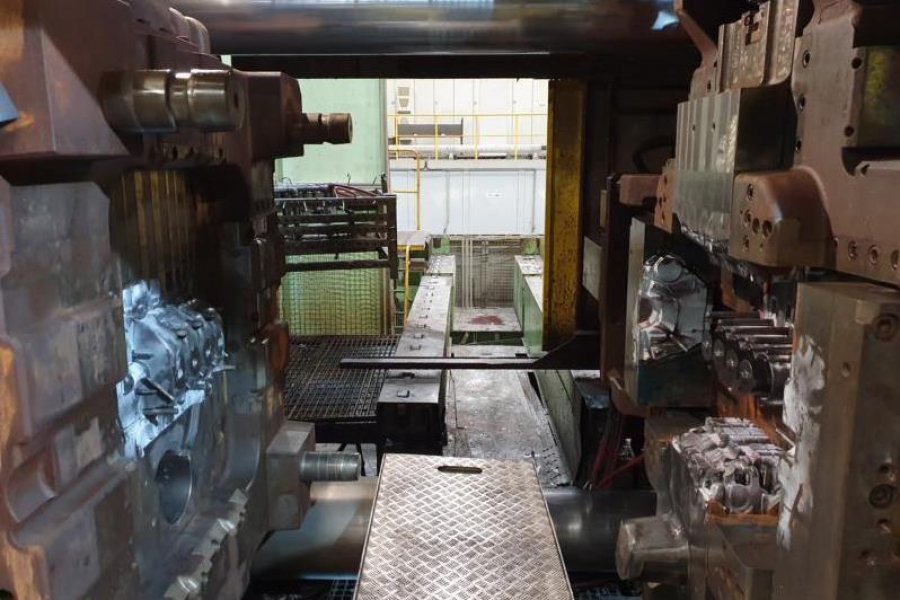

  • Fully Automatic Tie Bar Pulling Systems on Two Helper Side Tie Bars with Ube automatic Die Shuttle System for Quick Die Change with Power Die Carriers on Moving and Stationary Platens
  • Twin Cylinder Hydraulic Bumper Plate Ejection System with Pull-Back

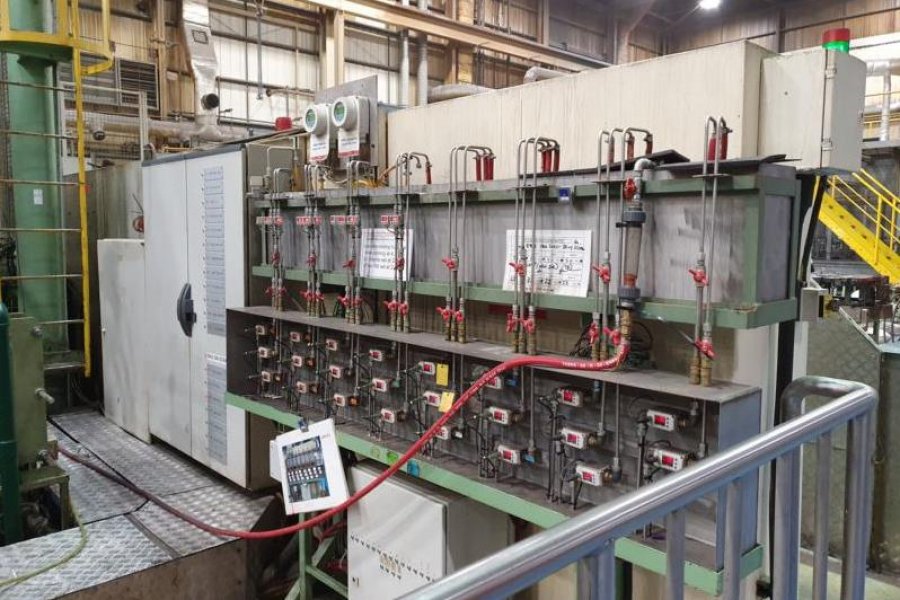

  • Five 3/4 inch Core Circuits - Three on moving platen, Two on fixed platen - all with Pressure Reducing Circuits

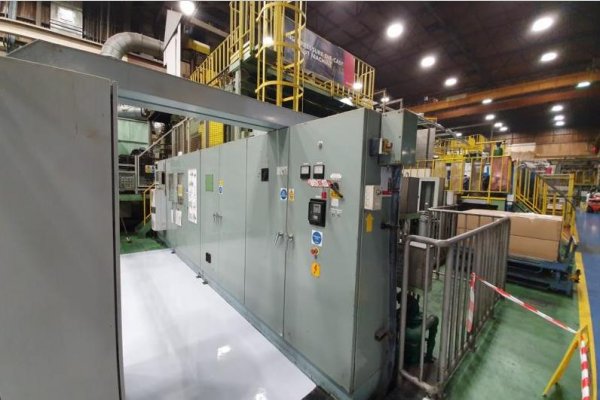

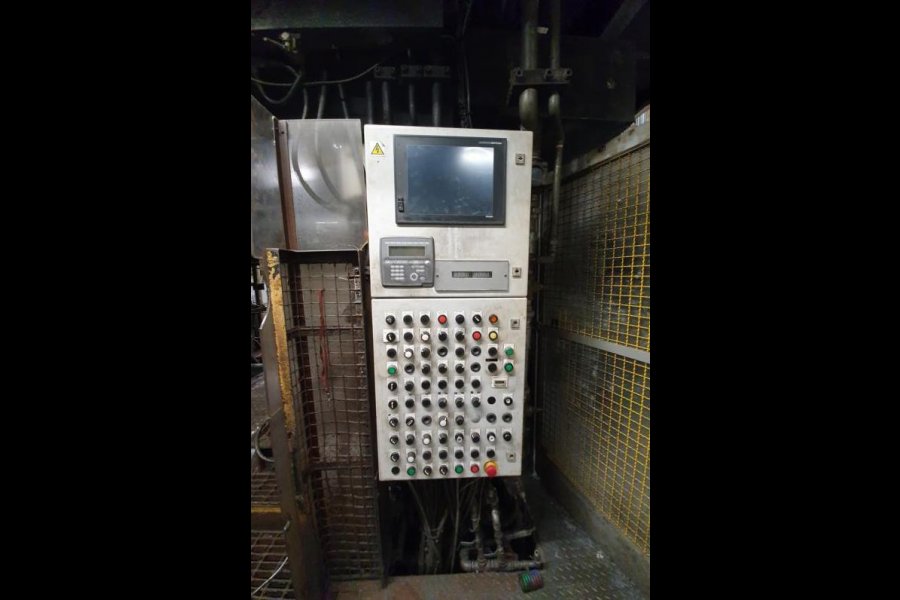

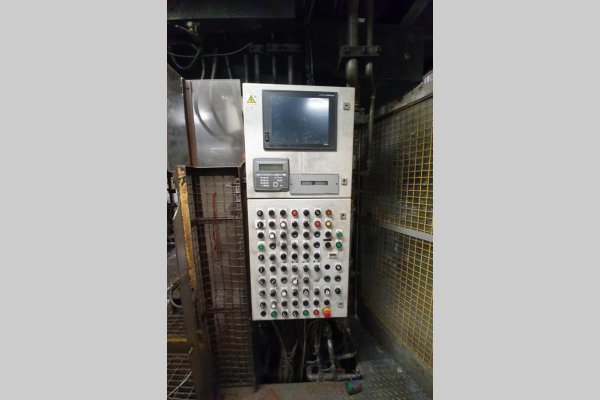

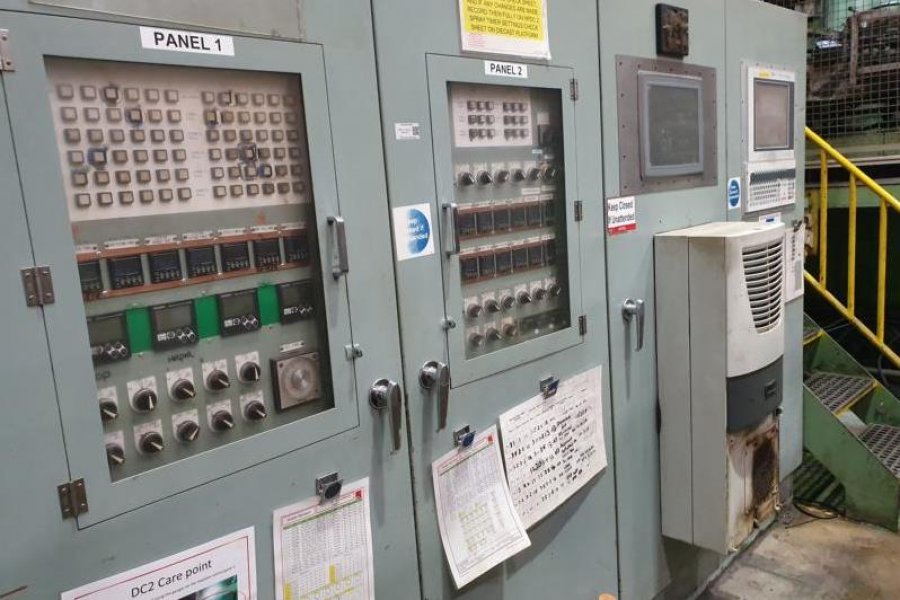

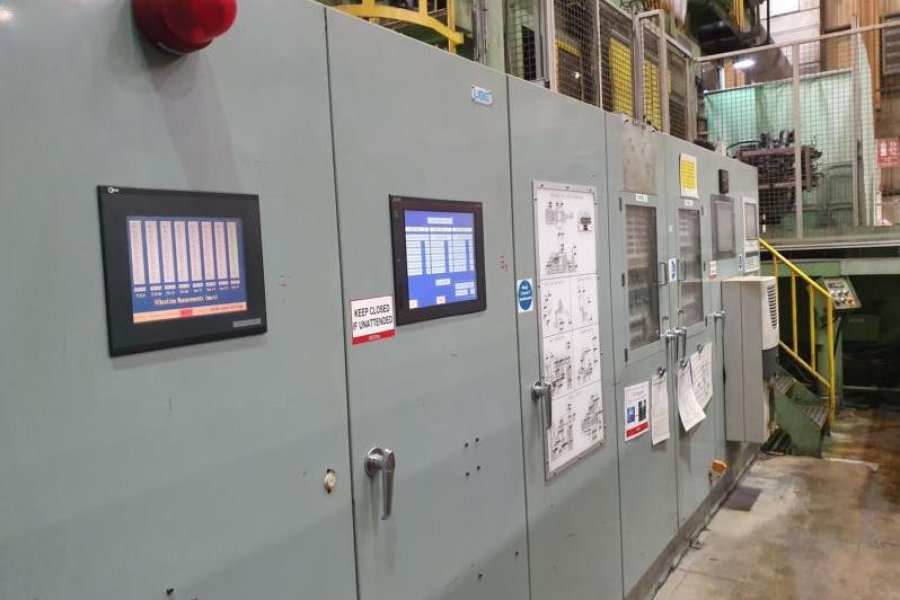

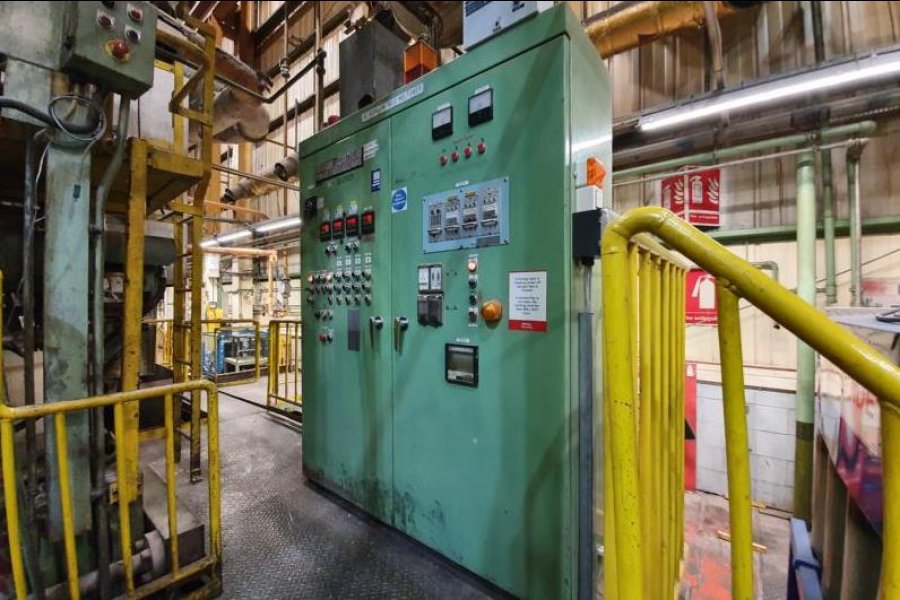

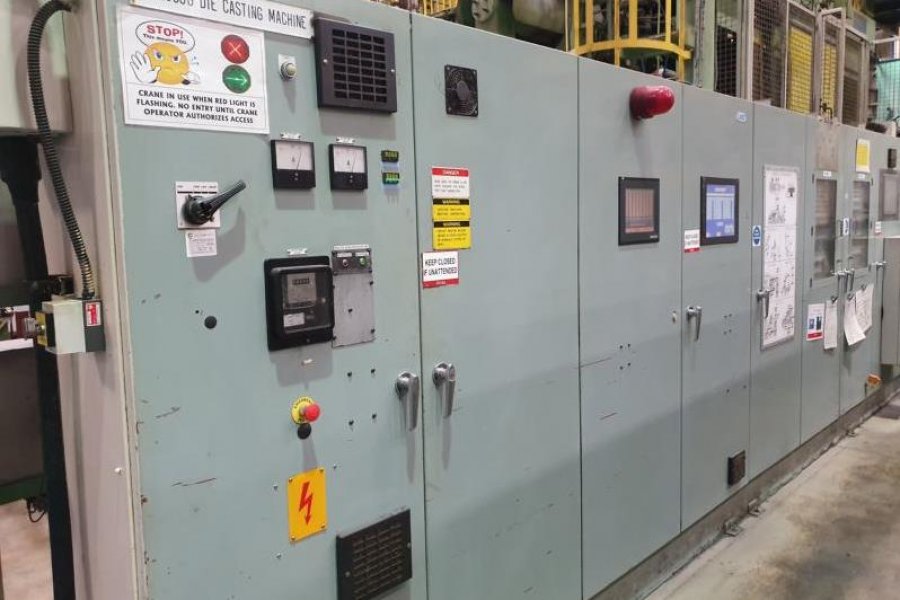

  • Machine PLC Controls replaced/upgraded by Ube, Injection Control System Upgraded to Ube Provicast Servo-Shot Shot Control and Monitoring System
  • Machine has had continuous Ube Factory Preventive Maintenance Since Originally Installed with many upgrades including new style split-nuts,

Item Specifications for DCM-4904

Specifications
Locking Force:
2,750 tons

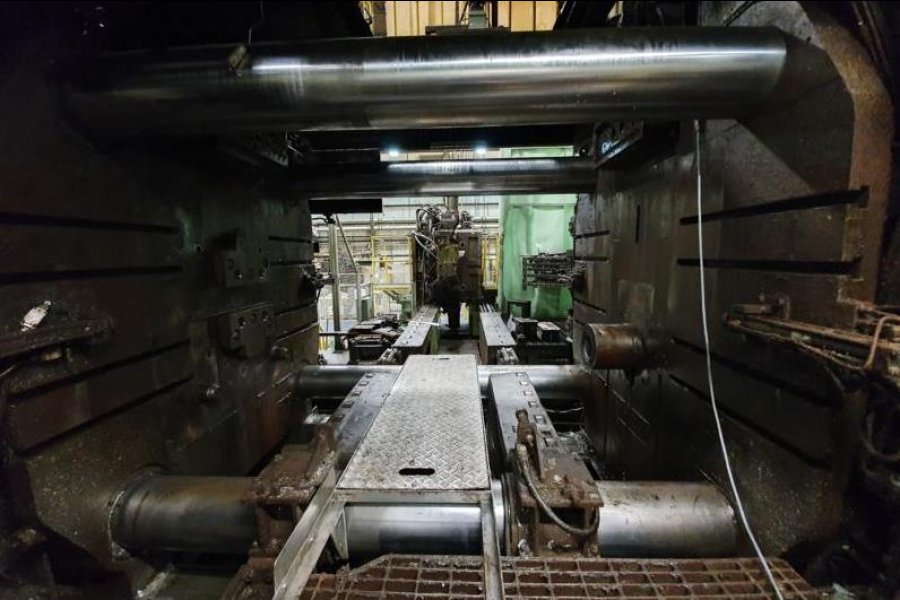

Tie Bar Diameter:
12.4 inches
Tie Bar Clearance (vertical x horizontal):
66.9 x 62.9 inches
Die Thickness (minimum - maximum):
33.47 x - 66.93 inches
Die Stroke (minimum - maximum):
49.21 inches
Moving Platen Size (vertical x horizontal):
98.43 x 98.43 inches
Shot Position:
-13.78 inches
Shot Injection Stroke/Injection Force/Maximum Speed:
44.1 inches, 82.5 - 165 tons, 192 inches per second
Ejection Force/Stroke:
93.7 tons, 7.1 inches
Machine Weight:
165 ton

Document(s) For This Machine

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Ube Model UB 2500G 2500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Central Electric Motorized Die Height Adjustment, Fully Automatic Tie Bar Pulling Systems on Two Helper Side Tie Bars with Ube automatic Die Shuttle System for Quick Die Change with Power Die Carriers on Moving and Stationary Platens, Twin Cylinder Hydraulic Bumper Plate Ejection System with Pull-Back, Five 3/4 inch Core Circuits - Three on moving platen, Two on fixed platen - all with Pressure Reducing Circuits, Machine PLC Controls replaced/upgraded by Ube, Injection Control System Upgraded to Ube Provicast Servo-Shot Shot Control and Monitoring System, Machine has had continuous Ube Factory Preventive Maintenance Since Originally Installed with many upgrades including new style split-nuts Ube Controls Controls, Second Hand, DCM-4904

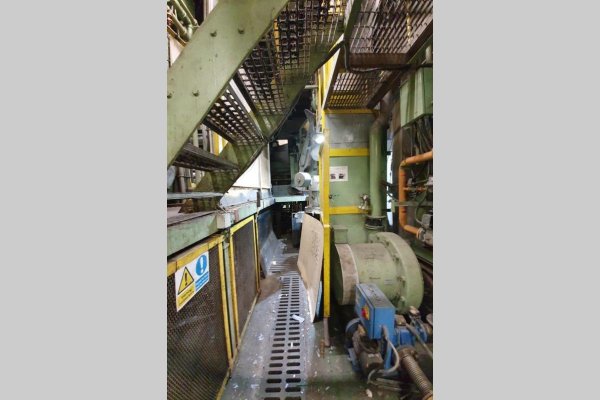

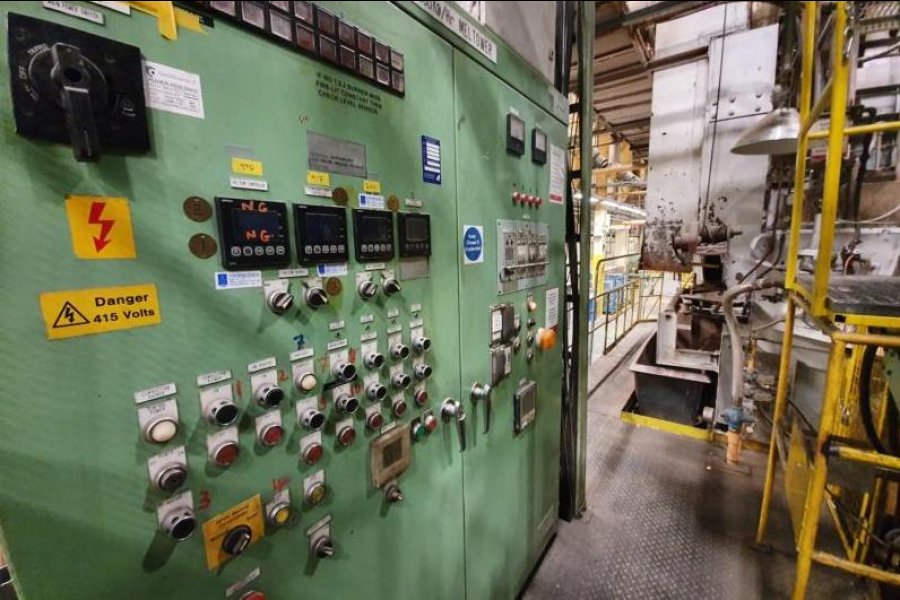

See jumbo large photos of this Ube UB 2500G
