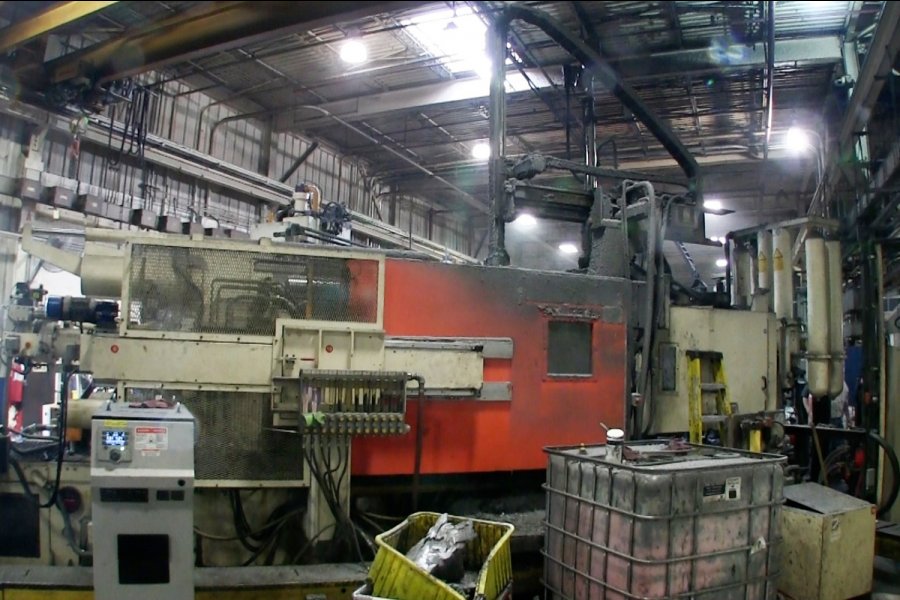

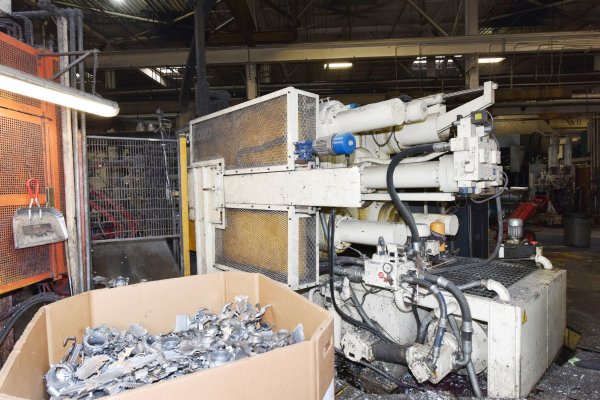

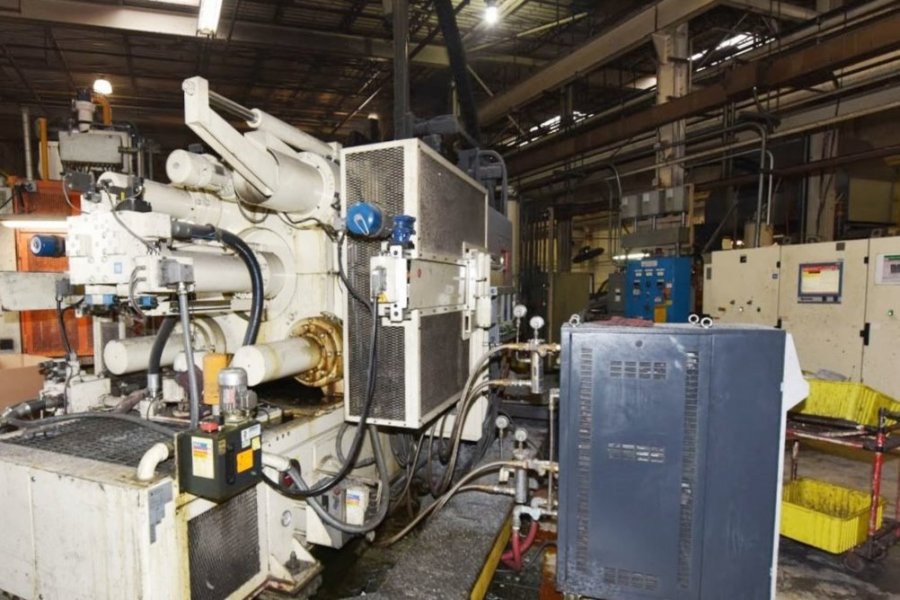

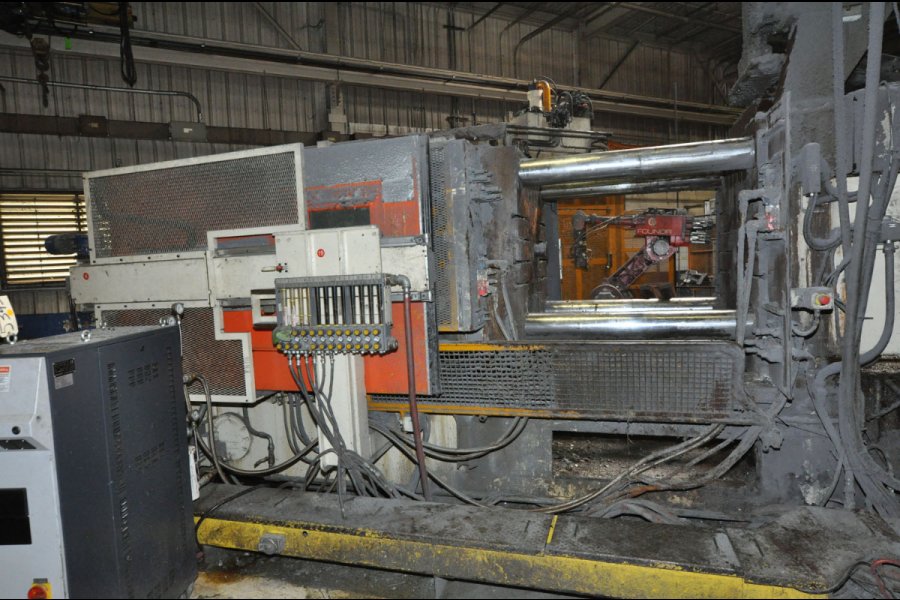

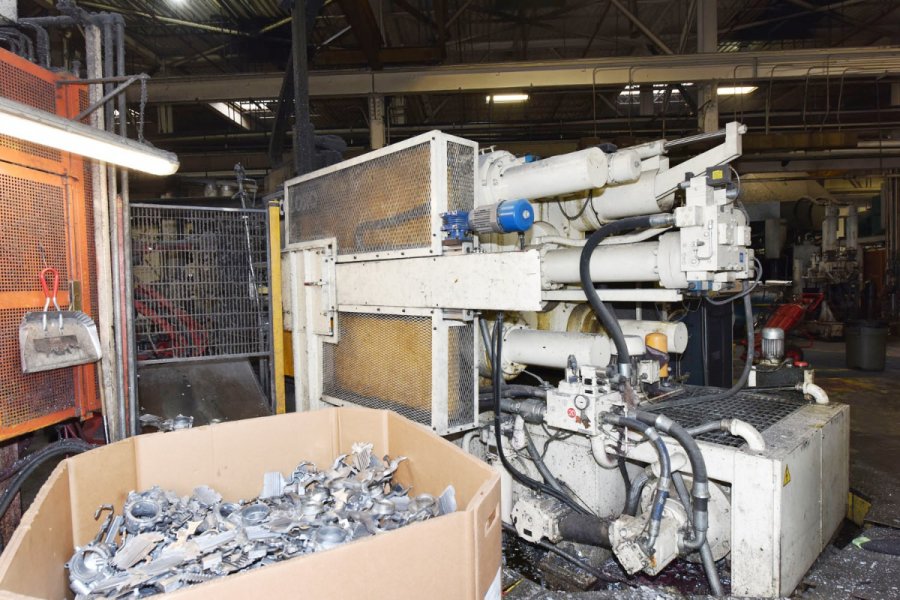

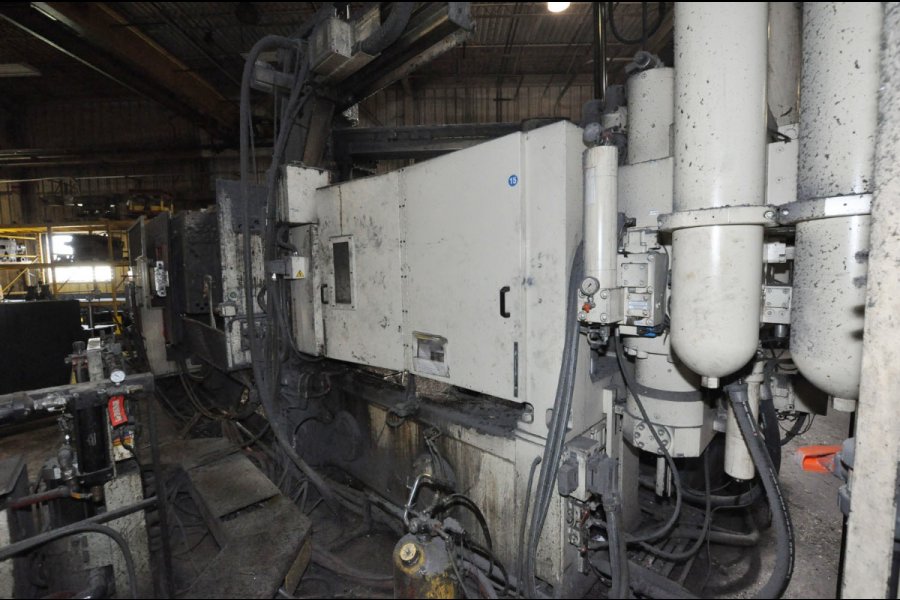

Used Colosio Model: PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Colosio
Model: PFO 750
Size: 750 Metric Ton
Inventory Number: DCM-5318

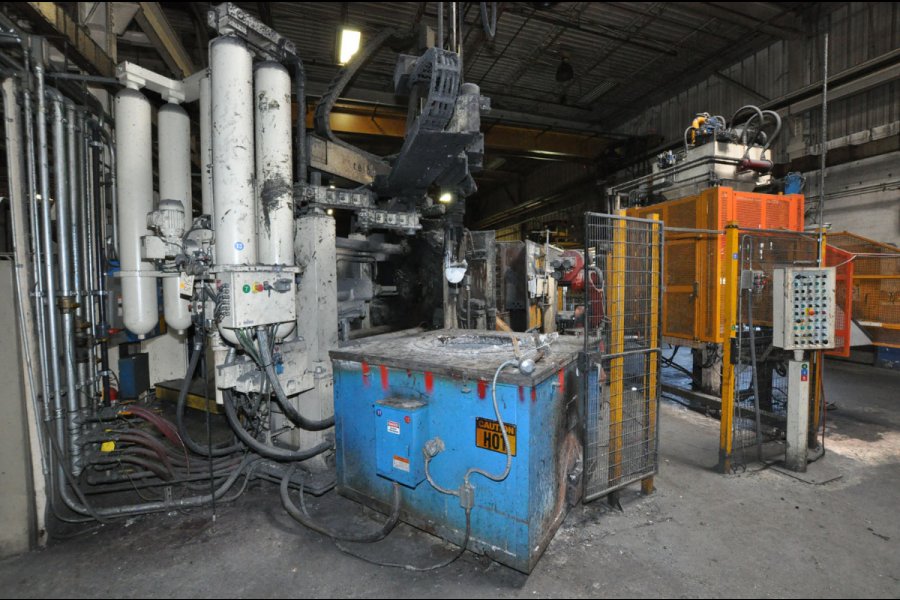

Used Colosio Model: PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- New in 2012 - Complete Cell - Auto Ladle, Auto Sprayer, 6-Axis Robot, Diesse Trim Press, Inspect Under-Power and in Production
- Electric Motorized Die Height Adjustment System with Electronic Strain Gauge System
- Fully Automatic Top Operator Side Mounted Tie Bar Puller System

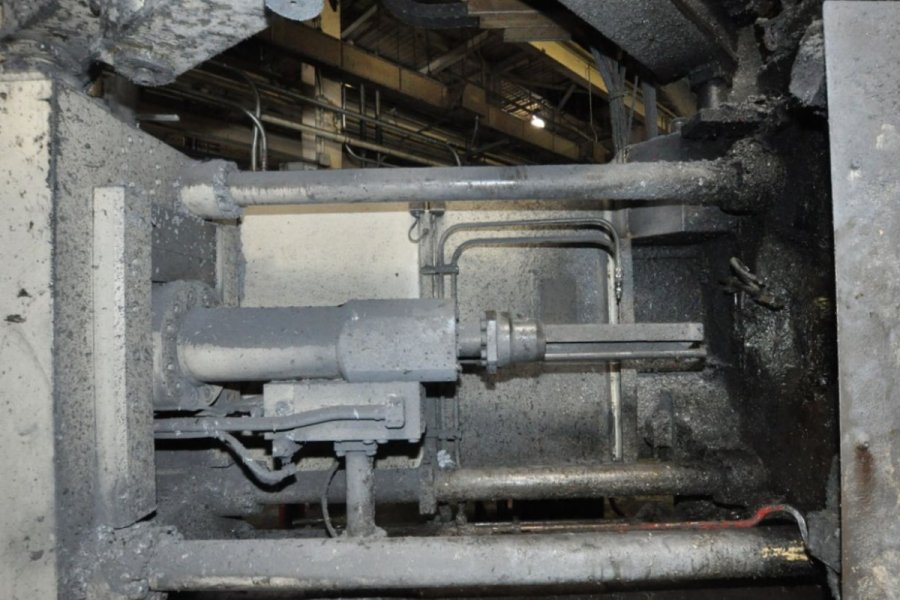

- Four (4) Auxiliary Hydraulic Core Circuits - Two (2) on Stationary platen, Two (2) on Moving Platen

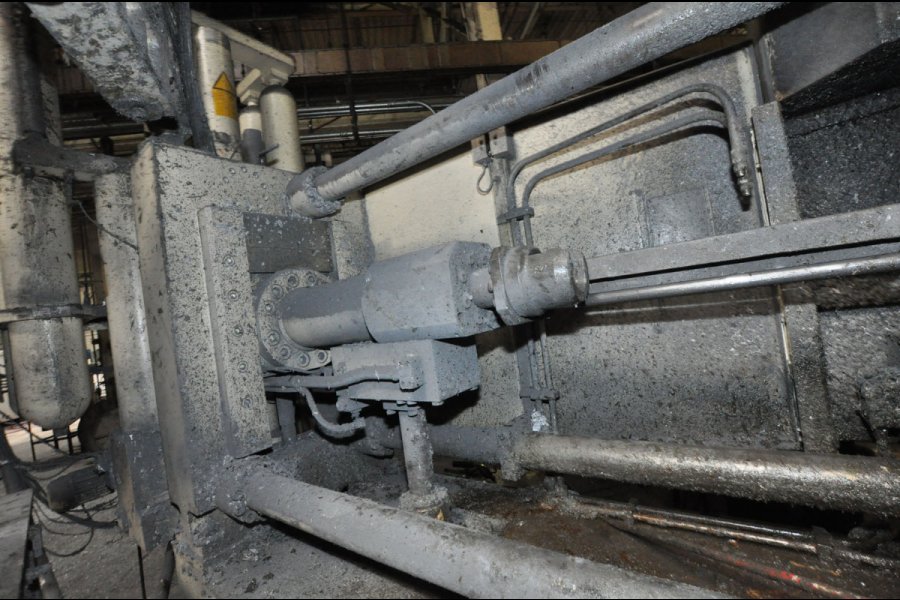

- Hydraulic Bumper Plate Ejection System with Automatic Ejector Bar Engagement System for Quick Die Change
- Automatic Linkage Lubrication System

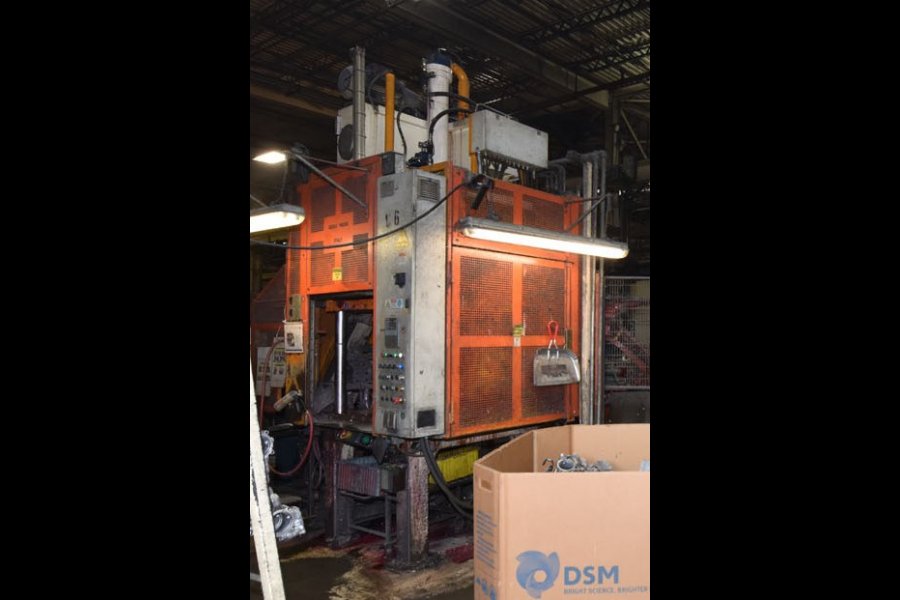

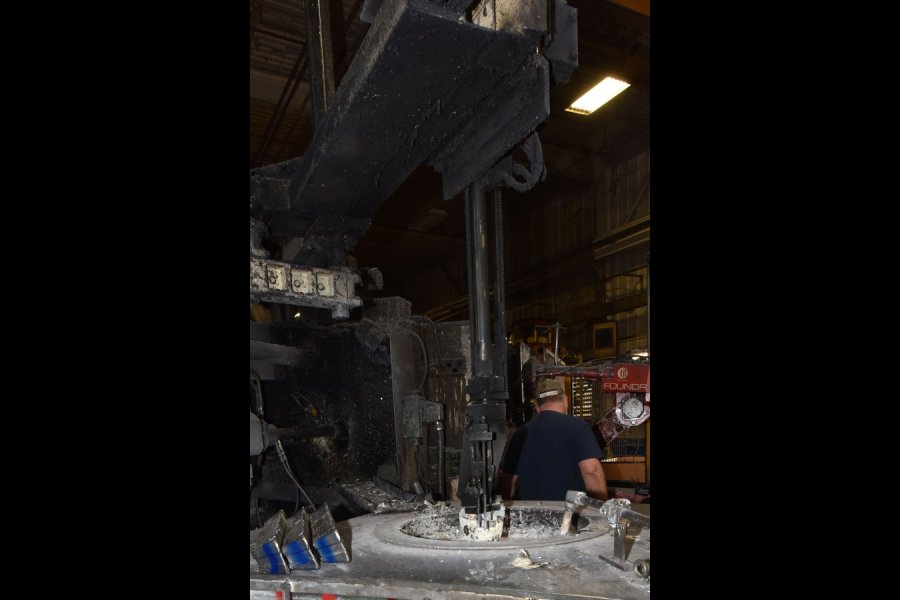

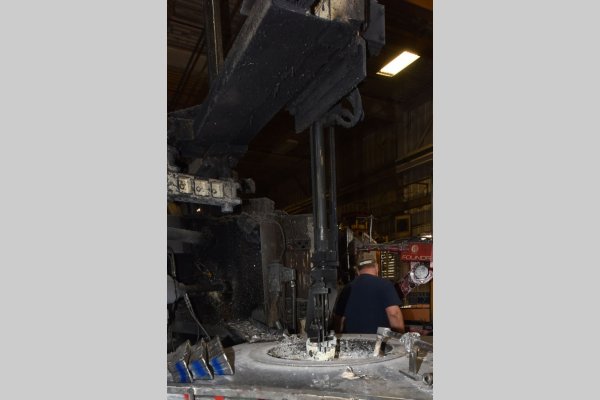

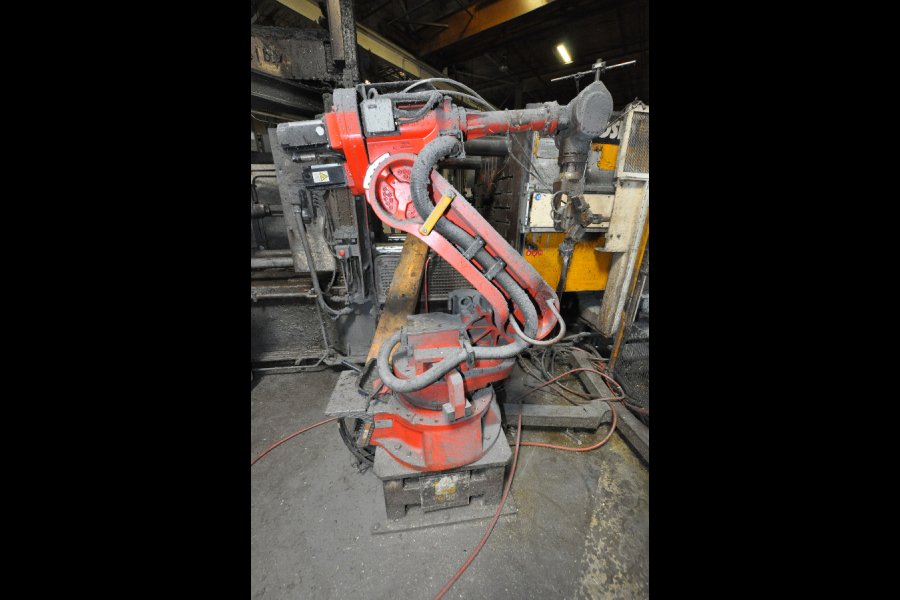

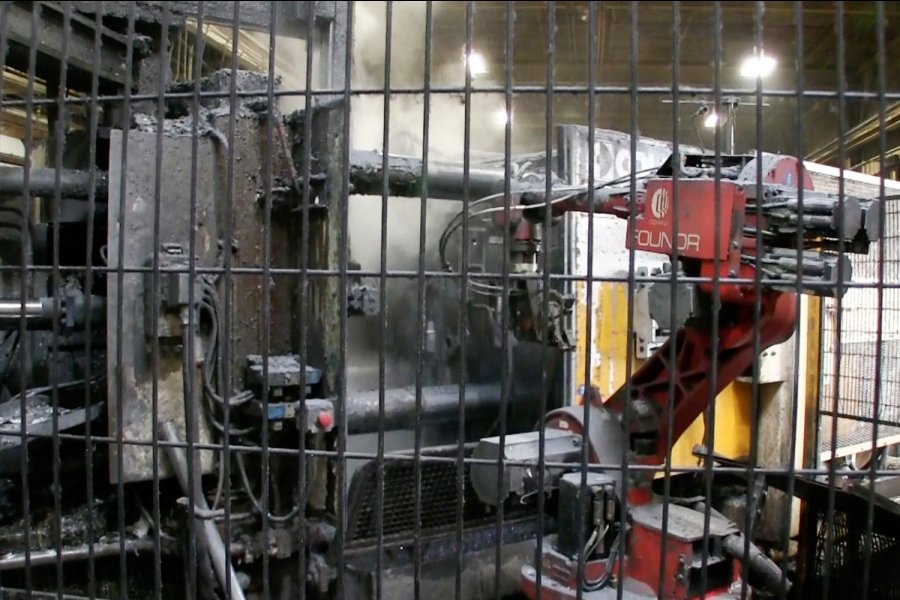

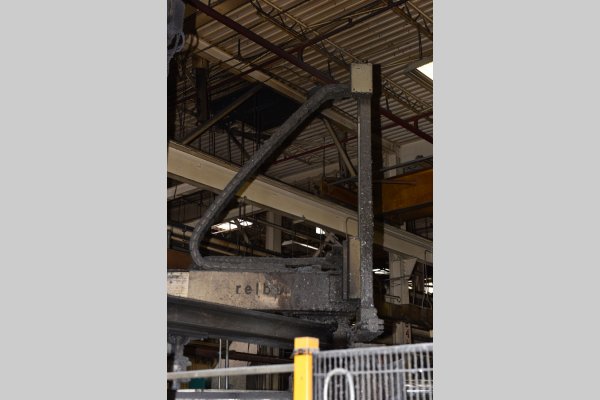

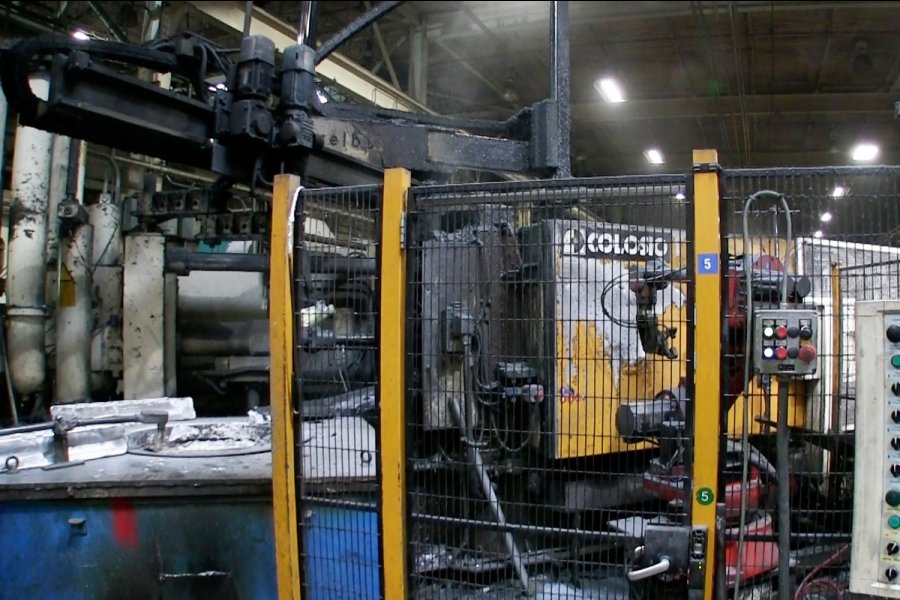

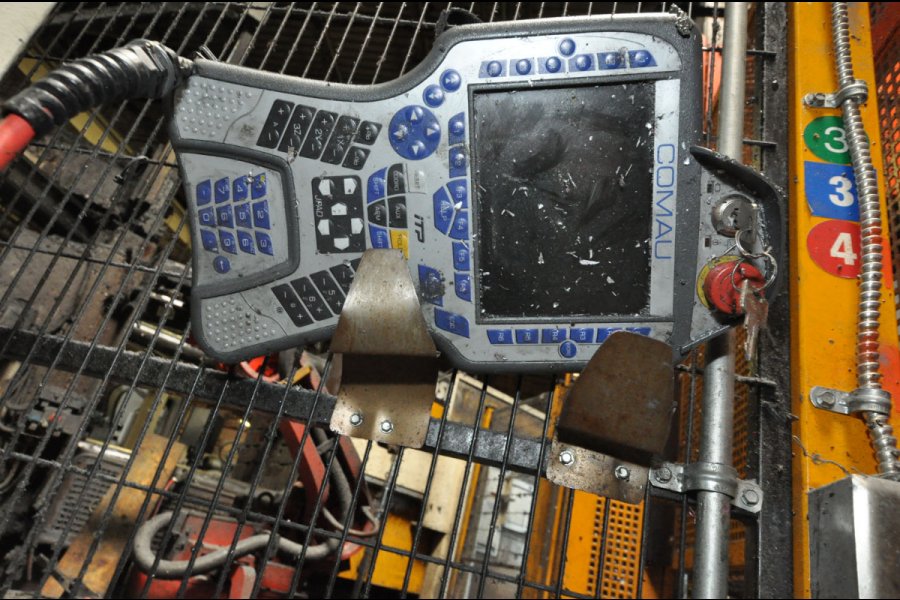

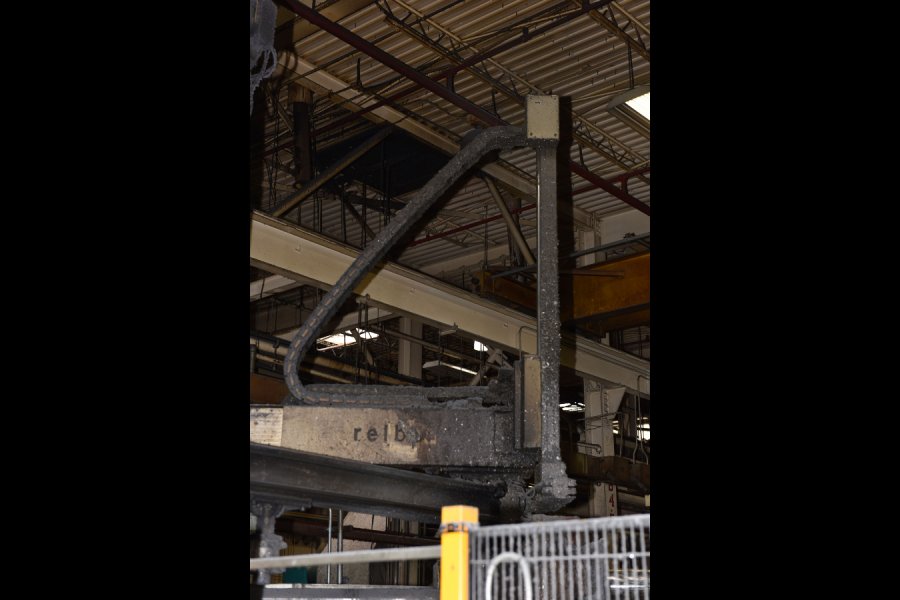

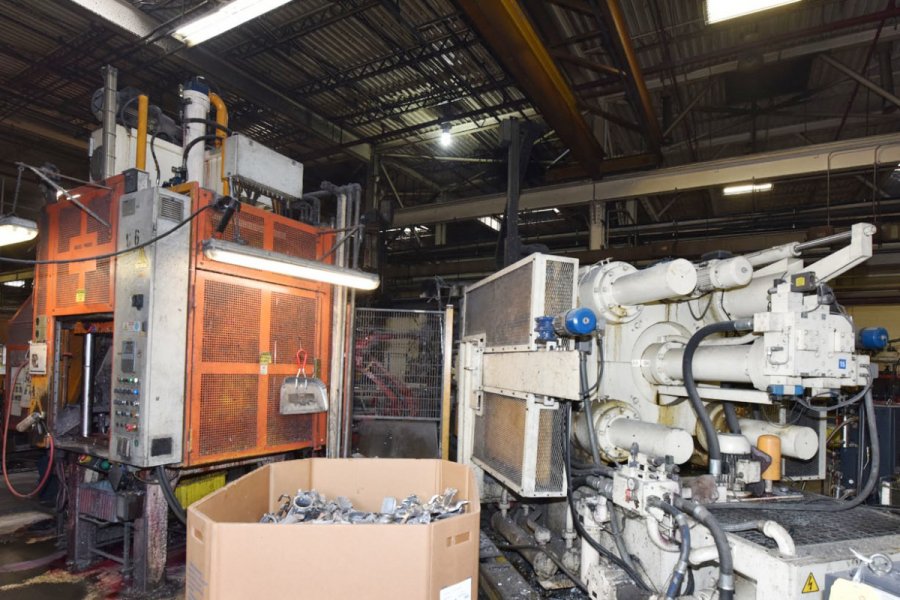

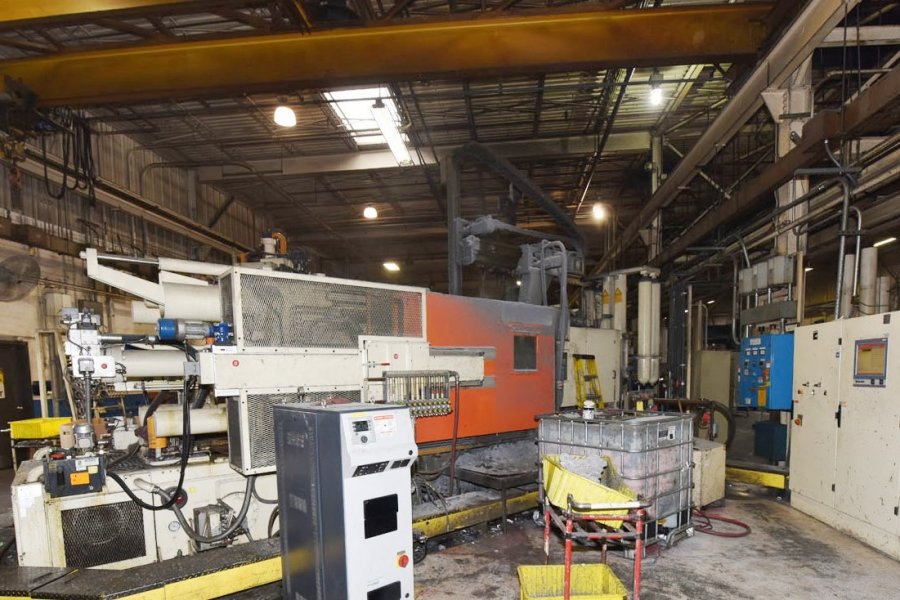

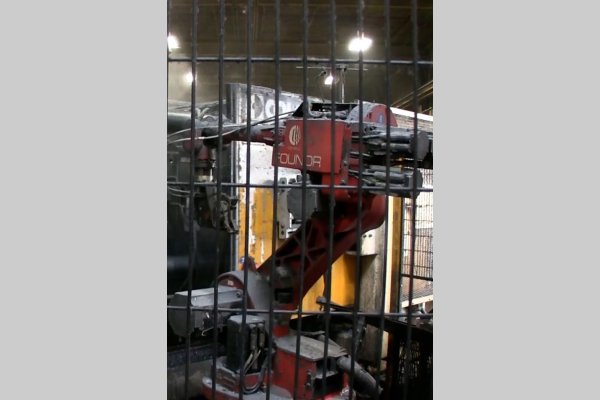

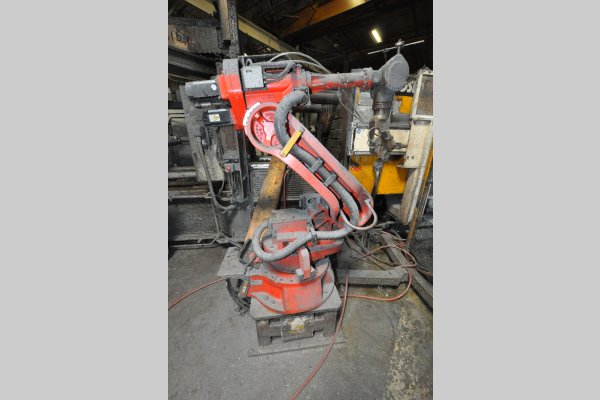

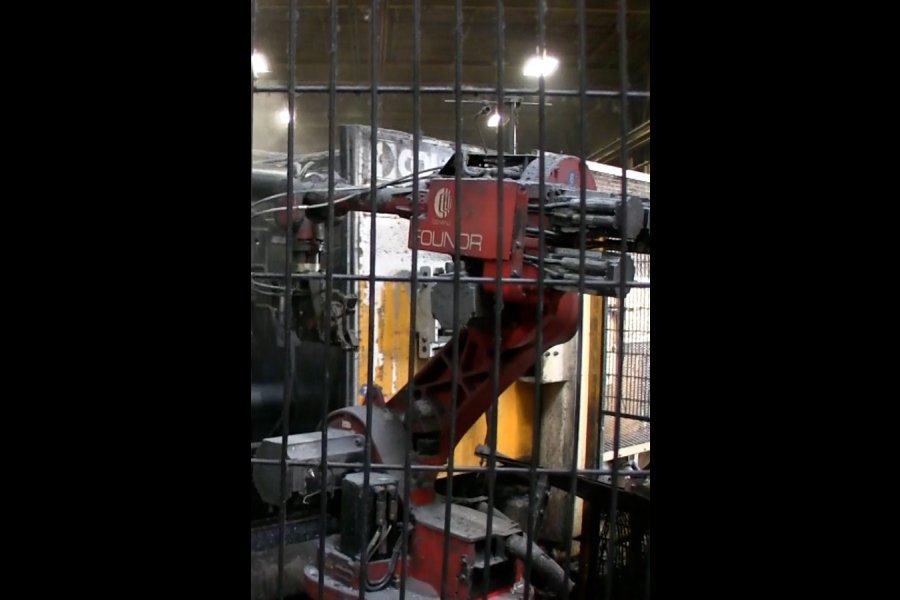

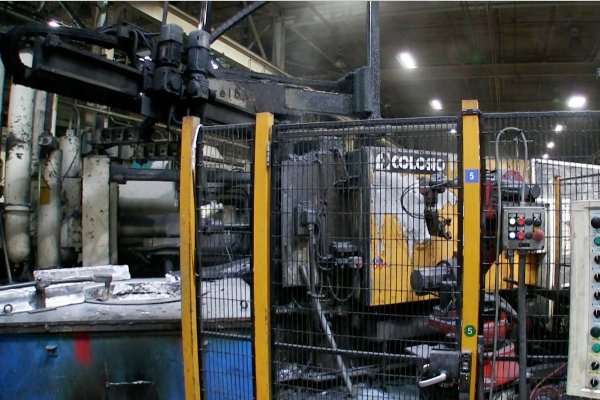

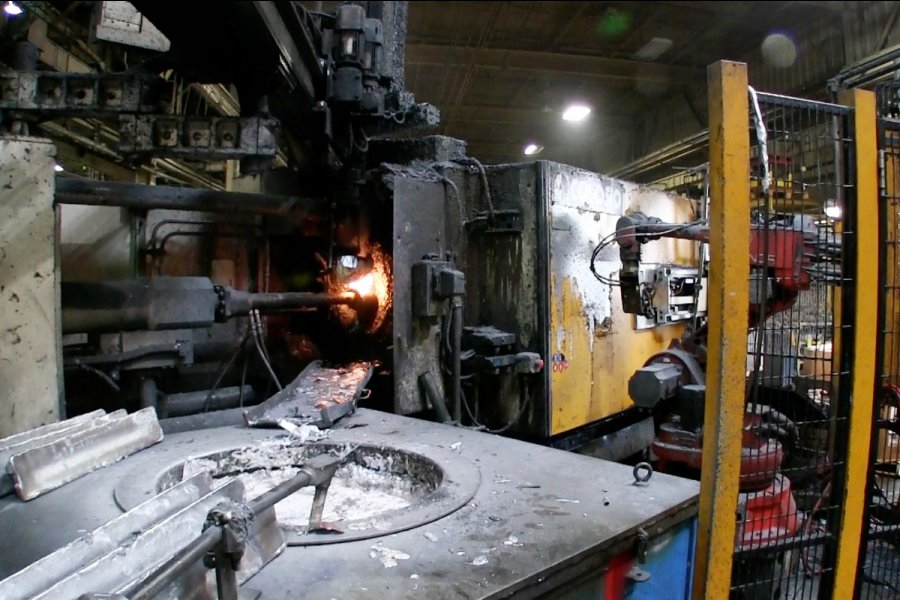

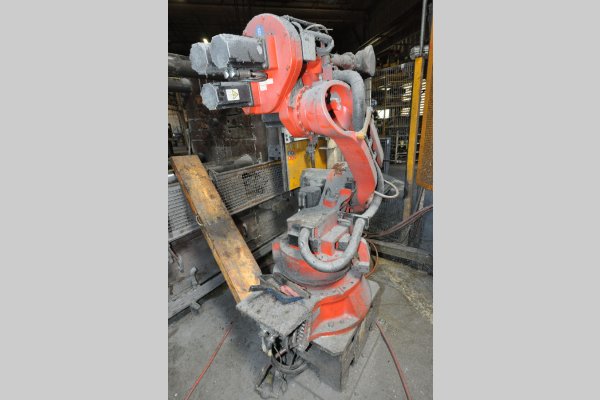

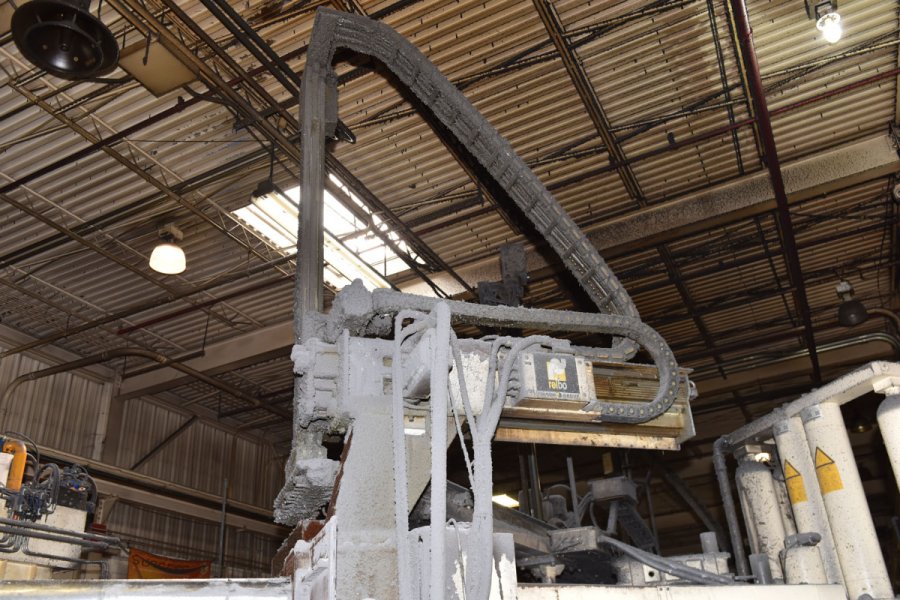

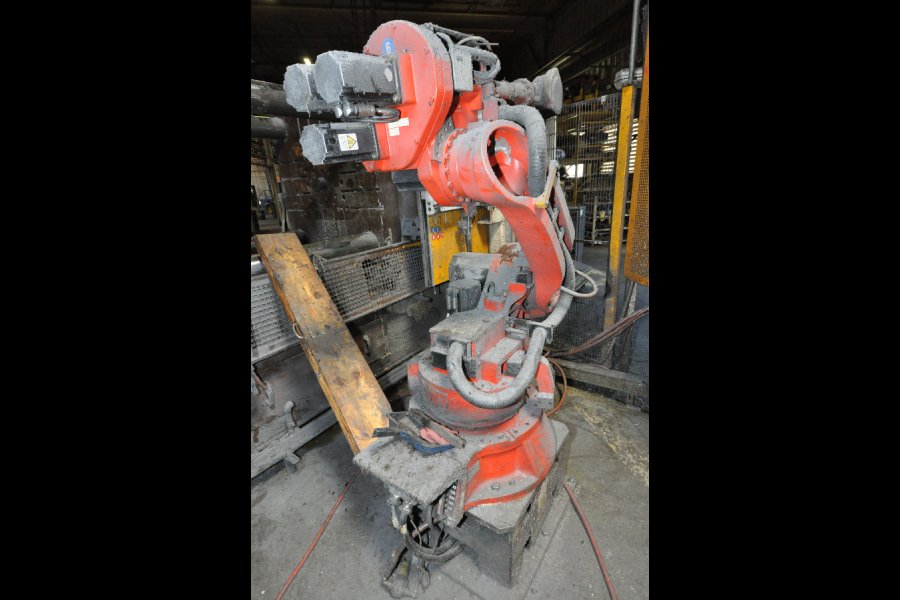

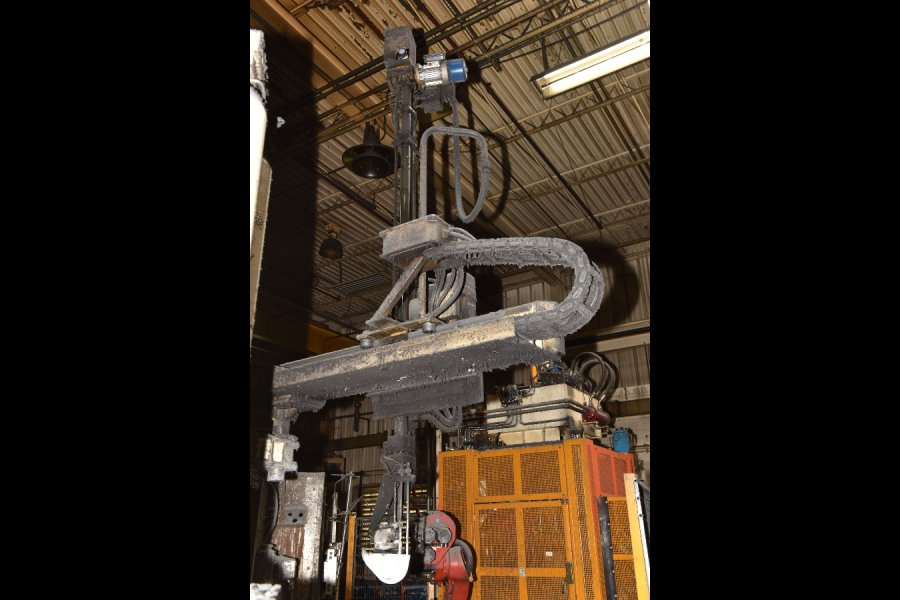

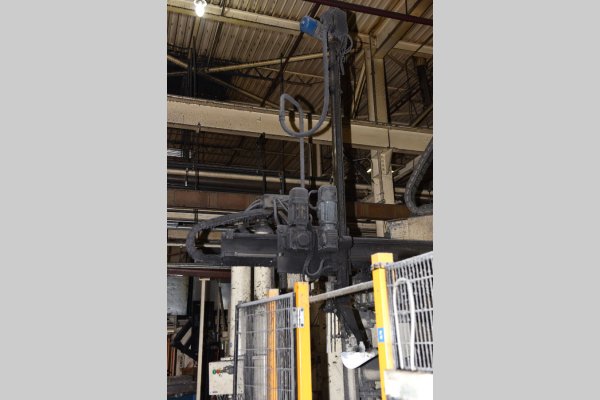

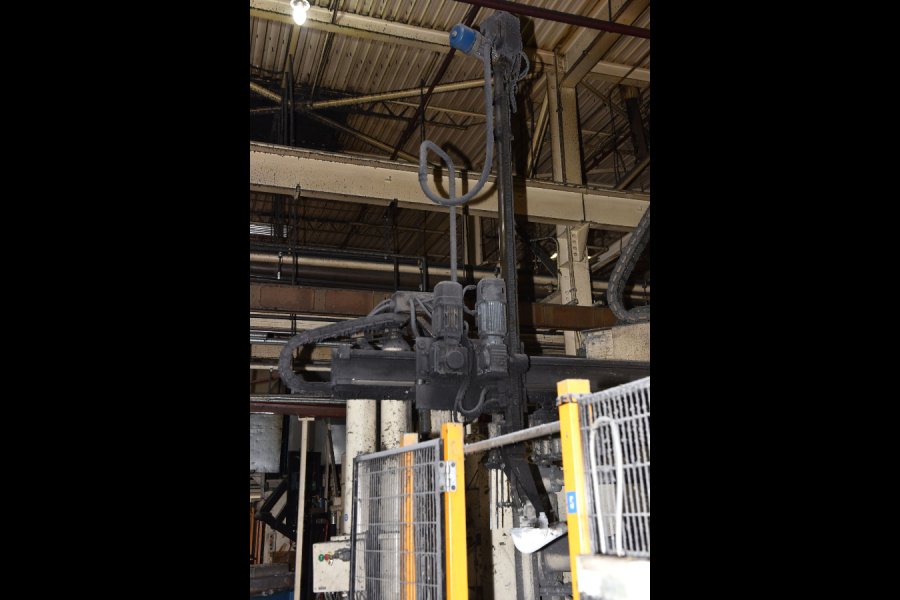

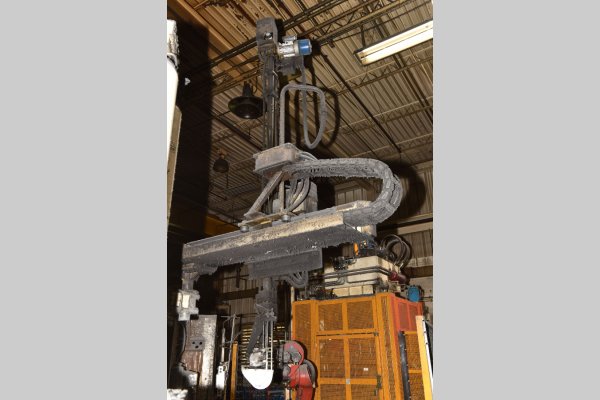

- Machine is factory equipped with automatic ladle, automatic die spray, six axis robot for extraction, four post vertical trim press, safety doors and perimeter fencing
Item Specifications for DCM-5318
| Specifications | |
|---|---|
| Locking Force: |
865 tons
|
| Tie Bar Diameter: |
6.70 inches
|

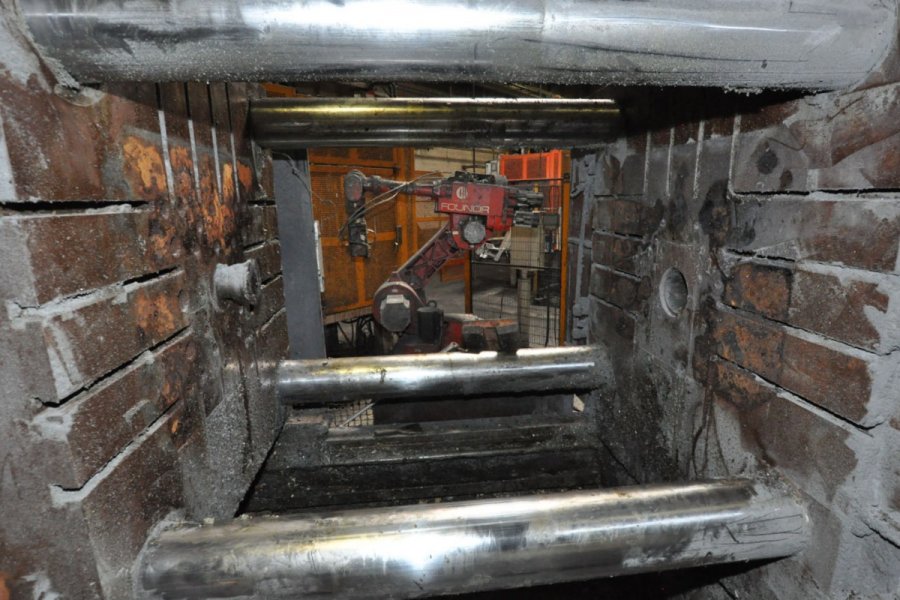

| Clearance Between Tie Bars: |
31.50 x 31.50 inches
|
| Die Thickness (minimum - maximum): |
15.75 - 37.41 inches
|
| Die Stroke (minimum - maximum): |
15.75 - 29.53 inches
|

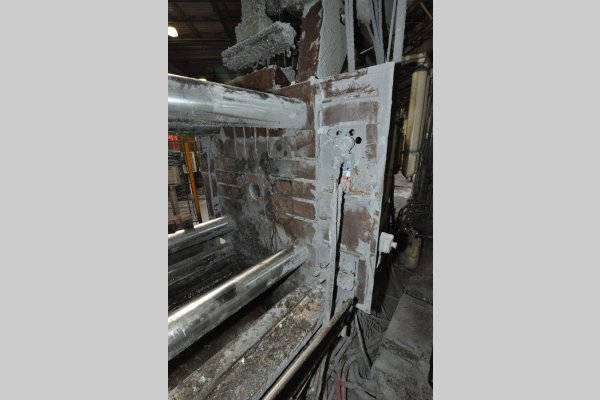

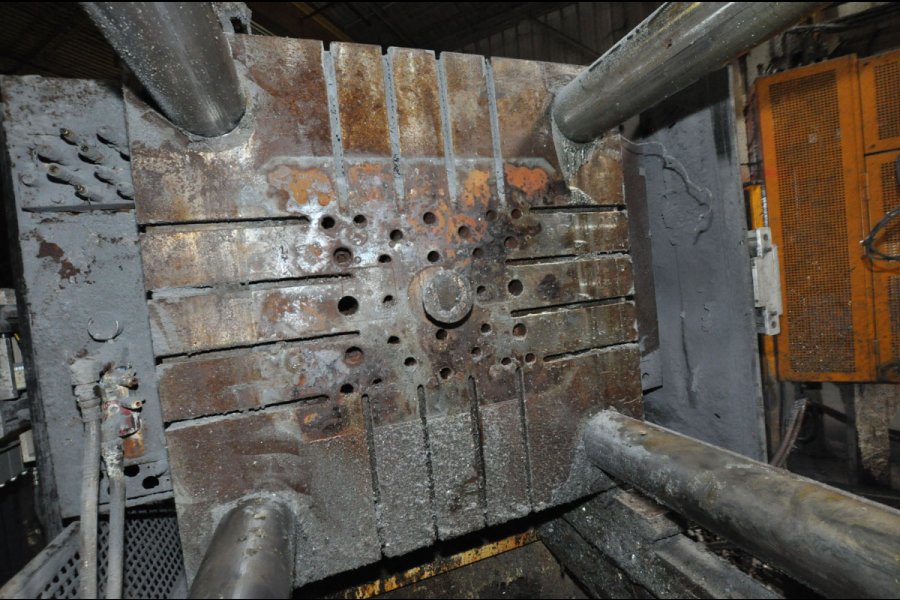

| Moving Platen Size: |
50.00 x 50.00 inches
|
| Shot Positions: |
Inserted, 0 to -9
|
| Shot Stroke: |
25.59 inches
|
| Hydraulic Ejection Stroke & Force: |
6.70 inches @ 41.6 tons
|
| Power: |
480/3/60 - 50 HP
|
| Machine Size: |
27.22 x 8.53 x 10.83 feet
|
| Machine Weight: |
78,264 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
| Colosio PFO 750 automated die casting machine cell - Sister Machine |
Document(s) For This Machine
Description
Used, Colosio Model PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment System with Electronic Strain Gauge System, Fully Automatic Top Operator Side Mounted Tie Bar Puller System, Four (4) Auxiliary Hydraulic Core Circuits - Two (2) on Stationary platen, Two (2) on Moving Platen, Hydraulic Bumper Plate Ejection System with Automatic Ejector Bar Engagement System for Quick Die Change, Automatic Linkage Lubrication System, Machine is factory equipped with automatic ladle, automatic die spray, six axis robot for extraction, four post vertical trim press, safety doors and perimeter fencing, Solid State Controls controls, second Hand, DCM-5318
