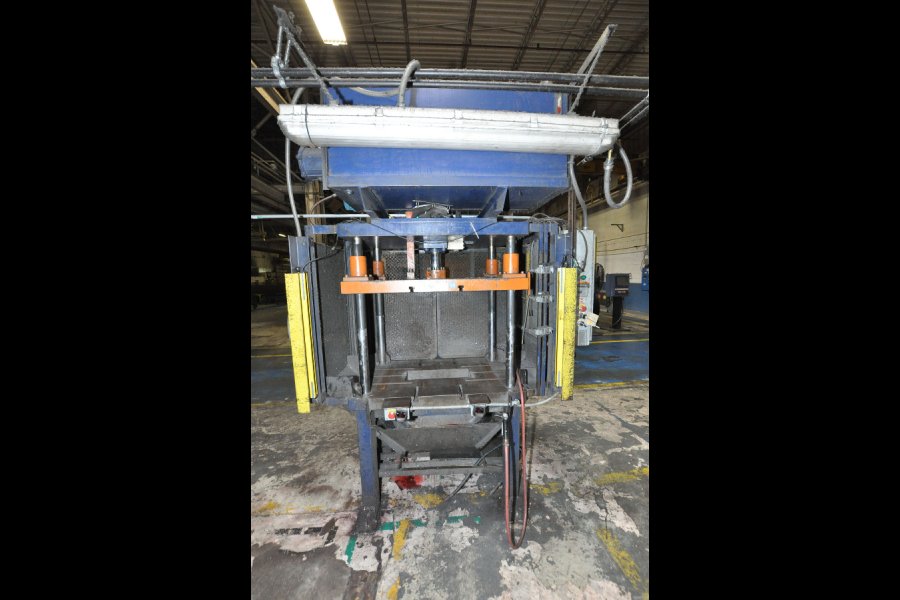

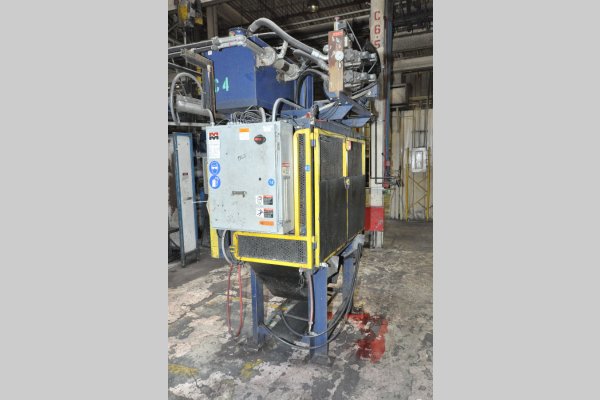

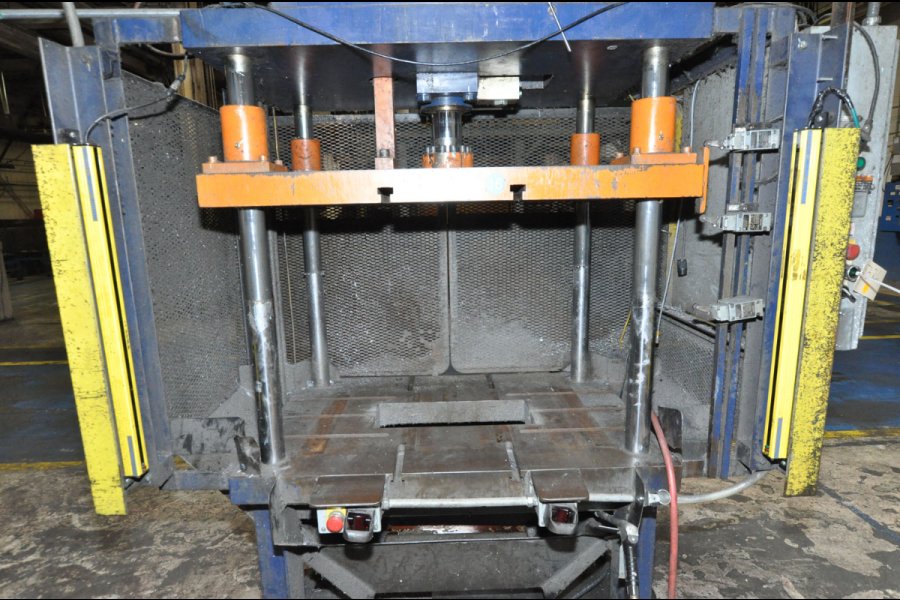

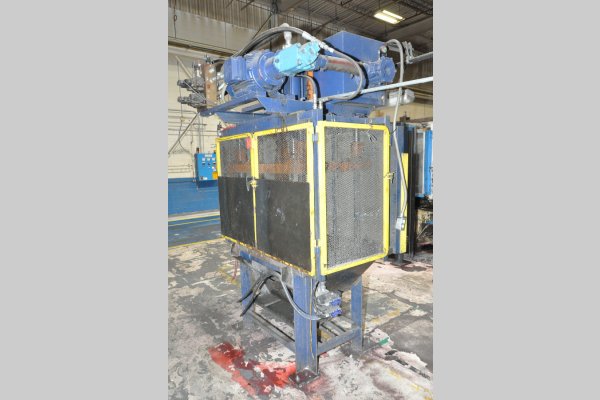

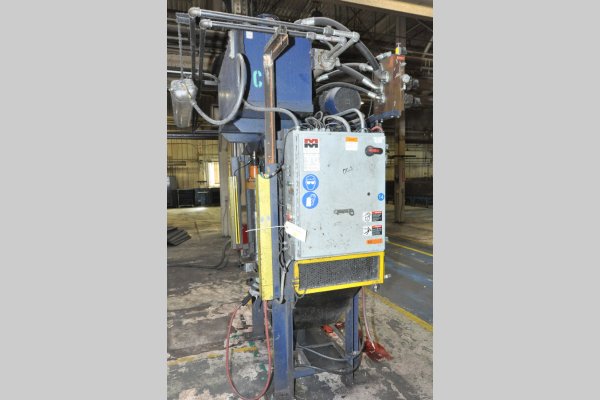

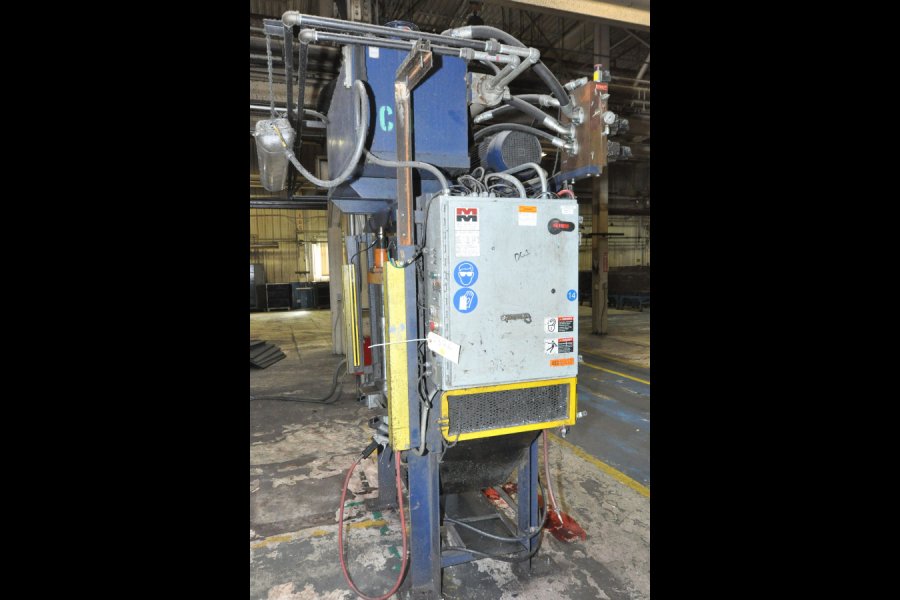

Used Metal Mechanics Model: DCT-20 20 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Metal Mechanics
Model: DCT-20
Size: 20 U.S. Ton
Inventory Number: DCM-5326
Used Metal Mechanics Model: DCT-20 20 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press.
Features & Accessories:
- Air Safety Ratchet Device

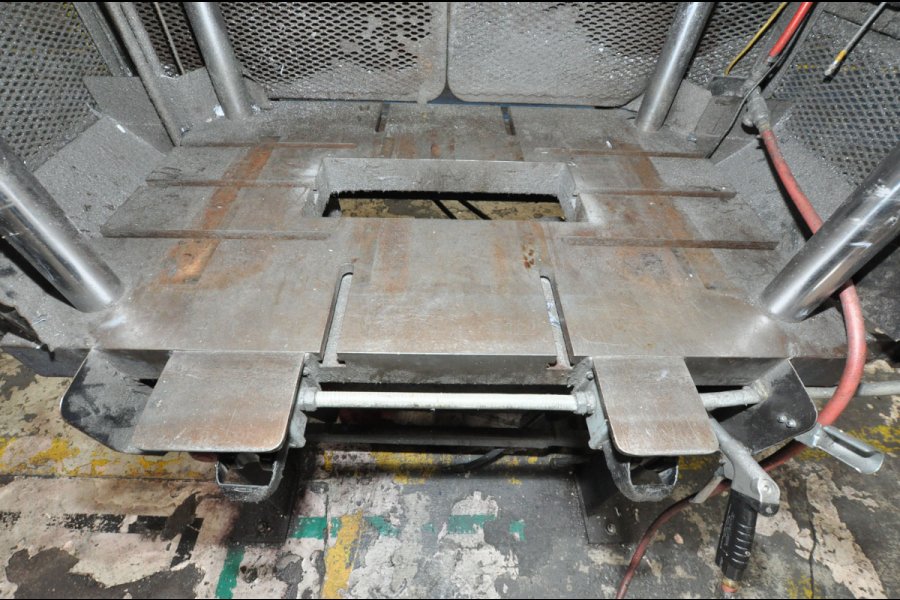

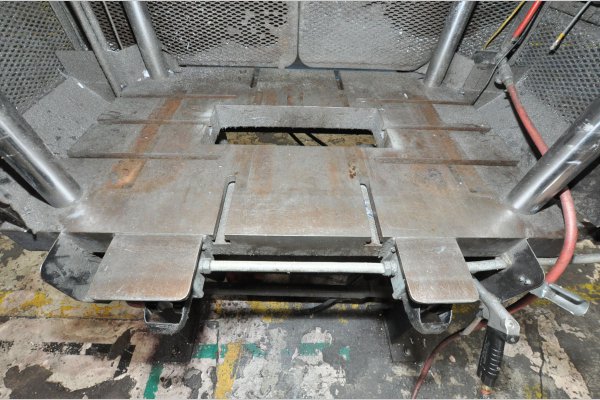

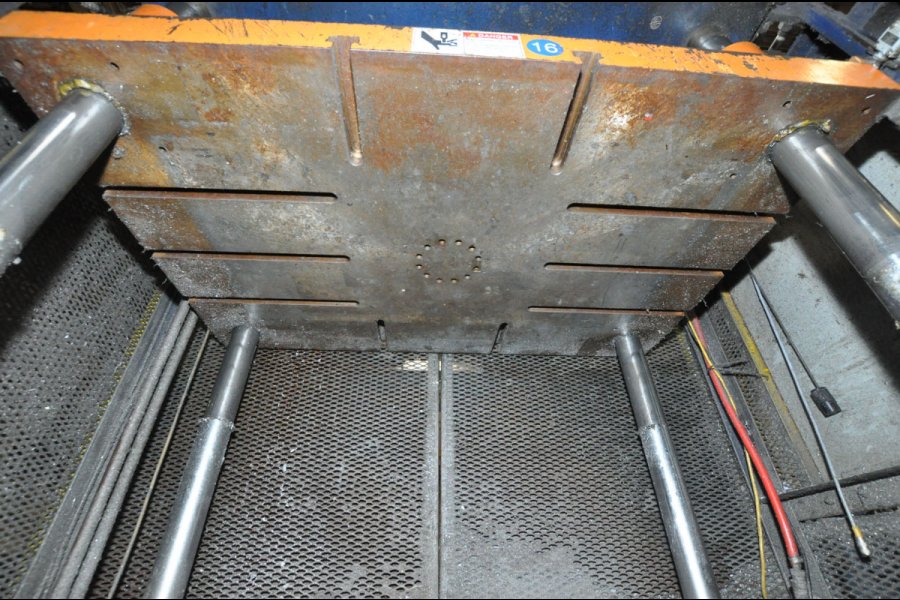

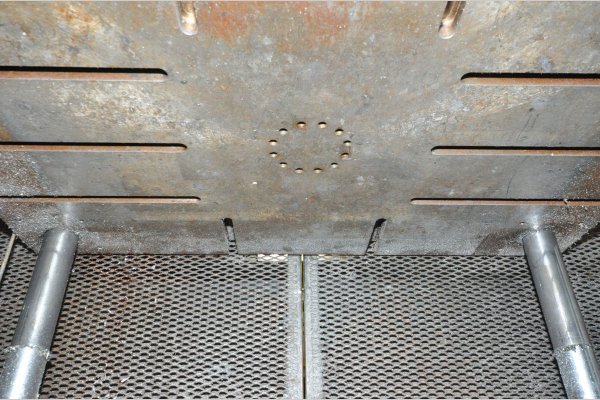

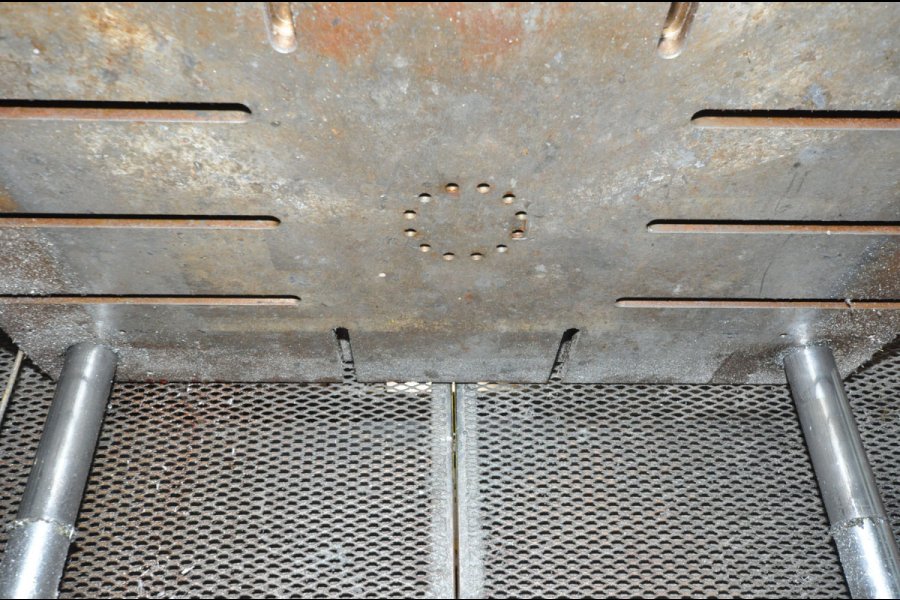

- T-Slotted Bed & Movable Platen

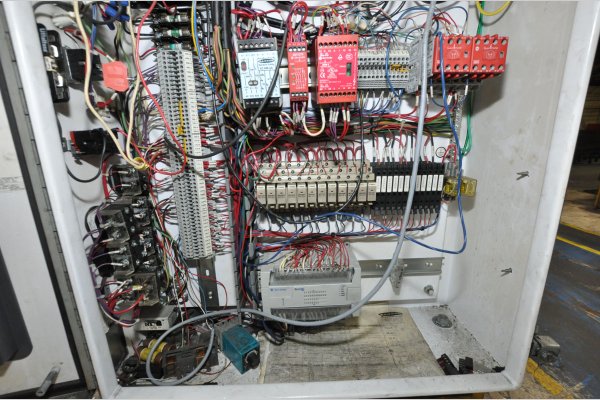

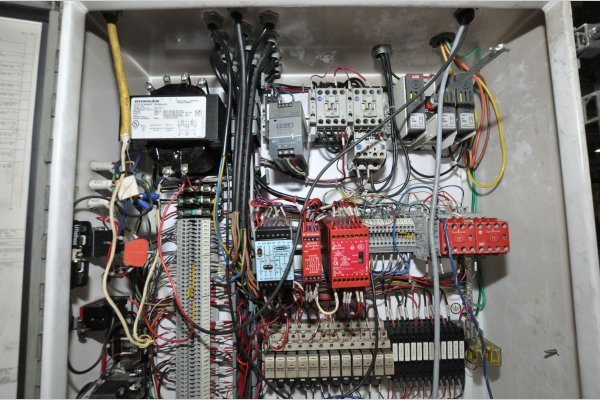

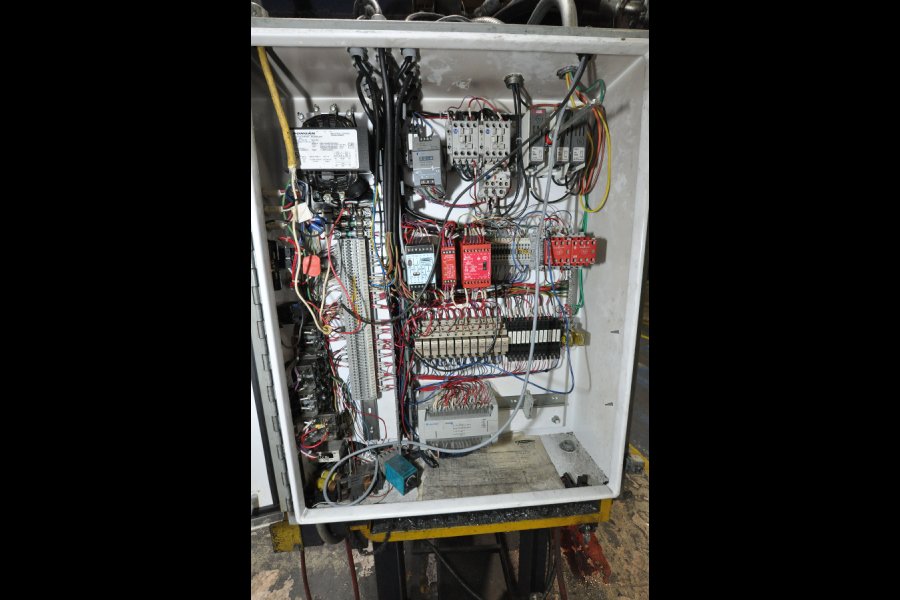

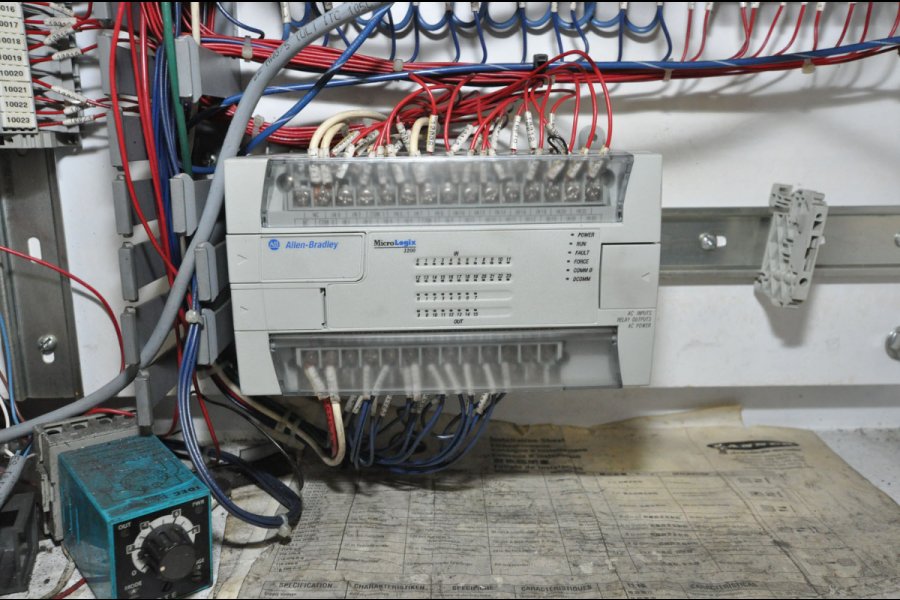

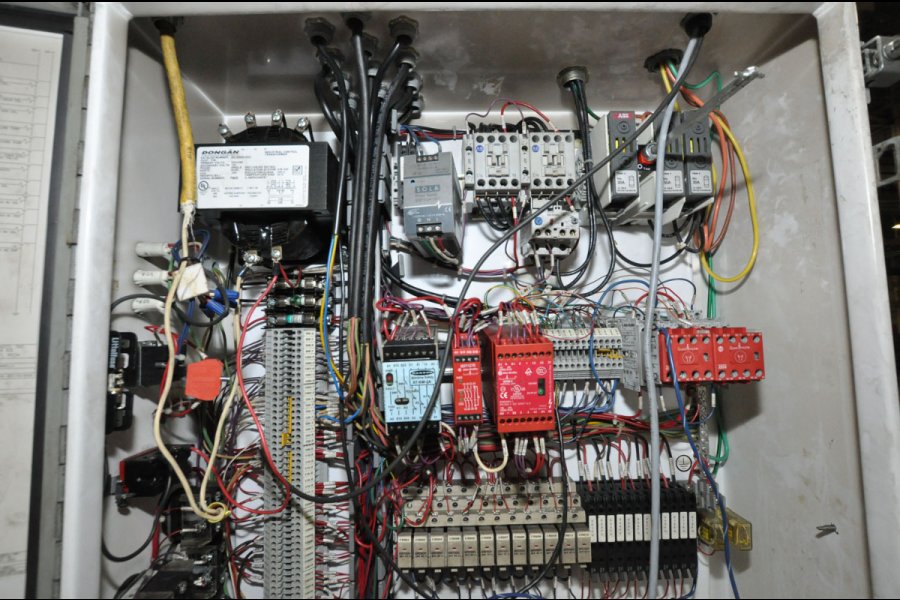

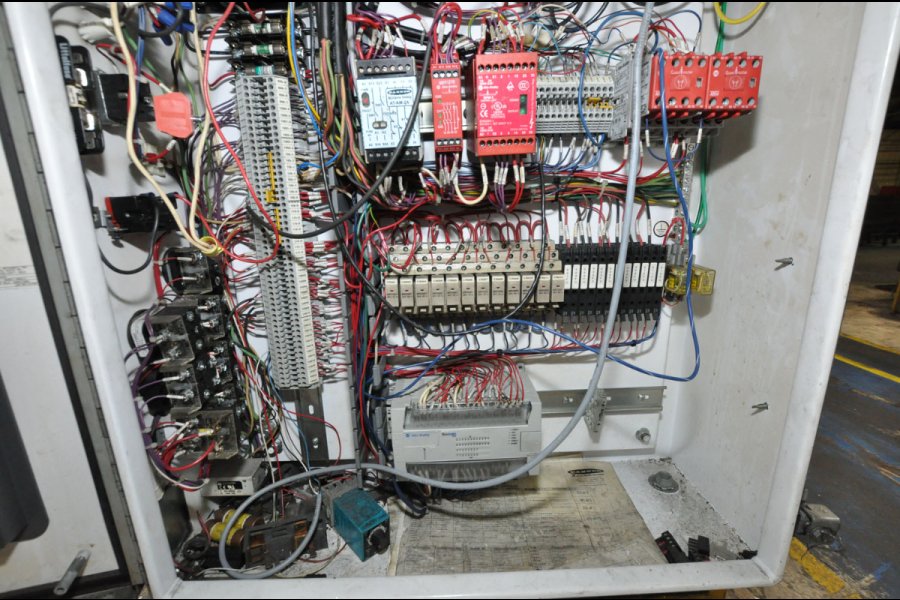

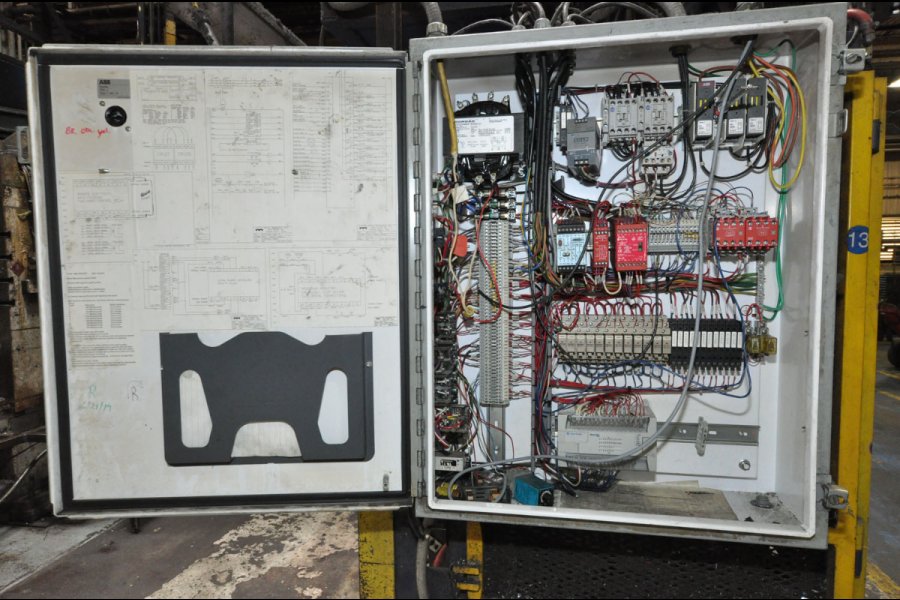

- Allen Bradley MicroLogix 1200 Solid State PLC Controls

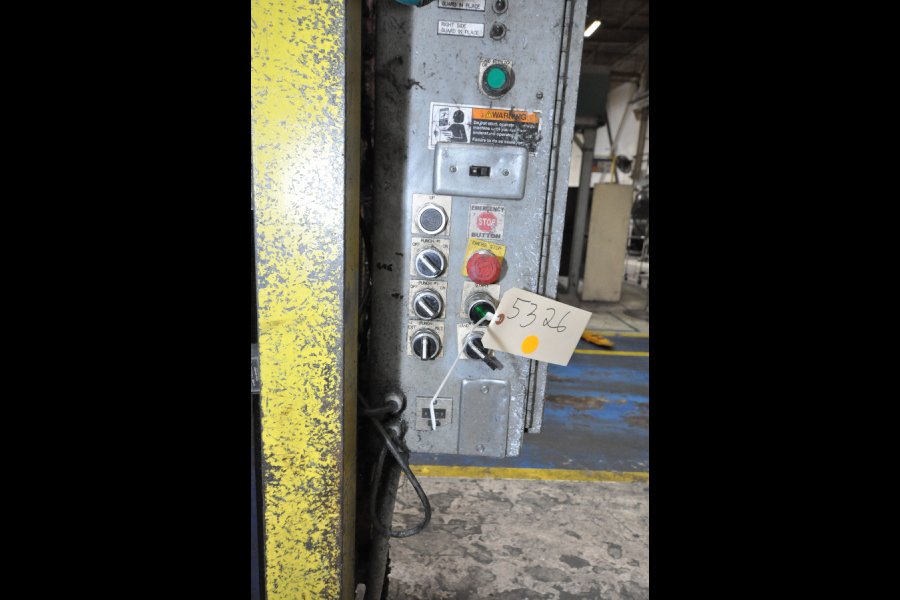

- Dual Soft-Touch Proximity Switch Operation with Light Curtains
- Two (2) Auxiliary Side Core Punch Circuits

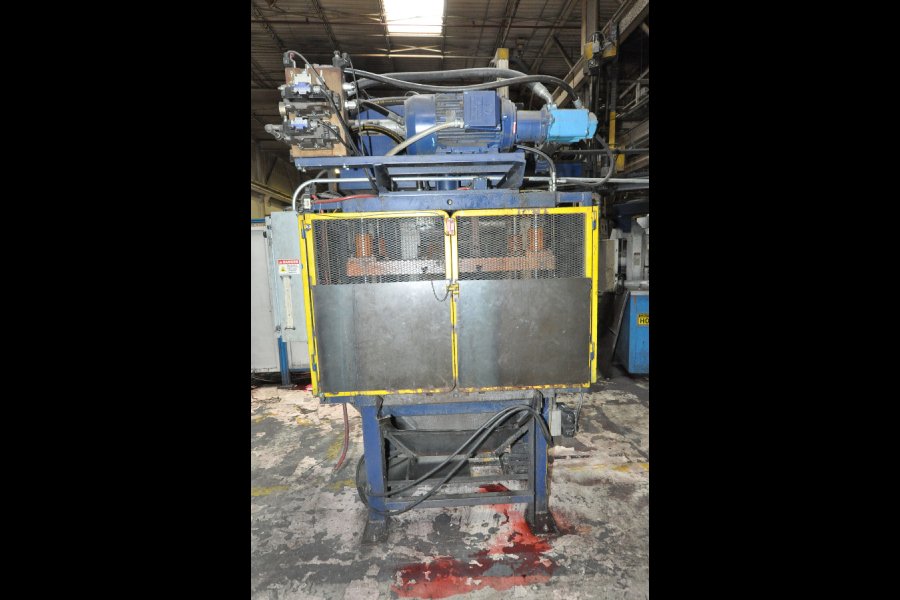

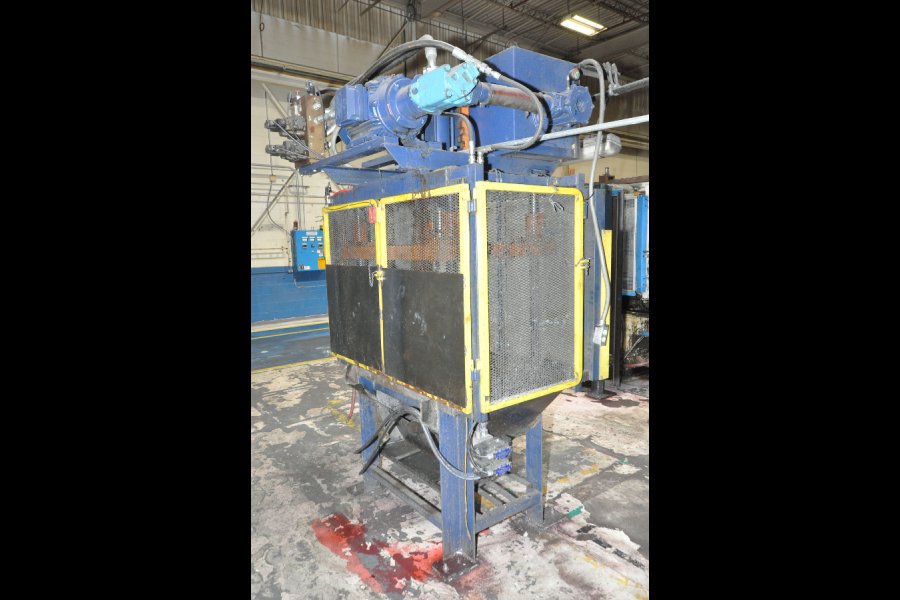

- Top Mounted Hydraulics
Notice: Undefined index: feature7 in /home/diecastm/public_html/modules/machineshow-seo2018.php on line 455
Item Specifications for DCM-5326
| Specifications | |
|---|---|
| Model: |
DCT-20
|
| Pressing Tonnage: |
20 tons
|
| Number of Columns: |
4
|
| Column Diameter: |
2.5 inches
|
| Daylight: |
30 inches
|
| Stroke: |
20 inches
|
| Shut Height: |
10 inches
|
| Cut-Out in Bed (L/R x F/B): |
20 x 8 inches
|
| Clearance between Tie Bars (Left to Right): |
36 inches
|
| Clearance between Tie Bars (Front to Back): |
20 inches
|
| Bed Size (Left to Right by Front to Back): |
46 x 30 inches
|
| Overall Size & Weight: |
78 x 58 x 115 inches, 5,000 pounds
|
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Metal Mechanics Model DCT-20 20 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Device, T-Slotted Bed & Movable Platen, Allen Bradley MicroLogix 1200 Solid State PLC Controls, Dual Soft-Touch Proximity Switch Operation with Light Curtains, Two (2) Auxiliary Side Core Punch Circuits, Top Mounted Hydraulics, Allen Bradley MircroLogix 1200 Solid State Controls controls, second Hand, DCM-5326
See jumbo large photos of this Metal Mechanics DCT-20
