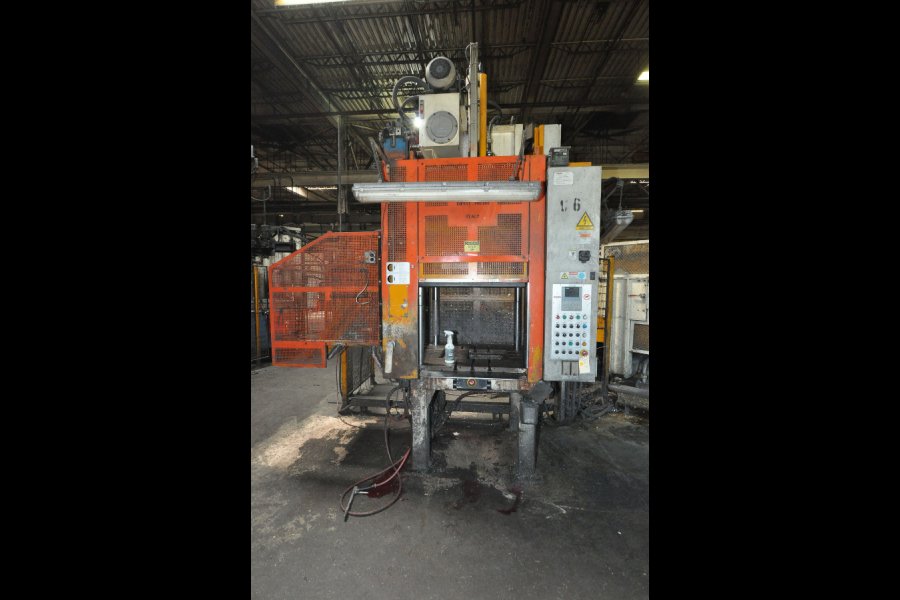

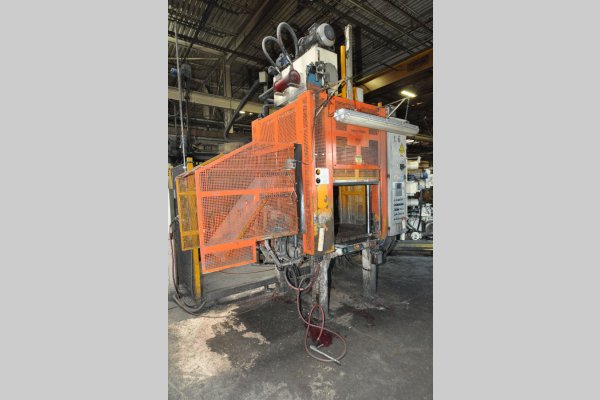

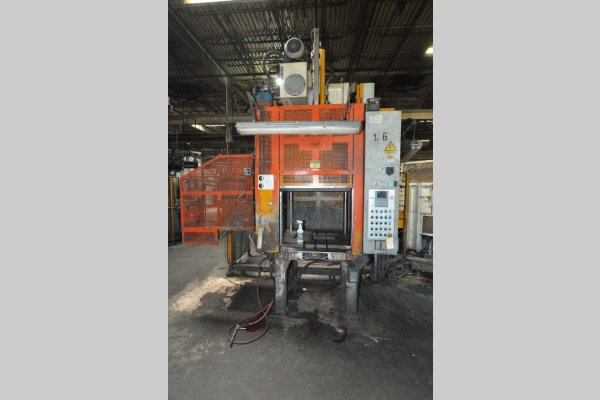

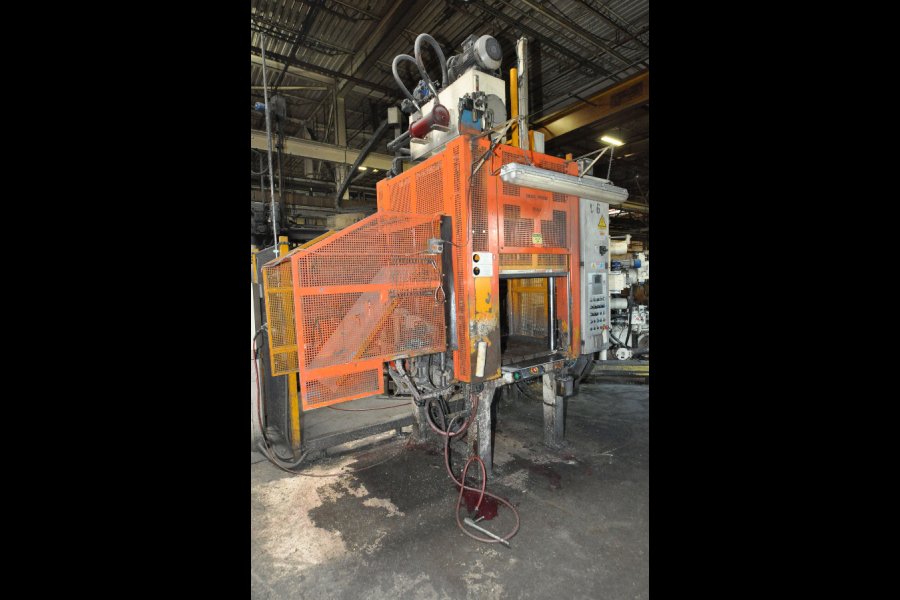

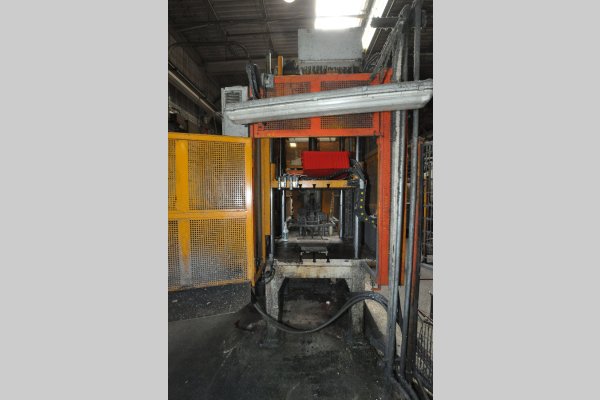

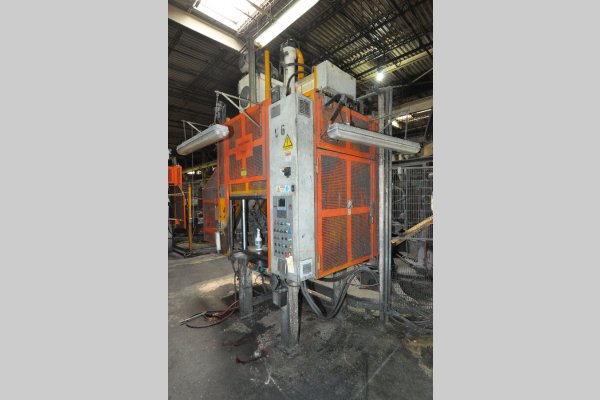

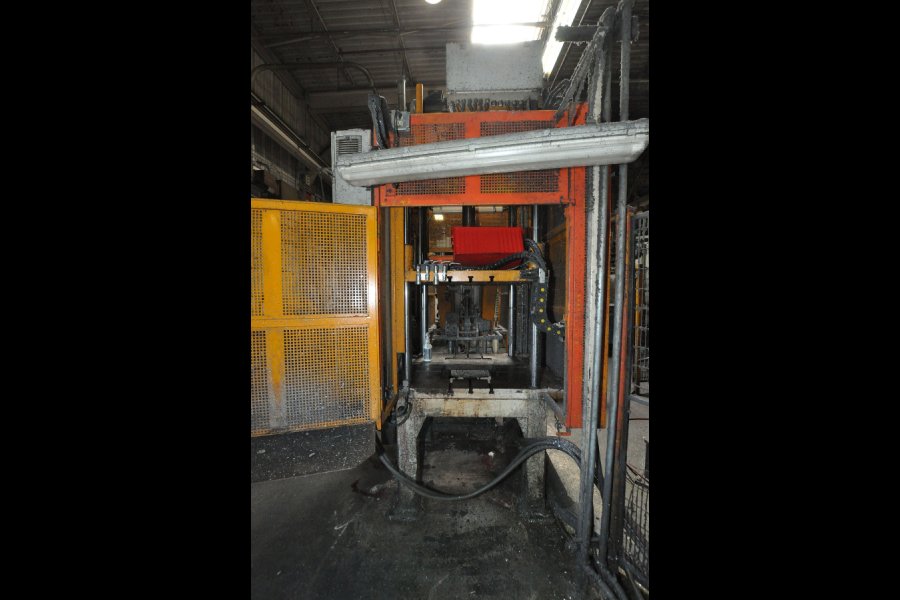

Used Diesse Presse Model: T35NG+ 35 Metric Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Diesse Presse
Model: T35NG+
Size: 35 Metric Ton
Inventory Number: DCM-5327
Used Diesse Presse Model: T35NG+ 35 Metric Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press.
Features & Accessories:

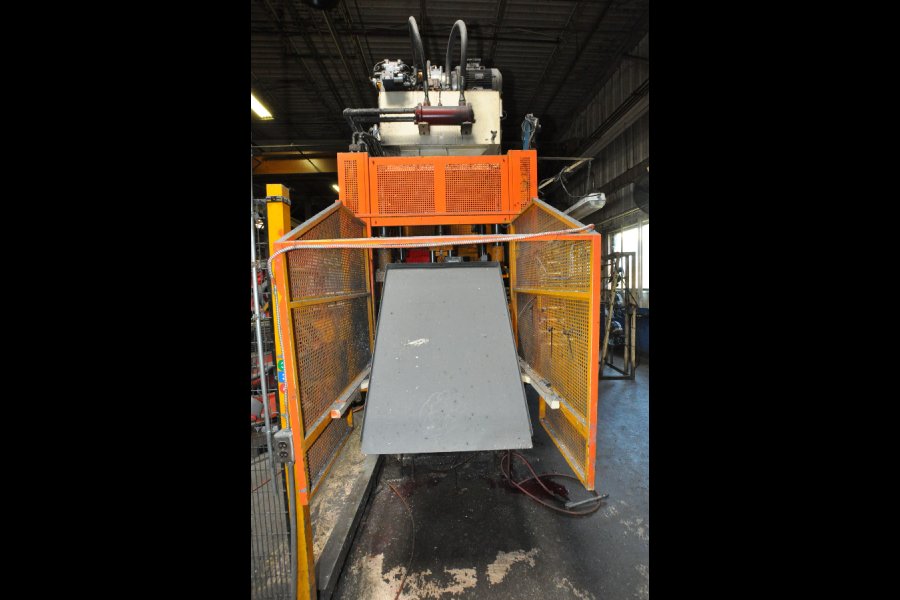

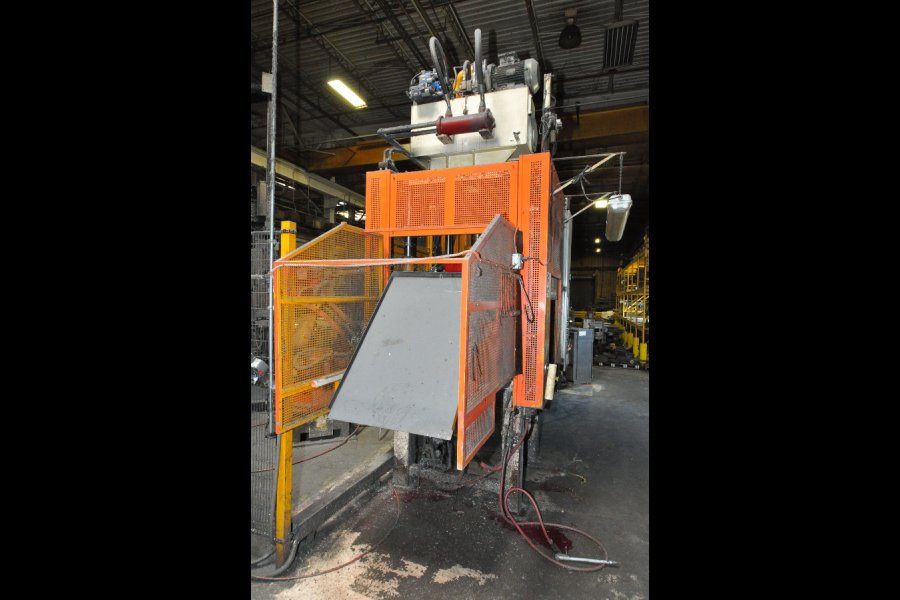

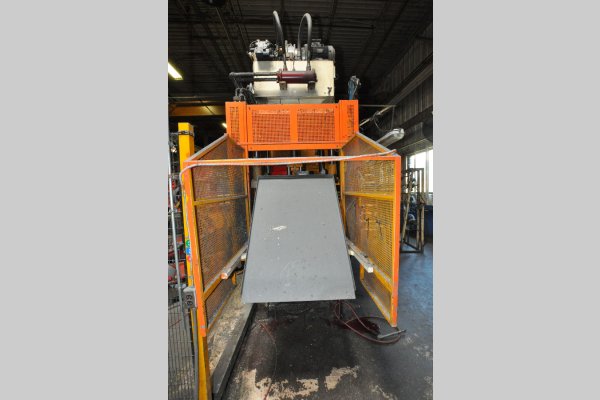

- New in 2012, includes factory installed shuttle-table for unloading trimmed parts.
- Safety Bar Device

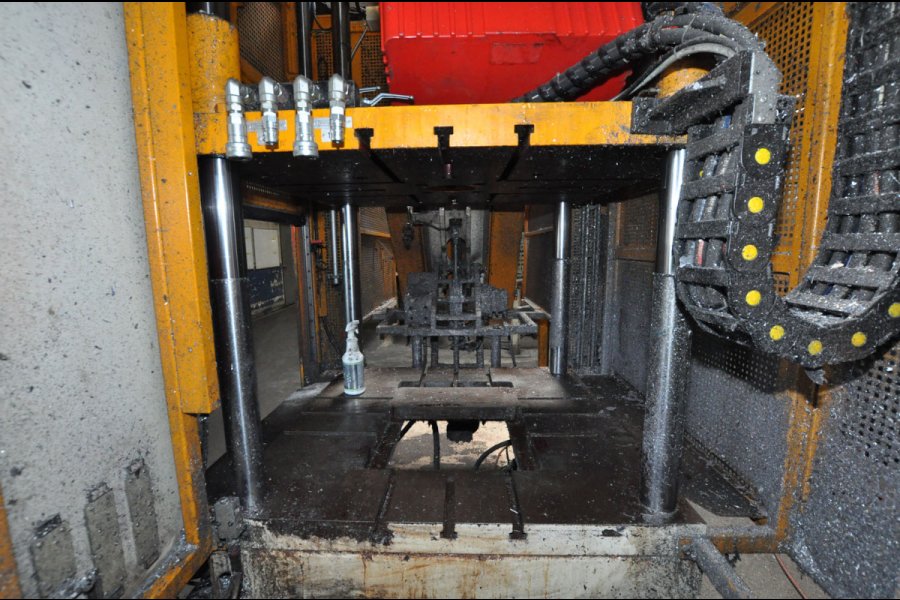

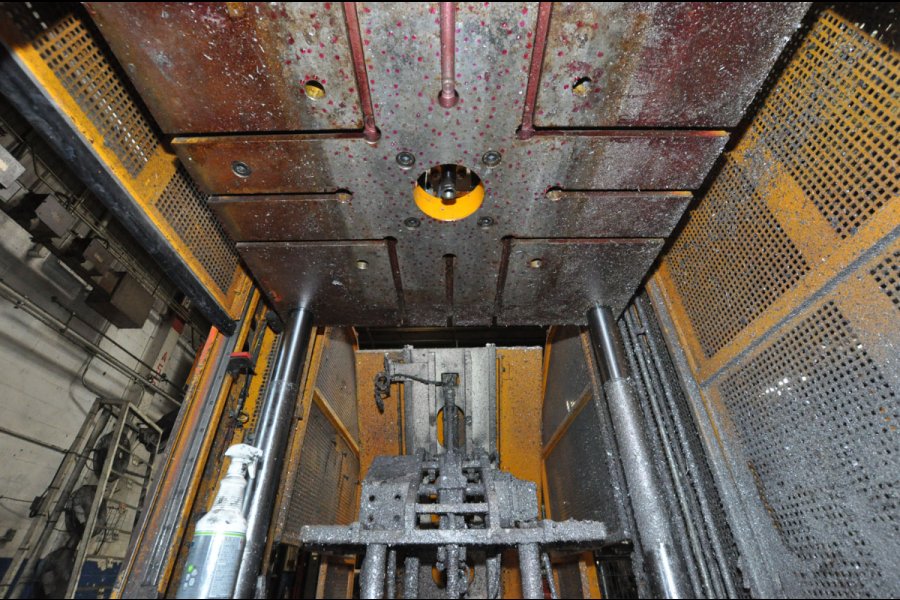

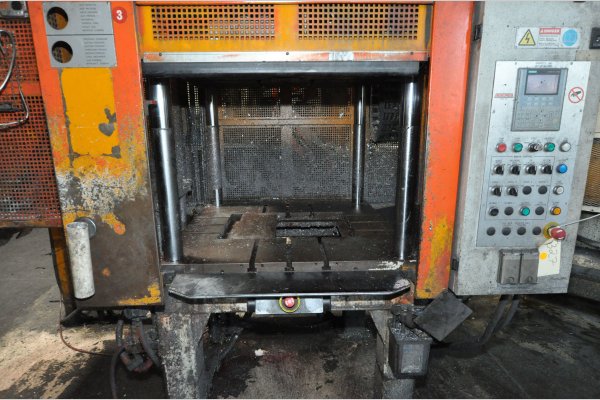

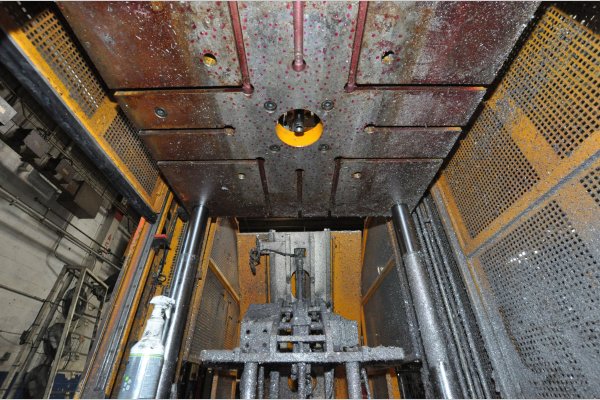

- T-Slotted Bed & Movable Platen

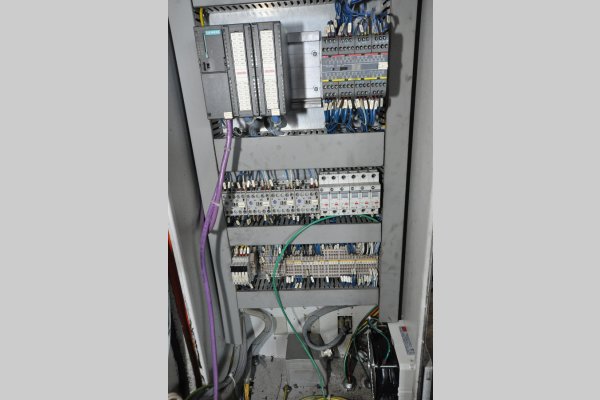

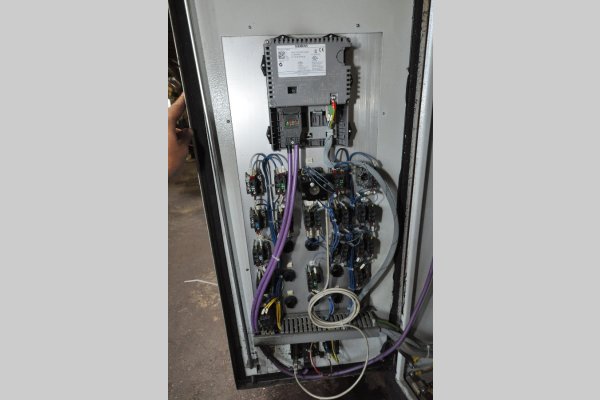

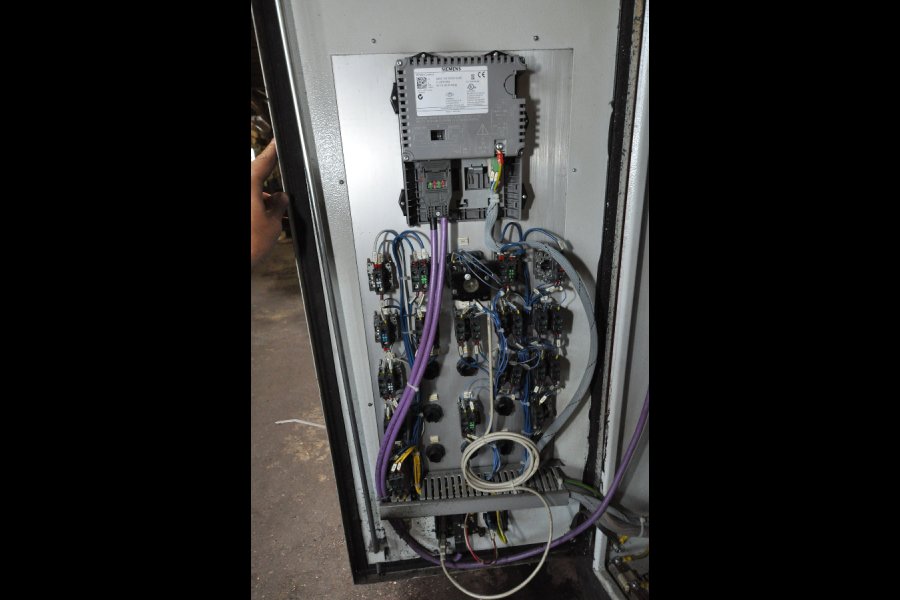

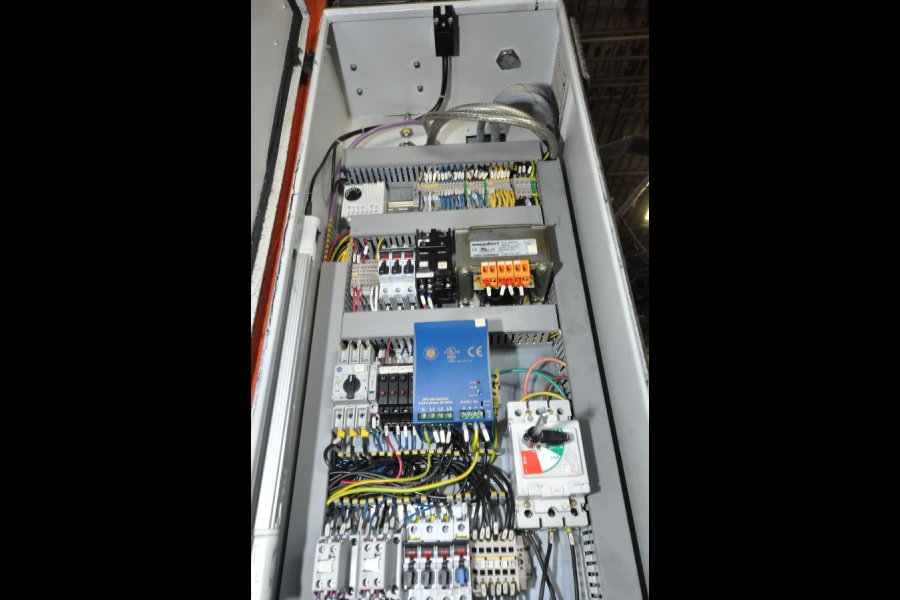

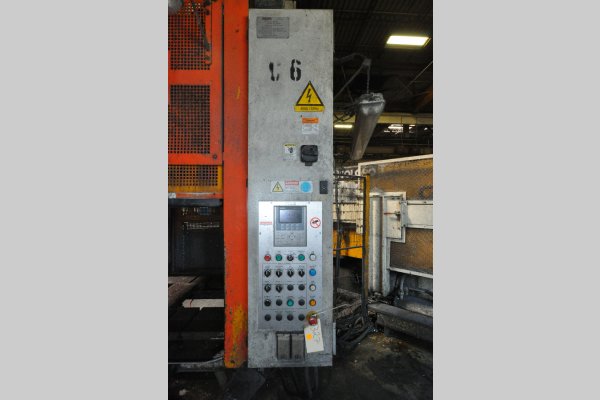

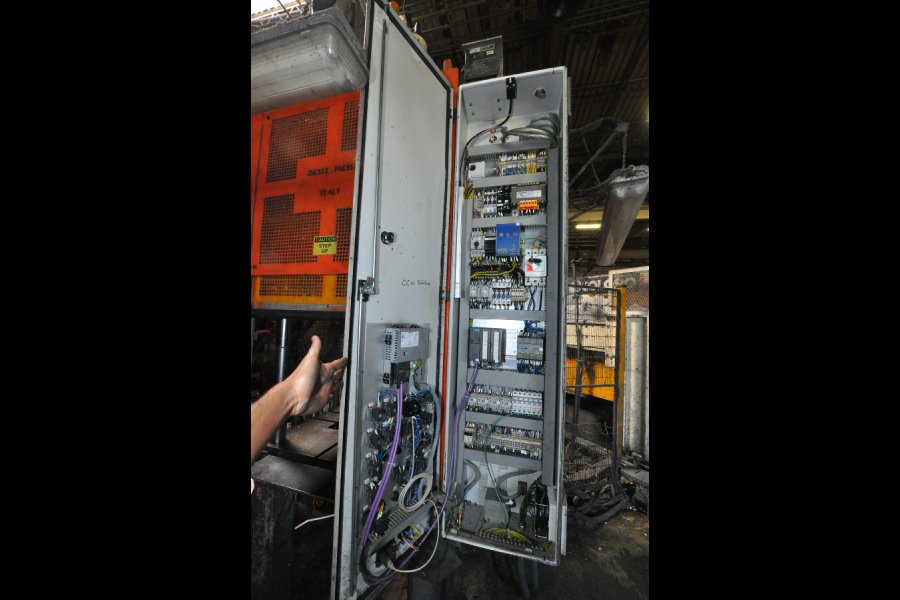

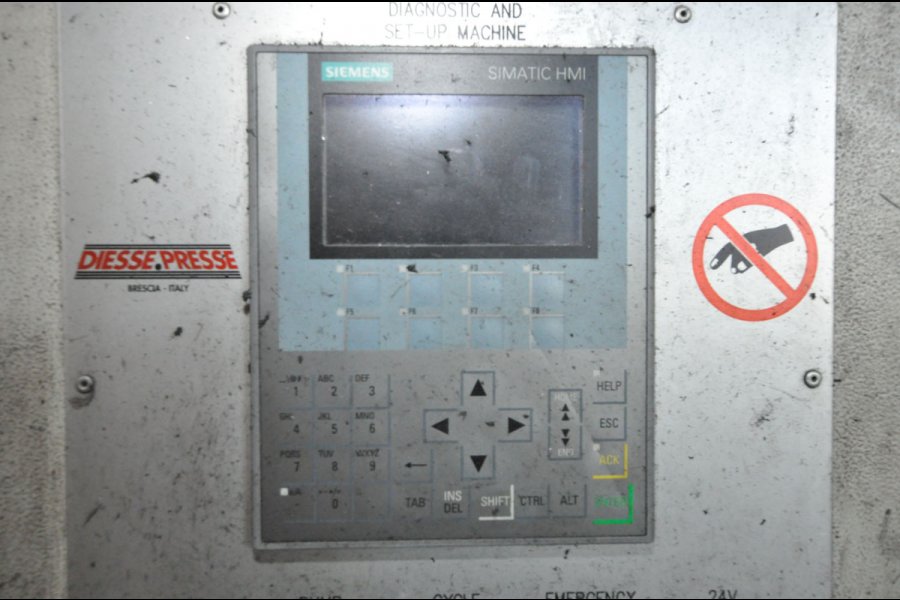

- Siemens S7-300 Solid State Controls with Color Touch-Screen HMI

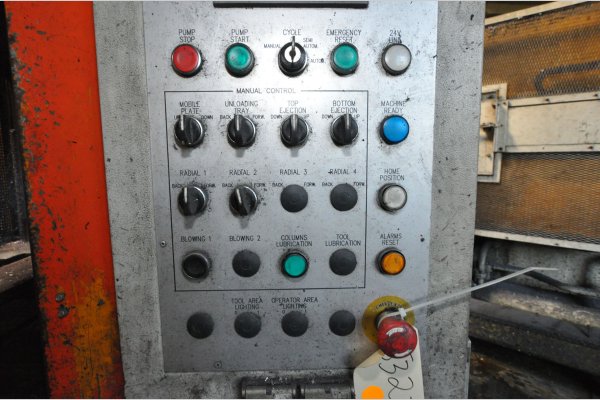

- Dual Palm Button Operation with Safety Barrier Door

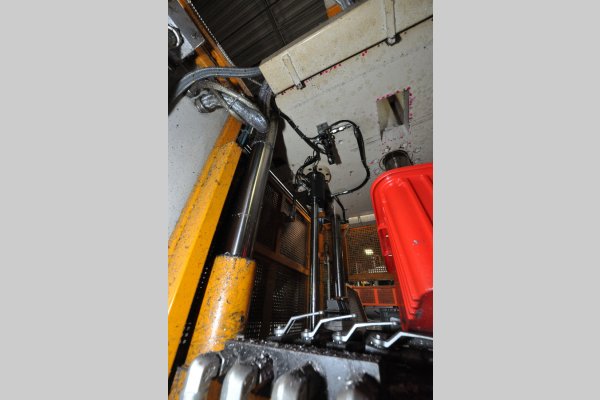

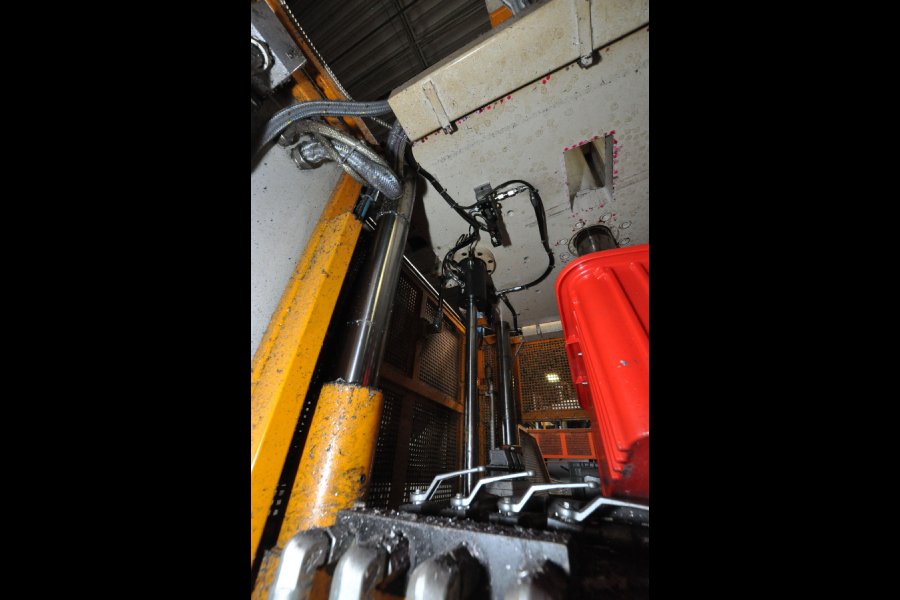

- Two (2) Auxiliary Side Core Punch Circuits, Center Hydraulic Part Ejector Cylinder
- Top Mounted Hydraulics
Item Specifications for DCM-5327
| Specifications | |
|---|---|
| Model: |
T35GN+
|
| Pressing Tonnage: |
38.5 tons
|
| Number of Columns: |
4
|
| Column Diameter: |
3 inches
|
| Daylight: |
47 inches
|
| Stroke: |
25 inches
|
| Shut Height: |
22 inches
|

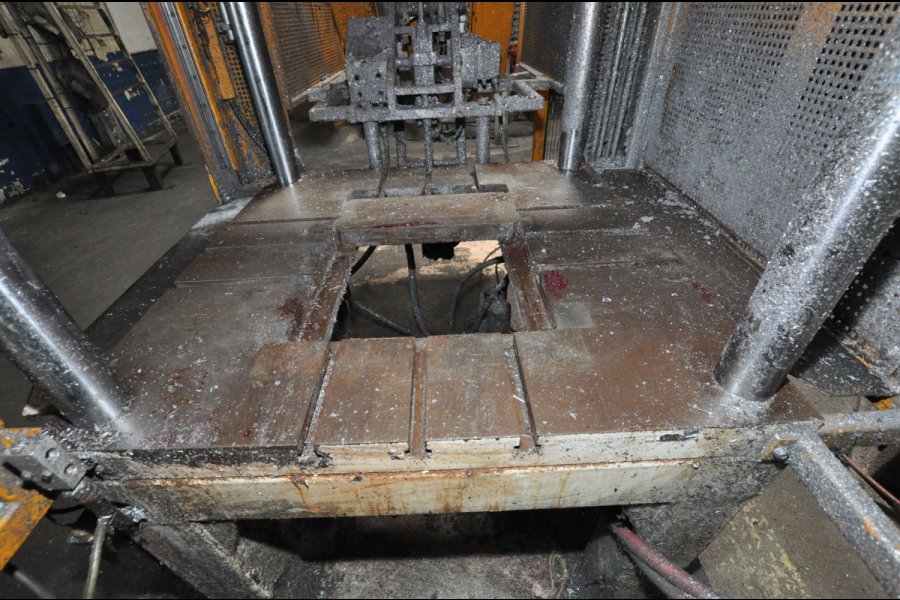

| Cut-Out in Bed (L/R x F/B): |
28 x 19.5 inches (removable filler plates)
|
| Clearance between Tie Bars (Left to Right): |
35 inches
|
| Clearance between Tie Bars (Front to Back): |
35 inches
|
| Bed Size (Left to Right by Front to Back): |
44.5 x 44.5 inches
|
Description
Used, Diesse Presse Model T35NG+ 35 Metric Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Safety Bar Device, T-Slotted Bed & Movable Platen, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI, Dual Palm Button Operation with Safety Barrier Door, Two (2) Auxiliary Side Core Punch Circuits, Center Hydraulic Part Ejector Cylinder, Top Mounted Hydraulics, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI controls, second Hand, DCM-5327
