Used Royson Engineering Model: 20-CTV-IS 20 Cubic Feet Vibratory Bowl Finishing Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Royson Engineering

Model: 20-CTV-IS

Size: 20 Cubic Feet

Inventory Number: DCM-5598

Used Royson Engineering Model: 20-CTV-IS 20 Cubic Feet Vibratory Bowl Finishing Machine.

View Available Vibratory Finishing Equipment

Click above for larger image

Features & Accessories:

  • Machine was purchased new and has never been installed - Includes Vibratory Feed Hopper System, Media Compound Infusion System, Settling Tank, 1,500 pounds of Ceramic Media and 55 Gallon Drum of Royson #55 Compound
  • Long-Life Poly-Urethane Lining
  • Control Panel with Variable Speed Drive system and Control for dosing compound media solution
  • Pnuematic Ramp Control for unloading
  • Ramp Screen for Parts/Media Seperation
  • Pneumantic Powerd Up/Down Sound Hood Enclosurer

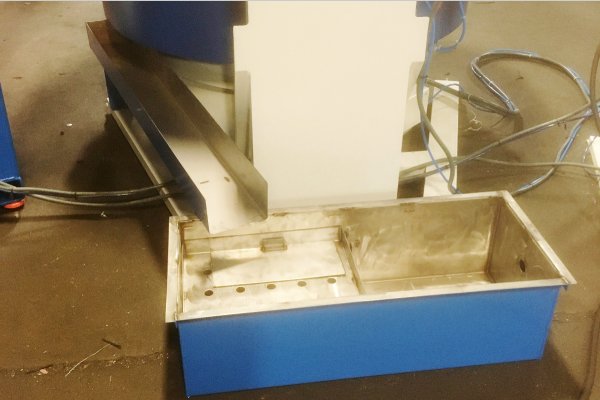

  • Settling Tank

Item Specifications for DCM-5598

Specifications
Maximum Working Capacity:
20 Cubic Feet
Main Drive Motor:
7.5 HP Variable Speed
Process Channel Width:
17 Inches
Process Channel Shape:
U
Screen Deck Width:
17 Inches
Overall Height:
58.0 Inches
Overall Diameter:
69 Inches
Approximate Weight:
3,220 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Royson Engineering Model 20-CTV-IS 20 Cubic Feet Vibratory Bowl Finishing Machine For_Sale, Features Include: Long-Life Poly-Urethane Lining, Control Panel with Variable Speed Drive system and Control for dosing compound media solution, Pnuematic Ramp Control for unloading, Ramp Screen for Parts/Media Seperation, Pneumantic Powerd Up/Down Sound Hood Enclosurer, Settling Tank, Royson controls, second Hand, DCM-5598

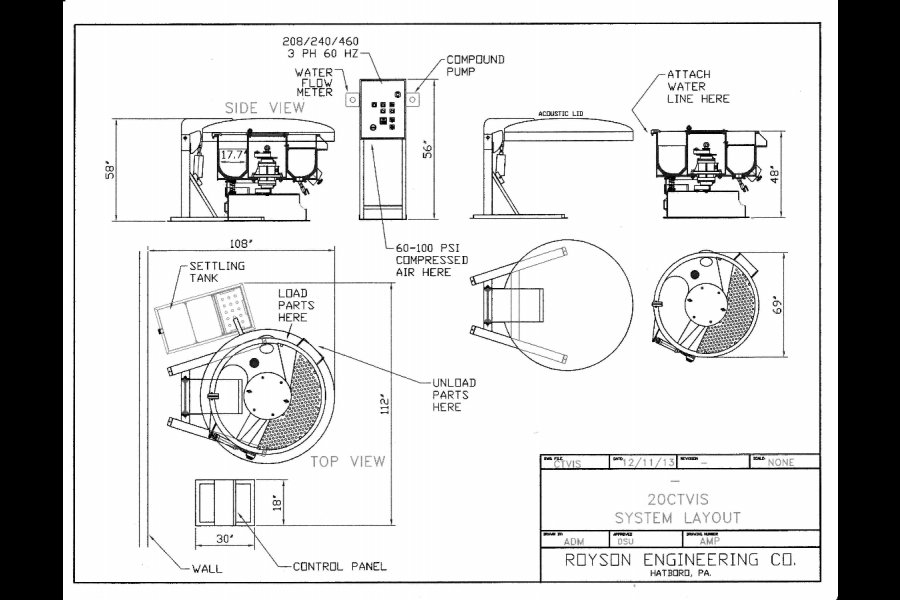

See jumbo large photos of this Royson Engineering 20-CTV-IS
