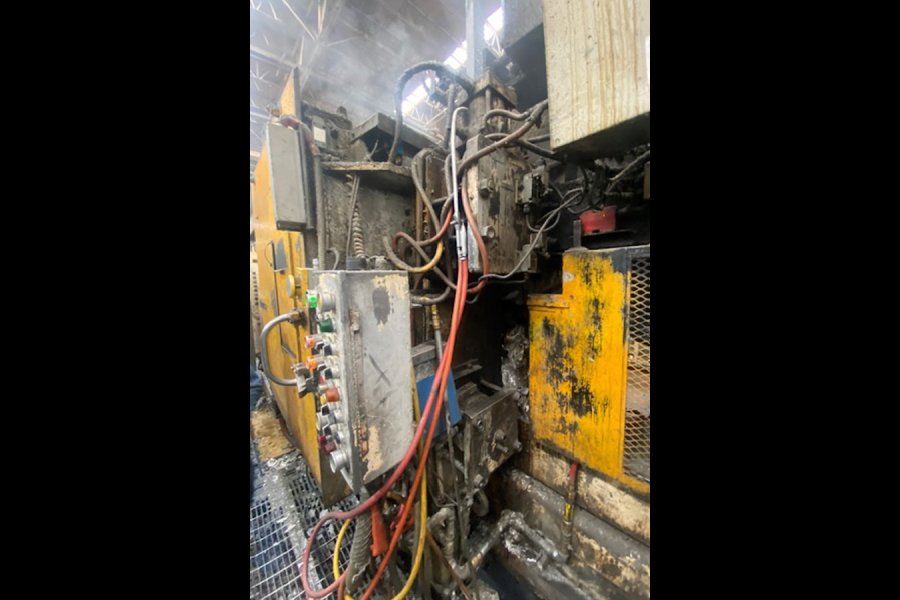

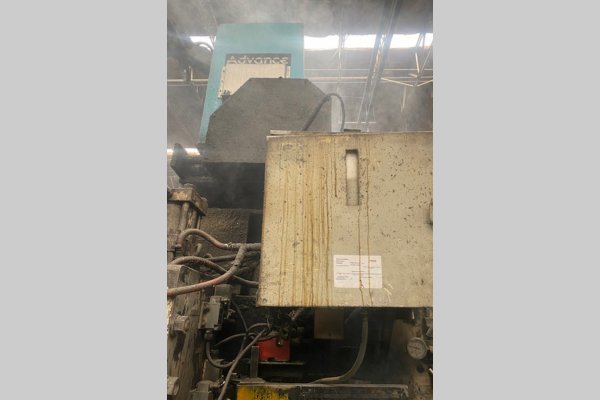

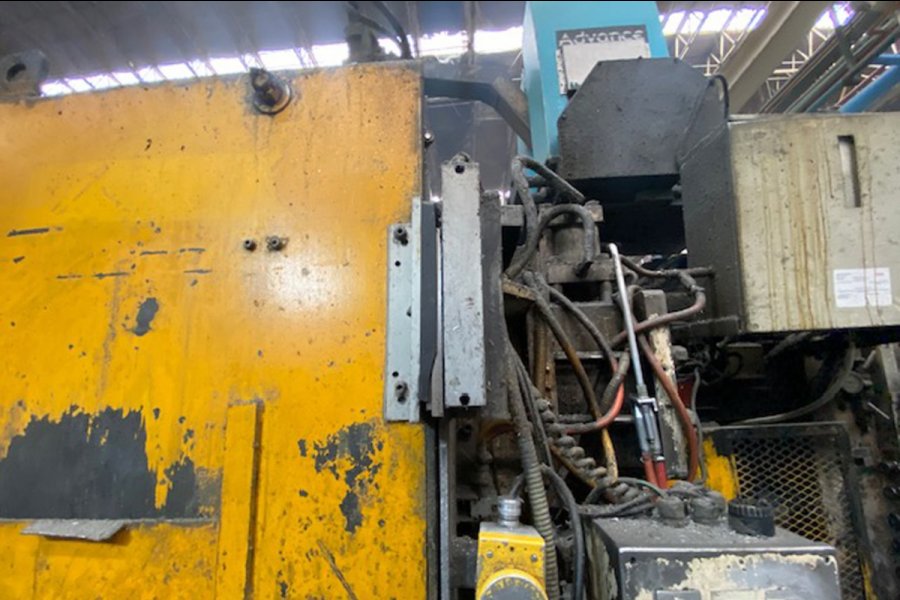

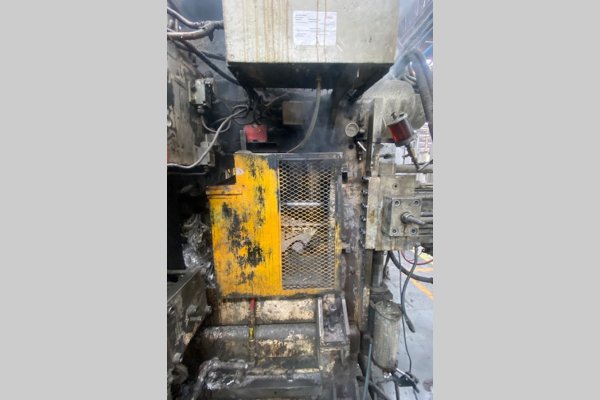

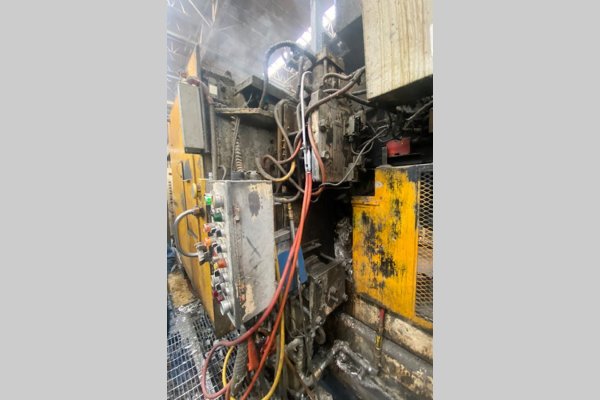

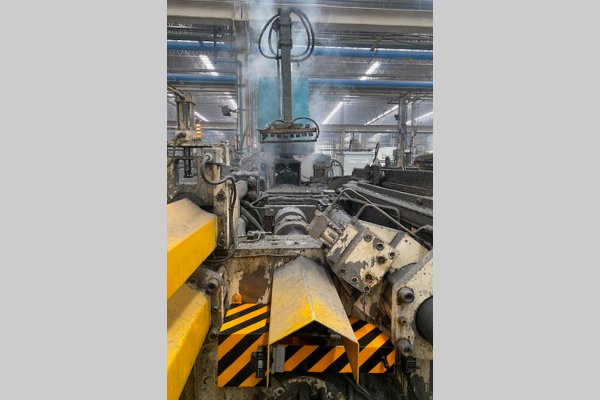

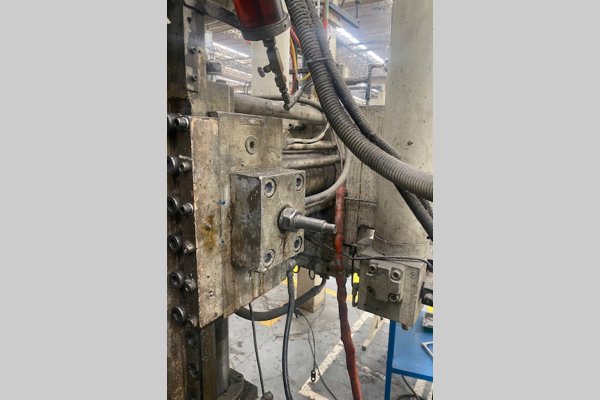

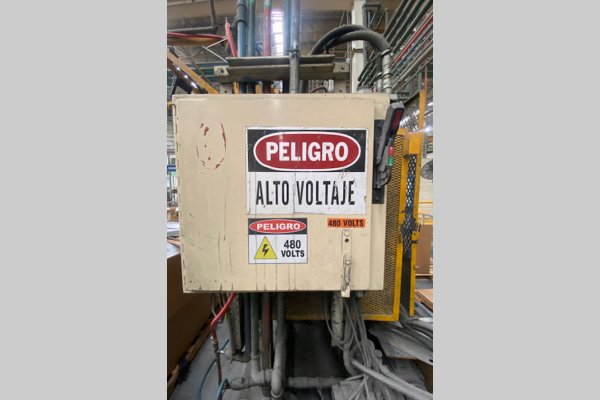

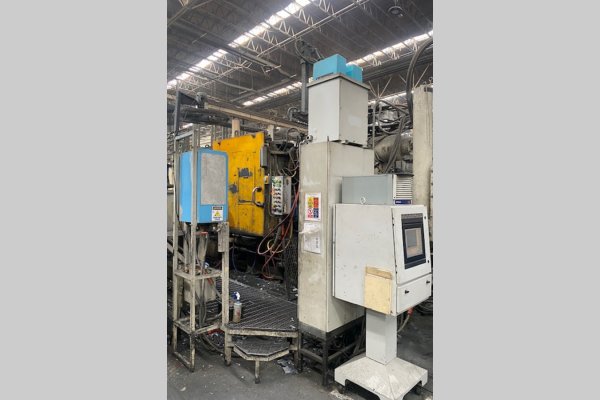

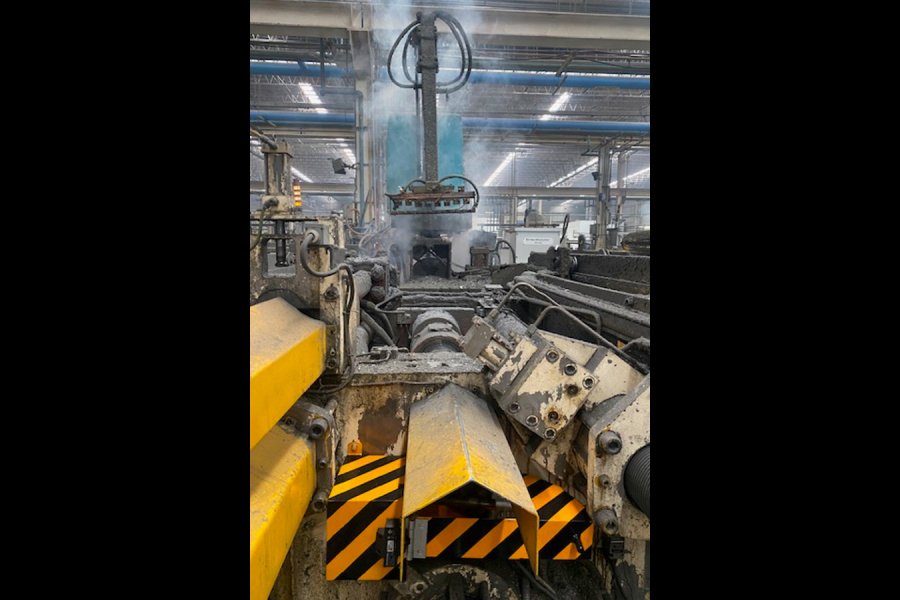

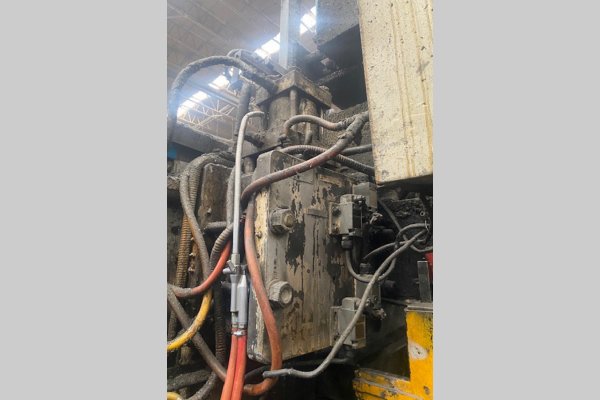

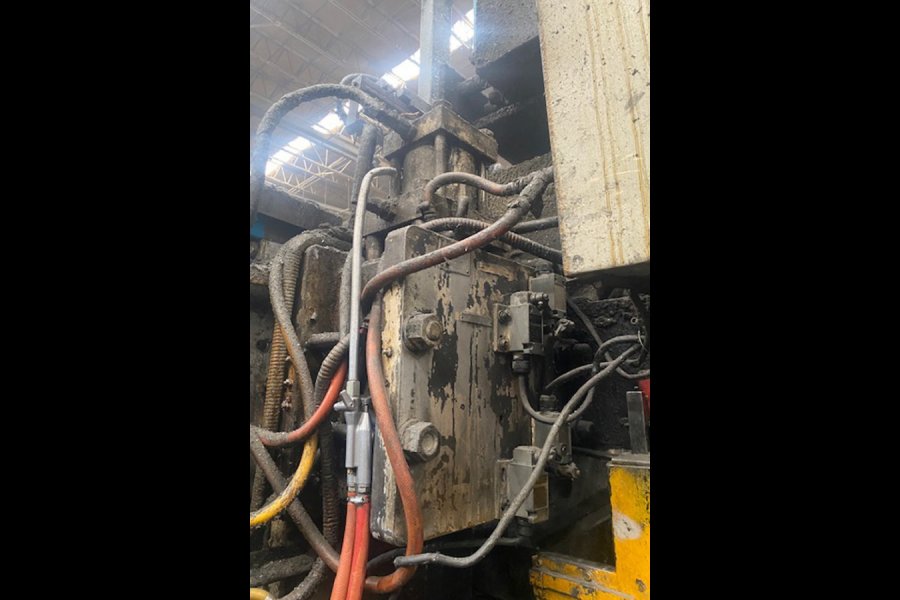

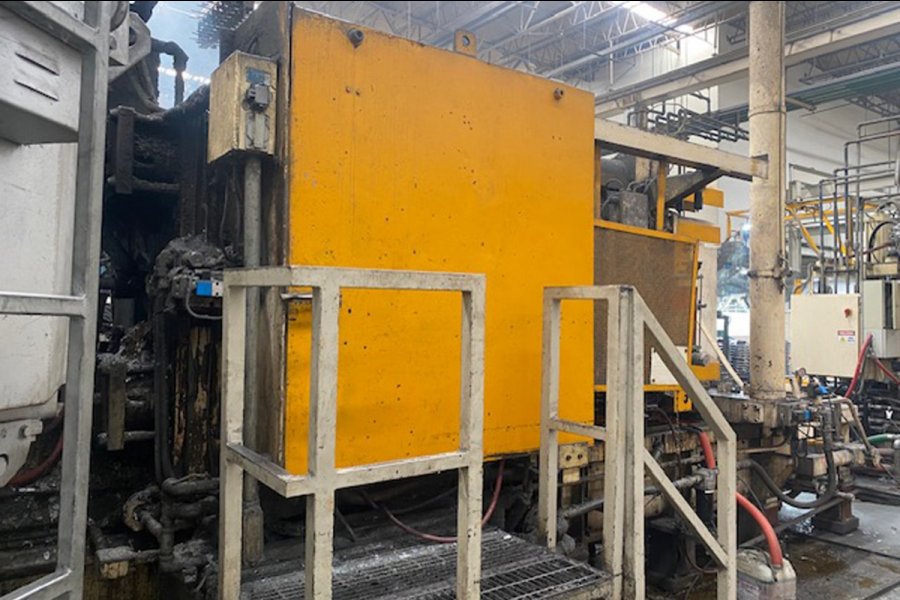

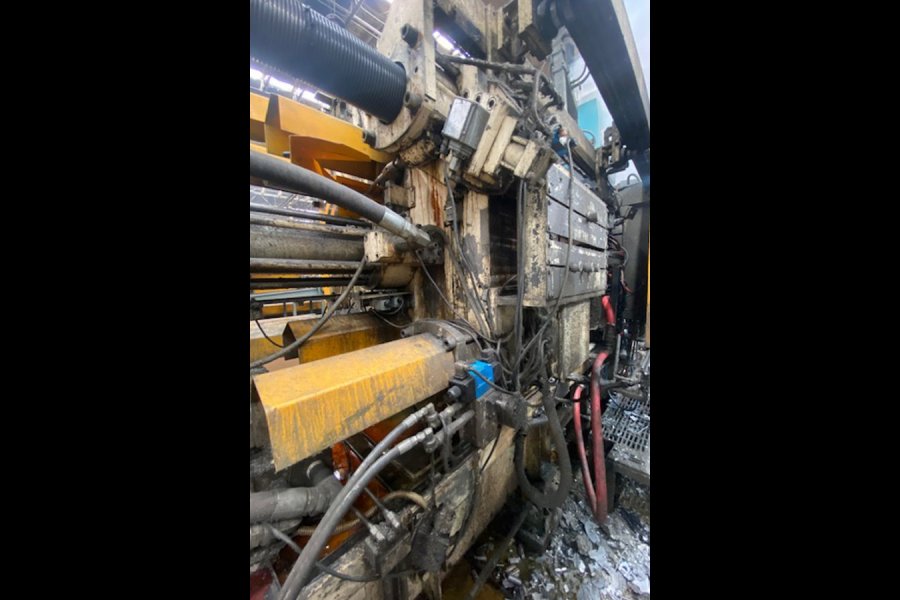

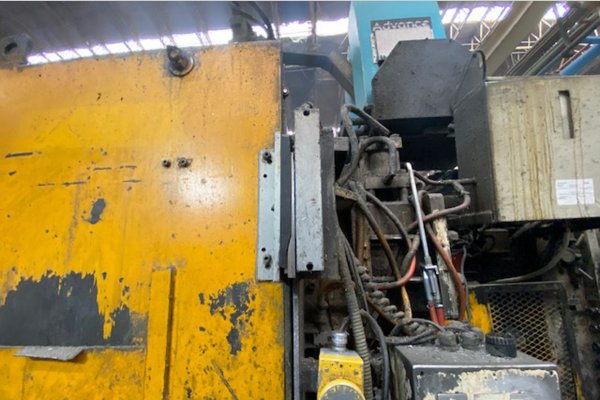

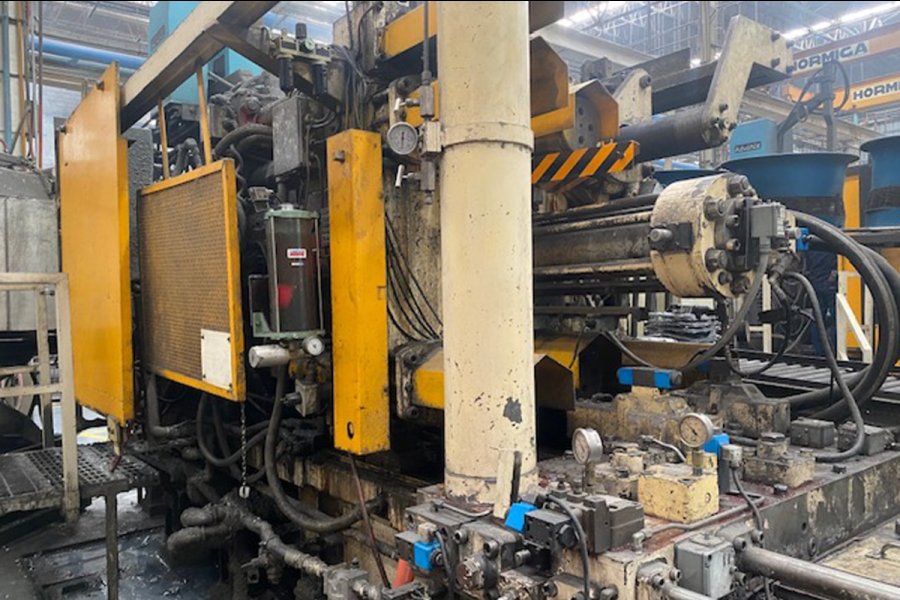

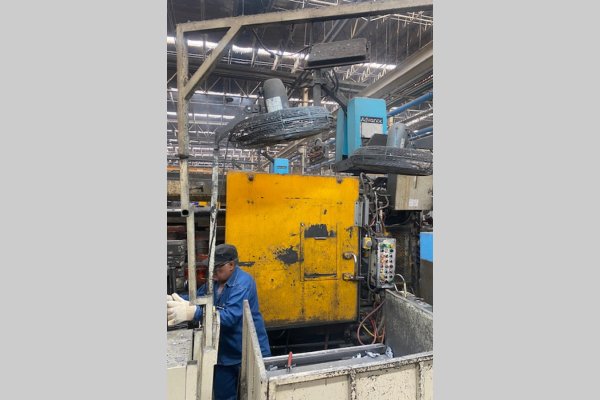

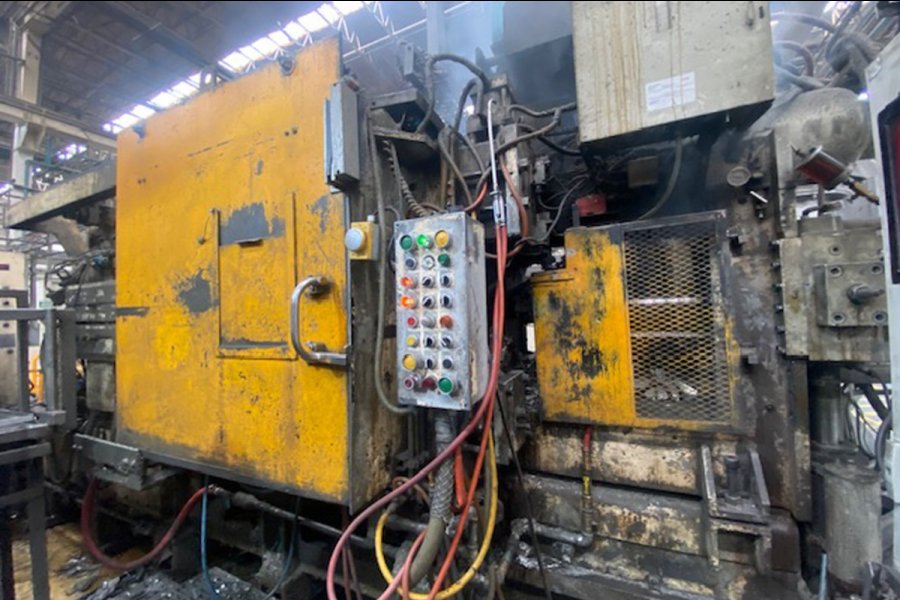

Used HPM Model: II-600-A 600 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:

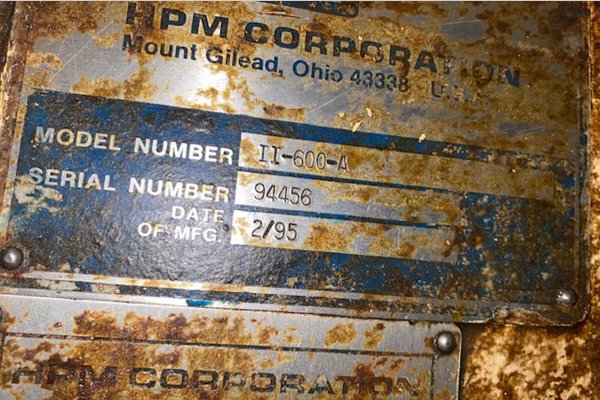

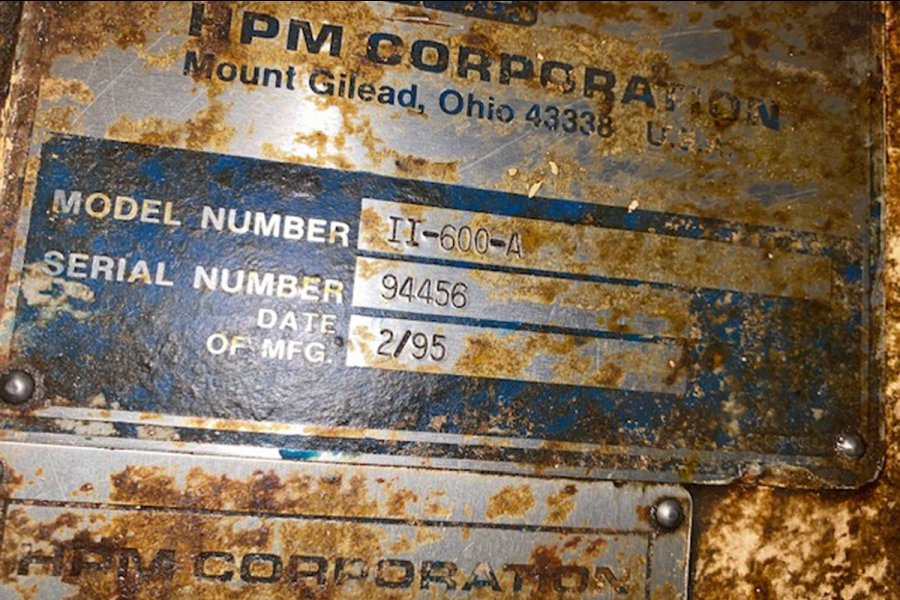

Manufacturer: HPM
Model: II-600-A
Size: 600 U.S. Tons
Inventory Number: DCM-5623
Used HPM Model: II-600-A 600 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
View Available Cold Chamber Die Casting Machines
Features & Accessories:

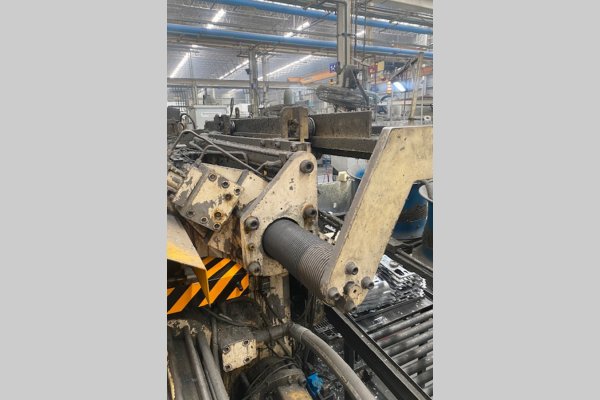

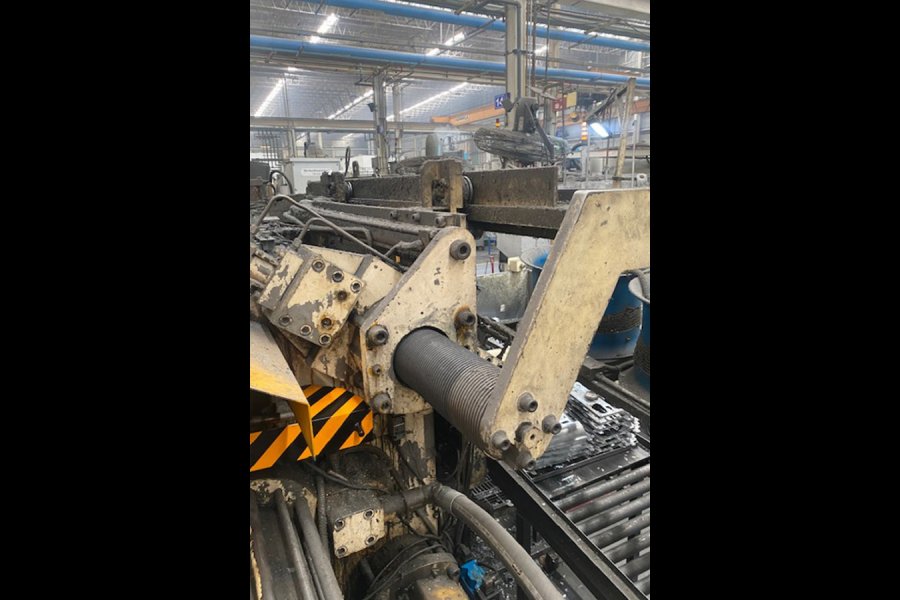

- Top Operator Side Automatic Tie Bar Pulling System
- Hydraulic Motorized Die Height System, Hydraulic Bumper Plate Ejection System

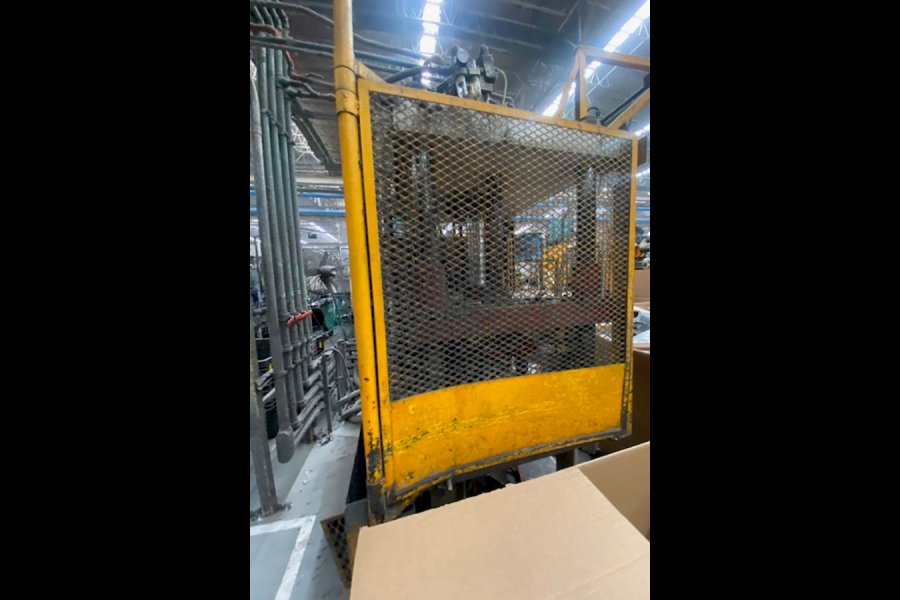

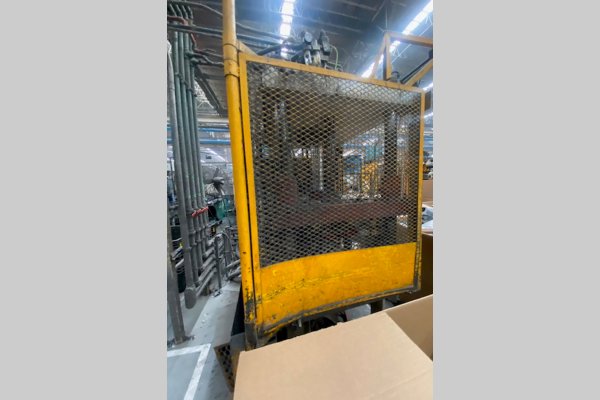

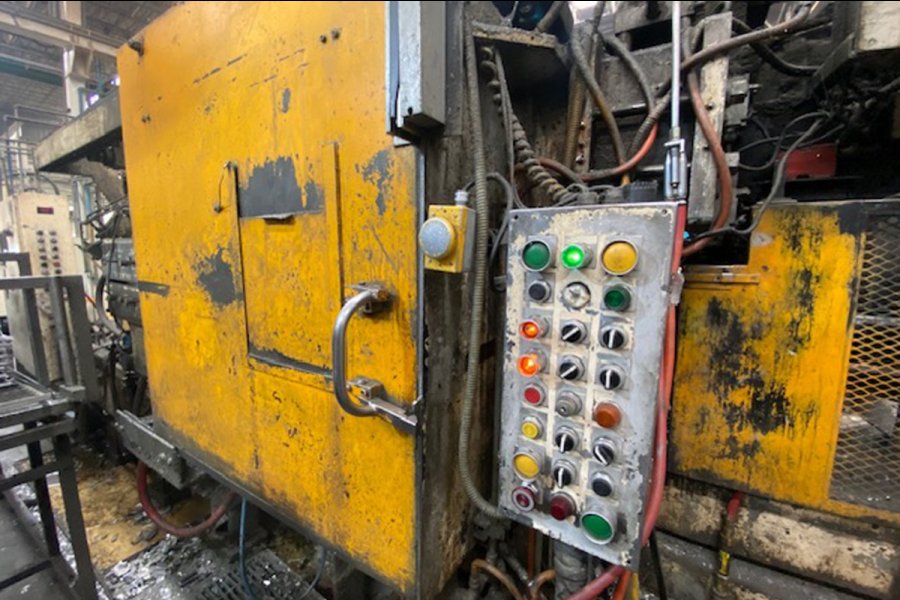

- Manual Operator & Helper Side Doors, Air Safety Ratchet
- Trabon Grease Type Automatic Lubrication System
- One (1) Auxiliary Hydraulic Side Core Circuit on Fix Platen

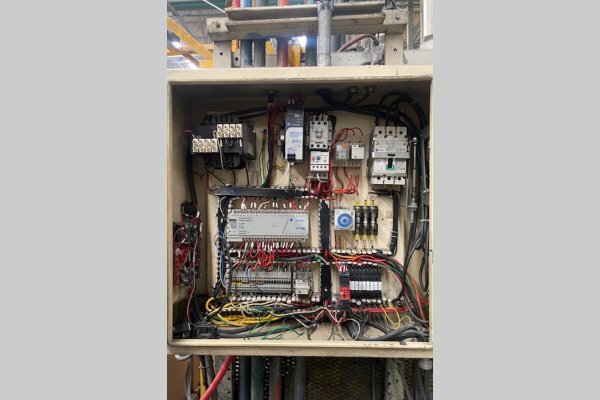

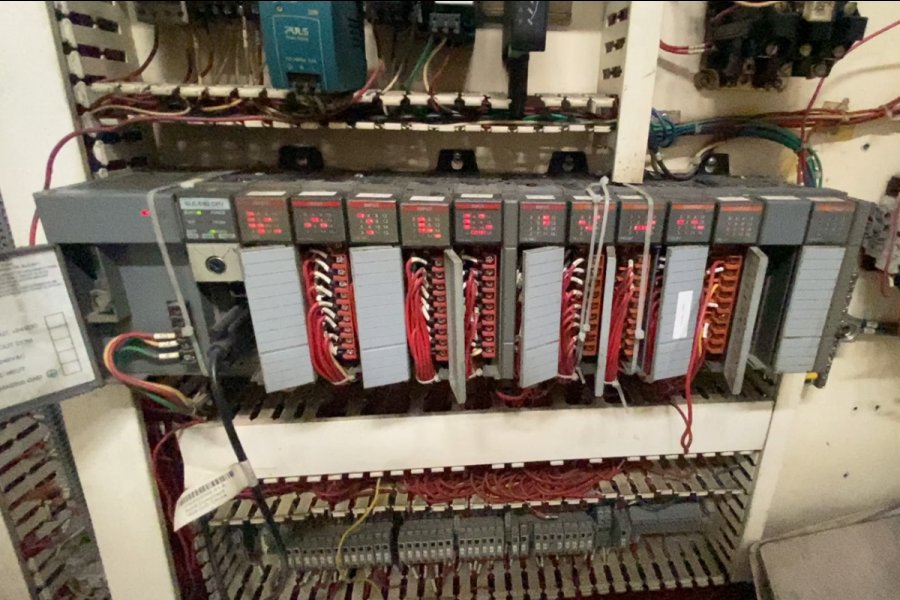

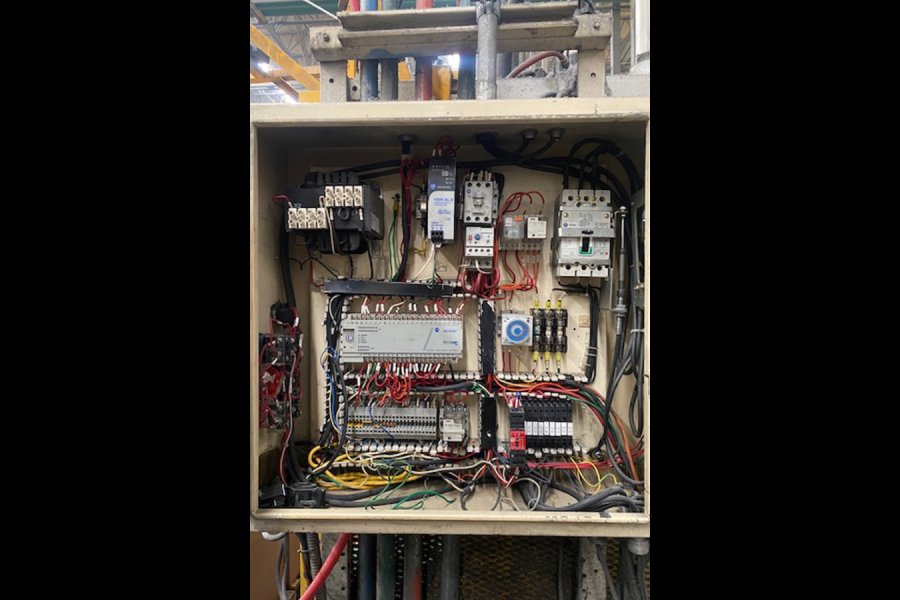

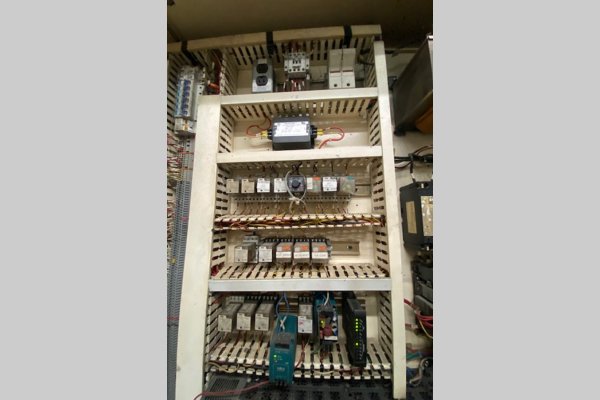

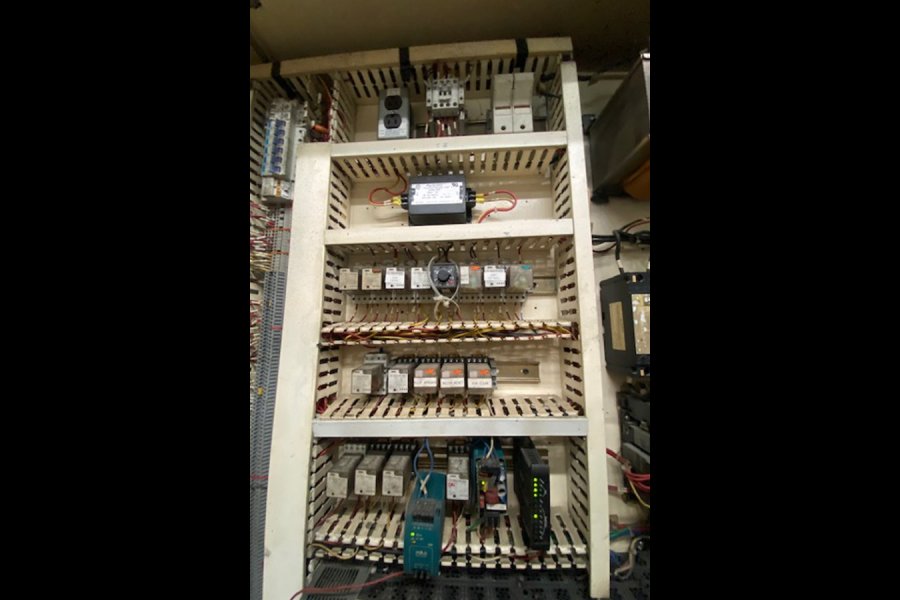

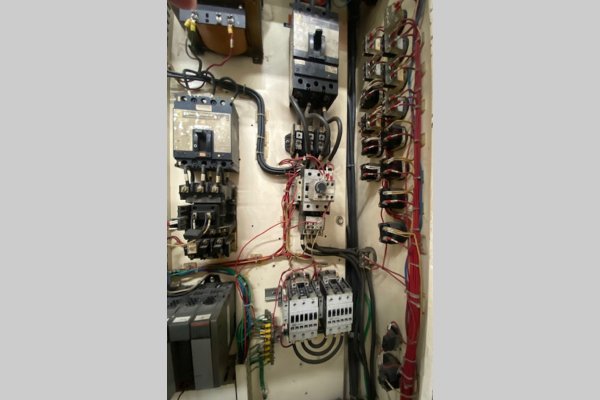

- Allen Bradley SLC 5/03 Solid State Controls
Item Specifications for DCM-5623
| Specifications | |
|---|---|
| Locking Force: |
600 tons
|
| Tie Bar Diameter: |
6 inches
|
| Clearance Between Tie Bars (H x V): |
29 x 29 inches
|
| Die Thickness (minimum - maximum): |
14 - 36 inches
|
| Die Stroke (minimum - maximum): |
12 - 18 inches
|
| Moving Platen Size: |
48 x 48 inches
|
| Shot Positions: |
Inserted, Center to -9 inches Below
|
| Shot Cylinder Stroke: |
19 - 23 inches
|
| Shot Intensification: |
Multiplier Cylinder
|

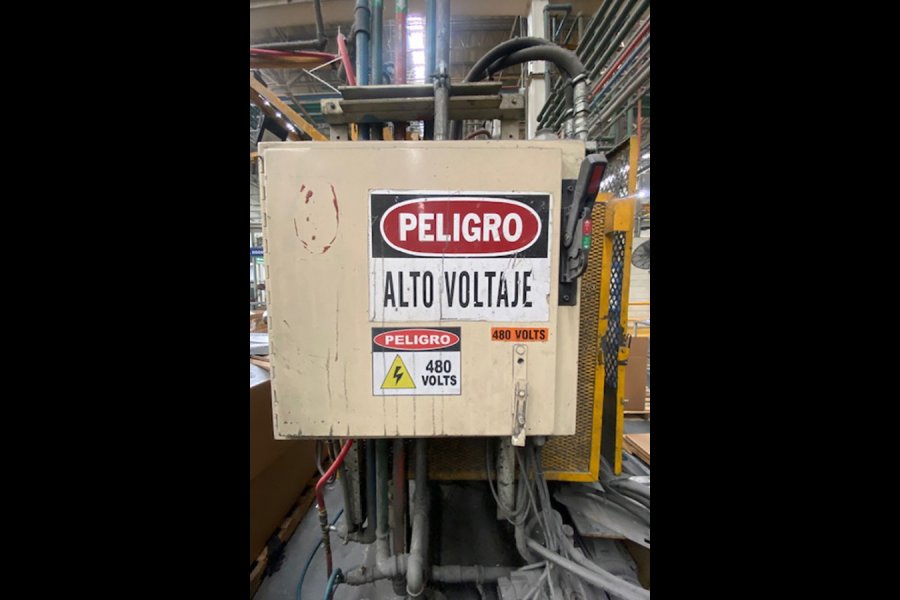

| Power: |
480/3/60
|
| Machine Size: |
7.1 x 26.2 feet
|
| Machine Weight: |
57,000 pounds
|
Description
Used, HPM Model II-600-A 600 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Pulling System, Hydraulic Motorized Die Height System, Hydraulic Bumper Plate Ejection System, Manual Operator & Helper Side Doors, Air Safety Ratchet, Trabon Grease Type Automatic Lubrication System, One (1) Auxiliary Hydraulic Side Core Circuit on Fix Platen, Allen Bradley SLC 5/03 Solid State Controls, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5623
