Used B&T Model: DC850 850 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: B&T

Model: DC850

Size: 850 Ton

Inventory Number: DCM-5642

Used B&T Model: DC850 850 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

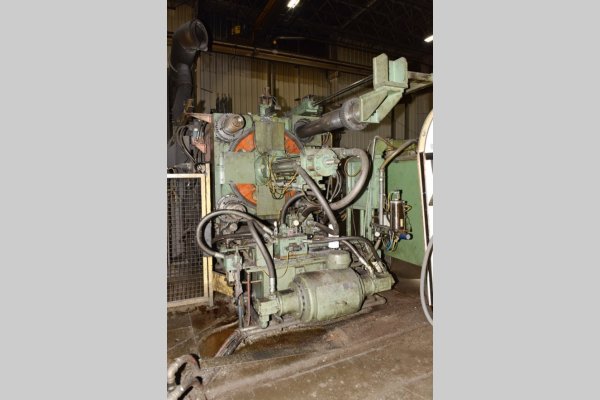

Picture of B&T DC850 Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale DCMP-5642

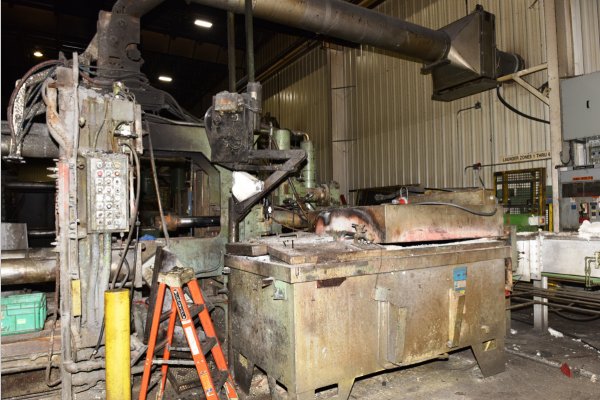

Picture of B&T Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCMP-5642

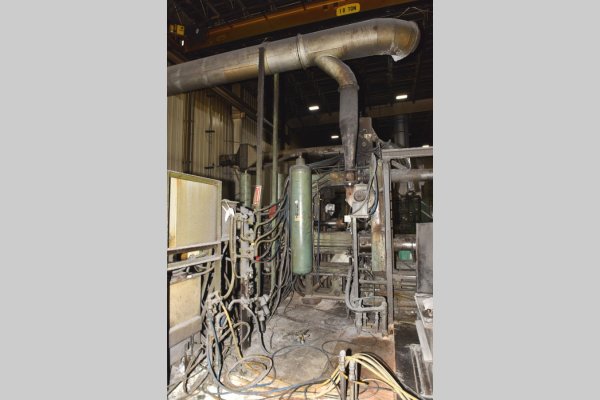

Image of Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale DCM-5642

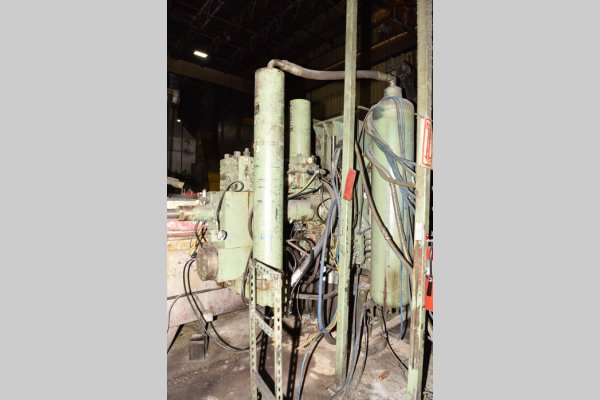

Image of B&T Model DC850 Cold Chamber Die Casting Machine For_Sale DCM-5642

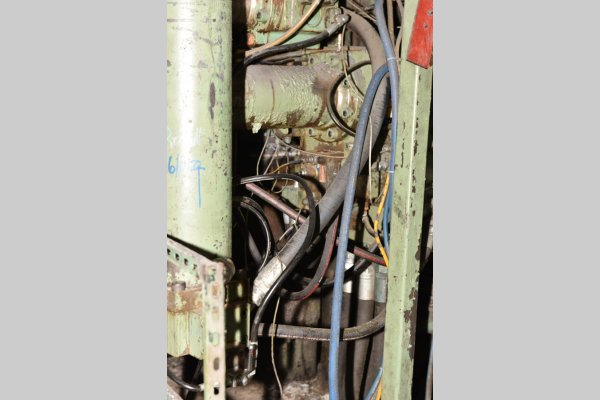

Picture of B&T Model DC850 Cold Chamber Die Casting Machine For_Sale DCM-5642

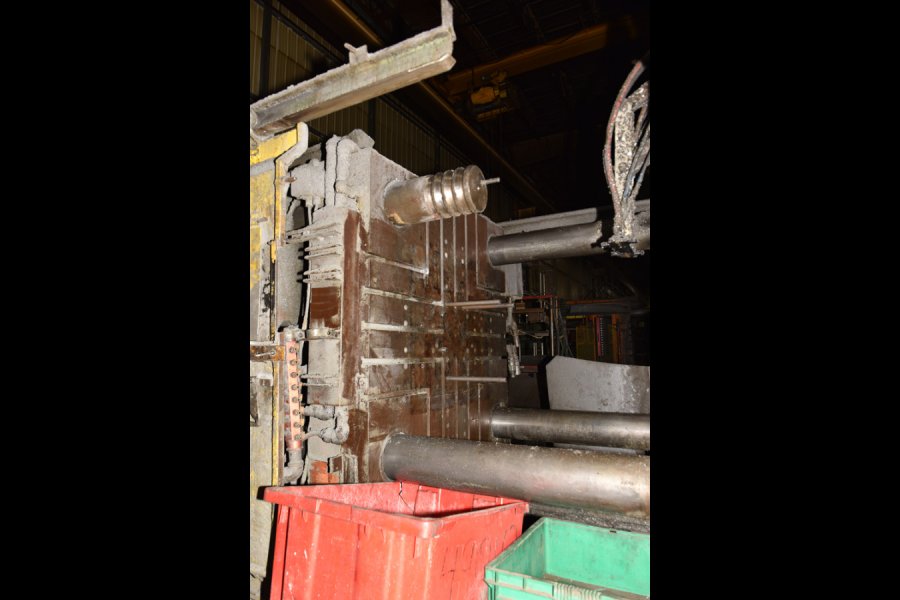

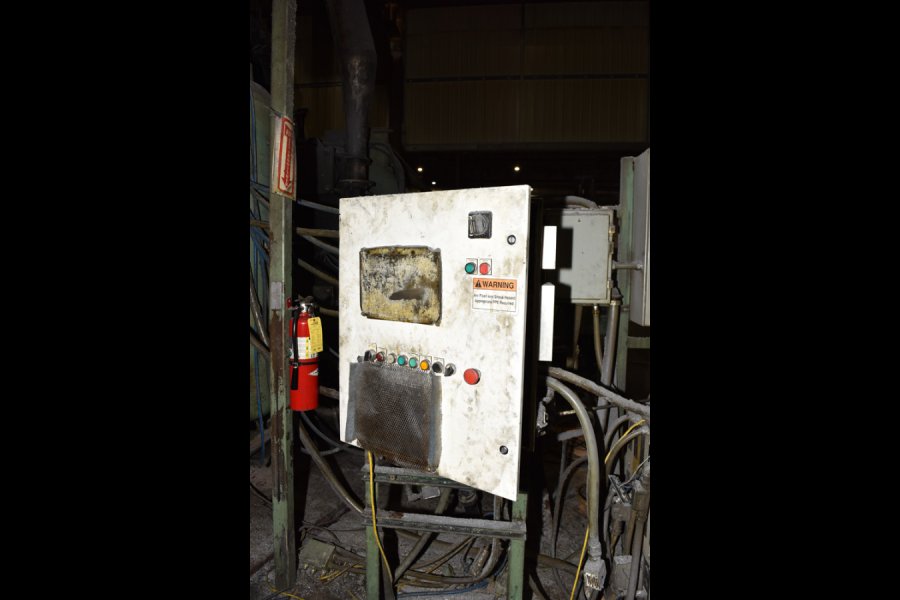

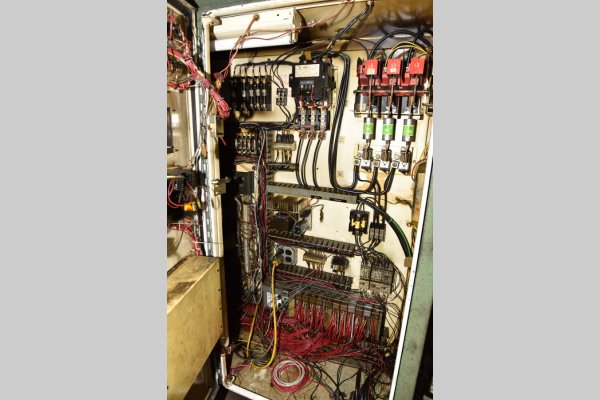

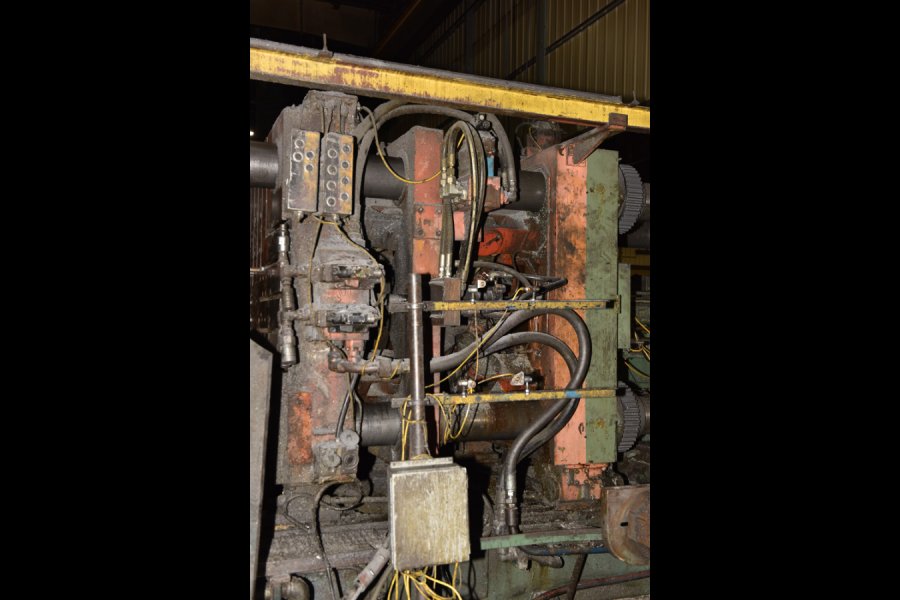

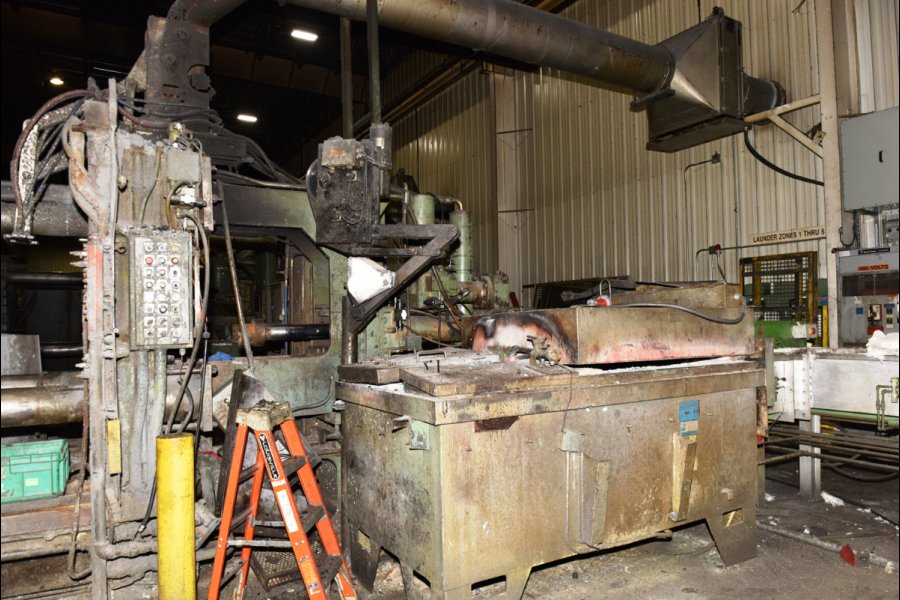

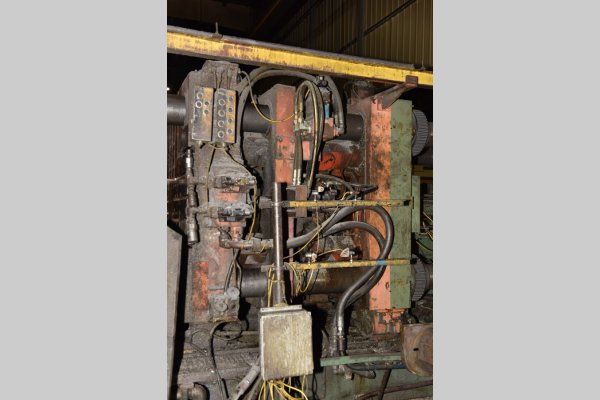

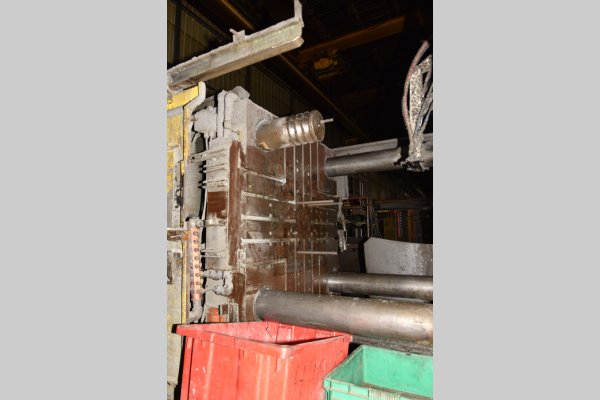

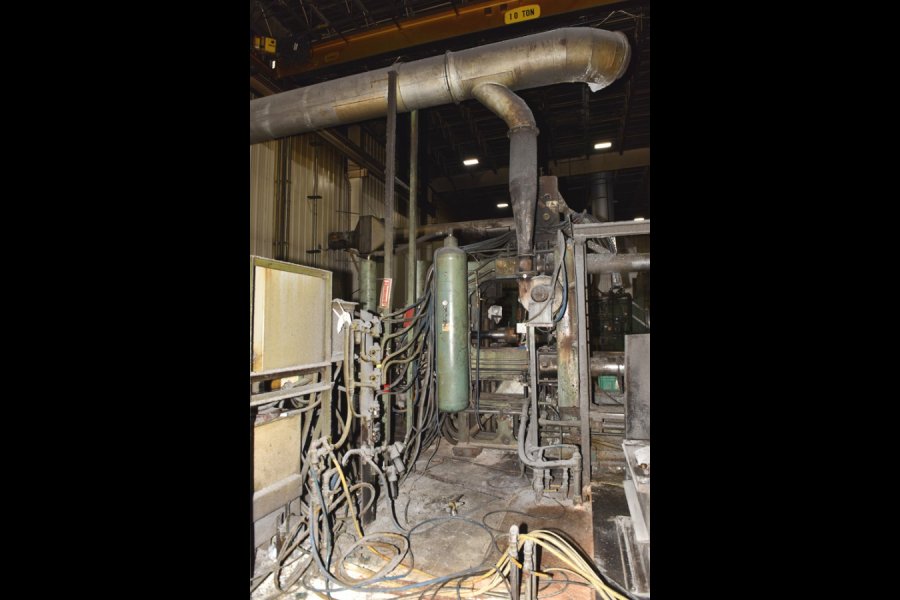

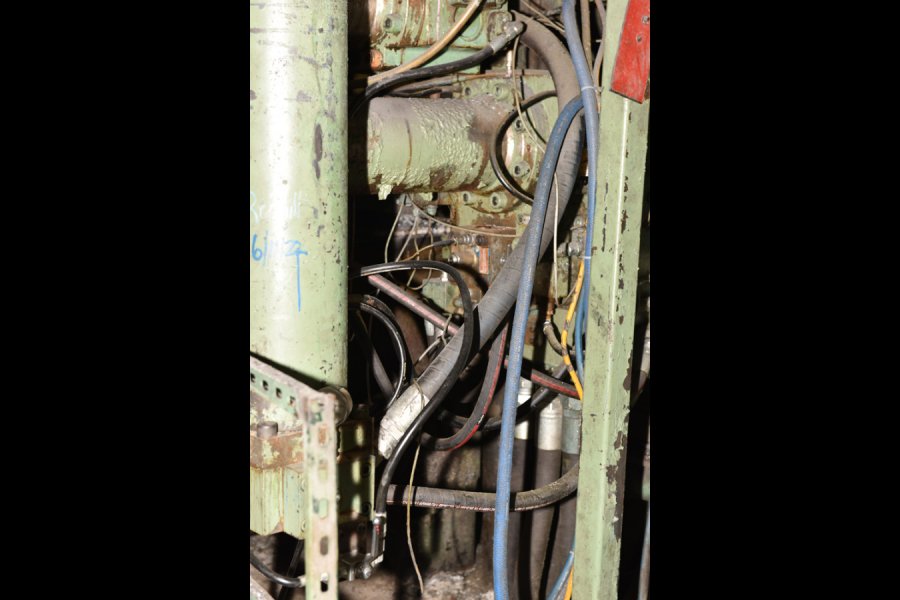

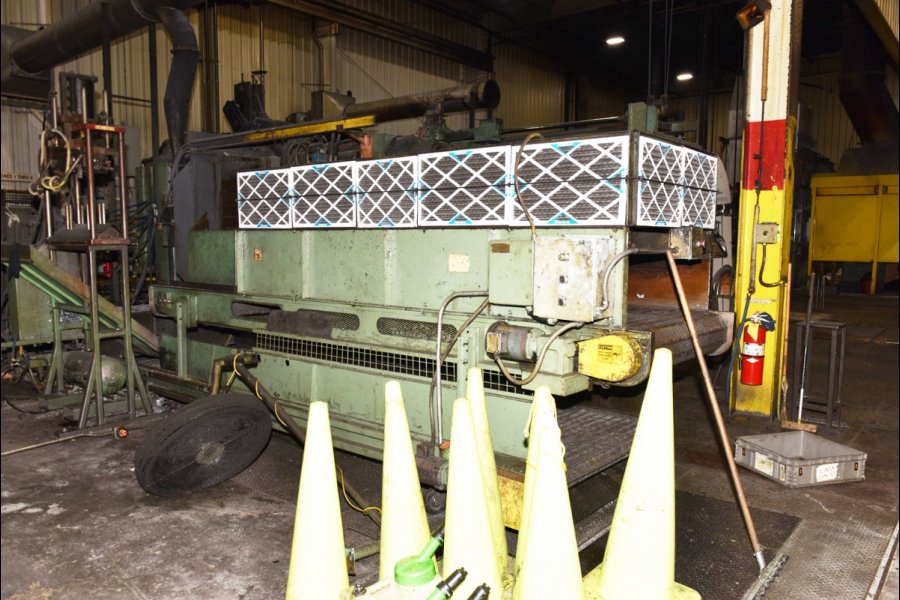

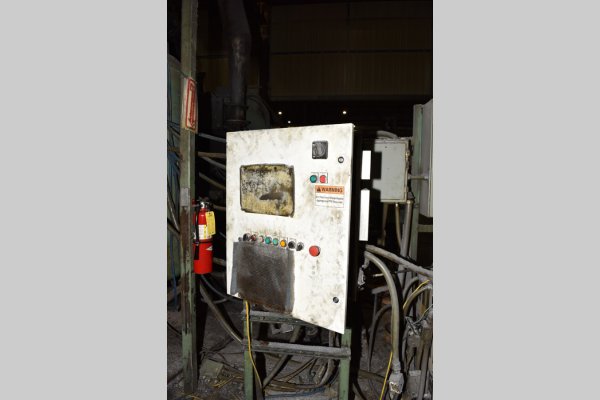

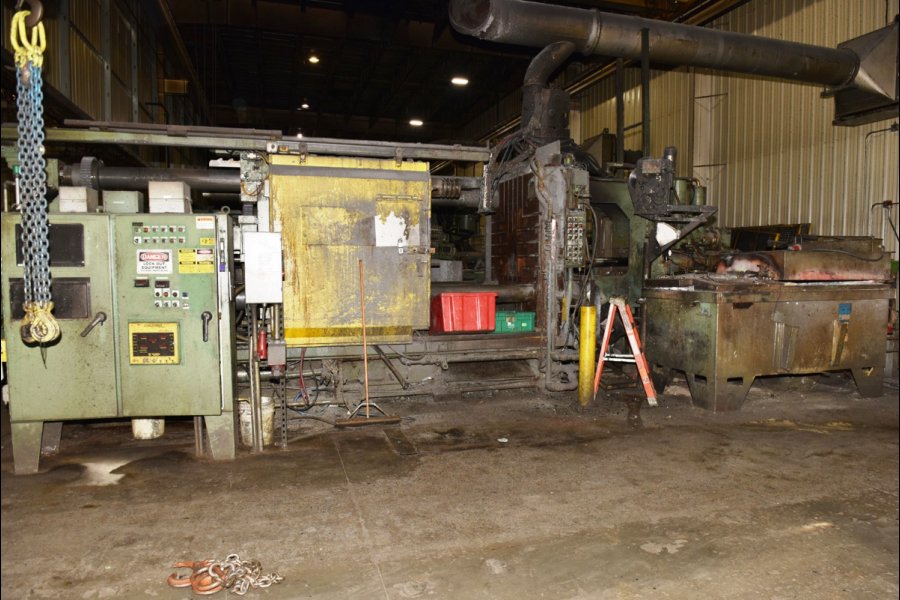

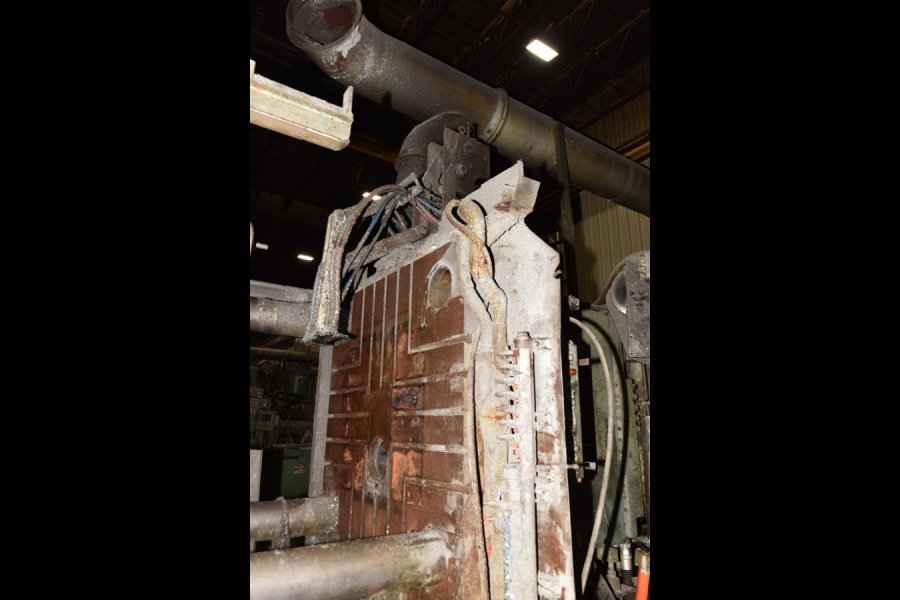

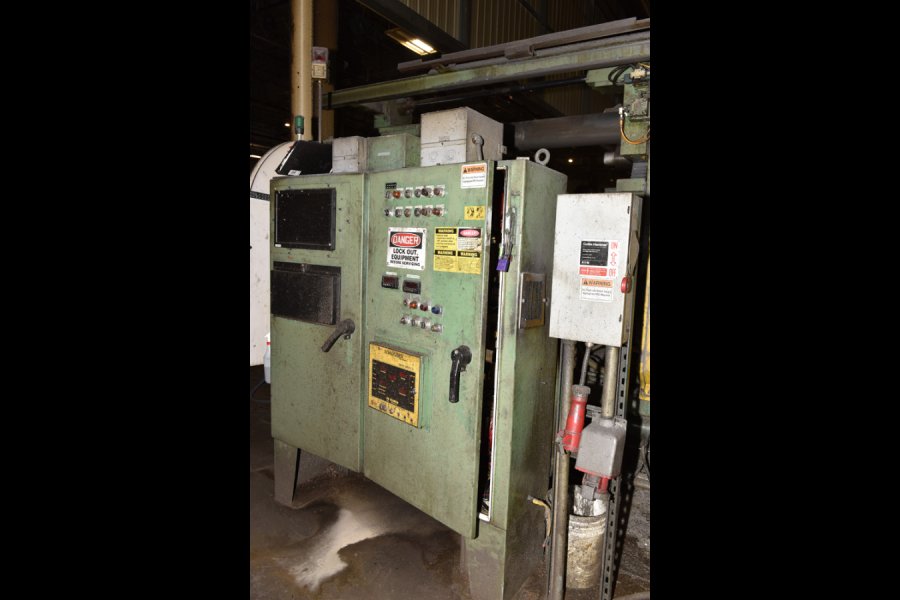

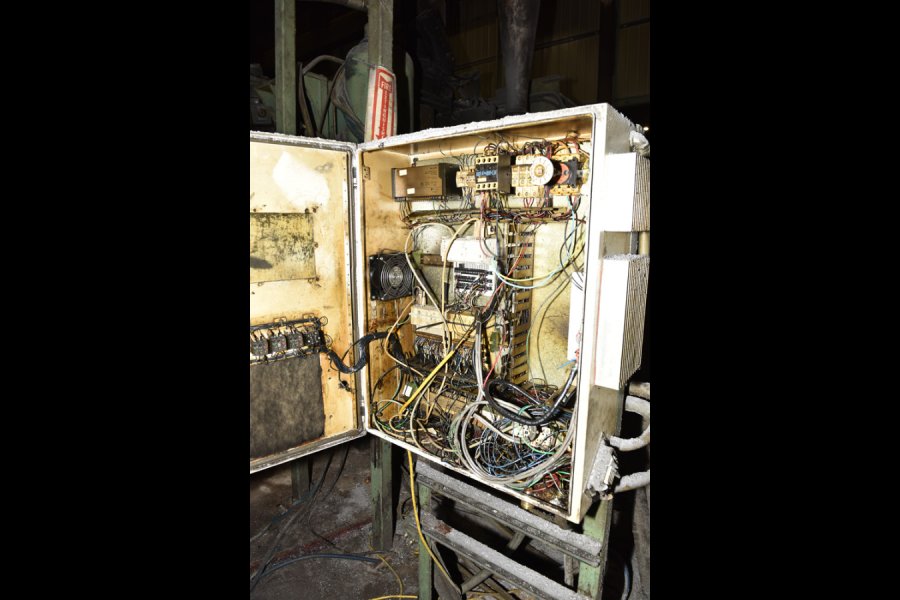

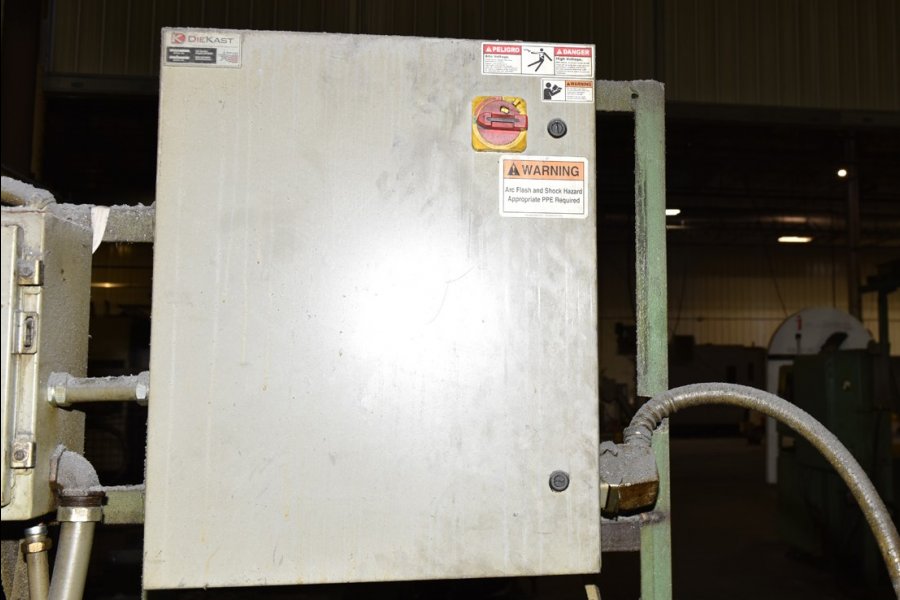

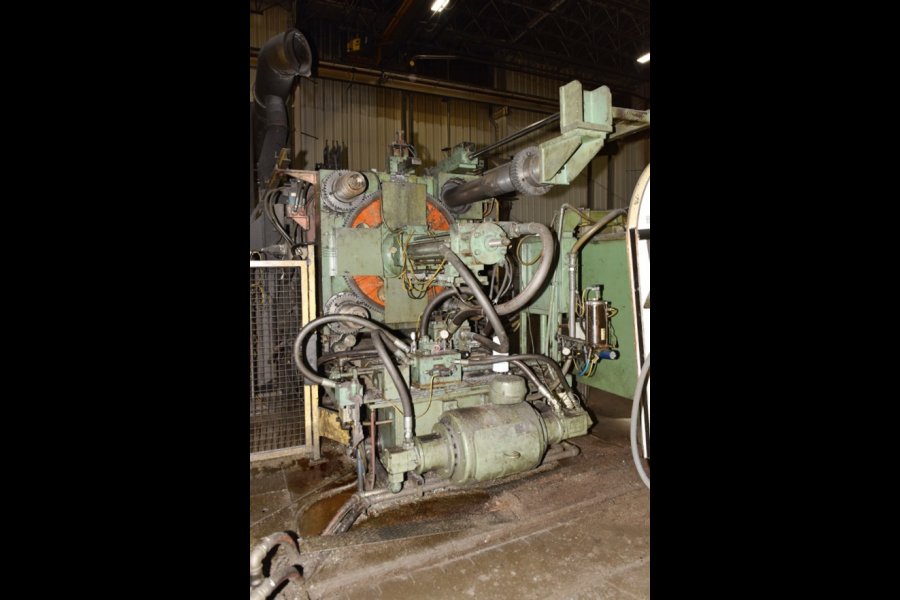

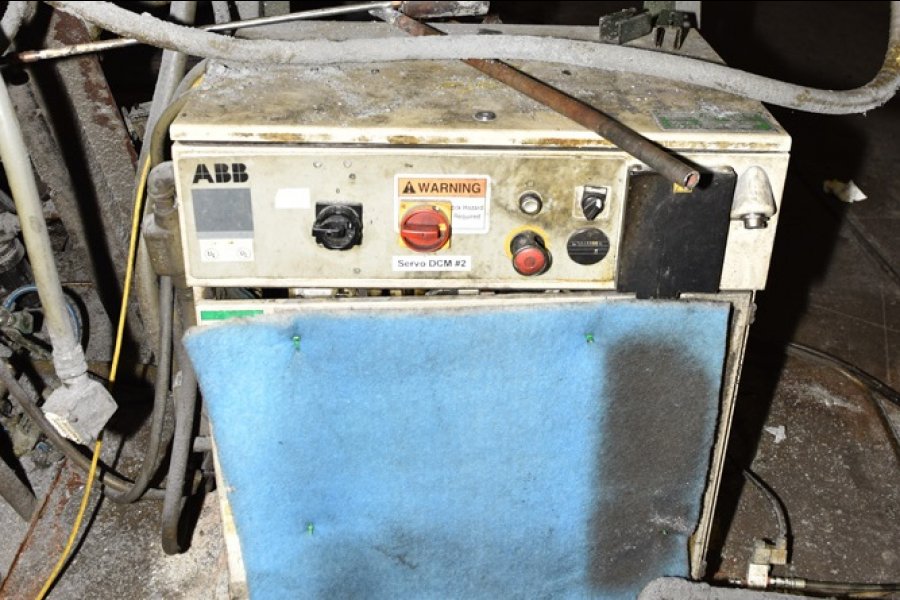

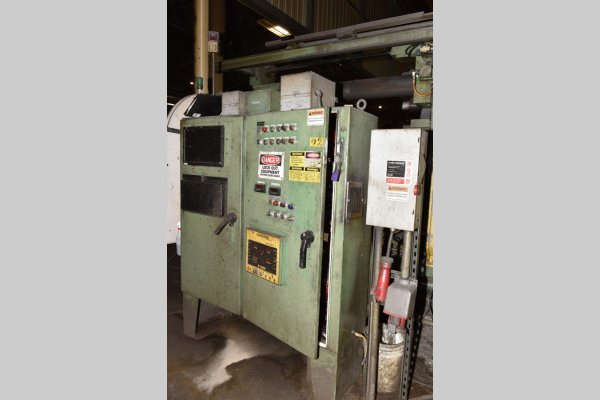

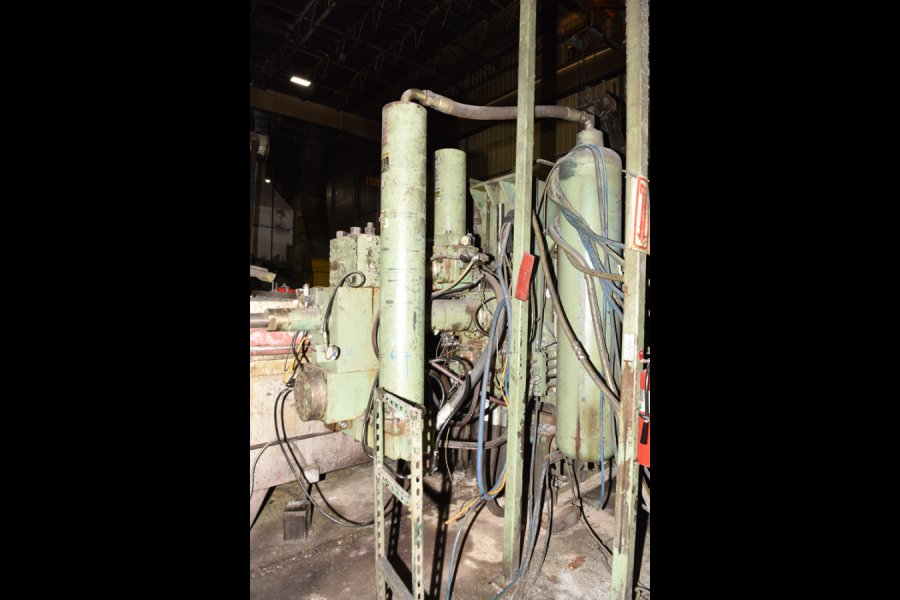

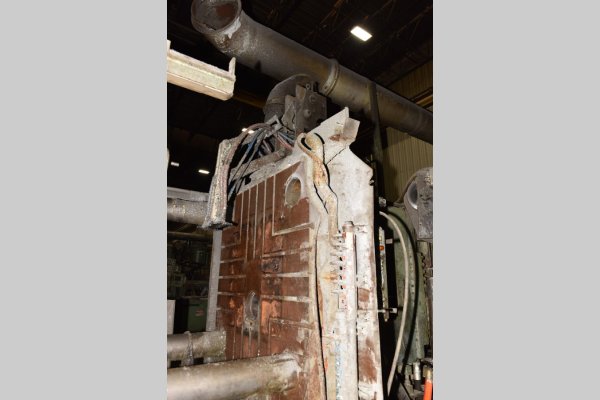

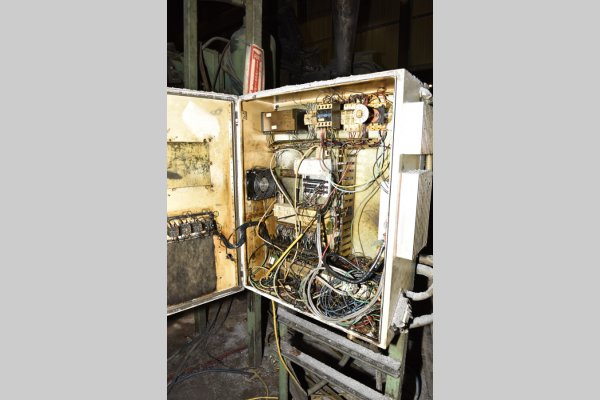

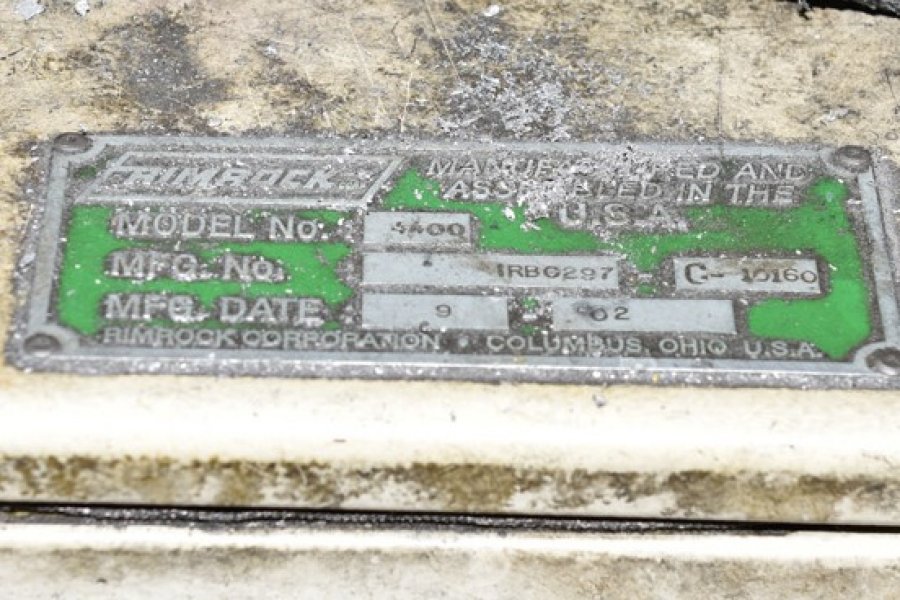

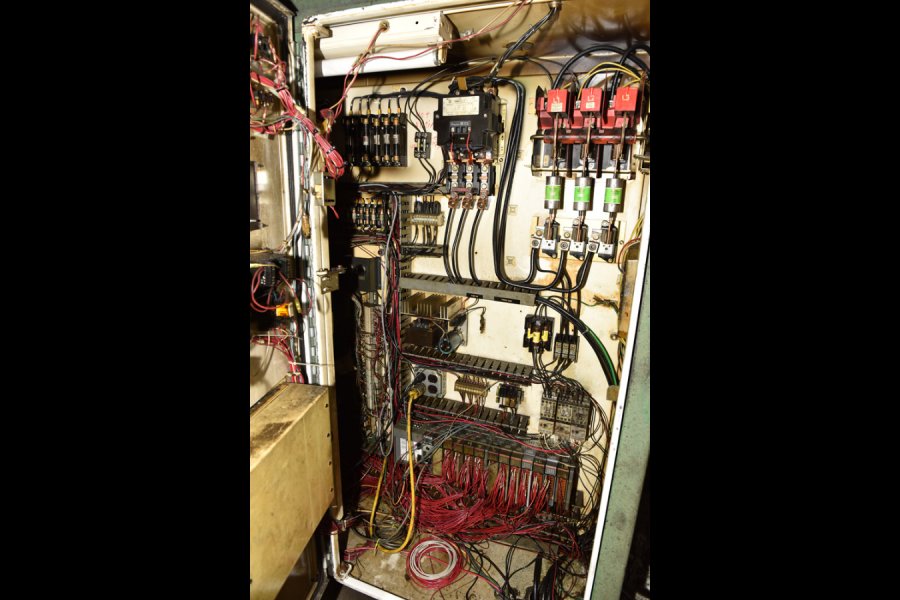

Detailed Pictures of B&T Cold Chamber Die Casting Machine DCMP-5642

Click above for larger image

Features & Accessories:

NOTE: This machine is in the process of the linkage being rebuilt - rebuild project needs to be complete
Top Operator Side Automatic Tie Bar Puller System
Hydraulic Powered Motorized Die Height Adjustment
Hydraulic Bumper Plate Ejection System
Trabon Automatic Lubrication System
Auxiliary Hydraulic Side Core Circuits

Related Categories

Related Brands

Cold Chamber

Cold Chamber Mag

European DCM

Die Casting Machine

Item Specifications for DCM-5642

Specifications
Locking Force:	850 tons 850 tons
Tie Bar Diameter:	9 inches 228 mm
Clearance Between Tie Bars:	45 x 45 inches 1143 x 1143 mm
Die Thickness (minimum - maximum):	24 - 50 inches 609 - 1270 mm
Die Stroke (minimum - maximum):	24 - 30 inches 609 - 762 mm
Moving Platen Size:	69 x 69 inches 1752 x 1752 mm
Shot Positions (removable Insert):	Center, -9, -12 below center Center, -228.6, -304.8 mm
Injection Cylinder Stroke:	32 - 38 inches 812 - 965 mm
Ejector Stroke & Force:	5 inches & 31.9 tons 127 mm & 29 tons
Main Motor Power:	75 HP 56 kw
Machine Size:	36 x 10.3 x 12.5 feet 10.97 x 3.15 x 3.81 meters
Machine Weight:	160,000 pounds 72,727 kg

Description

Used, B&T Model DC850 850 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Hydraulic Powered Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Trabon Automatic Lubrication System, Auxiliary Hydraulic Side Core Circuits Allen Bradley SLC 5/04 controls, second Hand, DCM-5642
