Used National 184 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

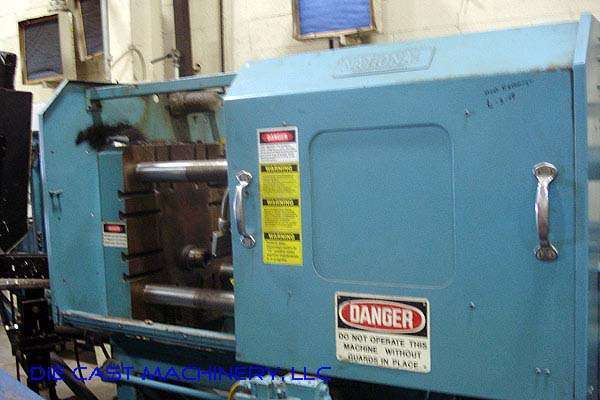

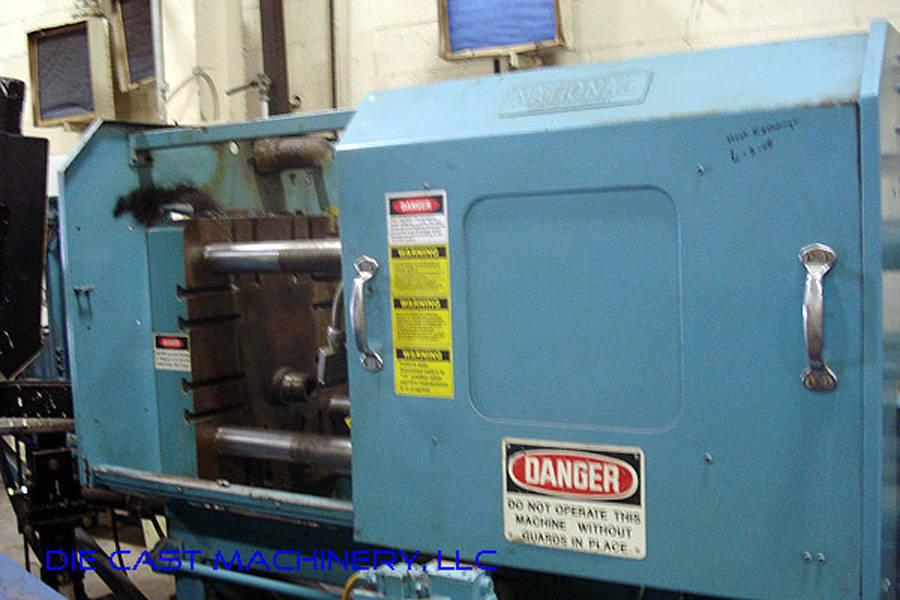

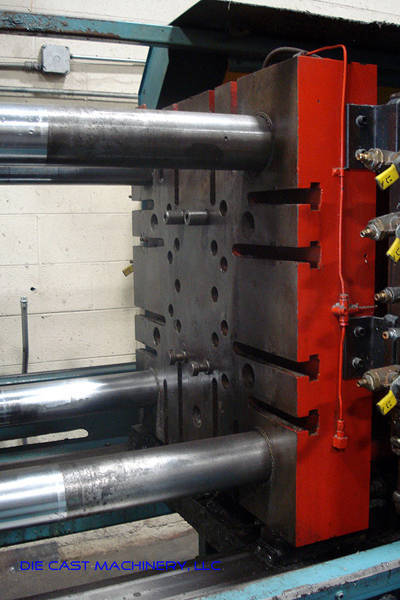

Used National 184 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine. Inventory item: DCM-2119.

Manufacturer: National

Model: H-150ALX v

Features & Accessories

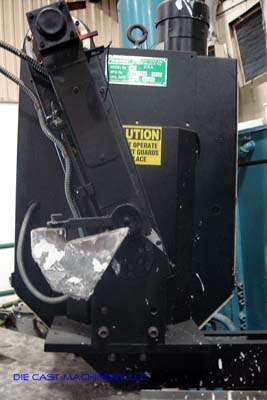

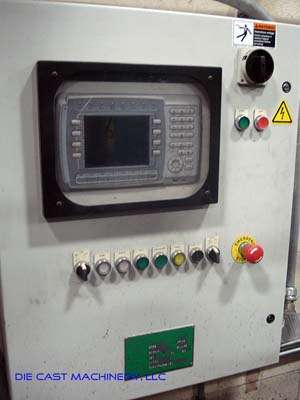

  • Rimrock 352 Autoladle with Epic Controls

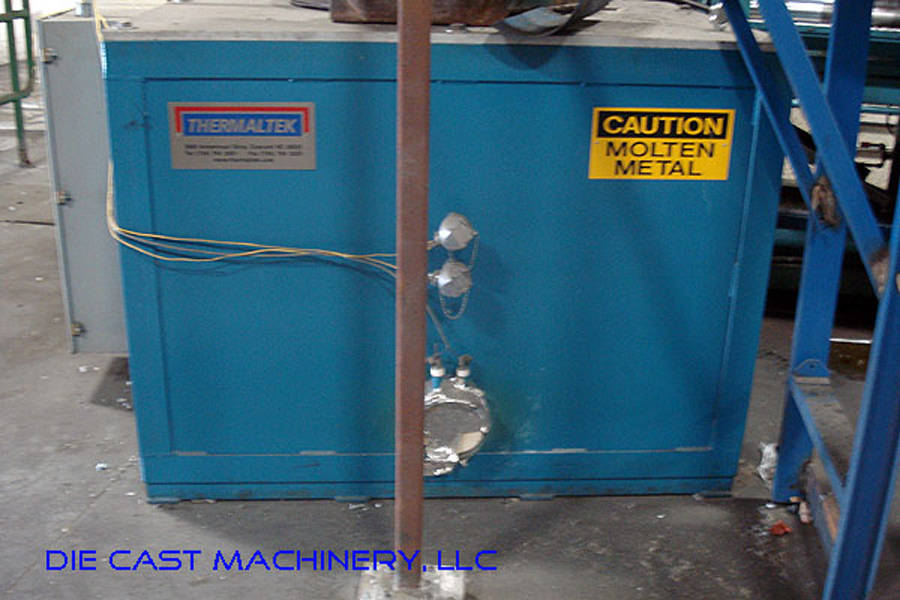

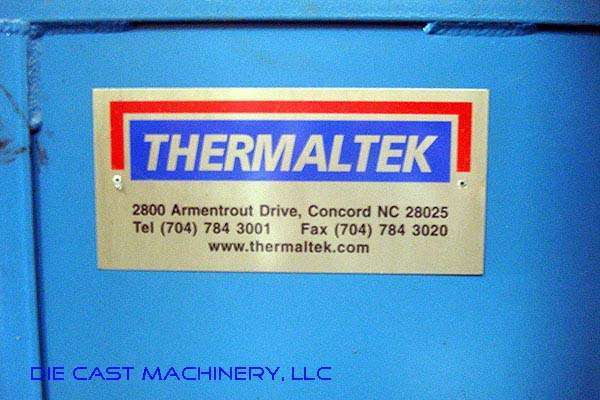

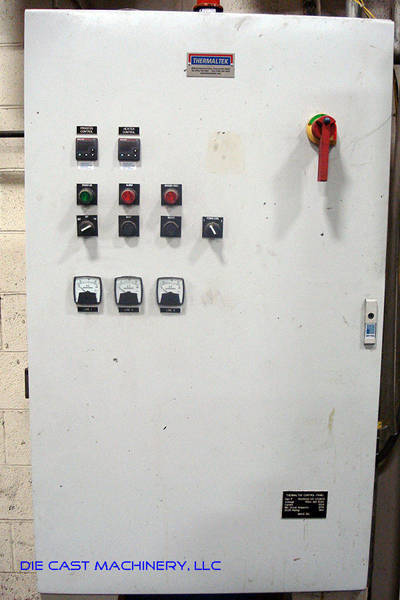

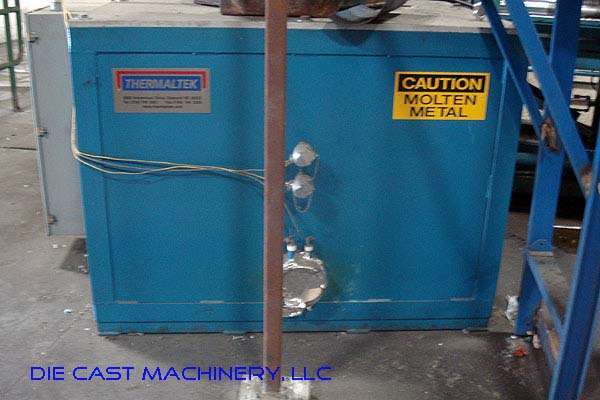

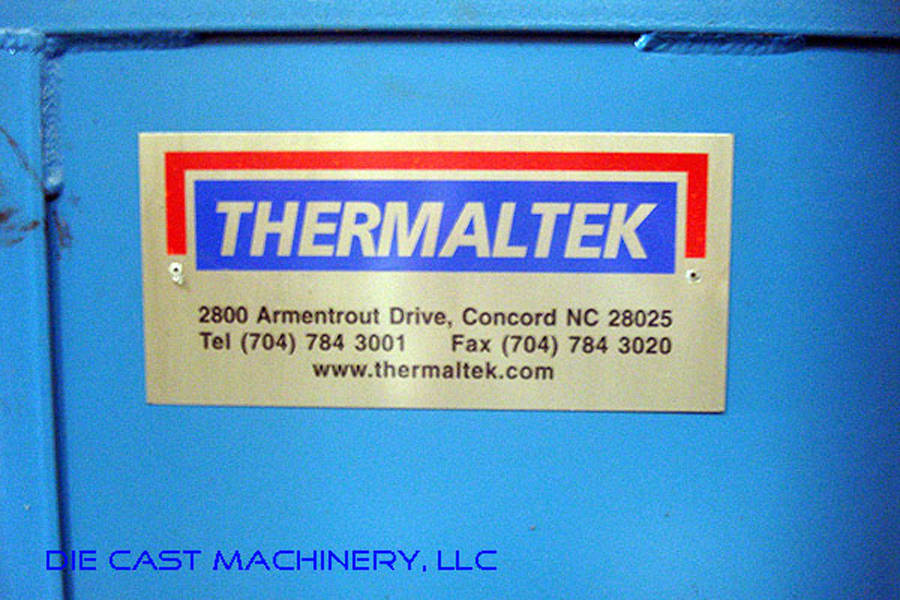

  • Thermaltek Aluminum Furnace
  • Quench Tank

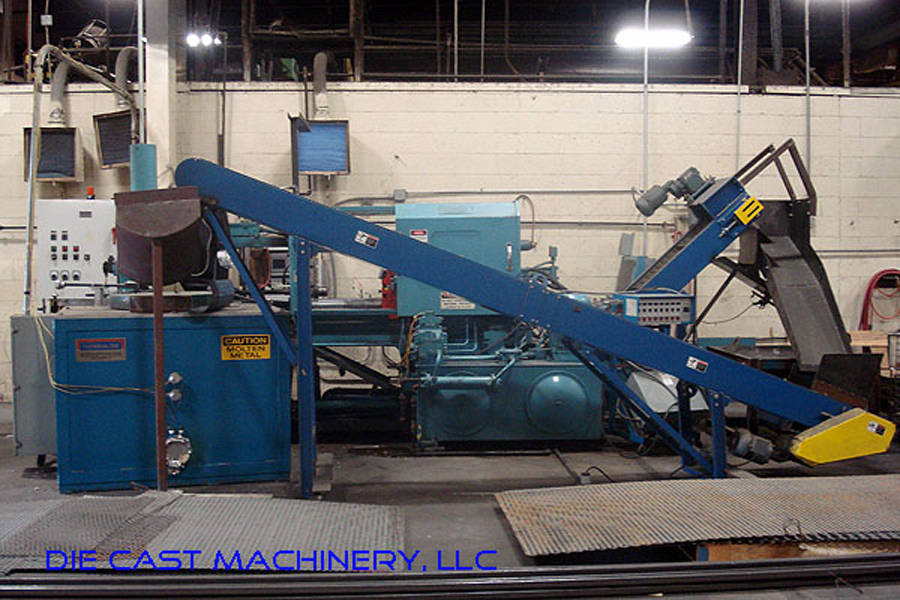

  • Quench Tank Conveyor

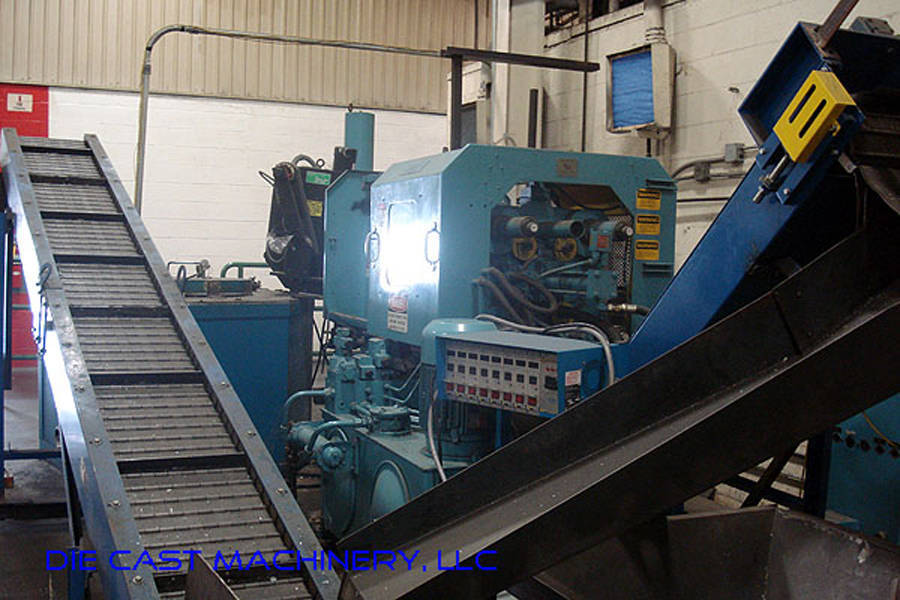

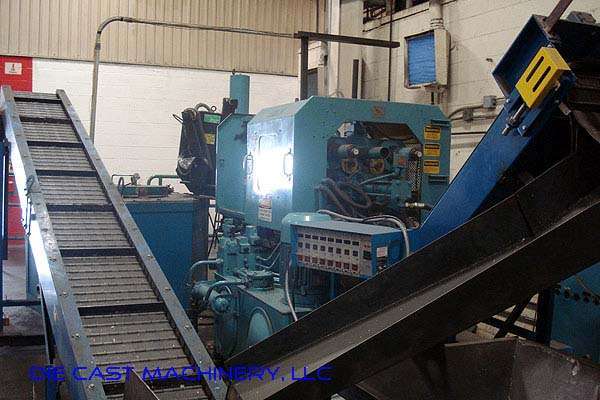

  • Parts Conveyor

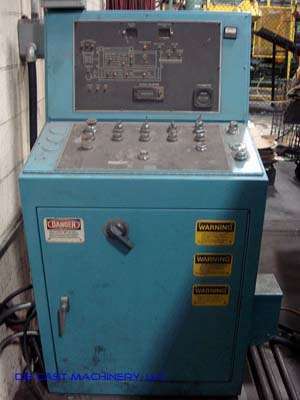

  • Allen Bradley Controls

Item Specifications for DCM-2119

Specifications
Clamping Force:
184.6 tons
Clamping Cylinder Diameter:
3.25 inches

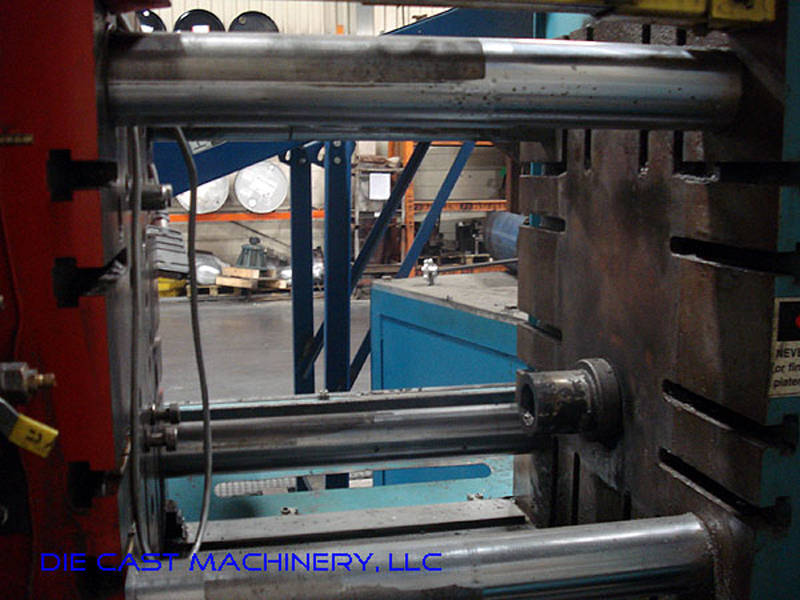

Tie Bar Centers (H x V):
18 inches x 18 inches
Tie Bar Diameter:
3 inches
Distance Between Tie Bars (H x V):
15 inches x 15 inches

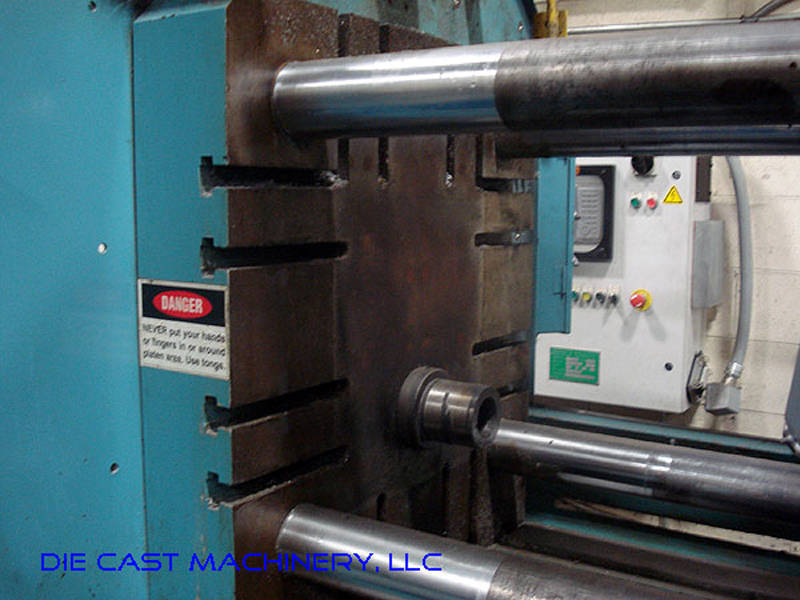

Stationary Platen Dimensions (V x H):
28 inches V x 26 inches H x 5 inches
Moving Platen Dimensions:
26 inches x 26 inches x 5 inches
Moving Platen Stroke:
10 inches
Die Height:
Min 6 inches - Max 20 inches
Hydraulic Ejector Stroke:
2.5 inches
Hydraulic Ejector Force:
7,363 pounds
Shot Positions:
Center and 4 inches below center

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, National Model H-150ALX v 184 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Rimrock 352 Autoladle with Epic Controls, Thermaltek Aluminum Furnace, Quench Tank, Quench Tank Conveyor, Parts Conveyor, Allen Bradley Controls, Allen Bradley Controls, Second Hand, DCM-2119

The following technical terms are to assist you with searches: Used | Second Hand | National |H-150ALX v | 184 Ton | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | Rimrock 352 Autoladle with Epic Controls | Thermaltek Aluminum Furnace | Quench Tank | Quench Tank Conveyor | Parts Conveyor | Allen Bradley Controls | Allen Bradley Controls | DCM-2119
